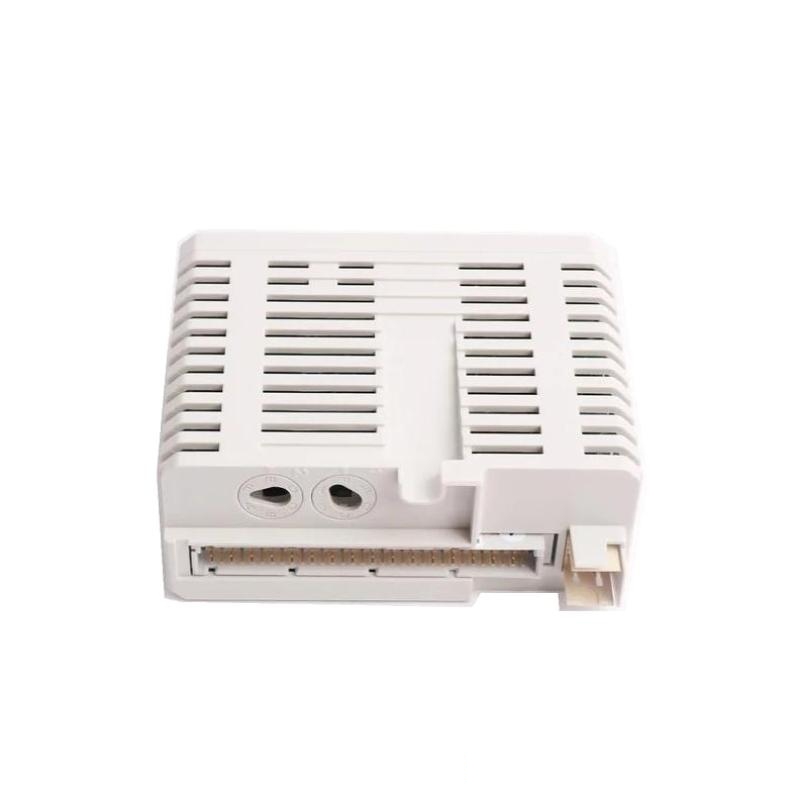

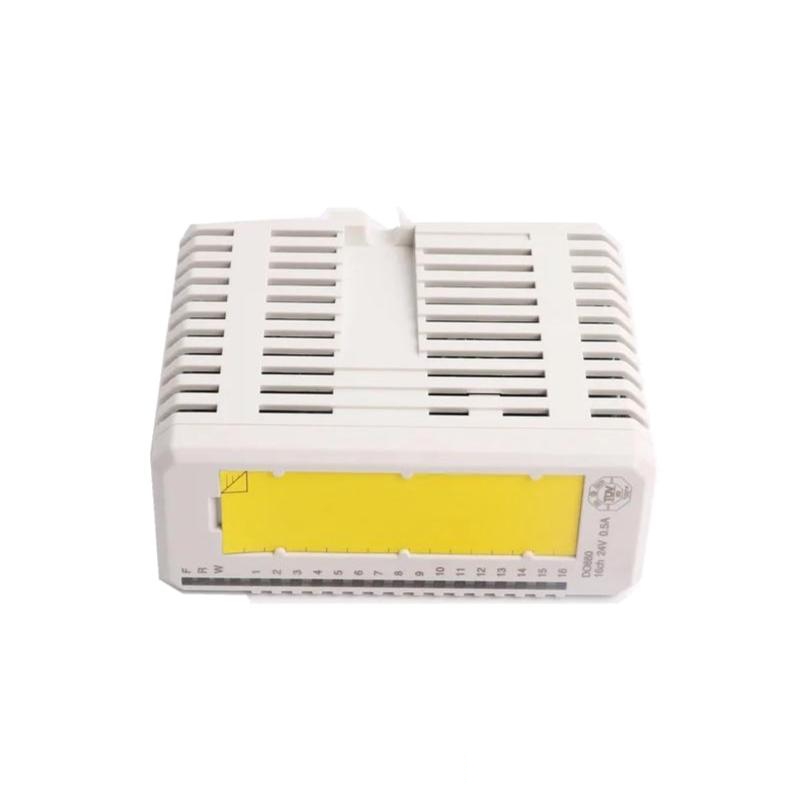

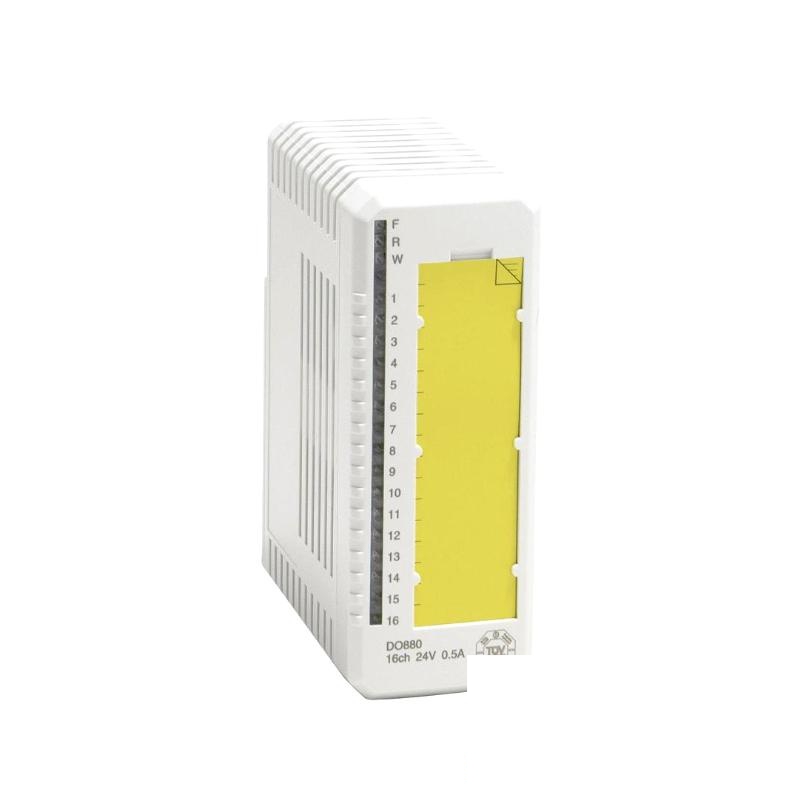

ABB DO880 3BSE028602R1 Digital Output Module
Product Overview
The ABB DO880 3BSE028602R1 is a high-performance digital output module designed for use in ABB’s industrial control systems. It is part of the ABB Freelance/AC800M system, designed for controlling and monitoring digital output signals for processes requiring precise control of various field devices, such as valves, actuators, and other peripheral components. This module operates in both high-demand applications and harsh industrial environments, offering fast, reliable output switching and control.
With a compact design, the DO880 module is engineered to deliver enhanced performance, flexibility, and long-term reliability, making it an essential component in complex control systems. The module supports both isolated and non-isolated outputs, offering versatility across a wide range of industrial applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DO880 3BSE028602R1 |
| Series | ABB Freelance/AC800M |
| Form Factor | DIN-rail mount |
| Dimensions (H × W × D) | 45 × 102 × 119 mm |
| Weight | 0.2 kg |
| Power Supply | 24 V DC (nominal) |
| Output Type | Digital, isolated |
| Output Channels | 8 (4 isolated, 4 non-isolated) |
| Output Voltage | 24 V DC (±10%) |
| Output Current | 0.5 A per channel (max) |
| Isolation | 2500 V RMS |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5% to 95% RH, non-condensing |
| Compliance | CE, UL, RoHS |
| Mounting Type | DIN Rail 35 mm |
| Protection | Reverse polarity, short-circuit protection |
| Response Time | 10 ms (max) |
| Certification | UL Listed, CE Certified |
Applications
The ABB DO880 3BSE028602R1 digital output module is widely used in various industrial automation applications, including:
-
Manufacturing: For controlling actuators, solenoids, and other digital devices in assembly lines and production processes.
-
Water and Wastewater Treatment: For regulating valves and pumps to control flow, level, and pressure.
-
Oil and Gas: Used for controlling remotely operated valves, electrical isolation, and other output devices in hazardous locations.
-
Power Generation: For controlling field devices such as relays, circuit breakers, and alarms in electrical power plants.
-
Building Automation: Used for controlling HVAC systems, lighting, and other essential building infrastructure.
Product Advantages
-
High Reliability: Built to provide long-lasting performance, with a robust design that meets strict industrial standards.
-
Compact Size: With dimensions of just 45 × 102 × 119 mm, it is easy to integrate into existing systems without requiring significant space.
-
Wide Compatibility: The module supports a wide range of protocols and integrates seamlessly with ABB’s control systems like Freelance and AC800M.
-
Flexibility: The DO880 module offers both isolated and non-isolated outputs, making it adaptable for various applications in different environments.
-
Efficient Power Consumption: Designed to operate at 24 V DC with minimal power draw, improving overall system energy efficiency.
-
Enhanced Protection: Equipped with reverse polarity and short-circuit protection, it ensures safe operation even in challenging environments.
Brand: ABB
ABB is a global leader in industrial automation and electrification, providing advanced technologies to improve energy efficiency and productivity across various sectors, including energy, utilities, manufacturing, and transportation. ABB’s solutions are renowned for their reliability, scalability, and long-term sustainability, offering integrated systems that help businesses optimize their operations.
Related Models – Same / Companion Series
| Model | Description | Function Type |
|---|---|---|
| DO810 | Digital output module, 8 outputs | Isolated, high-current control |
| DO870 | 16-channel digital output module | Non-isolated, compact control |
| DO850 | Digital output module, high-voltage applications | Isolated, high-voltage control |
| AI880 | Analog input module, 8 channels | Analog data acquisition |
| DI880 | Digital input module, 16 channels | Digital signal input, fast response |
Popular ABB Models
| Model | Description | Function Type |
|---|---|---|
| AI931 | 8-channel analog input module | High-precision analog measurement |
| TU865 | Fieldbus termination unit | Reliable field I/O connection |
| CS513 | Communication module for remote I/O | Gateway for distributed control |
| AO830 | Analog output module, 8 channels | High-accuracy analog control |
| DI890 | Digital input module, 32 channels | Fast digital signal input |
Frequently Asked Questions (FAQ)
Q1：How many outputs does the DO880 have?
A1：The DO880 module has 8 digital outputs, including 4 isolated and 4 non-isolated.
Q2：What is the maximum output current per channel?
A2：Each output channel can handle up to 0.5 A.
Q3：What voltage does the DO880 operate on?
A3：The module operates on 24 V DC (±10%).
Q4：What is the response time of the DO880?
A4：The response time is a maximum of 10 ms.
Q5：Can the module be used in harsh environments?
A5：Yes, the module is designed to operate in temperatures ranging from -20 °C to +60 °C.
Q6：How does the DO880 protect against faults?
A6：The module features reverse polarity and short-circuit protection to prevent damage.
Q7：What is the isolation voltage of the DO880?
A7：The DO880 offers 2500 V RMS isolation between outputs and supply.
Q8：How is the module mounted?
A8：The module is designed to be mounted on a standard 35 mm DIN rail.
Q9：What certifications does the module have?
A9：The DO880 is UL Listed, CE Certified, and RoHS compliant.
Q10：What is the weight of the DO880 module?
A10：The module weighs approximately 0.2 kg.
