Siemens A5E00319306 Fan Unit: Product Overview, Technical Specifications, Applications, Advantages, and Related Models

1. Product Introduction

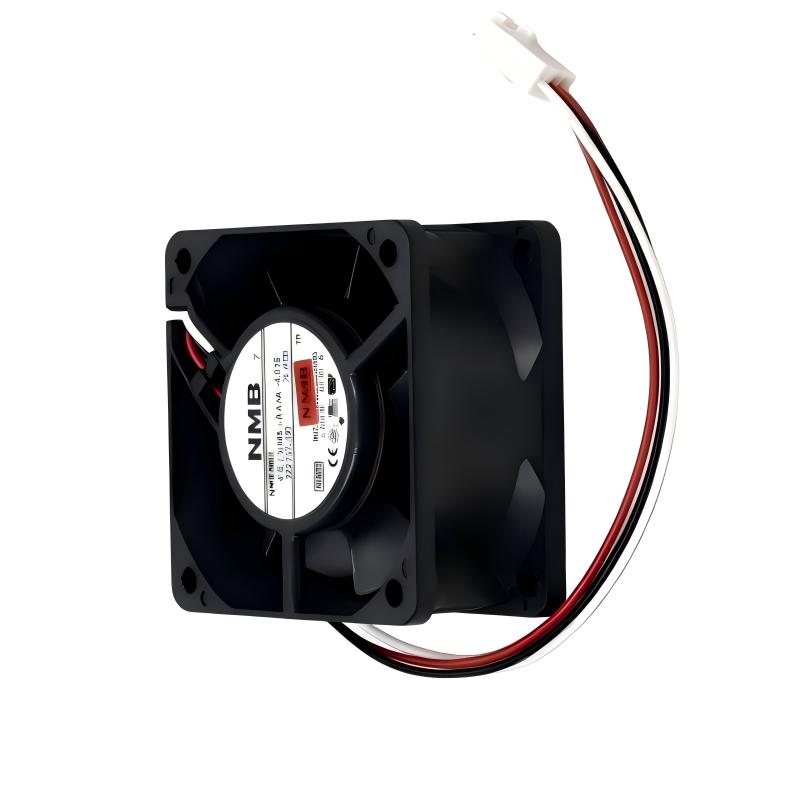

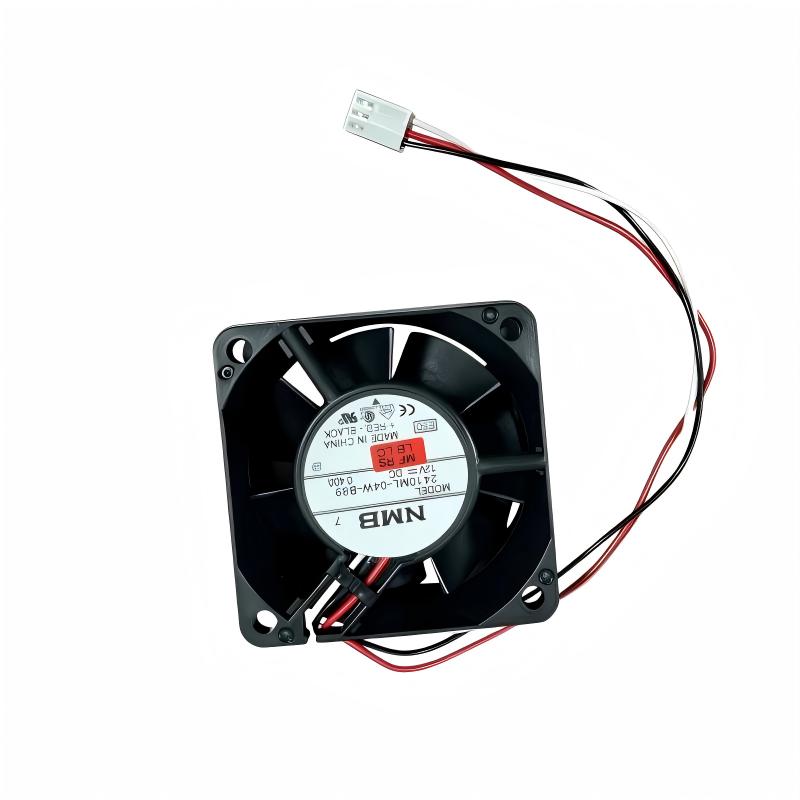

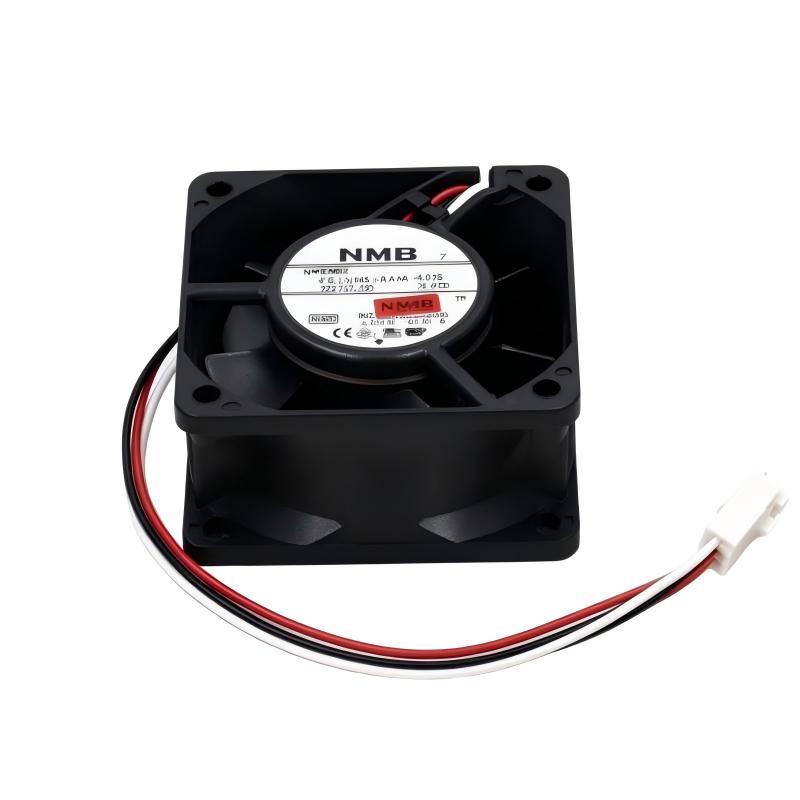

The Siemens A5E00319306 is a 60 mm replacement fan unit designed for selected SIMATIC industrial computers, including the Box PC 627 and Panel PC 677.

Its primary function is to support internal cooling by moving air through the computer enclosure and helping remove heat generated by the processor, electronic components, and other internal hardware. Maintaining suitable operating temperatures is important for industrial computers, particularly when they run for extended periods in manufacturing, automation, and process-monitoring environments.

Unlike a complete industrial PC, this model is a replacement cooling component. It is intended for servicing compatible equipment rather than functioning as an independent controller, computer, or automation module.

The part is relevant when an existing cooling fan becomes noisy, stops rotating, develops a mechanical fault, or no longer provides adequate airflow. Correct replacement is important because the fan’s physical dimensions, electrical characteristics, connector, airflow direction, and mounting arrangement must match the host computer.

2. Brand and Product Series

The SIMATIC product family includes industrial computers, programmable controllers, operator panels, and other automation equipment. A5E00319306 belongs to the industrial-computer spare-parts category rather than the main controller or computer category.

The distinction matters when purchasing replacement parts. A cooling fan may look similar to another 60 mm fan but still have a different voltage, connector pinout, mounting pattern, rotational speed, airflow characteristic, or alarm signal. The full part number should therefore be used when identifying a replacement.

3. Technical Parameters

The following table separates the confirmed product identification from specifications that need to be checked on the original part or its equipment documentation.

3.1 Fan size

The model is identified as a 60 mm fan unit. This nominal measurement generally refers to the fan’s frame width, rather than its thickness or the overall space required for installation.

The complete dimensions should be checked before replacement. In particular, confirm the thickness of the fan, screw-hole spacing, cable exit position, and available clearance inside the computer enclosure.

3.2 Electrical characteristics

The supply voltage, rated current, power consumption, and connector configuration are essential compatibility parameters.

A replacement fan with an incorrect voltage may fail to start or may be damaged. A connector that physically fits may also have a different pin assignment, so connector shape alone is not sufficient to establish compatibility.

Before ordering, compare the label on the original fan with the specifications of the replacement unit. If the original label is unavailable, use the host computer’s exact hardware configuration to identify the correct part.

3.3 Airflow and cooling performance

Airflow describes the volume of air the fan can move over a given period. Static pressure indicates its ability to move air against resistance created by vents, heat sinks, filters, and other internal obstructions.

Both characteristics influence cooling performance. A fan with a similar frame size but unsuitable airflow or pressure characteristics may not cool the computer as intended.

The exact airflow, static pressure, and rotational speed of A5E00319306 should not be assumed without the corresponding technical specification.

3.4 Dimensions and weight

The available identification establishes a nominal 60 mm fan size, but it does not establish the complete depth or net weight of this exact part.

For maintenance planning, measure the original component and check the replacement’s mechanical drawing. Do not use the weight of a packaged spare part as the net weight of the fan itself.

4. Product Description and Operating Principle

4.1 Internal cooling

Industrial computers generate heat while operating. The processor, memory, storage devices, power components, and other electronics all contribute to the internal thermal load.

A cooling fan circulates air through the enclosure, helping transfer heat away from warm components. The warmed air is then moved toward the exhaust path, allowing cooler air to enter the system.

The effectiveness of this process depends on the fan, internal airflow path, heat sinks, enclosure design, and surrounding ambient temperature.

4.2 Support for stable computer operation

Electronic components generally operate within specified temperature limits. Excessive heat may lead to reduced performance, unexpected shutdowns, shortened component life, or intermittent faults.

A functioning replacement fan helps preserve the cooling design of the host computer. It should be installed in the correct position and with the correct airflow direction.

4.3 Maintenance replacement

A5E00319306 is intended as a service component rather than a complete cooling system. Replacing a faulty fan can restore the original cooling arrangement without requiring replacement of the entire computer.

However, fan replacement alone will not resolve every overheating problem. Dust buildup, blocked vents, a failed fan-control circuit, degraded thermal interfaces, or a faulty power supply may also contribute to excessive temperatures.

5. Product Applications

5.1 SIMATIC Box PC 627 maintenance

The fan is identified as a replacement component for selected Box PC 627 systems.

During maintenance, a technician may replace the fan if it has stopped rotating, developed excessive noise, or shown signs of mechanical wear. The replacement should match the original electrical and mechanical specification.

5.2 SIMATIC Panel PC 677 maintenance

Selected Panel PC 677 configurations are also associated with this replacement fan.

In a panel-mounted industrial computer, internal cooling helps maintain the temperature of the computing hardware during normal operation. When servicing the system, technicians should also inspect the air passages and confirm that the replacement fan is properly secured.

5.3 Factory automation equipment

Industrial PCs may be used to run machine-monitoring applications, production dashboards, data-collection software, and engineering tools.

In these installations, a functioning cooling fan helps the host computer remain within its specified operating temperature range. A fan failure may interrupt the operation of the applications running on the computer.

5.4 Production monitoring systems

Computers used for production monitoring may run for extended periods and continuously collect or display operational information.

Periodic inspection of fan operation, temperature readings, and ventilation paths can help detect cooling problems before they lead to an unexpected shutdown.

5.5 Industrial computer repair and refurbishment

A5E00319306 may be relevant to repair workshops and maintenance departments servicing compatible SIMATIC computers.

Replacing the faulty fan can be a more targeted repair than replacing the entire computer, provided the remaining hardware is functional and the correct replacement part is available.

6. Main Product Advantages

6.1 Targeted replacement

The fan is a dedicated spare part for compatible industrial-computer hardware. When the original fan fails, replacing the component may restore cooling without requiring a complete computer replacement.

This can reduce unnecessary hardware changes and simplify maintenance.

6.2 Compact size

The nominal 60 mm fan size allows it to fit into equipment designed around that format.

However, physical size alone does not establish compatibility. Frame depth, mounting holes, connector layout, electrical ratings, and airflow performance must also match.

6.3 Support for thermal management

A functioning fan helps maintain airflow through the computer enclosure and remove heat from internal components.

This supports the thermal management design of the host computer, provided the fan is installed correctly and the rest of the cooling system is functioning normally.

6.4 Reduced maintenance complexity

When a fan is the source of a cooling fault, replacing that component can be more straightforward than replacing the entire industrial PC.

A targeted repair also allows the existing software installation, configuration, and other functional hardware to remain in place, subject to the normal service procedure.

6.5 Potential to extend equipment service life

Replacing a worn fan and maintaining clean airflow paths can help reduce heat-related stress on the host computer.

This does not guarantee a particular service life, but appropriate cooling maintenance can help prevent avoidable thermal problems.

6.6 Compatibility with designated equipment

The association with Box PC 627 and Panel PC 677 provides a starting point for identifying the intended equipment.

Before purchase, confirm that the exact host-computer version supports A5E00319306. Older computer families may have multiple hardware revisions, and a spare part suitable for one revision may not fit every variant.

7. Five Related Models and Product Options

The following table lists five related SIMATIC industrial-computing products or equipment families that may be relevant when maintaining or upgrading an industrial computer installation.

These are related equipment models, not five guaranteed interchangeable fan part numbers. The compatibility of A5E00319306 must be confirmed separately for each host device.

How to select a related replacement

A5E00319306

Choose this part when the original component identification and the host-computer documentation confirm that it is the correct fan. Check the electrical label and mechanical dimensions before installation.

SIMATIC Box PC 627

This is a relevant host-computer family when servicing a compatible box PC. Confirm the exact hardware revision and the fan part number before ordering.

SIMATIC Panel PC 677

This is another identified host-computer family for which the fan is specified. Verify the unit’s internal layout and exact configuration before replacement.

SIMATIC Box PC 627B

Treat this as a related product family, not an automatic substitute for Box PC 627. Similar naming does not establish that the internal fan, connector, or mounting arrangement is identical.

SIMATIC Panel PC 677B

Likewise, verify the exact model and revision before assuming that the same replacement fan will fit. Where documentation is incomplete, compare the original fan’s label, dimensions, connector, and mounting arrangement.

8. Five Popular Siemens Automation Models

The following models represent other commonly used product categories in industrial automation. They can complement industrial computing equipment, but they do not replace a cooling fan and serve different technical functions.

The dimensions and weights for these related products are preliminary reference values. Confirm the exact product revision before using them for cabinet design, mechanical installation, or shipping calculations.

How these products relate to industrial computing

A programmable controller executes machine-control logic, while distributed I/O connects sensors and actuators. An HMI panel provides the operator interface, and a variable-frequency drive controls compatible motors.

An industrial PC can work alongside these products to run higher-level applications, collect production data, and provide visualization or reporting functions.

A replacement fan such as A5E00319306 has a different role: it helps maintain the cooling performance of compatible computer hardware rather than performing automation logic or field control.

9. Installation and Maintenance Recommendations

9.1 Confirm the original part number

Before ordering, inspect the original fan and the host computer’s identification label. Confirm the full part number, including all digits and suffixes.

If the original component has been removed or its label is unreadable, use the exact computer model and hardware revision to establish the correct replacement.

9.2 Check mechanical compatibility

Confirm the fan’s frame width, height, thickness, mounting-hole spacing, cable exit, and clearance within the enclosure.

A fan that is too thick may interfere with adjacent components. A different mounting arrangement may also prevent the fan from being secured correctly.

9.3 Check electrical compatibility

Verify the rated voltage, current, connector, pin assignment, and any speed-monitoring or control signals.

Do not connect a replacement fan solely because its plug appears to fit. Incorrect wiring can prevent operation or damage the fan or host equipment.

9.4 Observe safe service procedures

Before opening the industrial computer, follow the equipment’s service instructions and isolate power as required.

Internal components may remain hot after shutdown. Use appropriate electrostatic-discharge precautions when handling electronic components, and avoid damaging cables or nearby circuit boards during fan removal.

9.5 Inspect the cooling path

During replacement, check for dust buildup, blocked air passages, loose cables, damaged fan mounts, and other obstructions.

If the new fan operates but the computer continues to overheat, investigate the wider cooling system rather than repeatedly replacing the fan.

9.6 Test after replacement

After installation, confirm that the fan starts correctly, rotates in the intended direction, and does not produce unusual noise or vibration.

Where available, check temperature readings and system diagnostics under normal operating load. Record the replacement date and the part number for future maintenance.

10. Frequently Asked Questions

Is A5E00319306 a complete industrial computer?

No. It is a replacement fan unit for compatible SIMATIC industrial computers. It does not provide the functions of a standalone PC or programmable controller.

What does the 60 mm designation mean?

It identifies the nominal fan size. It does not, by itself, establish the fan’s thickness, electrical rating, connector type, airflow, or mounting details.

Can any 60 mm fan replace A5E00319306?

No. The replacement must match the required electrical and mechanical specifications, including connector pinout, mounting arrangement, airflow direction, and cooling performance.

Does a faulty fan always mean the computer must be replaced?

No. If the fan is the only failed component and the rest of the computer is functional, replacing the fan may be sufficient. Other causes of overheating should be investigated if the problem continues.

What are the exact dimensions and weight?

The available identification establishes a nominal 60 mm fan size, but the full dimensions and net weight of A5E00319306 are not confirmed here. The original part or its technical drawing should be checked before installation planning or shipping calculations.

11. Final Product Assessment

The Siemens A5E00319306 is a compact SIMATIC industrial-computer replacement fan identified for selected Box PC 627 and Panel PC 677 systems. Its purpose is to maintain internal airflow and help remove heat from the host computer.

Its main advantages are targeted replacement, compact size, support for the host computer’s cooling design, and the potential to restore normal cooling without replacing the entire computer.

For purchasing and maintenance, the most important checks are the complete part number, host-computer revision, fan dimensions, supply voltage, current rating, connector pinout, airflow characteristics, and mounting arrangement. The full dimensions and net weight should also be confirmed rather than estimated from the nominal 60 mm size.

The related equipment models above provide context for identifying the host systems and understanding the wider automation environment. They should not be treated as direct substitutes for the fan itself.
