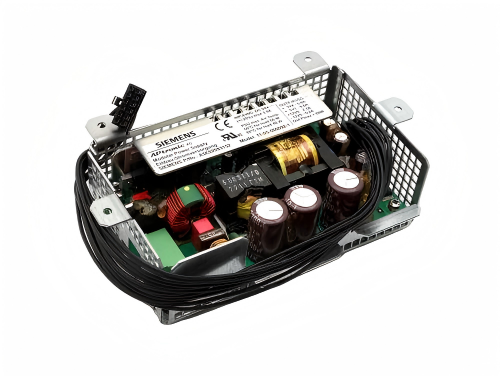

Siemens A5E02083152 Industrial PC Power Supply

1. Product Introduction

The Siemens A5E02083152 is a replacement power supply for selected SIMATIC industrial computer systems. It is designed for use with the SIMATIC Microbox PC 427B and SIMATIC IPC427C, with additional listed compatibility for certain IPC477C and IPC277D configurations.

This component supplies the electrical power required by the industrial computer. It is intended for equipment maintenance and replacement rather than use as a universal computer power supply.

Industrial PCs often support machine monitoring, operator interfaces, data acquisition, production management, and communication with automation equipment. A correctly matched power supply is therefore important for maintaining the normal operation of the computer and its connected systems.

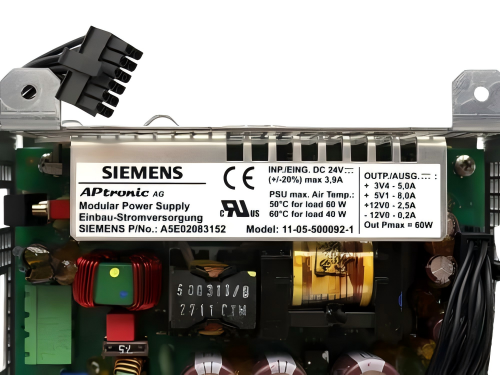

The product is also associated with the assembly number 11-05-500092-1. When purchasing a replacement, it is advisable to check both identifiers against the original unit.

2. Product Parameters

Technical note: The product description identifies 24 V, 3.3 V, and a 5 A rating. These figures should not be interpreted as confirmation that every output can supply 5 A simultaneously. The output-current limits and maximum permitted load for each rail must be verified against the actual unit’s label or technical documentation.

The listed product dimensions are useful for preliminary planning. If the power supply must fit within a restricted enclosure, confirm the physical measurements of the replacement unit before installation.

3. Main Product Functions

3.1 DC power conversion

The primary function of A5E02083152 is to supply the specified DC power required by its compatible industrial computer. Different internal electronic circuits may require different voltage rails, so the output configuration must match the original design.

3.2 Stable computer operation

A properly functioning power supply supports the normal operation of the computer’s processor, memory, storage, and other internal electronics. Electrical faults or an incorrectly matched replacement can prevent startup or cause unstable operation.

3.3 Industrial equipment maintenance

When the original power supply is confirmed to be defective, replacing it can help restore the computer without replacing the entire industrial PC, provided that the other components remain functional.

3.4 Support for existing automation installations

Industrial PCs may be integrated into machinery that uses established software, communication interfaces, and control procedures. Maintaining the original hardware platform can reduce the need for broader system changes.

4. Product Applications

Factory automation: The power supply can support compatible industrial PCs used for production monitoring, equipment supervision, and communication with other automation devices.

Machine control and monitoring: Industrial computers may display machine status, process information, alarms, and operating data. A correctly matched power supply supports the computer’s intended role.

Industrial data acquisition: Compatible computers can collect, process, or transmit information from connected equipment. Reliable power is necessary for these functions to operate normally.

Equipment repair: Maintenance personnel can use A5E02083152 as a replacement component when troubleshooting identifies a power supply fault in a supported system.

Legacy system maintenance: In established factories, older industrial computers may remain in service because of their integration with existing machinery. Replacing a faulty component may be more practical than replacing the entire computer.

5. Product Advantages

5.1 Specific replacement identification

The full part number provides a clear way to identify the intended replacement. This reduces the risk of choosing an unrelated power supply based only on its appearance or nominal output voltage.

5.2 Helps control maintenance costs

When a fault is isolated to the power supply, replacing that component may be less expensive than replacing the complete industrial computer.

5.3 Supports existing equipment

A compatible replacement allows the existing computer platform to remain in place, potentially reducing the need for software changes, hardware redesign, or modifications to the surrounding machine.

5.4 Defined output configuration

The listed 24 V and 3.3 V DC outputs help technicians identify the relevant electrical configuration. Final compatibility still depends on output ratings, connectors, and the host system’s requirements.

5.5 Convenient spare-parts management

Facilities using compatible SIMATIC computers can record the part number in their maintenance inventory. This makes it easier to identify the required component during scheduled maintenance or fault repair.

5.6 Suitable for targeted troubleshooting

A failed power supply can cause a computer not to start or to behave intermittently. Once the fault is confirmed, replacing the supply provides a targeted repair option without automatically replacing other components.

6. Brand and Product Series

The product belongs to the SIMATIC industrial automation family. Its specific role is within industrial computing, rather than serving as a standalone PLC CPU, HMI panel, or motor drive.

When identifying a replacement, the exact part number should take priority over a broad series name. Components that belong to the same product family are not necessarily electrically or mechanically interchangeable.

7. Five Related Models and Equipment Platforms

The following table lists five related industrial computer platforms for maintenance planning. Only the first four have been identified as compatible host platforms in the available product descriptions. The fifth is included as a related platform for comparison, not as a confirmed compatible system.

The dimensions and weights in this table refer to the complete computer platforms, not to the A5E02083152 power supply itself. Exact values depend on the specific model and configuration.

For replacement purposes, the Microbox PC 427B and IPC427C are the most relevant starting points. For IPC477C and IPC277D installations, check the original component label and the precise equipment configuration before ordering.

8. Five Popular Siemens Automation Models

These five models represent different categories of industrial automation equipment. They are useful for broader system planning, but they are not direct substitutes for A5E02083152.

These models represent different functions within an automation installation:

• S7-1200 and S7-1500 PLCs execute control logic and manage machine operations.

• ET 200SP modules connect field signals to the control system.

• SINAMICS V20 drives regulate compatible motor operation.

• SIMATIC HMI panels allow operators to monitor equipment and interact with the machine.

They are examples of commonly encountered product families rather than a verified ranking of sales or popularity. Their dimensions and weights should be checked against the precise product specification before enclosure design, shipping calculations, or installation planning.

9. Installation and Replacement Recommendations

Before purchasing or installing A5E02083152, check the following items.

1. Verify the complete part number. Compare the original unit’s label with A5E02083152 and, where applicable, assembly number 11-05-500092-1.

2. Confirm the host computer model. Check whether the installed equipment is a Microbox PC 427B, IPC427C, or another supported configuration.

3. Verify all electrical ratings. Check the input specification, DC output voltages, current limits, and permitted power distribution.

4. Check connectors and physical dimensions. The replacement must fit the original installation and match the required electrical connections.

5. Diagnose the fault before replacing the component. Failure to start can also result from motherboard faults, damaged cables, short circuits, or other internal hardware problems.

6. Check the unit’s condition. For new surplus or refurbished equipment, verify testing status, visible condition, warranty terms, and the exact version being supplied.

7. Follow electrical safety procedures. Disconnect the equipment from its power source before servicing and use qualified personnel for installation.

10. Product Summary

The Siemens A5E02083152 is a replacement power supply associated with selected SIMATIC industrial computers, particularly the Microbox PC 427B and IPC427C. Its listed electrical configuration includes 24 V DC and 3.3 V DC outputs, with a stated 5 A rating and a maximum power rating of 60 W.

Its principal application is the maintenance and repair of compatible industrial PCs. The main benefits are specific part identification, targeted component replacement, and the potential to retain an existing computer installation without replacing the entire system.

For purchasing and maintenance decisions, the most important checks are the complete part number, electrical output ratings, connector arrangement, host computer compatibility, physical dimensions, and product condition. Where exact dimensions or weights for related equipment have not been confirmed, they should be obtained from the specification for the exact model rather than estimated.
