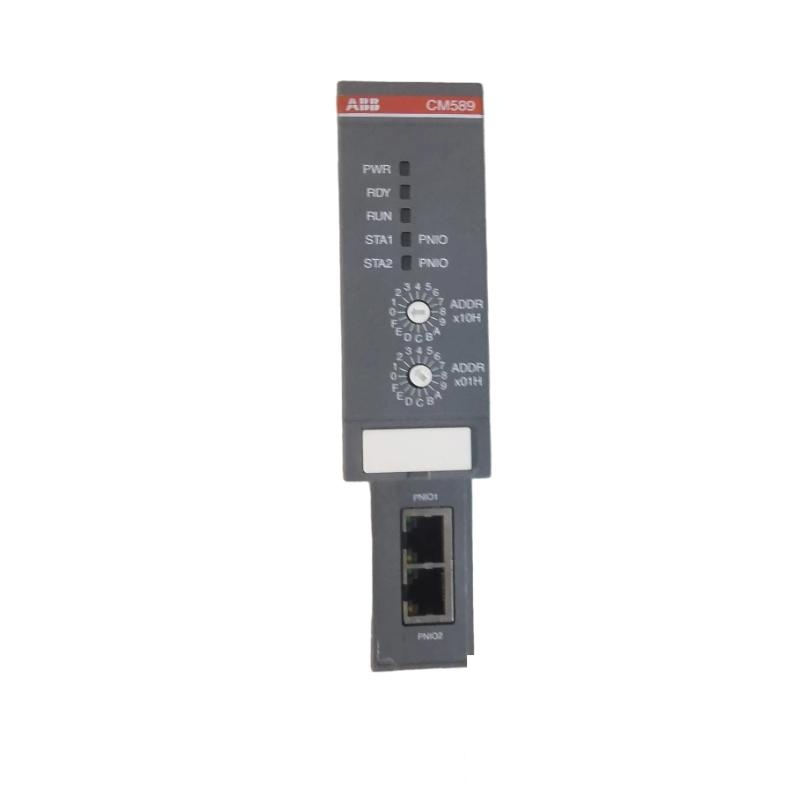

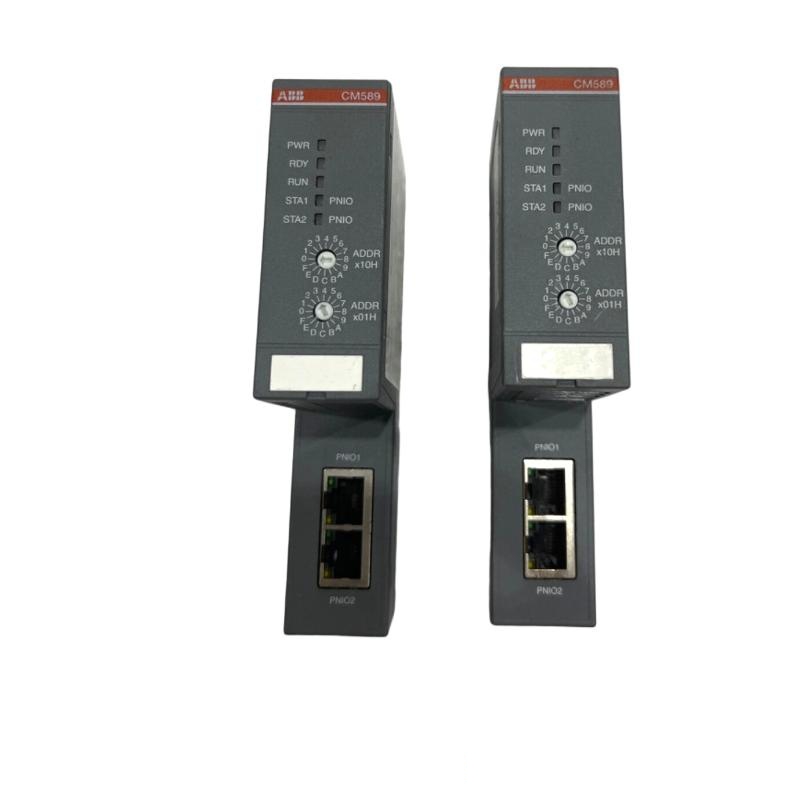

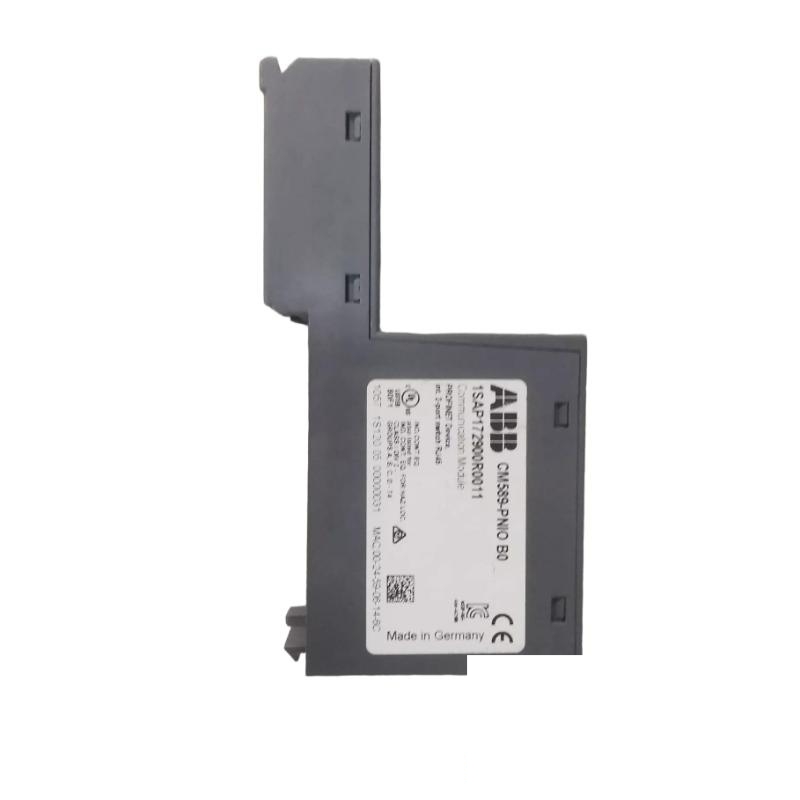

ABB CM589‑PNIO 1SAP172900R0001 – AC500 Communication Module
Product Introduction
The CM589‑PNIO is a high‑performance PROFINET IO communication module for ABB’s AC500 PLC platform. It expands the controller’s networking capability by adding a dedicated interface that handles real‑time I/O data exchange, peer‑to‑peer PLC communication and integration with upper‑level SCADA/MES systems. Thanks to its slim housing, hot‑swap support and intuitive engineering in Automation Builder, the module delivers dependable connectivity without increasing panel space or wiring complexity.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | CM589‑PNIO (1SAP172900R0001) |
| Type | PROFINET IO Communication Module |
| Dimensions | 62 × 135 × 28 mm |
| Weight | 0.1 kg |
| Supply Voltage | 24 V DC (from back‑plane) |
| Max Power Dissipation | 1.8 W |
| Protocols | PROFINET IO RT, TCP/IP, UDP, SNMP |
| Ports | 2 × RJ‑45 (100 Mbit/s, switch) |
| Bus Interface | S500 System Bus (AC500) |
| Isochronous Cycle Times | 1 ms … 512 ms |
| Operating Temperature | –25 °C … +60 °C |
| Storage Temperature | –40 °C … +85 °C |
| Protection Class | IP20 (EN 60529) |
| Mounting | DIN‑rail, tool‑free latch |
Applications
The CM589‑PNIO is deployed wherever ABB AC500 controllers must share deterministic data with PROFINET field devices or other PLCs:
-
Machine Building – synchronises multi‑axis drives, vision systems and safety I/O for packaging lines and robotics.
-
Process Automation – links remote I/O islands, smart instruments and MCCs in water, chemical and food plants while supporting redundancy topologies.
-
Energy & Utilities – provides fast telemetry between turbine governors, protection relays and SCADA workstations in power generation and district heating.
-
Material Handling – coordinates conveyor drives, barcode readers and AGV fleets in warehouses and parcel hubs.
-
Building Automation – bridges HVAC PLCs with PROFINET room controllers and BMS servers for campus‑wide energy optimisation.
Product Advantages
-
True Real‑Time Performance – hardware‑based PROFINET switch ensures cycle times down to 1 ms without CPU overload.
-
Seamless Engineering – fully integrated into ABB Automation Builder; all device parameters and GSDML files handled in a single project.
-
Space‑Saving Form Factor – only 28 mm wide, keeping AC500 racks compact even when multiple networks are required.
-
High Availability – supports Media Redundancy Protocol (MRP) and ring topologies; module can be hot‑swapped during operation.
-
Cyber‑Security Ready – firmware supports SNMPv3, VLAN tagging and optional Access Control Lists for secure segmentation.
Brand
Product Series
AC500 Communication Module Series
Recommended Models – Same Series / Related
| Model | Dimensions | Voltage | Weight | Protocol(s) | Typical Use Case |
|---|---|---|---|---|---|
| CM590‑ETH | 62 × 135 × 28 mm | 24 V DC | 0.1 kg | Ethernet IP, Modbus‑TCP | Factory networking and SCADA back‑haul |
| CM588‑RTU | 62 × 135 × 28 mm | 24 V DC | 0.1 kg | IEC‑60870‑5‑104, DNP3 | Remote substation and pipeline telemetry |
| CM598‑CAN | 62 × 135 × 28 mm | 24 V DC | 0.1 kg | CANopen, CAN 2.0B | Drive and sensor bus in mobile machinery |
| CM591‑SFP | 62 × 135 × 28 mm | 24 V DC | 0.1 kg | Dual‑Gigabit Ethernet (SFP) | Long‑distance fibre back‑bone for high EMC zones |
| CM587‑PNI | 62 × 135 × 28 mm | 24 V DC | 0.1 kg | PROFINET IRT (device) | High‑speed device interface for motion control |
Recommended Models – Same Brand (Popular)
| Model | Dimensions | Voltage | Weight | Function | Highlight |
|---|---|---|---|---|---|
| PM5630 | 142 × 137 × 87 mm | 24 V DC | 0.55 kg | AC500 CPU | Dual‑core CPU with web server & OPC UA |
| AI523 | 62 × 135 × 28 mm | 24 V DC | 0.11 kg | 8‑ch Analog Input | 16‑bit resolution, thermocouple & RTD |
| AO523 | 62 × 135 × 28 mm | 24 V DC | 0.11 kg | 8‑ch Analog Output | 0/4–20 mA and ±10 V sourcing |
| DO573 | 62 × 135 × 28 mm | 24 V DC | 0.12 kg | 16‑ch Digital Output | 0.5 A high‑side drivers, diagnostic feedback |
| DX571 | 62 × 135 × 28 mm | 24 V DC | 0.12 kg | 16‑ch Digital I/O | Mixed 8‑in / 8‑out, configurable per channel |
FAQs
-
Q: What physical network ports does CM589‑PNIO provide?
A: Two integrated RJ‑45 ports with an internal switch, each supporting 10/100 Mbit/s PROFINET RT traffic. -
Q: Can I add multiple CM589‑PNIO modules to one AC500 CPU?
A: Yes, the CPU can host several communication modules in the rack; each module is assigned its own network settings in Automation Builder. -
Q: Does the module support media redundancy?
A: It supports MRP (Media Redundancy Protocol) in manager or client mode for ring topologies. -
Q: What cycle times can be achieved in IRT‑class motion systems?
A: With isochronous operation enabled, cycle times as low as 1 ms are achievable. -
Q: Is a separate power supply required?
A: No. The module is powered through the AC500 back‑plane (24 V DC CPU power). -
Q: How is firmware updated?
A: Via Automation Builder using the back‑plane bus; no SD card or external cable needed. -
Q: What diagnostic options are available?
A: PROFINET device diagnostics, SNMP traps, LED status indicators and detailed event logs in the PLC. -
Q: Can the CM589‑PNIO operate in extreme temperatures?
A: Yes, it is specified from –25 °C to +60 °C operating, with –40 °C to +85 °C storage. -
Q: Does the module support time synchronisation?
A: It supports PROFINET system clock and SNTP for millisecond‑level time stamping. -
Q: Is configuration data retained after power loss?
A: Yes, all parameters are stored in non‑volatile flash memory inside the PLC project.
