Product Overview

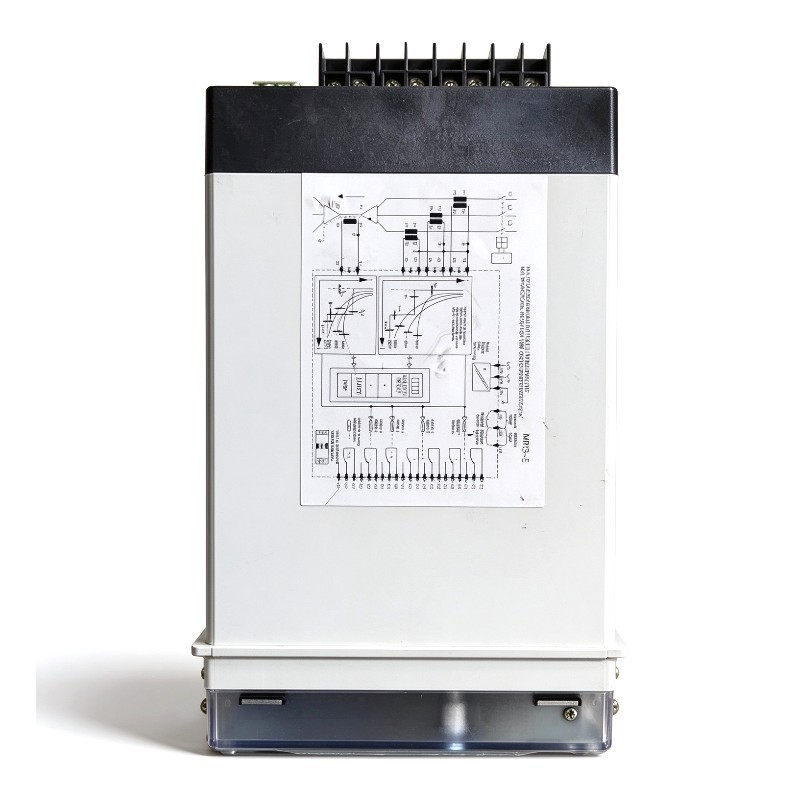

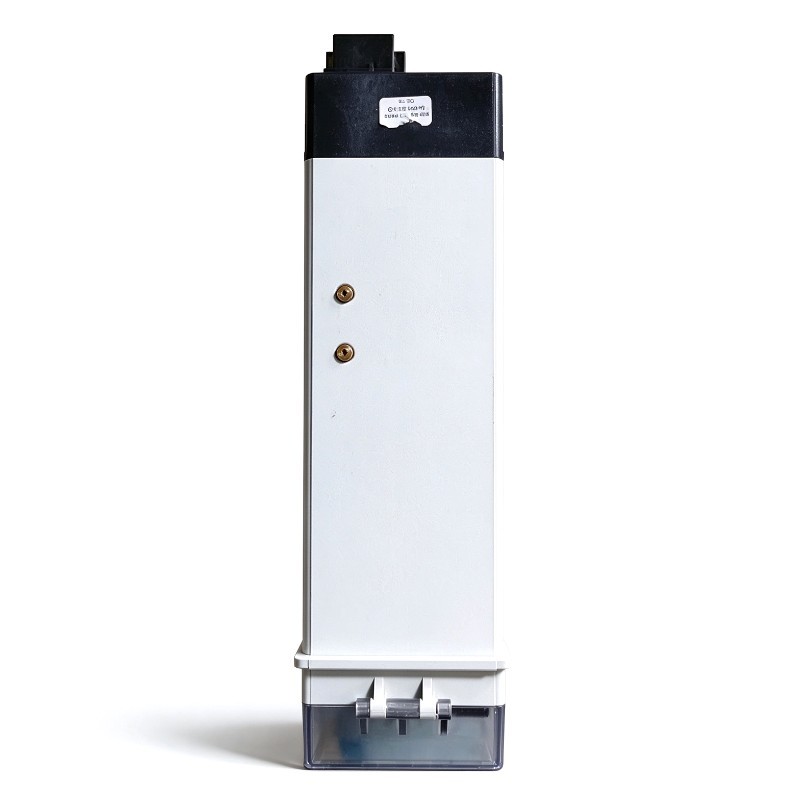

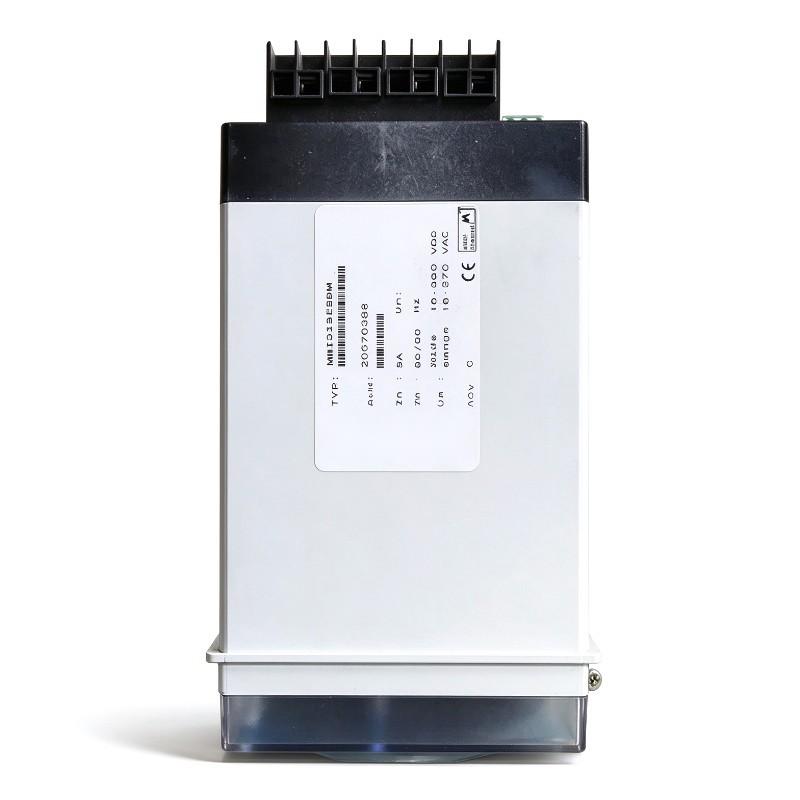

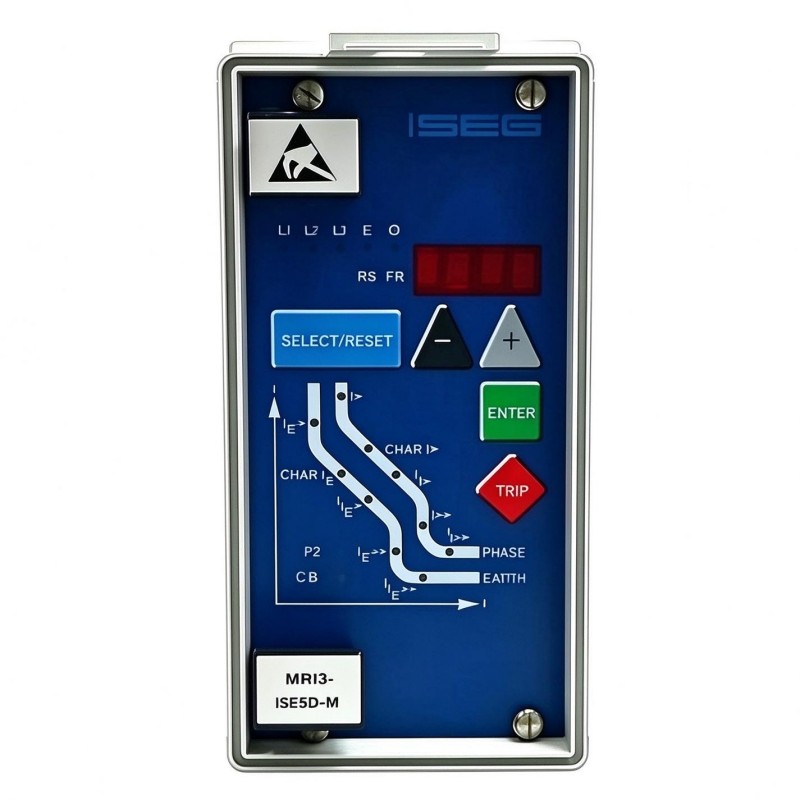

The Woodward MRI3I5E5DM is a digital multifunctional relay used for overcurrent and earth-fault protection in electrical distribution systems. It belongs to the MRI3 relay family, which combines configurable protection functions with measured-current processing, trip outputs, and event recording. In a medium-voltage switchgear panel, the relay monitors current signals from instrument transformers and determines whether the protected circuit has entered a fault condition requiring an alarm or trip.

The I5E5 designation identifies a configuration with 5 A rated current inputs for the phase-current and earth-current measurement circuits. This distinction matters when matching the relay to existing current transformers. A relay may have the correct protection function but still be unsuitable if its input rating, measurement arrangement, or housing configuration differs from the installed equipment.

The MRI3 platform supports definite-time and inverse-time overcurrent protection, with additional earth-fault protection functions depending on the configured relay type. These functions allow protection engineers to coordinate the relay with upstream and downstream circuit breakers. In installations where fault direction is relevant, directional protection capabilities are available on applicable MRI3 variants; the exact functions supported by the installed I5E5DM configuration must be verified before use.

The relay is intended to operate within a coordinated protection scheme rather than act as an isolated safety device. Its current-transformer connections, pickup thresholds, operating delays, trip assignments, and any blocking or reset signals must be matched to the protected feeder or equipment. Correct configuration helps the relay distinguish between normal operating current, temporary disturbances, overloads, and faults requiring disconnection.

Technical Specifications

Product Features

• Overcurrent protection: Evaluates phase-current measurements against configured pickup and timing settings.
• Earth-fault protection: Supports detection of earth-current conditions when the corresponding protection function is included in the installed configuration.
• 5 A current inputs: Matches the specified current-transformer secondary rating for the I5E5 configuration.
• Definite-time and inverse-time characteristics: Allows protection behavior to be coordinated with the electrical network where supported.
• Configurable trip outputs: Assigns protection functions to the available output relays according to the configured protection scheme.
• Disturbance recording: Records selected electrical quantities around a triggered event to assist fault investigation.
• Blocking and reset inputs: Supports external control signals for protection blocking and reset where configured.
• Optional serial communication: Applicable versions support RS485 communication and compatible protocols for parameter access or data exchange.
• Application-specific settings: Enables pickup levels, operating delays, and other protection parameters to be adjusted to the requirements of the protected circuit.

Working Principle

The MRI3I5E5DM receives current signals from the connected current transformers and processes the measured values digitally. The relay compares these values with the configured protection thresholds and applies the selected timing characteristic. If a protection condition is met, the assigned output relay changes state to initiate the required alarm or trip sequence.

A typical feeder protection arrangement follows this sequence:

Phase Current Transformers / Earth-Current Measurement → MRI3I5E5DM → Trip Circuit → Circuit Breaker

During normal operation, the measured currents remain within the configured operating limits. When an overload or short-circuit fault causes the phase current to exceed a pickup threshold, the relay begins the relevant timing sequence. With definite-time protection, tripping occurs after the configured delay if the fault condition persists. With inverse-time protection, the operating time varies according to the measured fault current and the selected characteristic.

Earth-fault protection evaluates the current signal associated with the installation’s earth-fault measurement arrangement. If the configured threshold is exceeded for the required time, the relay can operate its assigned trip output. The actual measurement method depends on the relay configuration and the current-transformer wiring.

For example, if a fault develops on a medium-voltage feeder, the current measured by the connected CTs may rise sharply. The MRI3 evaluates that current against its pickup and timing settings. Once the protection criteria are satisfied, its output initiates the circuit-breaker trip circuit, disconnecting the affected feeder. Coordination with other relays determines whether the local relay or an upstream device should clear the fault first.

The relay’s output contacts do not interrupt the main power circuit directly. The trip supply, output wiring, and circuit-breaker mechanism must all function correctly. Commissioning should therefore test both the relay’s protection response and the complete downstream trip path.

Role in an Electrical Protection Architecture

The MRI3I5E5DM occupies the measurement and decision-making layer of a feeder protection system. It processes current-transformer signals and issues protection commands to the switching equipment when configured fault conditions occur.

Protected Feeder → Current Transformers → MRI3I5E5DM → Trip Circuit → Circuit Breaker

The relay’s settings must reflect the CT ratios, system grounding arrangement, fault-current levels, and required coordination intervals. The protection scheme should be tested as a complete system before the feeder is returned to service.

Industrial Applications

Application suitability depends on the electrical network, CT arrangement, grounding method, and the exact protection functions available in the installed relay configuration. A relay intended for feeder protection should not be assumed to provide every directional, voltage, or differential protection function required by a particular installation.

Installation and Maintenance

1. Verify the complete model number: Confirm MRI3I5E5DM and check the full configuration against the existing protection drawings.
2. Check the current-transformer ratings: Verify that the phase-current and earth-current measurement circuits are suitable for the 5 A input configuration.
3. Review the grounding arrangement: Establish whether the protected network uses solid, resistance, isolated, or compensated neutral grounding before configuring earth-fault protection.
4. Inspect the mounting arrangement: Confirm that the relay’s actual housing and panel cutout match the installed switchgear design.
5. Isolate the relevant circuits: Follow approved electrical safety procedures before disconnecting the relay or its associated wiring.
6. Verify the auxiliary supply: Confirm the required supply voltage and terminal assignments from the documentation for the exact unit.
7. Inspect current-transformer wiring: Check terminal connections, polarity, continuity, and CT ratios against the approved circuit diagram.
8. Set the overcurrent thresholds: Select pickup values based on the protected equipment’s operating current and the available fault-current study.
9. Coordinate operating delays: Review the definite-time or inverse-time characteristics and ensure that the relay coordinates with adjacent protective devices.
10. Test the earth-fault function: Where enabled, verify the measurement circuit, pickup setting, timing behavior, and assigned output.
11. Check trip outputs and recording: Confirm that protection operation initiates the correct trip response and that disturbance recording functions as expected.
12. Document the final settings: Record CT ratios, pickup values, time characteristics, trip assignments, communication parameters, and commissioning results.

Never open a current-transformer secondary circuit while primary current is flowing unless it has been made safe using an approved shorting and isolation arrangement. Protection testing should be carried out by qualified personnel using suitable test equipment. After any settings change, verify the complete protection and trip sequence before returning the circuit to normal operation.

Compatible System Components

The MRI3I5E5DM operates with the current transformers, switching equipment, and control circuits associated with the protected feeder. The components below describe the surrounding protection architecture; exact compatibility depends on the installed configuration.

Recommended Related Models

The following models belong to related Woodward protection relay families. Their protection functions and order-code configurations differ, so they should be evaluated against the specific application rather than treated as automatic replacements.

Key Advantages

• Combines digital current measurement with configurable protection logic.
• Supports phase overcurrent protection and applicable earth-fault functions.
• Offers selectable definite-time and inverse-time characteristics where supported.
• Provides trip outputs for integration with external circuit-breaker circuits.
• Supports disturbance recording for post-event investigation.
• Can be coordinated with other feeder protection devices through appropriate settings.

Technical FAQs

What does the I5E5 configuration indicate on the MRI3I5E5DM?

The I5 designation identifies a 5 A phase-current input, while E5 identifies a 5 A earth-current input configuration. Both measurement circuits must be matched to the relevant current-transformer secondary ratings and wiring arrangement.

How do definite-time and inverse-time overcurrent protection differ?

Definite-time protection operates after a configured delay when the current remains above the pickup threshold. Inverse-time protection uses a selected characteristic in which operating time changes with fault-current magnitude. The appropriate characteristic depends on the protected equipment and coordination requirements.

Why might the relay fail to trip when an earth fault occurs?

Possible causes include an incorrect CT connection, unsuitable earth-fault pickup settings, an incompatible grounding or measurement arrangement, an assigned output that is not connected to the trip circuit, or a fault in the breaker operating circuit. Check the measurement and trip path systematically using approved test procedures.

Can the MRI3I5E5DM communicate with a PLC or substation monitoring system?

Communication depends on whether the installed version includes the applicable serial interface and protocol option. The MRI3 family supports RS485 communication with supported protocol configurations, but the exact interface and settings should be verified before integration with a PLC or supervisory system.
