Product Overview

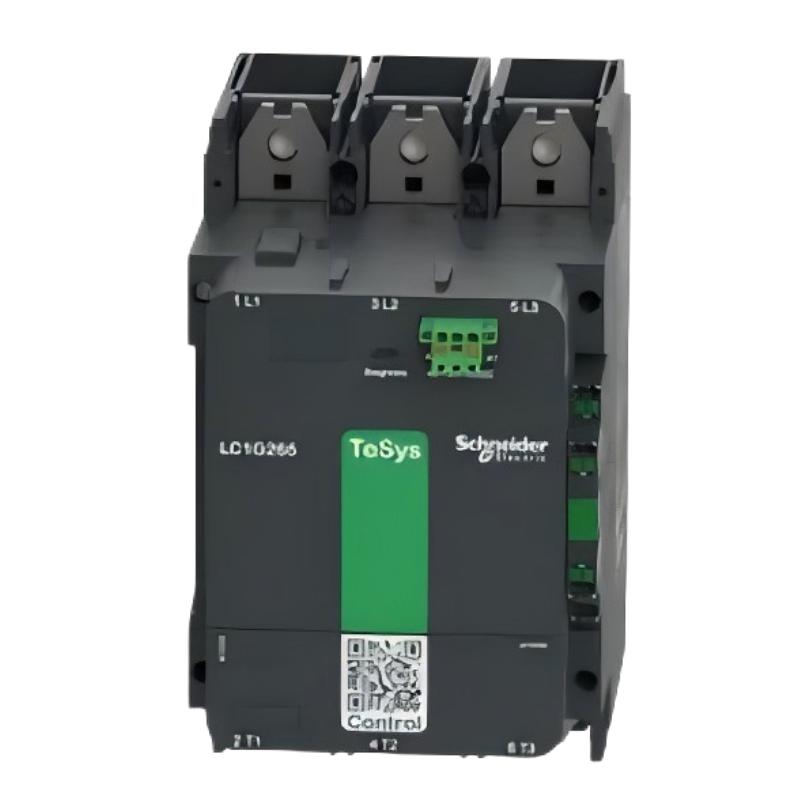

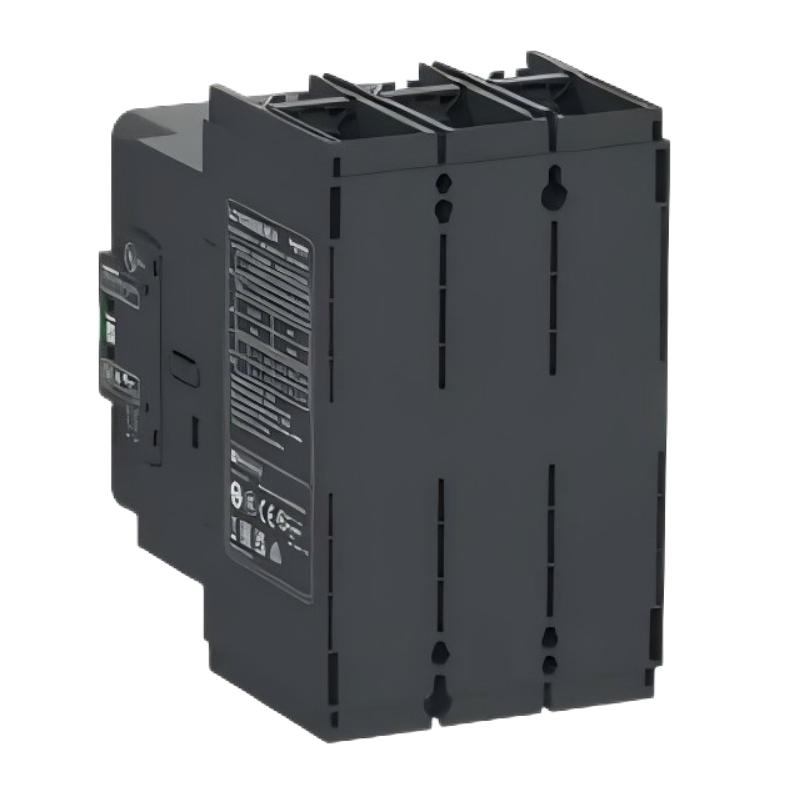

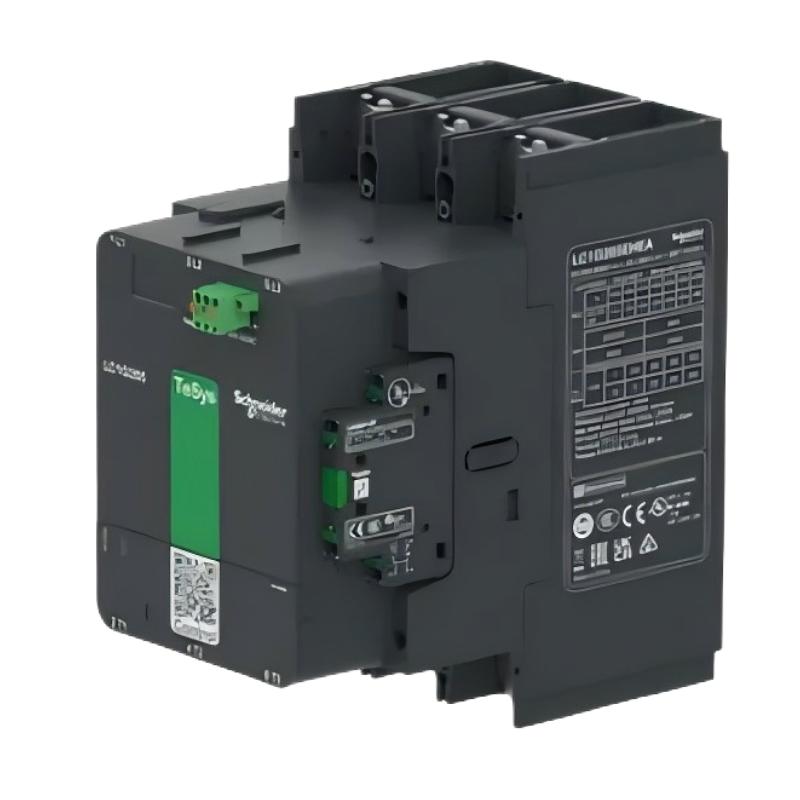

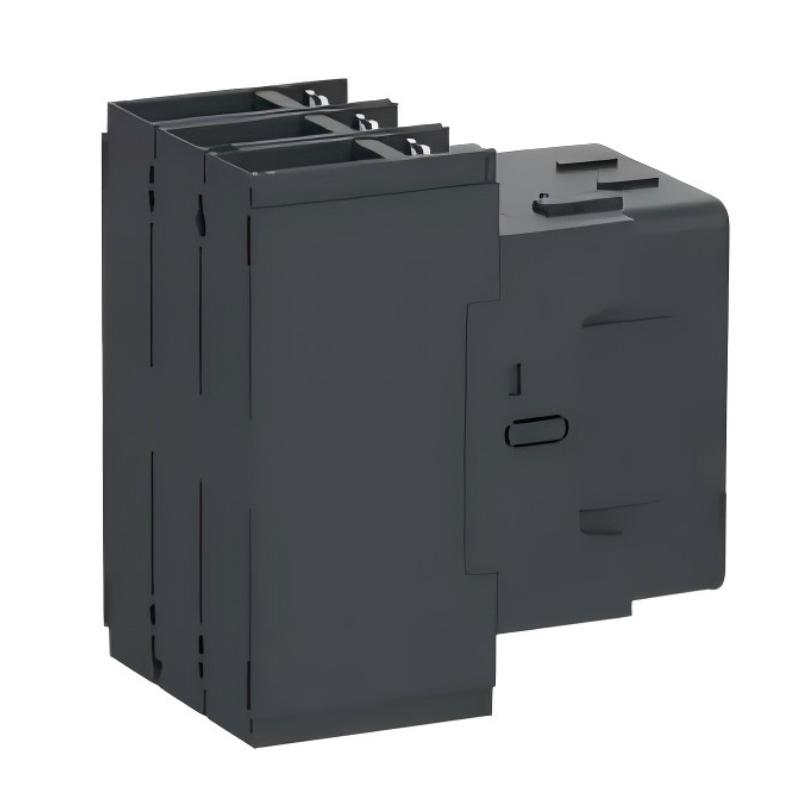

The Schneider Electric LC1G500EHEN TeSys Giga Contactor is a high-power electrical switching device designed for industrial motor control and power circuit switching. As part of Schneider Electric’s TeSys Giga series, this contactor is intended for demanding applications that require reliable switching performance, high current capacity, and integration into industrial electrical control systems.

Contactors are essential components in motor starters, industrial distribution panels, pumping systems, compressors, and manufacturing equipment. They allow a control circuit to operate a power circuit without requiring the operator or controller to switch the main load current directly.

The LC1G500EHEN is a three-pole contactor with three normally open main contacts. Its rated operational current is 500 A for AC-3 applications at up to 440 V AC under the specified operating conditions. For AC-1 applications, its conventional thermal current rating reaches 700 A at the specified ambient temperature. These ratings apply to different utilization categories and should not be treated as interchangeable.

The contactor uses a wide-range electronic AC/DC control coil rated at 48–130 V. This configuration provides flexibility when integrating the device into industrial control panels and motor-control systems that use compatible control voltages.

The LC1G500EHEN also features auxiliary contacts, electronic coil control, and a design intended for high-power switching applications. It can be used in suitable industrial motor-control assemblies, provided that the contactor’s ratings, protection devices, switching frequency, and operating environment are properly evaluated.

For maintenance and procurement teams, identifying the complete model number is essential. Products within the TeSys Giga family may have different current ratings, pole configurations, control voltages, and electronic control features.

Technical Specifications

Note: The supplied listing weight is 7 kg, while the manufacturer’s datasheet specifies a product weight of approximately 7.5 kg and a packaged weight of approximately 7.95 kg. Confirm the actual unit and shipping configuration before publishing logistics information.

Function and Working Principle

The LC1G500EHEN controls the connection and disconnection of a power circuit through an electrically operated switching mechanism. Its main contacts carry the load current, while the control coil operates the mechanism that opens or closes those contacts.

1. Electromagnetic Switching

When the appropriate control voltage is applied to the coil, the contactor’s operating mechanism closes the main contacts. This allows current to flow to the connected load.

When the coil is de-energized, the mechanism returns to its released position and the normally open main contacts open, interrupting the circuit under suitable operating conditions.

This arrangement allows a PLC, relay circuit, motor-control station, or other compatible control device to command the contactor without directly carrying the main power current.

2. Three-Pole Power Switching

The LC1G500EHEN has three normally open main contacts for three-phase power applications. When the contactor closes, the three poles establish the intended electrical connections to the load.

This configuration is commonly used in industrial motor starters and three-phase power-control assemblies. The contactor must be installed with appropriate short-circuit protection and, where required, motor overload protection.

A contactor is not a substitute for a circuit breaker or an overload relay. The complete protection arrangement must be designed according to the electrical system and applicable standards.

3. Electronic Coil Control

The model uses a wide-range 48–130 V AC/DC electronic control coil. This allows operation with compatible control supplies across the specified voltage range.

Electronic coil control helps manage coil operation and can reduce the energy required to hold the contactor closed compared with its initial pickup demand. The actual control voltage must remain within the manufacturer’s operating limits.

The control circuit should be checked carefully before commissioning, particularly when the contactor is driven by a PLC output, an interposing relay, or a remote control system.

4. Auxiliary Contact Feedback

The contactor includes one normally open and one normally closed auxiliary contact. These contacts can be used in control circuits for status indication, electrical interlocking, and sequencing.

For example, a PLC may monitor an auxiliary contact to help determine whether the contactor has changed state. Auxiliary contacts should not automatically be treated as certified safety feedback; safety functions require suitable components and a validated safety design.

5. Switching and Arc Management

When switching high-current industrial loads, the contactor must manage the electrical effects associated with opening and closing the contacts. The permitted switching duty depends on the utilization category, operating voltage, load characteristics, and switching frequency.

Motor starting, stopping, and reversing can impose different stresses on the contactor. Selecting the correct utilization category and providing suitable protection are essential for reliable operation.

Role in Industrial Control Systems

The LC1G500EHEN can serve as a power-switching element within a larger industrial control architecture. It connects the power circuit to the load when commanded by the control system and disconnects it when the control conditions require release.

PLC Integration

A programmable logic controller can command the contactor through an appropriately designed output circuit. The PLC may use process signals, operator commands, and interlock conditions to determine when the contactor should energize.

Because the contactor’s coil operates at 48–130 V AC/DC, the PLC interface must be compatible with the selected control supply. A suitable interposing relay or interface device may be required, depending on the PLC output type and circuit design.

Motor Starter Assemblies

In a motor starter, the contactor switches power to the motor while associated protective devices manage overloads and short circuits. The exact arrangement depends on the motor rating, supply system, starting method, and installation requirements.

For a 500 A AC-3 contactor, system design should consider the motor’s full-load current, starting current, starting frequency, and expected operating duty.

HMI and Operator Stations

An HMI or operator station can provide start and stop commands through the PLC or another suitable control circuit. Auxiliary contacts may provide feedback to the control system, allowing the operator interface to display contactor status or relevant alarms.

The HMI does not replace the contactor’s electrical protection or the safety functions required by the machine.

Electrical Distribution and Process Control

The contactor may also be incorporated into larger power-control assemblies where electrical loads must be switched according to process requirements. Its suitability depends on the voltage, current, utilization category, and switching duty of the application.

Industrial Applications

1. Industrial Motor Control

The LC1G500EHEN is designed for high-power motor-control applications. It can be used in suitable motor starter assemblies where the operational current and utilization category fall within its ratings.

Applications may include large production machines, industrial drives, and auxiliary motors in manufacturing facilities. The contactor must be coordinated with the motor, protective devices, and control circuit.

2. Industrial Pumps

Large pumping systems use contactors to control the electrical supply to compatible motors. A contactor can operate as part of an automated pumping station controlled by pressure sensors, level switches, PLC logic, and operator commands.

The motor’s rated current, starting characteristics, and required switching frequency must be evaluated before selecting the contactor.

3. Air Compressors

Industrial compressors may use contactors in their motor starter and power-control assemblies. The contactor can connect or disconnect the motor according to the machine’s control sequence.

Compressor applications can involve frequent starts and demanding operating cycles. Correct utilization-category selection, overload protection, and thermal assessment are therefore important.

4. Manufacturing and Processing Lines

Industrial production lines may require high-current switching for motors and associated equipment. The contactor can be used within a control panel that coordinates machinery with PLCs, sensors, interlocks, and operator interfaces.

The actual application must be checked against the contactor’s electrical ratings and switching limits.

5. Industrial Power Switching

The LC1G500EHEN can be used for suitable power-switching duties within electrical assemblies. The permissible load depends on the utilization category and rated voltage rather than current alone.

For resistive loads, motor loads, and other types of equipment, engineers should use the corresponding manufacturer ratings instead of assuming that the 500 A AC-3 rating applies universally.

Installation and System Integration

Correct installation is essential for safe operation and dependable switching performance.

1. Verify the Electrical Ratings

Before installation, confirm the supply voltage, load current, utilization category, and control coil voltage. The 500 A AC-3 rating applies under specified conditions at up to 440 V AC, while the 700 A AC-1 rating relates to a different load category.

Do not choose the contactor based on current alone. Consider the motor’s starting current, switching frequency, load type, and operating environment.

2. Check the Mounting Arrangement

The manufacturer’s dimensional data specifies approximately 226 mm depth, 225 mm height, and 140 mm width. These dimensions correspond to the supplied three dimensions of 226 × 225 × 140 mm when reordered by orientation.

Verify the mechanical drawing for the exact model before fabricating the control panel. Allow sufficient space for power cables, control wiring, terminal access, maintenance, and heat dissipation.

The front-face IP2X protection specified with shrouds does not mean that the complete contactor is waterproof or dust-tight. Install it in a suitable enclosure for the actual environment.

3. Connect the Power Circuit

The main terminals must be connected using conductors, busbars, lugs, and fastening methods appropriate for the current rating and installation design.

Follow the manufacturer’s requirements for terminal preparation and tightening torque. Poor electrical connections can lead to overheating, voltage drop, and premature contact wear.

Before installation or maintenance, isolate the relevant power sources and verify that the circuit is de-energized.

4. Wire the Control Circuit

Confirm that the control supply is compatible with the 48–130 V AC/DC coil. Check the control circuit’s switching capacity, protective devices, and wiring arrangement before applying power.

Where the contactor is controlled by a PLC, verify that the output interface is suitable for the coil and its pickup requirements.

5. Coordinate Protection Devices

The contactor should be coordinated with suitable short-circuit protection and, in motor applications, overload protection. The required protective devices depend on the installation’s prospective fault current, supply voltage, motor characteristics, and applicable standards.

A contactor provides switching functionality but should not be relied upon as the sole means of protecting a motor or electrical circuit against faults.

6. Commission the Contactor

After installation, inspect the mounting, power connections, control wiring, and protective-device arrangement. Verify that the coil operates at the correct voltage and that the main contacts switch as expected.

Test auxiliary contact feedback and confirm that the PLC or control circuit responds correctly. Record the installed model and relevant settings for future maintenance.

Compatible System Components

The LC1G500EHEN is normally installed as part of a complete electrical control system.

These components are examples of equipment that may be used with the contactor. They are not necessarily included with the LC1G500EHEN.

Alternative Models and Replacement Considerations

The TeSys Giga family includes contactors with different current ratings, control-coil ranges, and configurations. A replacement must be selected according to the electrical and mechanical requirements of the existing installation.

Before replacing the contactor, compare:

• Rated current for the actual utilization category.
• Operational voltage and load type.
• Coil voltage and control method.
• Main pole configuration.
• Auxiliary contact arrangement.
• Mounting dimensions and terminal layout.
• Short-circuit protection coordination.
• Switching frequency and expected service life.
• Applicable standards and environmental requirements.

A contactor with a higher current rating is not automatically a suitable replacement. Control voltage, mechanical fit, protection coordination, and switching duty must all be checked.

Key Advantages

High Current Capacity

The LC1G500EHEN provides a 500 A AC-3 rating under the specified conditions, making it suitable for demanding motor-control applications within its published limits.

Wide-Range AC/DC Coil

The 48–130 V AC/DC control coil supports integration with compatible industrial control circuits.

Three-Pole Switching

Its three normally open main contacts support switching of compatible three-phase power circuits.

Auxiliary Contact Feedback

The included auxiliary contacts can support control logic, status indication, and interlocking when correctly integrated.

Electronic Coil Control

The electronic control arrangement manages coil operation and supports reduced holding consumption relative to the initial pickup demand.

Industrial Mounting Design

The contactor is designed for installation on a support plate within an appropriately engineered electrical assembly.

TeSys Giga Product Family

The TeSys Giga series offers a family of high-power switching devices with different current ratings and control configurations, providing options for a range of industrial power-control requirements.

Technical FAQs

1. What is the Schneider Electric LC1G500EHEN?

It is a three-pole, high-power TeSys Giga contactor designed for industrial power switching and motor control.

2. What is its rated current?

The rated operational current is 500 A for AC-3 applications at up to 440 V AC under specified conditions. Its conventional thermal current is 700 A for AC-1 applications at 40°C. These ratings apply to different utilization categories.

3. What is the coil voltage?

The control coil supports 48–130 V AC or 48–130 V DC. The control supply must remain within the manufacturer’s specified operating limits.

4. How many main contacts does it have?

The LC1G500EHEN has three normally open main contacts for three-pole switching.

5. Does it include auxiliary contacts?

Yes. The specified configuration includes one normally open and one normally closed auxiliary contact.

6. Can it be controlled by a PLC?

Yes, provided the control circuit is designed correctly. The PLC output or interface must be compatible with the contactor’s coil voltage and electrical requirements.

7. Can this contactor directly protect a motor against overload?

No. A contactor provides switching functionality. Motor overload protection and short-circuit protection must be provided by appropriately selected and coordinated protective devices.

8. What are the dimensions and weight?

The manufacturer’s dimensions are approximately 226 mm deep, 225 mm high, and 140 mm wide. The published product weight is approximately 7.5 kg. The supplied listing weight of 7 kg should be confirmed against the actual unit.

9. What should be checked before purchasing a replacement?

Verify the complete model number, rated current, utilization category, coil voltage, pole configuration, auxiliary contacts, mounting dimensions, condition, and included accessories.

10. Is the LC1G500EHEN suitable for every 500 A load?

No. Suitability depends on the load type, operational voltage, utilization category, ambient temperature, switching frequency, and protection coordination. The AC-3 rating should not be applied automatically to other load categories.

Procurement and Maintenance Recommendations

When purchasing the Schneider Electric LC1G500EHEN, confirm the complete catalog number and compare it with the installed contactor. Pay particular attention to the coil voltage, three-pole configuration, auxiliary contacts, and current rating for the intended utilization category.

For new, surplus, or refurbished units, request clear photographs of the nameplate, terminals, and overall condition. Confirm whether accessories are included and whether the seller can provide appropriate functional testing and warranty information.

Before shipping, distinguish the product’s physical dimensions and weight from the packaged dimensions and shipping weight. The manufacturer’s published product weight is approximately 7.5 kg, while the supplied listing specifies 7 kg.

For maintenance, inspect power connections, terminal condition, mounting security, control wiring, and auxiliary contacts according to the maintenance plan and applicable safety procedures. Any signs of overheating, abnormal contact wear, or mechanical damage should be evaluated before the device is returned to service.

In motor-control installations, regularly review the coordination between the contactor, overload relay, short-circuit protective devices, and control system. Correct component coordination is essential for safe and reliable operation.

Conclusion

The Schneider Electric LC1G500EHEN TeSys Giga Contactor is a high-power, three-pole contactor designed for industrial power switching and motor-control applications. It provides a 500 A AC-3 rating at up to 440 V AC under specified conditions, a 48–130 V AC/DC electronic control coil, and auxiliary contacts for control-system integration.

For procurement, installation, and replacement, the complete catalog number and the load’s electrical requirements should be checked carefully. Correct coil selection, protection coordination, mounting, and maintenance help ensure that the contactor operates reliably within its specified limits.
