Product Overview

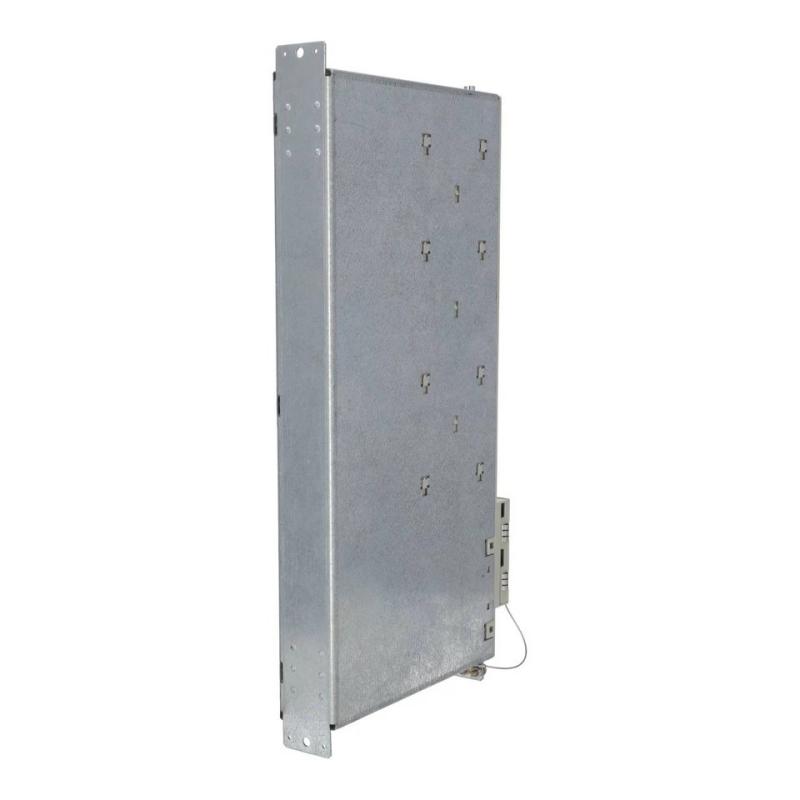

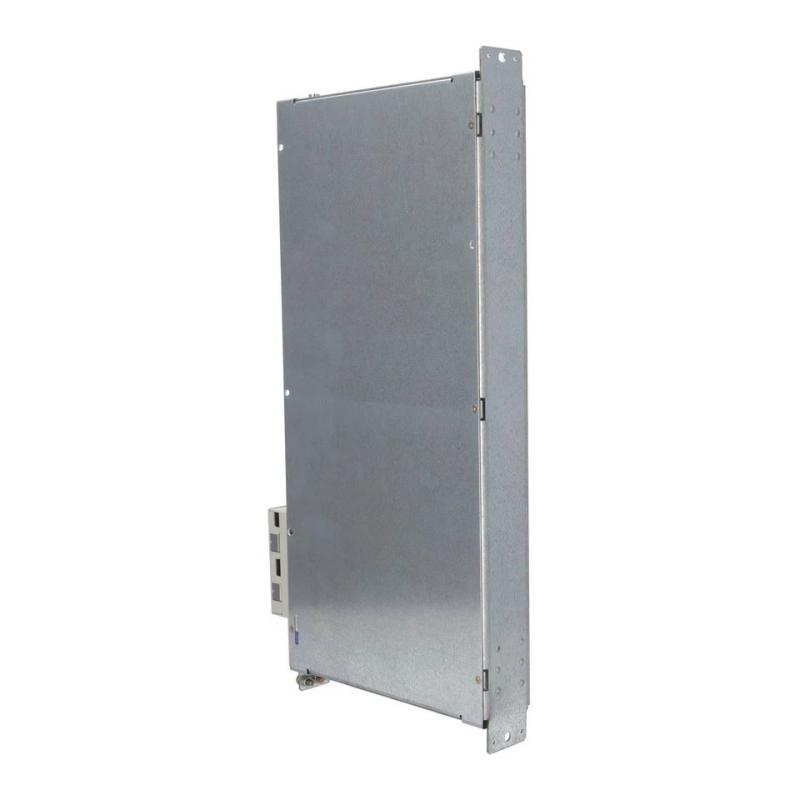

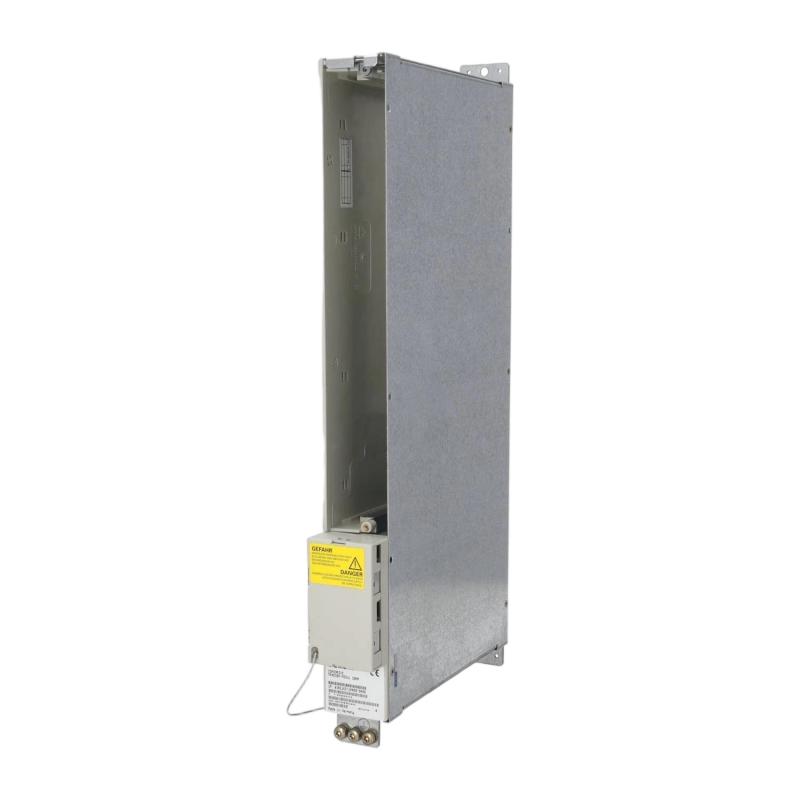

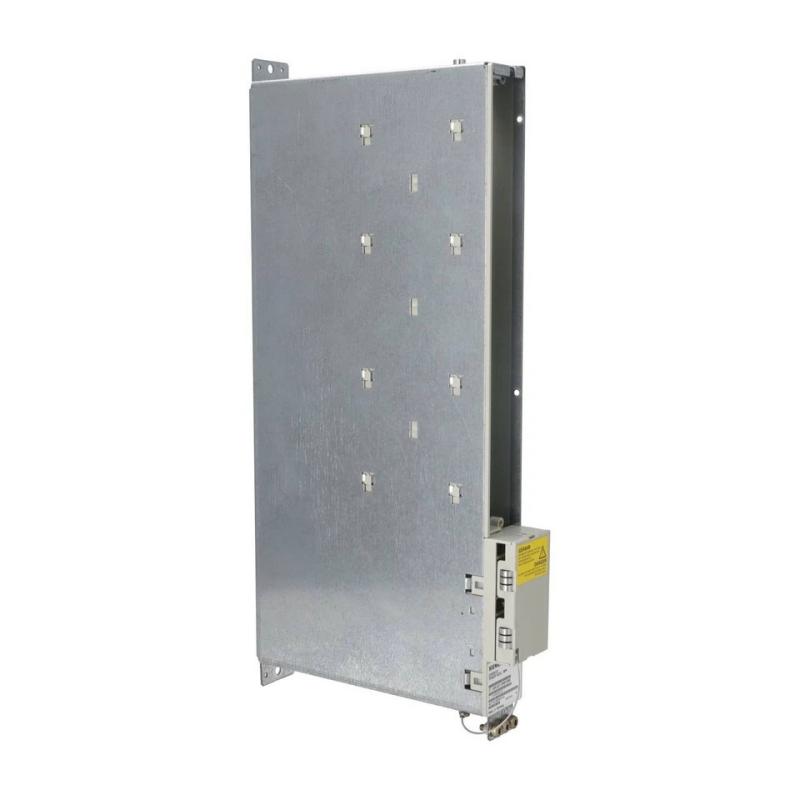

The Siemens 6SN1162-1AA00-0AA0 Universal Empty Housing is a mechanical carrier housing designed for use in Siemens SIMODRIVE 611 modular drive systems. Unlike an active drive module, this component provides a mounting position for compatible plug-in hardware within the drive assembly.

SIMODRIVE 611 systems are used in industrial motion-control applications, including machine tools, CNC equipment, and automated manufacturing machinery. Their modular architecture allows different functional units to be arranged within a common drive group. Correct mechanical support and module positioning are therefore important for system assembly, maintenance, and equipment replacement.

The 6SN1162-1AA00-0AA0 is identified as a universal empty housing with a nominal width of 50 mm. In compatible configurations, it can serve as a carrier for an appropriate plug-in module, helping maintain the intended mechanical arrangement of the drive system.

This housing does not independently provide motor control, power conversion, or electronic processing. Its function is primarily mechanical, although correct installation contributes to the proper positioning and integration of the module fitted into it.

When sourcing this component, users should verify the complete Siemens order number, housing width, mounting arrangement, and compatibility with the intended SIMODRIVE 611 hardware. The supplied dimensions should also be checked against the manufacturer’s dimensional drawing before panel or machine modifications are made.

Technical Specifications

Important: The supplied dimensions differ from commonly published dimensions for this part number. Confirm the physical dimensions and mounting interfaces before using the listing for engineering or shipping purposes.

Function and Working Principle

1. Mechanical Support for Plug-In Modules

The main function of the 6SN1162-1AA00-0AA0 is to provide a housing and mounting position for compatible hardware in the SIMODRIVE 611 system.

A correctly selected carrier housing helps hold the intended module in its designated position. This supports organized assembly and makes it easier for technicians to identify and service individual components within a modular drive group.

2. Integration into a Modular Drive Assembly

SIMODRIVE 611 equipment uses a modular architecture in which different functional units are assembled according to the machine’s requirements.

The empty housing can form part of this mechanical arrangement. Its suitability depends on the intended module, the mounting position, and the system configuration described in the applicable Siemens documentation.

The housing should not be treated as a universal substitute for every SIMODRIVE 611 module. Physical fit and functional compatibility must be verified separately.

3. Support for Equipment Maintenance

During maintenance, a damaged or missing housing may complicate the replacement or installation of a compatible plug-in unit. Using the correct carrier housing helps preserve the intended mechanical arrangement of the equipment.

Before replacing the housing, inspect the mounting points, surrounding modules, and any associated connectors or mechanical interfaces for damage.

4. Mechanical Organization

The housing helps maintain the designated space and position for the relevant plug-in hardware. Correct alignment is important in modular industrial equipment because improperly fitted components may interfere with installation, access, or neighboring assemblies.

The housing itself does not replace the electrical or electronic functions of the module installed in it.

Role in Industrial Control Systems

The Siemens 6SN1162-1AA00-0AA0 supports the mechanical structure of a SIMODRIVE 611 installation. Its contribution is different from that of a control unit, power module, or motor feedback component.

CNC Machine Tool Systems

CNC machines often use modular drive equipment to coordinate spindle and feed-axis motors. The housing can support compatible plug-in hardware within the relevant drive assembly, provided the specified configuration permits its use.

Industrial Motion Control

In motion-control installations, correct module placement helps maintain an organized drive architecture. The housing can serve as a mounting component for compatible hardware in the larger system.

Equipment Refurbishment

During refurbishment, maintenance teams may need to replace worn, damaged, or missing mechanical components while retaining serviceable electronic modules. A correctly identified empty housing can help restore the intended assembly.

Spare Parts Management

Because SIMODRIVE 611 installations may remain in service for many years, accurate part identification is important when sourcing legacy components. Matching the full order number reduces the risk of ordering a housing with an incompatible width or mounting arrangement.

Industrial Applications

1. CNC Machine Tools

CNC machining centers and other machine tools may use SIMODRIVE 611 equipment for axis and spindle control. The 6SN1162-1AA00-0AA0 can be used in an appropriate modular assembly to support compatible plug-in hardware.

2. Automated Manufacturing Equipment

Industrial production machines frequently use modular drive systems to control motion. Correct housing selection helps preserve the intended mechanical layout when equipment is serviced or rebuilt.

3. Machine Tool Retrofits

When older machinery undergoes refurbishment, the original drive system may need to be retained because of existing control software, wiring, and mechanical interfaces. Replacing the correct housing can help maintain the original assembly arrangement.

4. Industrial Drive Maintenance

Maintenance departments may stock carrier housings alongside control units, power modules, and other SIMODRIVE components. This helps reduce delays when a mechanical part is damaged or missing.

5. Legacy Automation Systems

Facilities that continue to operate established Siemens drive equipment may require replacement parts to maintain existing machinery. Exact identification is especially important when the original product family is no longer actively supported.

Installation and System Integration

1. Verify the Order Number

Check that the part number on the replacement housing matches 6SN1162-1AA00-0AA0. Similar-looking SIMODRIVE components may have different widths or mounting interfaces.

2. Confirm Dimensions and Mounting

The supplied dimensions are 254 × 76 × 483 mm, but these do not match commonly published dimensions for this order number. Confirm the actual unit against the manufacturer’s dimensional drawing before preparing the installation.

Pay particular attention to the 50 mm nominal housing width, mounting points, available clearance, and the position of adjacent modules.

3. Check Module Compatibility

Identify the plug-in module intended for the housing and confirm that Siemens documentation specifies the correct combination. Do not assume that every SIMODRIVE 611 control or power module can be installed in this carrier.

4. Inspect Mechanical Condition

Before installation, examine the housing for deformation, cracks, damaged fasteners, corrosion, or signs of previous mechanical impact. Check the mounting interfaces for wear and confirm that the assembly can be secured properly.

5. Follow Electrical Safety Procedures

Although the empty housing is not an active power-conversion module, it may be installed within a drive assembly containing hazardous voltages. Isolate the equipment and follow the machine’s lockout procedures before accessing the drive system.

Installation should be carried out by qualified personnel in accordance with the applicable Siemens documentation and site safety requirements.

6. Verify the Completed Assembly

After installation, confirm that the housing is correctly secured, the compatible module is properly seated, and neighboring components are not obstructed. Complete any required system inspections before returning the machine to service.

Compatible System Components

The following components represent functional categories that may be found in a SIMODRIVE 611 installation. Compatibility with this housing must be confirmed for the exact hardware combination.

These are system-level component categories, not a claim that all listed items directly attach to the housing or are included with it.

Alternative Models and Replacement Considerations

The 6SN1162-1AA00-0AA0 is a specific mechanical component. Replacement selection should prioritize the exact part number and mounting geometry rather than choosing an alternative based only on product-family similarity.

Before purchasing an alternative, verify the nominal width, overall dimensions, mounting points, intended plug-in module, and available clearances. A housing that appears similar may not fit the original assembly.

Key Advantages

Dedicated SIMODRIVE 611 Compatibility

The product is identified specifically for the SIMODRIVE 611 modular drive family, helping maintenance teams locate the intended component for an existing installation.

Compact Carrier Format

Its nominal 50 mm width is relevant when identifying the required mechanical space within a compatible modular drive assembly.

Support for Modular Maintenance

A replaceable housing can help maintenance teams restore the mechanical arrangement of equipment without automatically replacing functional electronic modules.

Useful for Legacy Equipment

The part may be relevant to facilities that continue to operate older SIMODRIVE 611 installations and need to maintain existing machinery.

Clear Part-Number Identification

Using the complete Siemens order number supports more accurate purchasing, inventory management, and spare-parts documentation.

Technical FAQs

1. What is Siemens 6SN1162-1AA00-0AA0?

It is a Siemens SIMODRIVE 611 universal empty housing with a nominal width of 50 mm. It serves as a mechanical carrier for compatible plug-in hardware.

2. Is this a servo drive or power module?

No. It is an empty housing, not an active drive, power supply, or electronic control unit.

3. What is the main purpose of the housing?

Its primary purpose is to provide mechanical support and a mounting position for compatible hardware within a modular SIMODRIVE 611 assembly.

4. What is the nominal width?

The product is identified as a 50 mm wide universal empty housing. Confirm the exact mounting dimensions using the manufacturer’s documentation.

5. What are the dimensions of this product?

The supplied listing gives 254 × 76 × 483 mm. However, published technical references show a different dimensional arrangement for this part number. Confirm the physical unit before using these measurements for installation or shipping.

6. Can it replace another SIMODRIVE housing?

Only when the alternative has the correct mounting geometry and is documented as compatible with the intended module and drive configuration.

7. Does it have electrical connections?

The housing itself does not provide an independent electronic drive function. Any electrical interfaces depend on the compatible module and system assembly in which it is used.

8. What should be checked when buying a used unit?

Verify the full order number, housing width, mechanical condition, mounting surfaces, and any signs of deformation or corrosion. Confirm that the unit matches the intended installation.

9. Is it suitable for CNC machinery?

It may be suitable for a compatible SIMODRIVE 611 installation used in CNC machinery. The exact mounting position and module combination must be checked against the machine’s documentation.

10. Why is the exact part number important?

SIMODRIVE systems contain components with different mechanical and functional roles. Matching the exact order number helps avoid installing a housing with the wrong dimensions or mounting arrangement.

Procurement and Maintenance Recommendations

When sourcing the Siemens 6SN1162-1AA00-0AA0, start by comparing the full order number with the label and documentation for the installed component. Verify that the replacement is the 50 mm wide universal empty housing rather than an active drive or control module.

Because the supplied dimensions differ from commonly published technical drawings, request clear photographs and confirm the physical measurements before shipment. For used or refurbished parts, inspect the housing for deformation, damaged fasteners, corrosion, and wear around the mounting interfaces.

For maintenance planning, record the part number and the associated plug-in module in the machine’s spare-parts database. This makes it easier to identify the correct replacement during future service work.

If the original configuration is being modified, confirm the proposed mounting arrangement with the relevant SIMODRIVE 611 documentation or a qualified automation engineer. Mechanical fit alone does not establish functional compatibility.

Conclusion

The Siemens 6SN1162-1AA00-0AA0 SIMODRIVE 611 Universal Empty Housing is a mechanical carrier component intended for compatible modular drive assemblies. Its primary role is to support and position suitable plug-in hardware rather than perform independent electrical control or power conversion.

For industrial maintenance, CNC machinery, and legacy drive-system refurbishment, accurate order-number identification and verification of the mounting geometry are essential. Confirm the dimensions, housing width, and intended module before purchasing or installing the component.
