Product Overview

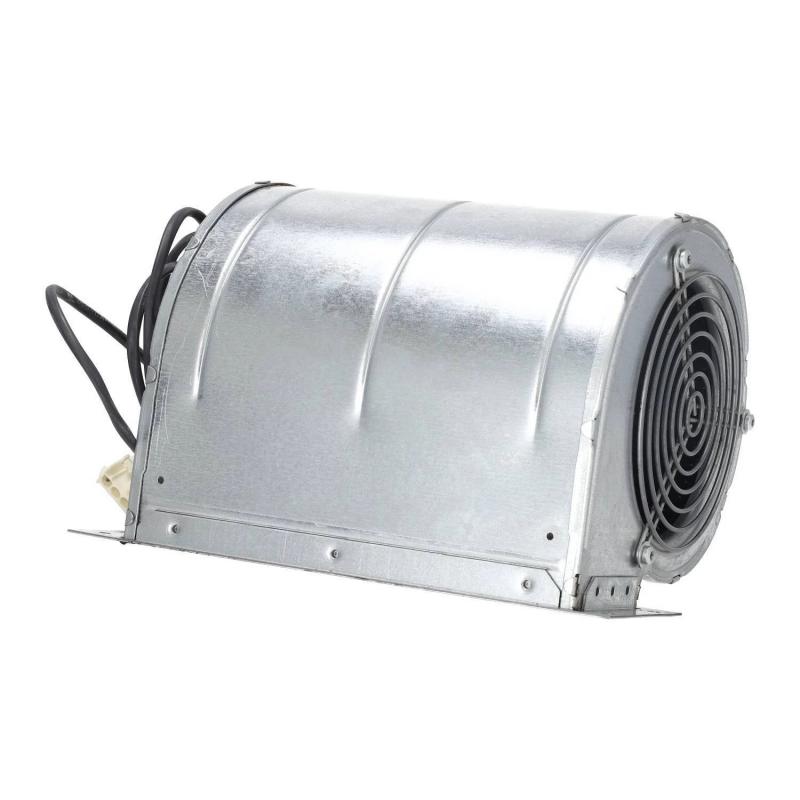

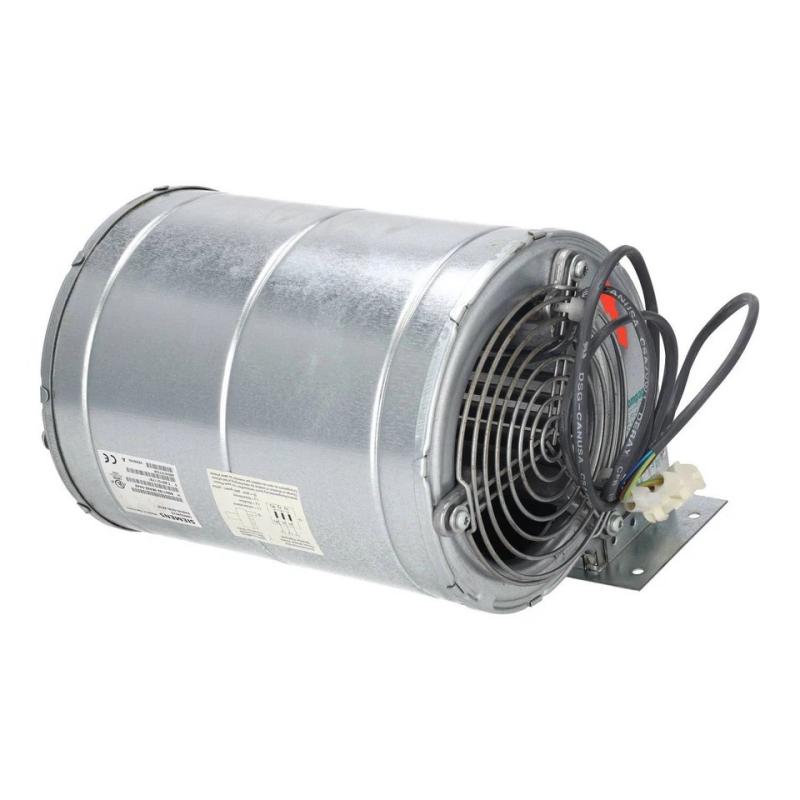

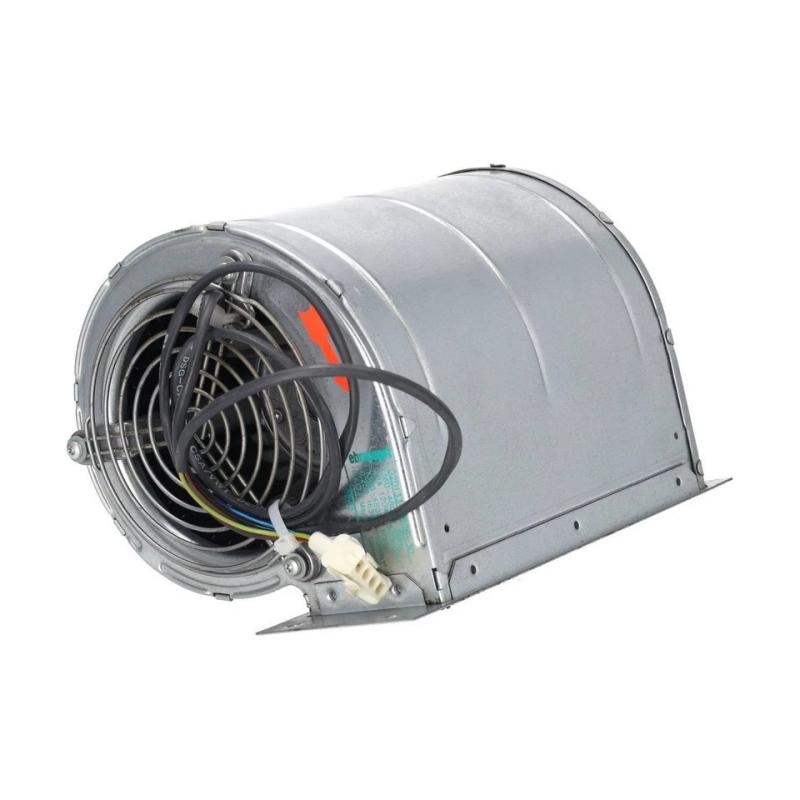

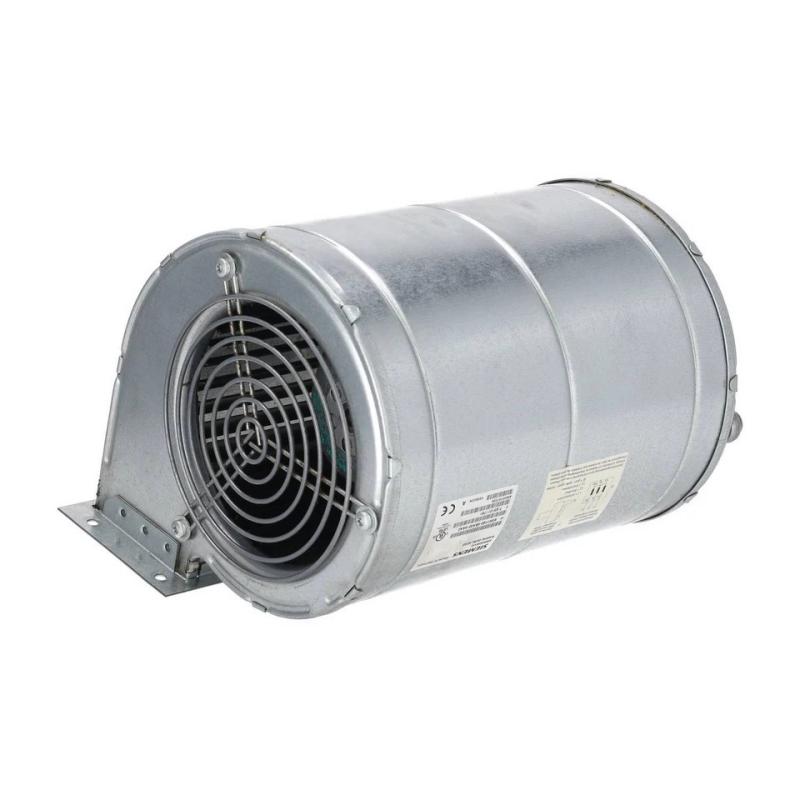

The Siemens 6SN1162-0BA02-0AA2 Built-On Fan is a radial cooling fan designed for Siemens SIMODRIVE 611 industrial drive systems. It provides forced-air cooling for compatible drive modules, helping manage heat generated during continuous motor-control operation.

In industrial automation, drive modules generate heat through power conversion and electrical switching. If this heat is not removed effectively, internal temperatures may rise, potentially triggering thermal protection, reducing operating availability, or shortening component service life. A correctly matched cooling fan helps maintain the airflow required by the drive system.

The 6SN1162-0BA02-0AA2 is intended for 300 mm wide SIMODRIVE 611 modules and supports internal or external cooling configurations as specified by the applicable system design. It uses a radial blower arrangement to move air through the required cooling path.

This component is particularly relevant to maintenance teams responsible for CNC machines, servo-driven production equipment, and legacy industrial drive cabinets. When a cooling fan becomes noisy, stops rotating, or fails to deliver adequate airflow, replacing it with the correct model can help restore the intended cooling performance.

The full Siemens order number is important because related SIMODRIVE fans may have different cooling arrangements, electrical requirements, mechanical dimensions, and compatibility restrictions. The 6SN1162-0BA02-0AA2 should not be selected solely because another fan looks similar or fits within the same cabinet.

As with other legacy SIMODRIVE components, buyers should confirm the exact module combination, fan condition, and electrical specifications before installation.

Technical Specifications

The dimensions and weight above are the supplied listing values. Published technical drawings and supplier records may use different measurement conventions or revisions. Verify the actual unit and applicable drawing before finalizing mechanical installation or shipping details.

Function and Working Principle

The primary function of the Siemens 6SN1162-0BA02-0AA2 is to provide forced airflow for compatible SIMODRIVE 611 drive modules. Its radial blower design draws in air and directs it through the intended outlet, creating the airflow needed to remove heat from the drive assembly.

1. Forced-Air Cooling

Industrial servo drives and power modules generate heat during normal operation. The amount of heat depends on the electrical load, operating cycle, conversion losses, and ambient temperature.

Natural convection alone may not provide sufficient cooling for high-power drive assemblies. A powered fan increases airflow and improves heat transfer from hot components and heat sinks to the surrounding air.

The fan must be installed in the intended position so that air follows the correct cooling path. Incorrect mounting or airflow direction can reduce cooling effectiveness even if the fan motor operates normally.

2. Radial Blower Operation

A radial fan uses an impeller to move air outward from the center of rotation. This design can provide useful airflow against the resistance associated with cooling channels, heat sinks, and cabinet airflow paths.

In the SIMODRIVE 611 system, the blower must work with the module’s cooling design. The fan should not be treated as a generic cabinet ventilation fan because its performance and mechanical arrangement are intended for a particular drive application.

3. Thermal Management

Effective airflow helps remove heat from power electronics and other thermally stressed components. Maintaining the intended cooling conditions helps the drive operate within its specified thermal limits.

A malfunctioning fan can contribute to overheating, thermal alarms, unexpected shutdowns, or reduced availability. Replacing a failed fan is therefore an important maintenance task when the cooling assembly is identified as the cause of inadequate airflow.

However, a fan replacement will not resolve every overheating issue. Blocked air passages, excessive ambient temperature, incorrect drive loading, contaminated heat sinks, or a failing power module can produce similar symptoms.

4. Continuous Cooling Support

Industrial machinery may operate for long production cycles, placing continuous demands on the drive’s thermal management system.

The 6SN1162-0BA02-0AA2 provides cooling support when installed in a compatible configuration and operated within its specified electrical and environmental limits. Its suitability should be checked against the actual drive module and the cooling arrangement used in the cabinet.

Role in Siemens SIMODRIVE 611 Systems

The 6SN1162-0BA02-0AA2 is a cooling accessory rather than a motor-control or power-conversion module. Its role is to support the thermal performance of the larger SIMODRIVE 611 installation.

1. Cooling Drive Modules

SIMODRIVE 611 systems contain power and drive modules that control servo motors and other machine axes. These modules generate heat as they process electrical energy.

The mounted fan supplies the forced airflow required by compatible module configurations. Maintaining this airflow is especially important where the drive’s cooling design depends on an external fan assembly.

2. Supporting CNC Machine Operation

CNC machines may use multiple servo axes to control spindle movement, workpiece positioning, and tool motion. The drive electronics must remain within their specified operating temperatures for reliable machine operation.

A correctly functioning cooling fan supports the thermal management of the drive system, helping reduce the risk of temperature-related interruptions.

3. Maintaining Drive Cabinet Thermal Conditions

The fan forms part of the drive’s designed cooling path. It does not replace the need for appropriate cabinet layout, clean air passages, or the required ventilation arrangements.

During maintenance, engineers should check the fan, its supply wiring, the mounting arrangement, and the surrounding airflow path together rather than evaluating the fan in isolation.

4. Supporting Legacy Equipment

Many industrial facilities continue to operate established CNC and automation equipment long after the original product family has moved out of active production.

Correctly identifying the fan model helps maintenance teams source suitable spare parts without unnecessarily replacing an entire drive assembly. Exact part-number verification remains essential because related fan variants can have different cooling functions and restrictions.

Industrial Applications

1. CNC Machine Tools

CNC milling machines, lathes, grinding machines, and machining centers use drive electronics to control spindle and axis motors.

The 6SN1162-0BA02-0AA2 can support compatible SIMODRIVE 611 installations by providing the airflow needed for drive cooling. Maintaining the fan helps preserve the intended thermal operating conditions of the drive cabinet.

2. Servo-Driven Manufacturing Equipment

Automated production machinery often uses servo drives for coordinated motion. Continuous movement, frequent acceleration, and changing loads can create substantial thermal demands on the drive electronics.

A correctly installed cooling fan helps remove heat from compatible power modules and supports reliable operation during production cycles.

3. Industrial Automation Cabinets

Drive cabinets may contain power modules, servo amplifiers, control electronics, and associated wiring. The thermal requirements depend on the installed components and the cabinet’s cooling architecture.

The Siemens fan is intended for specific SIMODRIVE 611 module configurations. It should not be substituted for a general-purpose enclosure fan unless the application has been properly evaluated.

4. Packaging and Material-Handling Machinery

Packaging systems and material-handling machines may use multiple servo-controlled axes for feeding, positioning, conveying, and cutting operations.

Where these machines use compatible SIMODRIVE 611 hardware, maintaining the correct fan assembly can help support the thermal stability of the drive system.

5. Legacy Production Lines

Manufacturers often maintain older production lines because the machines remain mechanically useful or are costly to replace. In these environments, the availability of compatible spare parts can be important for reducing downtime.

The 6SN1162-0BA02-0AA2 may be considered when servicing a compatible legacy drive installation. Procurement teams should confirm the exact module compatibility and the condition of any replacement unit.

Installation and System Integration

Correct installation is essential for effective cooling and safe operation.

1. Verify Drive Compatibility

Before purchasing or installing the fan, identify the exact SIMODRIVE 611 module it is intended to cool. Confirm the module width, cooling arrangement, mechanical mounting, and any restrictions in the manufacturer’s documentation.

The 6SN1162-0BA02-0AA2 is specified for 300 mm modules, but it is not suitable for every module of that width. Published documentation identifies specific SIMODRIVE module combinations that must not be used with this fan.

Do not rely on module width alone as proof of compatibility.

2. Check Electrical Supply Requirements

The published supply specification is three-phase 360–510 V AC at 45–65 Hz, with a supply current of approximately 0.2–0.3 A.

Before energizing the fan, verify the actual nameplate and applicable wiring diagram. Confirm phase connections, voltage, frequency, protective grounding, and the direction-of-rotation marking.

The fan must not be connected to a single-phase supply or a different voltage merely because a connector appears compatible.

3. Confirm Mechanical Dimensions

The supplied dimensions are 254 × 254 × 178 mm. Compare these values with the actual fan, mounting arrangement, and system drawing before preparing the cabinet or ordering a replacement.

Allow sufficient clearance for the fan housing, electrical cable, airflow, and maintenance access. Check that the fan assembly is securely mounted and does not interfere with nearby components.

4. Inspect the Airflow Path

Before returning the system to service, check for dust accumulation, blocked openings, damaged grilles, and obstructions around the fan inlet and outlet.

The cooling path must match the module design. Reversed airflow, poor sealing, or a blocked heat sink can reduce cooling performance and cause the drive to operate at elevated temperatures.

5. Perform Electrical Safety Checks

Isolate the relevant power supply before removing or installing the fan. Follow the equipment’s lockout procedures and verify that the work area is safe.

Inspect the supply cable, connector, protective earth connection, and mounting hardware. Do not operate the fan with damaged insulation, loose connections, or a compromised protective enclosure.

6. Test After Replacement

After installation, verify that the fan starts correctly, rotates in the intended direction, and produces the expected airflow. Listen for unusual vibration, scraping, or bearing noise.

Where the drive system provides temperature monitoring or diagnostic alarms, check for abnormal thermal conditions after restarting the equipment. Confirm that the fan continues to operate normally under the intended load conditions.

Compatible System Components

The Siemens 6SN1162-0BA02-0AA2 is designed to work with compatible SIMODRIVE 611 equipment. Compatibility should be verified from the full part number and the applicable system documentation.

The fan is a cooling accessory and does not replace a drive module, controller, or motor. Confirm which components are included in the supplied item before ordering.

Alternative Models and Replacement Considerations

Siemens has used several fan configurations across the SIMODRIVE 611 product family. Similar-looking models may differ in their airflow arrangement, supply characteristics, and intended module compatibility.

Before choosing an alternative, compare:

• Full Siemens order number.
• Supported SIMODRIVE module types.
• Module width and cooling arrangement.
• Supply voltage, phase, frequency, and current.
• Airflow direction and required cooling performance.
• Mounting dimensions and mechanical interface.
• Connector, cable, and protective-earth arrangement.
• Environmental protection rating.
• Availability of technical documentation and suitable test results.

A fan that fits mechanically may still be unsuitable if its airflow, electrical supply, or compatibility differs from the original design. Do not substitute a generic fan based on dimensions alone.

Key Advantages

Designed for SIMODRIVE 611 Equipment

The 6SN1162-0BA02-0AA2 is designed for specific SIMODRIVE 611 drive installations, making exact model verification important for maintenance and spare-parts procurement.

Forced-Air Cooling

Its radial blower design provides forced airflow to help remove heat from compatible drive modules.

Support for Internal and External Cooling Configurations

The model is specified for applicable internal and external cooling arrangements. The actual module combination must be checked against the manufacturer’s restrictions.

Industrial Electrical Configuration

The fan is designed for a three-phase AC supply within its specified voltage and frequency ranges.

Maintenance of Legacy Equipment

Correctly identifying and replacing a failed fan can help maintain existing CNC machines and industrial automation systems without automatically replacing the entire drive assembly.

Serviceability

Routine inspection of the fan, wiring, airflow passages, and mounting arrangement helps maintenance teams identify cooling problems before they lead to prolonged equipment downtime.

Technical FAQs

1. What is the Siemens 6SN1162-0BA02-0AA2?

It is a Siemens SIMODRIVE 611 built-on radial fan designed to provide forced-air cooling for compatible 300 mm wide drive modules.

2. Is it a drive module with a built-in fan?

No. The 6SN1162-0BA02-0AA2 is the fan assembly itself. It is mounted to compatible SIMODRIVE 611 equipment to provide the required cooling airflow.

3. What is the operating voltage?

Published technical documentation specifies a three-phase AC supply of 360–510 V AC at 45–65 Hz. Always verify the actual unit’s nameplate and wiring instructions before installation.

4. What is the current rating?

The published supply current is approximately 0.2–0.3 A. Confirm the specific fan’s nameplate and technical documentation before selecting protective devices or wiring.

5. What protection rating does it have?

The published protection rating is IP44. This rating should not be interpreted as permission to install the fan in any wet or contaminated environment; the complete drive installation must satisfy the required environmental conditions.

6. Which SIMODRIVE modules can use this fan?

It is intended for specified 300 mm wide SIMODRIVE 611 modules. However, some module combinations are explicitly excluded. Verify the full module order number against the manufacturer’s compatibility information.

7. What are common signs of fan failure?

Common warning signs include failure to start, abnormal noise, excessive vibration, reduced airflow, overheating alarms, and unexplained thermal shutdowns. Similar symptoms can also be caused by blocked cooling passages or other drive-system faults.

8. Can a generic radial fan replace this model?

Not without an engineering compatibility assessment. Voltage, phase, frequency, airflow, mounting geometry, connector arrangement, and cooling performance must all meet the requirements of the original system.

9. Is the product still available from Siemens?

The product belongs to a legacy SIMODRIVE family. Current manufacturer availability should be confirmed before ordering. Surplus and refurbished units may be offered by industrial spare-parts suppliers, but their condition and testing status should be verified.

10. Why might supplier dimensions and weight differ?

Suppliers may list the fan alone, the complete mounted assembly, or a packaged shipping item. Measurement conventions and drawing revisions can also differ. Use the actual unit and its corresponding documentation to confirm the correct values.

Procurement and Maintenance Recommendations

When purchasing the Siemens 6SN1162-0BA02-0AA2, begin by confirming the complete order number on the existing fan. Verify that the replacement is intended for the same SIMODRIVE 611 module and cooling configuration.

For new surplus, used, or refurbished units, request clear product photographs, confirmation of the order number, and available functional test information. Check the condition of the impeller, housing, bearings, wiring, connector, and mounting points. Where the equipment is production-critical, establish appropriate return and warranty terms before purchase.

During maintenance, inspect the fan periodically for dust accumulation, abnormal sound, vibration, and reduced airflow. Keep the cooling passages clean and confirm that the fan rotates in the specified direction. Investigate recurring overheating alarms rather than assuming the fan is the only possible cause.

Record the installed part number and replacement date in the equipment maintenance history. Keeping an accurate spare-parts record helps engineers identify the correct fan quickly during future maintenance and reduces the risk of incompatible substitutions.

Conclusion

The Siemens 6SN1162-0BA02-0AA2 SIMODRIVE 611 Built-On Fan is a radial blower designed to provide forced-air cooling for compatible 300 mm drive modules. Its published electrical specifications include a three-phase 360–510 V AC supply, 45–65 Hz operating frequency, approximately 0.2–0.3 A supply current, and IP44 protection.

For industrial maintenance teams, the most important considerations are exact module compatibility, correct electrical supply, proper airflow direction, and reliable mechanical installation. Verifying these details helps maintain the thermal performance of legacy SIMODRIVE 611 systems and supports dependable operation of CNC and automated manufacturing equipment.
