Product Overview

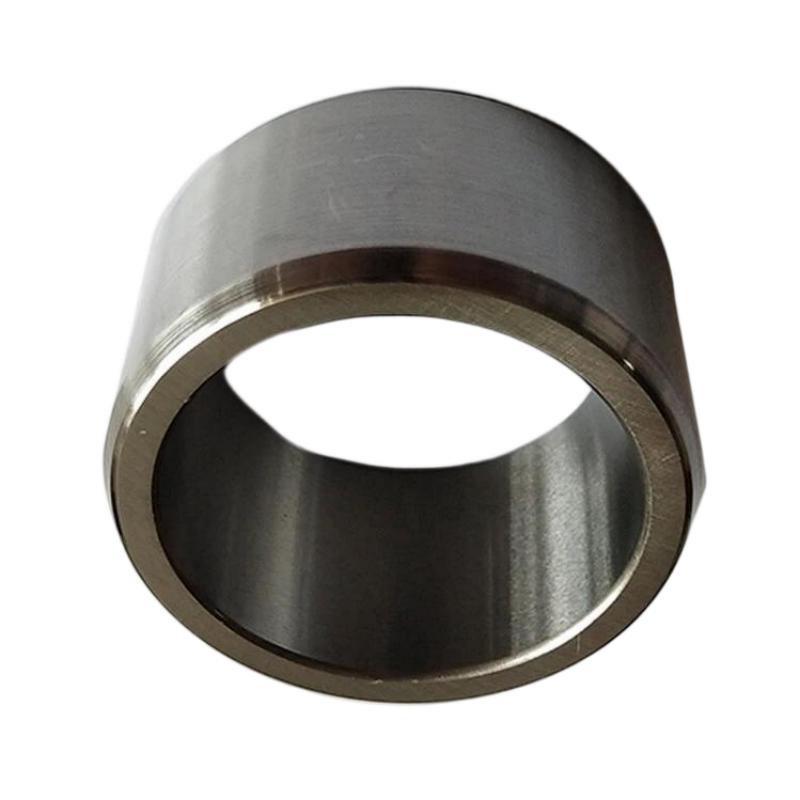

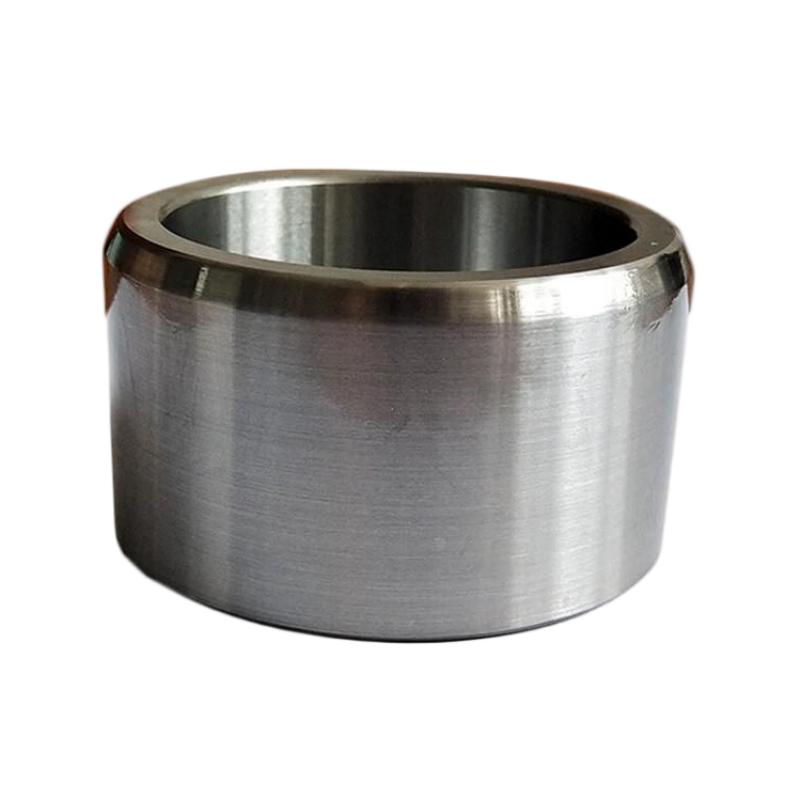

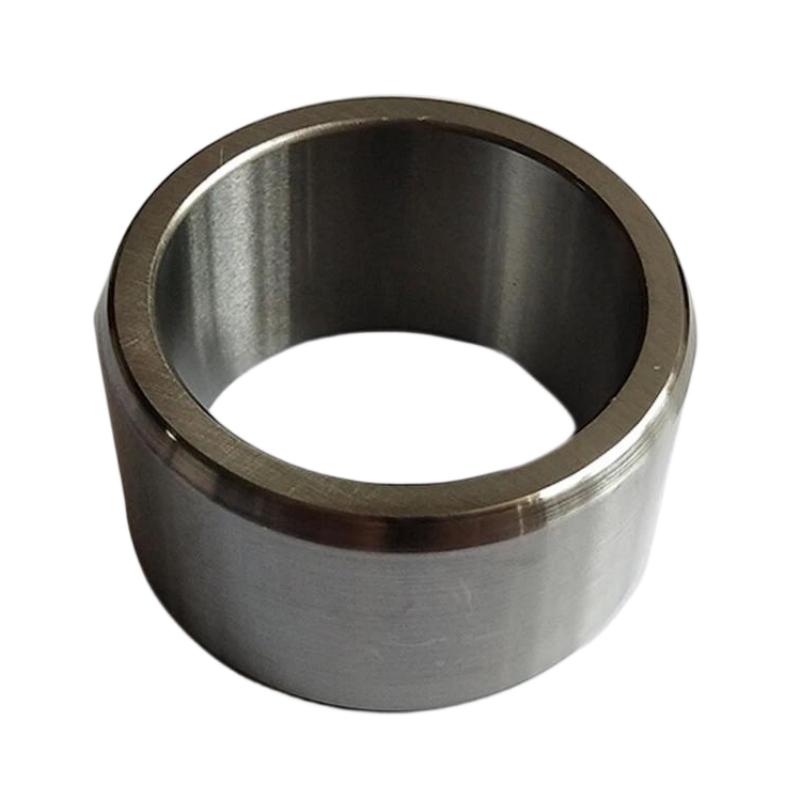

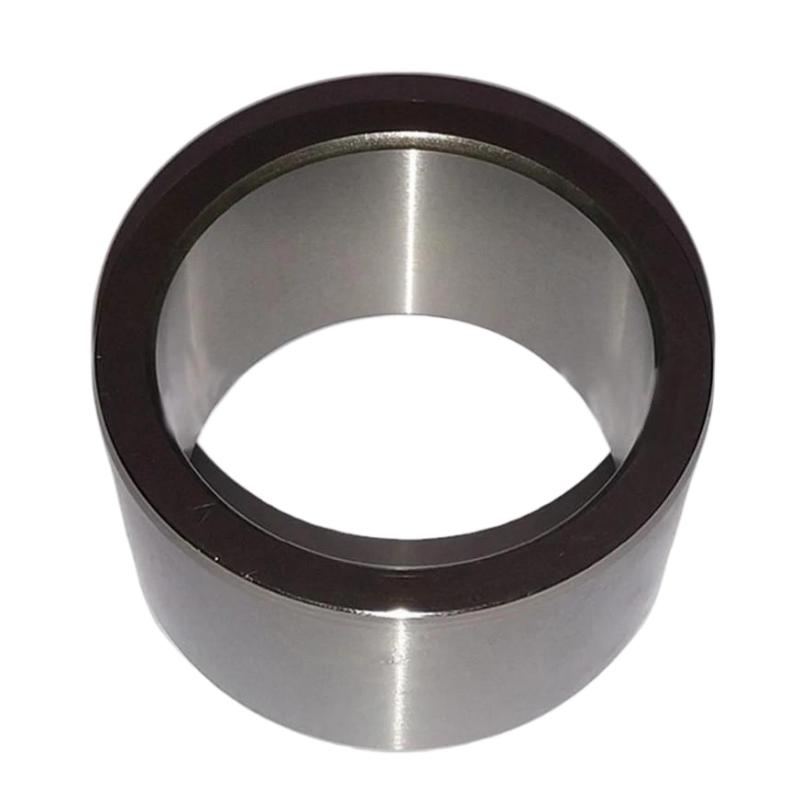

The Ingersoll Rand 89292460 Motor Shaft Sleeve is a mechanical replacement component designed for compatible Ingersoll Rand compressed-air equipment. It is identified in parts listings as a motor shaft sleeve with a 3-inch outside-diameter designation for M90/M110 compressor applications.

A motor shaft sleeve is a precision mechanical component installed over a shaft to provide a suitable working surface and help protect the underlying shaft from wear. In compressor assemblies, the sleeve may work in conjunction with shaft seals and related drivetrain components. Its condition can influence sealing performance, shaft protection, and the reliability of rotating equipment.

The 89292460 part number is associated with Ingersoll Rand compressor equipment, including M90 and M110 applications. Before ordering, maintenance personnel should confirm the compressor model, motor configuration, original part number, and sleeve dimensions. This is especially important when purchasing replacement parts for equipment that has been operating for many years or has undergone previous repairs.

The supplied product information identifies the item as 47553882001 / 89292460 Motor Shaft Sleeve, with an outside diameter of 80 mm and a weight of 0.65 kg. The 89292460 number is independently identified as a motor shaft sleeve in available parts listings. However, the relationship between 47553882001 and 89292460 should be verified against the original parts documentation or component label before treating the two numbers as interchangeable.

For industrial maintenance teams, using the correct shaft sleeve helps preserve the intended mechanical fit and reduces the risk of premature seal wear, oil leakage, and avoidable compressor downtime.

Technical Specifications

Note: The outside diameter of 80 mm is the supplied listing value. The available description of 89292460 identifies a 3-inch outside-diameter sleeve for M90/M110 applications, so the precise measurement reference should be checked before publication or procurement. Do not infer the inner diameter or overall length from the outside diameter alone.

Function and Working Principle

The motor shaft sleeve is a passive mechanical component rather than an electrical control device. Its role depends on the shaft, seal, and drivetrain arrangement in which it is installed.

1. Provides a Protective Shaft Surface

A shaft sleeve creates a replaceable surface around a shaft. In suitable designs, this helps protect the underlying shaft from wear associated with contact, sealing, or maintenance operations.

If a sleeve becomes scored or worn, replacing the sleeve may be preferable to repairing or replacing a more expensive shaft assembly. Whether this approach is permitted depends on the equipment’s original design and maintenance instructions.

2. Supports the Associated Sealing Arrangement

In rotating machinery, shaft seals help prevent lubricant leakage and unwanted contaminant ingress. A sleeve can provide the working surface against which a compatible seal operates.

The sealing arrangement depends on the sleeve’s dimensions, surface condition, alignment, and the seal design. A damaged or incorrectly sized sleeve can contribute to leakage or premature seal wear.

3. Helps Maintain Mechanical Fit

The sleeve must fit the intended shaft and surrounding components correctly. Its dimensions determine how it seats on the shaft and how it interacts with the related seal and retaining components.

An incorrect inner diameter, outside diameter, or axial length can prevent proper installation. For this reason, a replacement should be matched using the original part number and the equipment’s parts documentation rather than appearance alone.

4. Enables Component-Level Maintenance

A replaceable shaft sleeve can simplify maintenance when the sleeve is identified as the worn component. During an overhaul, technicians can inspect the sleeve, shaft, seal, and related hardware together to determine whether the sleeve alone can be replaced or whether additional work is necessary.

The actual repair procedure should follow the compressor manufacturer’s service instructions.

Role in Ingersoll Rand Air Compressor Systems

The 89292460 Motor Shaft Sleeve is associated with Ingersoll Rand M90/M110 compressor applications. Its purpose is mechanical, and it should be understood as part of the rotating assembly rather than as a standalone control component.

1. Mechanical Interface

The sleeve fits into a specific mechanical arrangement. Correct fit and alignment help the associated components operate as designed.

The exact installation location and mating components should be confirmed from the service documentation for the compressor’s specific configuration.

2. Shaft and Seal Maintenance

During compressor servicing, technicians may inspect the shaft sleeve together with the relevant seal and shaft surfaces. Wear, grooves, scoring, corrosion, or other damage can indicate that replacement or further inspection is needed.

A new sleeve should not be installed without investigating the cause of abnormal wear. Misalignment, incorrect assembly, contamination, or a damaged seal may contribute to repeated failure.

3. Reliability of Rotating Equipment

Air compressors are often important to production processes. Mechanical component wear can result in leakage, reduced reliability, or unplanned maintenance.

Using the correct replacement sleeve and following the approved assembly procedure can help restore the intended mechanical interface and support reliable compressor operation.

Industrial Applications

The 89292460 is a compressor spare part, not a general-purpose sleeve that can be installed in any motor. Its application should be limited to equipment for which the part number and dimensions have been confirmed.

1. Ingersoll Rand M90 Air Compressor Maintenance

The part is listed for M90 compressor applications. During scheduled maintenance, technicians should inspect the relevant shaft and seal assembly for wear or damage.

Before ordering, confirm the exact compressor variant and serial-number-specific parts information.

2. Ingersoll Rand M110 Air Compressor Maintenance

The 89292460 sleeve is also associated with M110 compressor applications. Correct part identification is important because different compressor configurations may use sleeves with different dimensions or installation arrangements.

Confirm the full part number before replacing an existing component.

3. Rotary Screw Compressor Overhauls

During a compressor overhaul, the motor shaft sleeve may be inspected as part of the rotating assembly and sealing system.

Technicians should check the sleeve’s surface condition and fit, as well as the condition of the mating shaft and seal. Replacement decisions should follow the manufacturer’s inspection criteria.

4. Preventive Maintenance Programs

Facilities operating compressed-air systems can include shaft and seal inspections in appropriate maintenance activities. The inspection interval depends on equipment design, operating hours, environment, and maintenance guidance.

The sleeve should be replaced when the applicable inspection criteria indicate that its condition no longer meets requirements.

5. Industrial Spare-Parts Inventory

Keeping accurately identified mechanical spares can help maintenance teams respond more quickly to equipment failures.

For this component, inventory records should include the verified part number, compatible compressor model, dimensions, supplier details, and the applicable original equipment documentation.

Installation and Replacement Considerations

The motor shaft sleeve is a precision mechanical component. Correct installation is essential for fit, sealing performance, and equipment reliability.

1. Confirm the Part Number

Check the existing sleeve, original parts list, and compressor identification plate before ordering. Verify whether 47553882001 is an applicable cross-reference for 89292460 in the specific installation.

Do not assume that two numbers identify interchangeable components without confirmation.

2. Inspect the Existing Assembly

Before removing the old sleeve, examine the surrounding shaft, seal, retaining components, and mating surfaces. Record visible wear patterns and investigate any signs of leakage or abnormal contact.

If the shaft itself is damaged, installing a new sleeve alone may not resolve the underlying problem.

3. Verify Dimensions

The supplied outside diameter is 80 mm, and the listed weight is 0.65 kg. Confirm the outside diameter, inner diameter, overall length, and any relevant shoulder or seating dimensions against the original component.

The listed outside diameter should not be used as the sole basis for approving a replacement.

4. Follow the Approved Installation Procedure

Use the compressor manufacturer’s service instructions for removal, surface preparation, lubrication, seal handling, and sleeve installation.

Avoid excessive force, improvised heating, or unapproved installation tools. Incorrect handling can damage the sleeve, shaft, or seal.

5. Inspect the Seal and Shaft

Check the seal’s condition and inspect the shaft for scoring, corrosion, or abnormal wear. Replace related components when required by the maintenance procedure.

A replacement sleeve should be installed with compatible seals and hardware, following the specified assembly sequence and torque requirements where applicable.

6. Test After Maintenance

Before returning the compressor to normal service, complete the required mechanical checks and operational testing. Verify that the assembly operates correctly and inspect for leakage or unusual vibration.

Record the replacement part number and maintenance findings for future service work.

Compatible System Components

The following components may be relevant during maintenance of the shaft sleeve assembly. Exact compatibility must be confirmed against the applicable compressor parts documentation.

These are general mechanical relationships. The exact components used with 89292460 should be confirmed from the parts list for the specific compressor model and serial number.

Alternative Models and Replacement Considerations

A shaft sleeve should not be replaced with another model simply because the component looks similar or has a comparable outside diameter.

Before approving a substitute, compare the inner and outer diameters, overall length, seating geometry, material requirements, surface finish, and intended seal interface. Any applicable manufacturer tolerances should take precedence over approximate measurements.

Key Advantages

Replaceable Wear Surface

A shaft sleeve can provide a replaceable surface that helps protect the underlying shaft in a compatible mechanical assembly.

Support for Seal Maintenance

When used with the correct seal arrangement, the sleeve provides the intended surface for the associated sealing system.

Component-Level Servicing

Replacing a worn sleeve may allow maintenance to focus on the affected component when the shaft and surrounding assembly remain serviceable.

Application-Specific Identification

The 89292460 part number is associated with Ingersoll Rand M90/M110 compressor applications, providing a useful starting point for spare-parts identification.

Support for Planned Maintenance

Accurate spare-parts identification and inspection records can help maintenance teams plan repairs and reduce avoidable downtime.

Technical FAQs

1. What is the Ingersoll Rand 89292460?

It is a motor shaft sleeve listed for Ingersoll Rand compressor applications, including M90 and M110 models.

2. What is the function of a motor shaft sleeve?

A shaft sleeve provides a replaceable surface around a shaft and may support the associated sealing arrangement. Its exact function depends on the equipment’s mechanical design.

3. What is the listed outside diameter?

The supplied listing states an outside diameter of 80 mm. Confirm the measurement reference against the original part because the available product description also identifies a 3-inch outside-diameter designation.

4. What is the weight of 89292460?

The supplied weight is 0.65 kg, which agrees with a parts listing that reports the same net item weight.

5. Is 89292460 compatible with M90 and M110 compressors?

Available parts listings associate the component with M90/M110 applications. The exact compressor variant and serial-number-specific parts information should still be checked before ordering.

6. Are 47553882001 and 89292460 interchangeable?

That relationship has not been conclusively verified from the available information. Confirm the cross-reference through the original parts documentation or a qualified Ingersoll Rand parts supplier.

7. When should the sleeve be replaced?

Replacement may be required when inspection identifies wear, scoring, surface damage, or other conditions outside the manufacturer’s acceptance criteria. The shaft and related seal should also be inspected.

8. Can any sleeve with an 80 mm outside diameter be used?

No. The inner diameter, length, seating geometry, material, and surface finish can all affect fit and performance. Use the correct part number and verify all required dimensions.

9. Should the shaft seal be replaced at the same time?

That depends on the maintenance findings and the manufacturer’s service procedure. If the seal is worn or damaged, replacing it may be necessary to restore reliable sealing performance.

10. What information should be provided when ordering?

Provide the verified part number, compressor model, serial number, existing component markings, and any relevant dimensional information. This helps the supplier confirm the correct replacement.

Procurement and Maintenance Recommendations

When purchasing the Ingersoll Rand 89292460 Motor Shaft Sleeve, prioritize part-number verification and application compatibility. Confirm the compressor model and serial number, and determine whether 47553882001 is a valid cross-reference for the specific equipment.

For new or replacement stock, request confirmation of the part’s identity, dimensional specifications, condition, and applicable warranty. If using an aftermarket component, verify the dimensional tolerances, material requirements, surface finish, and intended application.

For maintenance teams, record the part number and installation details in the equipment maintenance history. Inspect the sleeve, shaft, seal, and associated components during relevant service work, and investigate repeated wear or leakage rather than replacing the sleeve without checking the cause.

The supplied 80 mm outside diameter and 0.65 kg weight can be retained as listing information, but the outside-diameter discrepancy should be resolved before the product page is treated as a definitive technical reference.

Conclusion

The Ingersoll Rand 89292460 Motor Shaft Sleeve is a mechanical spare part associated with M90/M110 compressor applications. It provides a replaceable shaft surface and may form part of the equipment’s sealing and rotating assembly.

Correct part identification, dimensional verification, and adherence to the manufacturer’s installation procedure are essential for a reliable replacement. Before listing or purchasing the component, confirm the relationship between part numbers 47553882001 and 89292460 and verify the stated 80 mm outside diameter against the original component documentation.
