Product Overview

The Siemens 6SN1162-0BA03-0AA1 is a cooling component associated with the Siemens SIMODRIVE 611 drive system. Its documented configuration is a hose-cooling package designed to support thermal management for compatible drive modules in industrial motion-control applications.

Power electronics generate heat during normal operation. If this heat is not removed effectively, excessive temperatures can lead to thermal warnings, drive shutdowns, accelerated component aging, or unexpected production interruptions. A properly designed cooling arrangement helps maintain suitable operating temperatures and supports the reliability of the drive system.

The 6SN1162-0BA03-0AA1 cooling package is designed for installations that route heated air away from the drive module and toward a designated cabinet cooling arrangement. Its documented assembly includes a radial fan, module connection flanges, a cabinet connection flange, and cooling hoses. The arrangement is intended for compatible SIMODRIVE 611 modules that require the corresponding external hose-cooling configuration.

This distinction is important when purchasing replacement parts. A complete hose-cooling package is not necessarily interchangeable with a standalone fan, even if the fan itself appears similar. Connection hardware, hose routing, electrical supply, airflow direction, and mounting dimensions must all match the original installation.

The 6SN1162-0BA03-0AA1 is therefore relevant to maintenance and repair work involving legacy Siemens drive systems. Before ordering, users should confirm the complete part number and determine whether the requirement is for the complete cooling package or only an individual fan component.

Technical Specifications

Important: The dimensions and 2.8 kg weight above are supplied listing values and have not been confirmed as the dimensions and weight of the complete 6SN1162-0BA03-0AA1 assembly. Verify the physical item and included components before using these figures for procurement, installation, or shipping.

Function and Working Principle

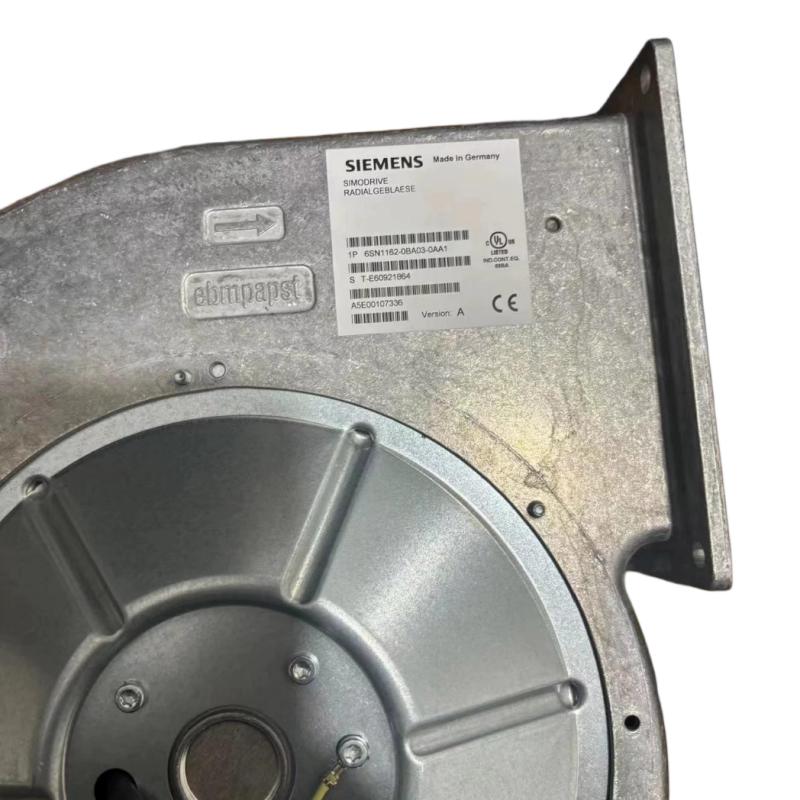

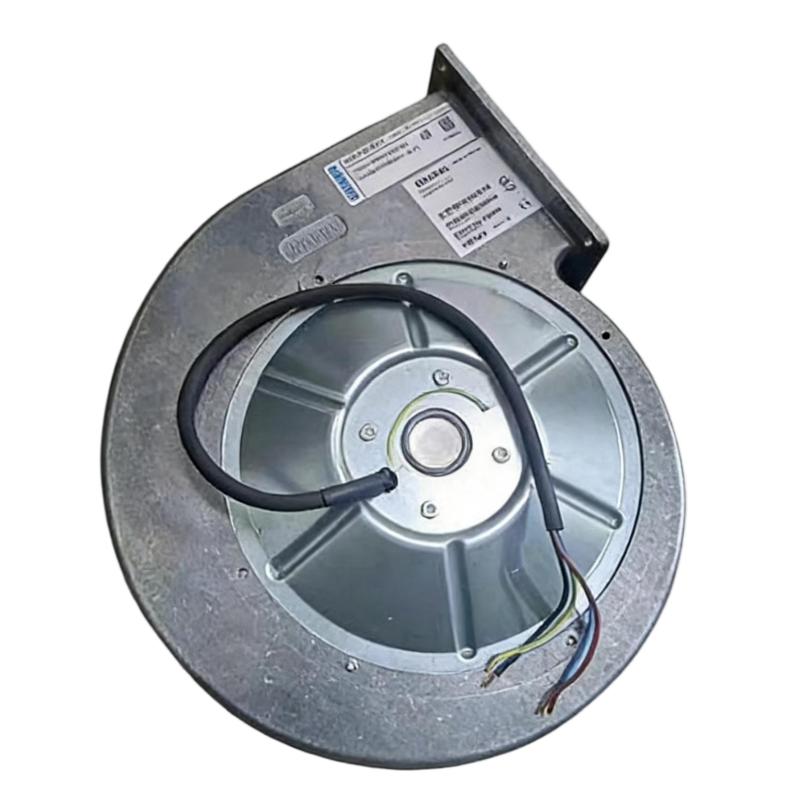

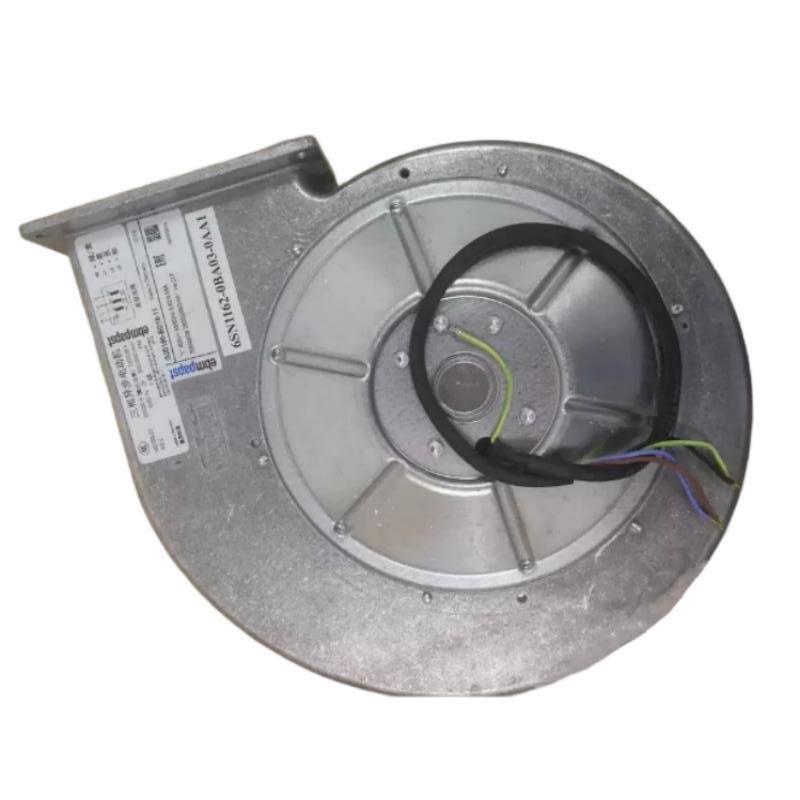

The Siemens 6SN1162-0BA03-0AA1 cooling package supports heat removal from compatible SIMODRIVE 611 drive modules. Its operating principle is based on forced-air circulation and the controlled routing of heated air through a cooling path.

1. Forced-Air Circulation

The radial fan generates airflow to assist the removal of heat from the drive system. Compared with relying only on natural convection, forced-air cooling can provide more controlled heat transfer when properly matched to the module and installation.

The actual cooling performance depends on the fan’s condition, airflow resistance, hose routing, ambient temperature, and the thermal load of the drive equipment.

2. Hose-Directed Heat Removal

The cooling hoses and connection flanges form a defined air path between the drive module and the cabinet cooling arrangement. This helps direct heated air away from the relevant equipment rather than allowing all of it to circulate freely inside the control cabinet.

The hoses must be installed without crushing, obstruction, or excessive bending. Incorrect routing can increase airflow resistance and reduce the effectiveness of the cooling system.

3. Thermal Management for Power Electronics

Drive systems contain power electronic components that produce heat during operation. Maintaining appropriate temperatures helps protect electronic components and reduces the likelihood of thermal faults.

The cooling package is part of the overall thermal-management design; it does not independently regulate every temperature within the drive. Proper cabinet ventilation, equipment spacing, and environmental conditions remain important.

4. Cooling-Airflow Direction

The fan must rotate in the specified direction to provide the intended airflow. Siemens documentation identifies a counterclockwise rotation when viewing the rotor for the documented package configuration.

During replacement or commissioning, technicians should check the rotation direction and the airflow arrow on the actual fan. A fan that rotates incorrectly may appear to operate normally while failing to provide adequate cooling.

Role in Industrial Drive Systems

The 6SN1162-0BA03-0AA1 supports the thermal management of compatible SIMODRIVE 611 equipment. Its role is particularly important in cabinets where the drive’s cooling arrangement uses hoses to route heat away from sensitive electronic components.

CNC Machine Tools

Computer numerical control machines can place substantial thermal demands on their drive systems during demanding production cycles. Effective cooling helps the drive equipment remain within its permitted operating conditions.

The cooling package must match the installed module and the machine’s original thermal design.

Industrial Servo and Motion Control

Servo drive systems are used to control motor speed, torque, and movement in automated machinery. Depending on the application, the drive may operate through repeated acceleration, deceleration, and load changes.

These operating conditions can create varying thermal loads. A suitable cooling arrangement helps maintain the drive’s intended operating environment.

Machine Tool Electrical Cabinets

The package can be used in compatible electrical cabinets where the SIMODRIVE 611 system employs hose-directed cooling. Routing heated air through the intended path can help reduce unwanted heat accumulation within the cabinet.

Cabinet modifications should not compromise the specified airflow or introduce excessive pressure losses.

Legacy Automation Equipment

Older production machines may continue operating with installed SIMODRIVE 611 drive components. Maintaining the correct cooling accessories can help support equipment availability and avoid unnecessary modifications to the original cabinet design.

For these installations, identifying the original Siemens order number is essential because different cooling accessories may have similar external appearances but different electrical or mechanical interfaces.

Installation and System Integration

Correct installation is necessary to ensure that the cooling package delivers its intended performance.

1. Verify the Complete Order Number

Before installation, confirm that the component is Siemens 6SN1162-0BA03-0AA1. Check whether the replacement is a complete hose-cooling package or a standalone fan.

Inspect the included hoses, flanges, mounting parts, and electrical connections. If the original installation uses a complete package, replacing only the fan may leave important connection or cooling-path requirements unresolved.

2. Confirm Electrical Compatibility

The Siemens documentation specifies a three-phase supply of 360–457 V AC at 47.5–62.5 Hz for this package, with a current of approximately 1.0–1.2 A.

Confirm the supply and protective-device requirements against the documentation for the actual component. Do not connect the fan using assumptions based on a different SIMODRIVE cooling accessory.

3. Install the Cooling Hoses Correctly

Route the hoses according to the system layout. Avoid sharp bends, crushing, leaks, or obstructions that may restrict airflow.

Ensure the module connection flanges and cabinet connection flange are correctly fitted. Improperly sealed or incorrectly positioned connections can reduce cooling performance.

4. Check the Fan Rotation Direction

Verify the required direction of rotation before returning the equipment to service. Follow the arrow and markings on the fan and the manufacturer’s installation instructions.

If airflow is inadequate, check the rotation direction, hose routing, filter condition, and other possible restrictions before assuming that the fan itself has failed.

5. Maintain Protective Earthing

Siemens documentation warns that the fan must be electrically connected to the module housing through the protective-earth arrangement before commissioning.

Follow the original equipment grounding design and the applicable electrical regulations. Do not operate the assembly if the required protective-earth connection has not been verified.

6. Perform an Operational Check

After installation, inspect all mechanical connections and electrical wiring. Confirm that the fan starts correctly, rotates in the required direction, and produces the intended airflow.

Monitor the drive system during operation for abnormal noise, vibration, airflow restrictions, or thermal alarms. Record any replacement work and relevant maintenance observations.

Compatible System Components

The cooling package is intended for use as part of a compatible Siemens SIMODRIVE 611 installation. The exact components depend on the original drive configuration.

These are system-level components and are not necessarily all included when purchasing a replacement part. Confirm the seller’s bill of materials before ordering.

Alternative Models and Replacement Considerations

When sourcing a replacement for the 6SN1162-0BA03-0AA1, the most important consideration is whether the alternative supports the same cooling arrangement and electrical requirements.

Before approving an alternative, compare:

• Supply voltage, phase configuration, frequency, and current.
• Required airflow and cooling capacity.
• Rotation direction.
• Hose length, diameter, and routing.
• Flange dimensions and mounting points.
• Protection rating and environmental requirements.
• Cabinet cooling design.
• Included accessories and replacement parts.

A similar-looking fan should not be considered a direct substitute until these parameters have been checked. An incompatible cooling arrangement may reduce heat removal even if the replacement fan can be electrically operated.

Key Advantages

Directed Cooling

The hose-cooling arrangement helps route heated air through a defined path rather than relying solely on general cabinet airflow.

Support for SIMODRIVE 611 Equipment

The package is associated with the Siemens SIMODRIVE 611 drive family and can support maintenance of compatible legacy installations.

Integrated Cooling Components

The documented package combines a radial fan with hoses and connection flanges, helping provide a coordinated cooling arrangement.

Defined Electrical Requirements

The specified three-phase voltage, frequency, and current range provide important information for checking electrical compatibility.

Enclosed Airflow Path

The hose arrangement can help separate the drive’s hot-air exhaust from other cabinet areas when installed according to the original design.

Maintenance and Replacement Value

Accurate identification of the original cooling package can help maintenance teams restore an existing drive installation without unnecessary changes to the cabinet’s thermal design.

Technical FAQs

1. What is Siemens 6SN1162-0BA03-0AA1?

It is a SIMODRIVE 611 hose-cooling package that includes a radial fan and associated cooling connections for compatible drive installations.

2. Is it a standalone centrifugal fan?

Siemens documentation identifies the complete order number as a hose-cooling package that includes a radial fan. If only a fan is being sold, verify the exact component and order number before listing it as 6SN1162-0BA03-0AA1.

3. What power supply does the package use?

The documented supply is three-phase 360–457 V AC at 47.5–62.5 Hz, with a current of approximately 1.0–1.2 A. Confirm the specifications against the actual component and its documentation.

4. What is the protection rating?

The documented cooling package has an IP54 protection rating. Confirm the rating of the actual replacement component, particularly if the package is incomplete or has been modified.

5. What is the correct fan rotation direction?

The Siemens documentation specifies counterclockwise rotation when viewing the rotor for this configuration. Check the arrow and markings on the actual fan before commissioning.

6. Why is the cooling package important?

Drive power electronics generate heat during operation. The cooling package helps remove that heat and maintain suitable operating conditions for compatible drive equipment.

7. Can another SIMODRIVE fan replace this model?

Not automatically. Related fans and cooling packages may differ in electrical ratings, mounting dimensions, airflow, hoses, and flange arrangements. Verify the complete configuration before substitution.

8. Does the supplied weight of 2.8 kg match the complete assembly?

It differs from Siemens documentation, which lists approximately 8 kg for the complete 6SN1162-0BA03-0AA1 package. Confirm whether the supplied item is a standalone fan, a partial assembly, or the complete package.

9. What should be checked when purchasing a replacement?

Verify the complete order number, physical condition, electrical data, included cooling components, mounting interfaces, and any available functional-test information. Confirm whether the seller is supplying the entire package or only part of it.

10. What maintenance is recommended?

Inspect the fan for abnormal noise or vibration, check hose routing and connections, ensure that airflow is unobstructed, and verify the protective-earth connection. Follow the maintenance instructions for the installed SIMODRIVE system.

Procurement and Maintenance Recommendations

The Siemens 6SN1162-0BA03-0AA1 should be sourced by its complete order number because the SIMODRIVE 611 product family contains several related but potentially incompatible cooling accessories.

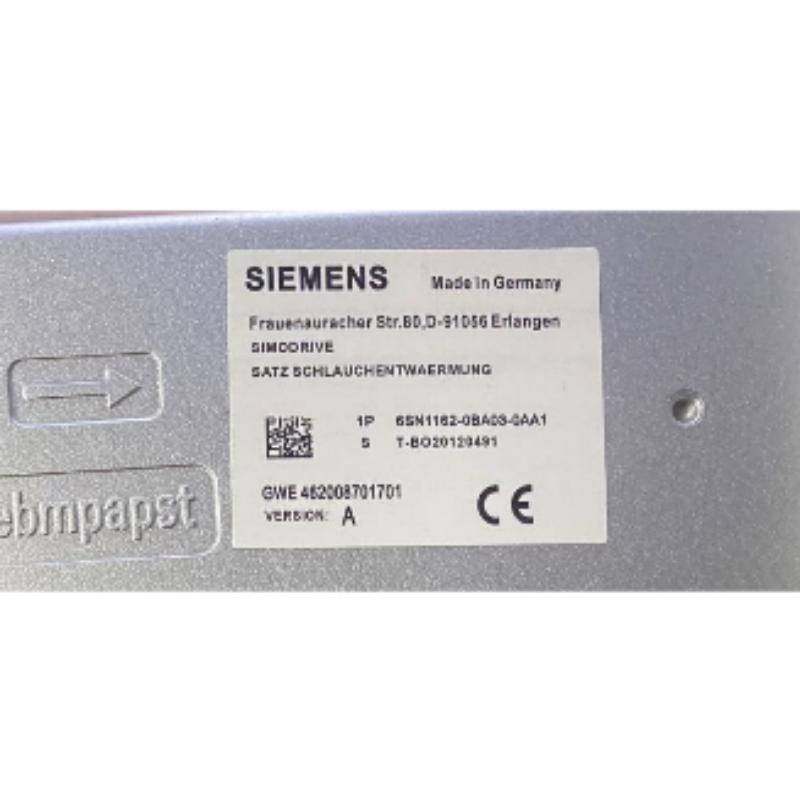

When ordering, confirm whether the requirement is for the complete hose-cooling package or a replacement fan only. Request photographs of the nameplate, electrical connections, fan housing, hoses, and connection flanges. Compare the supplied components with the original assembly before installation.

For shipping and inventory purposes, distinguish the weight of a standalone fan from the weight of the complete package. The provided listing weight of 2.8 kg should be confirmed against the actual item, since the documented complete package is approximately 8 kg.

During maintenance, ensure that the cooling path remains unobstructed and that the fan operates in the correct direction. Inspect hoses and flanges for damage or poor connections, and maintain the required protective-earth arrangement.

If the original component is unavailable, select an alternative only after checking electrical compatibility, airflow performance, mechanical interfaces, and the cabinet cooling design. Any change to the original cooling arrangement should be evaluated before the equipment is returned to service.

Conclusion

The Siemens 6SN1162-0BA03-0AA1 is a SIMODRIVE 611 hose-cooling package incorporating a radial fan and associated air-routing components. Its documented electrical requirements are three-phase 360–457 V AC, 47.5–62.5 Hz, with a current of approximately 1.0–1.2 A. The documented protection rating is IP54, and the complete assembly weighs approximately 8 kg.

For procurement and maintenance, verify whether the supplied item is the complete cooling package or an individual fan. Confirm the order number, electrical specifications, fan rotation, cooling connections, dimensions, and actual weight to ensure the replacement is suitable for the existing Siemens drive installation.
