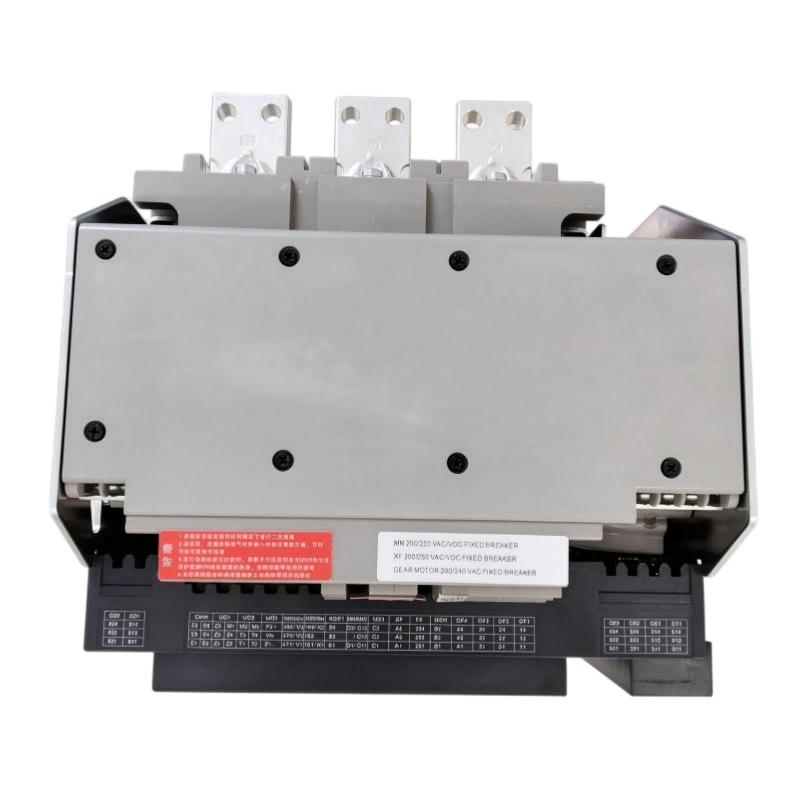

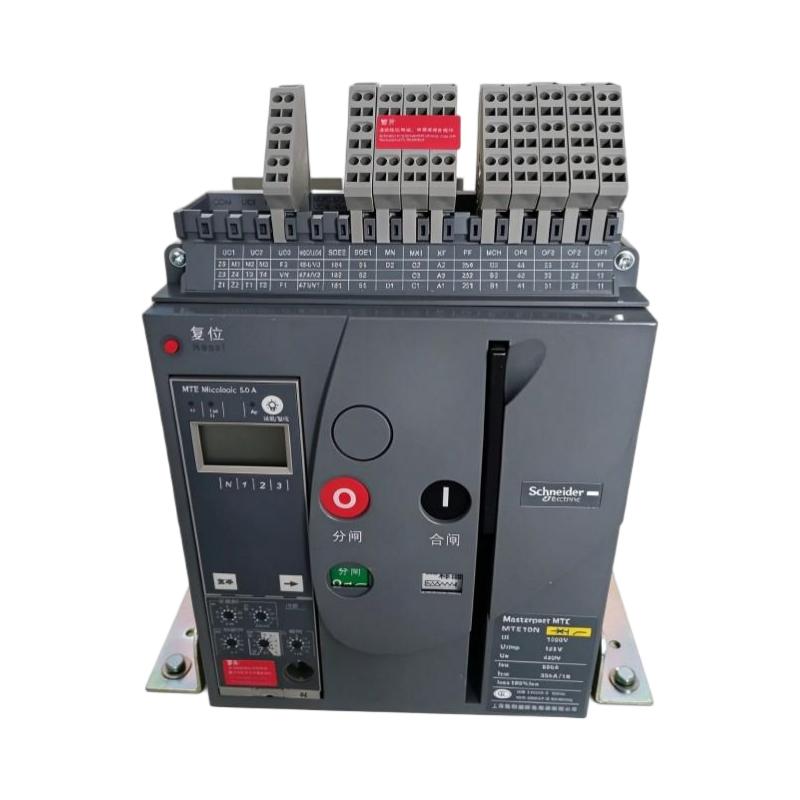

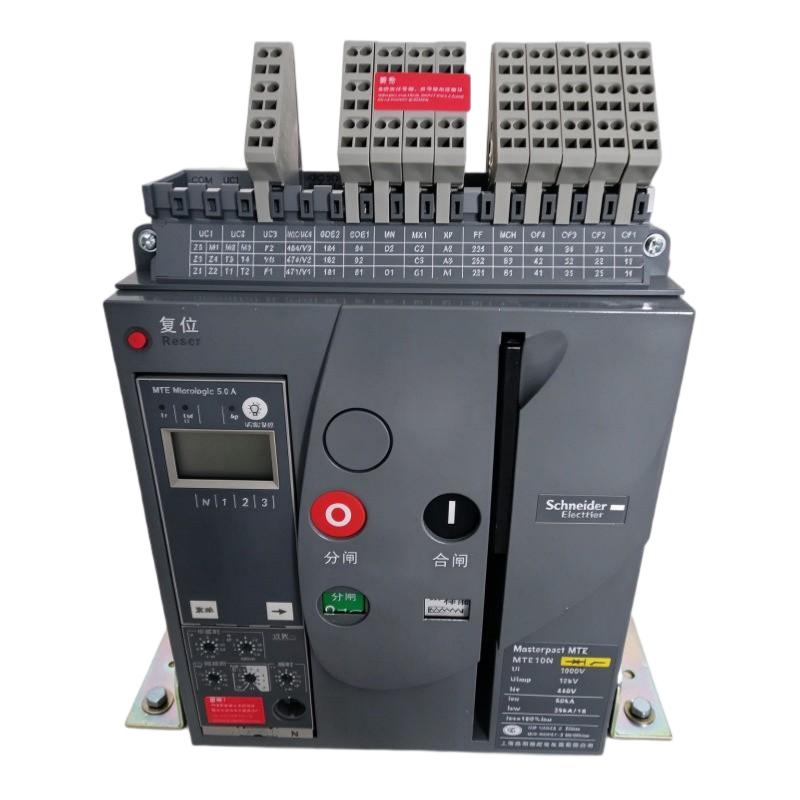

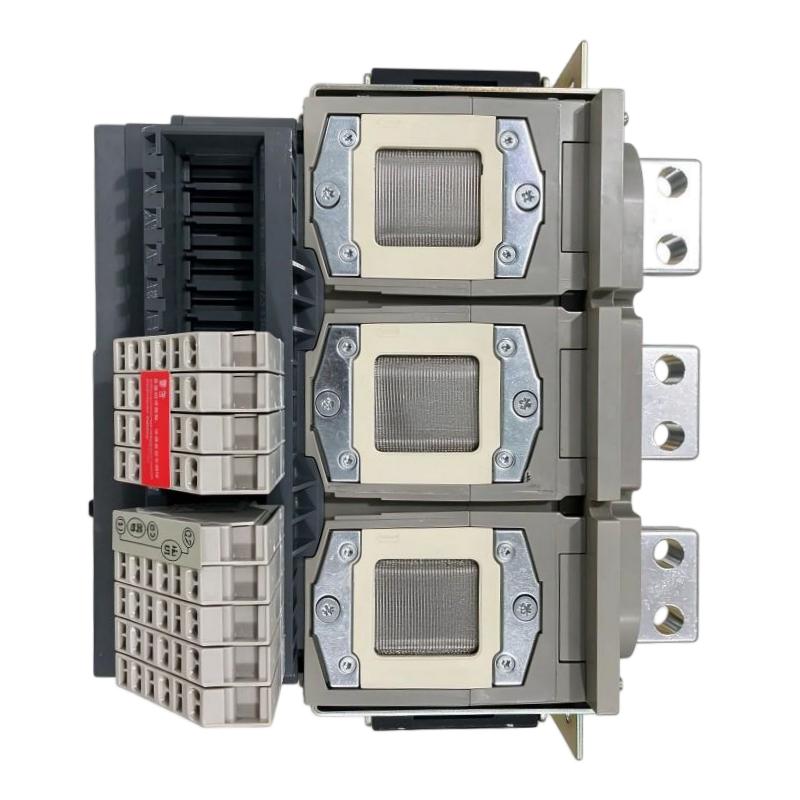

Product Overview

The Schneider MTE10N Circuit Breaker is identified as an electrical protection component intended for use in industrial or electrical distribution systems. Circuit breakers are essential components in electrical installations because they provide a means of interrupting current when abnormal conditions occur and allow circuits to be isolated for maintenance when used in an appropriate system design.

In industrial environments, electrical distribution equipment supplies power to control panels, production machinery, motor-control systems, automation equipment, and auxiliary devices. These systems require correctly selected protective components to help reduce the risk of damage caused by overloads and short circuits.

A circuit breaker operates as part of a coordinated electrical protection system. Its performance depends on its rated voltage, continuous current rating, interrupting capacity, trip characteristics, installation method, and compatibility with the upstream and downstream equipment. These parameters must be verified before the device is installed or used as a replacement.

The MTE10N model designation should be checked against the physical product label and applicable manufacturer documentation before purchasing. The exact electrical ratings and construction details should not be inferred from the model name alone. This is particularly important for industrial spare parts, where products with similar designations may have different operating characteristics.

For equipment maintenance teams, accurate product identification helps ensure that the selected circuit breaker is suitable for the intended electrical system. A replacement must satisfy both the electrical requirements and the mechanical installation constraints of the original equipment.

Technical Specifications

Important: The dimensions and weight are the supplied listing values. Electrical ratings and installation details should be confirmed against the exact product label and manufacturer documentation before ordering or installation.

Function and Working Principle

A circuit breaker is designed to interrupt an electrical circuit when specified abnormal current conditions occur. Depending on its design, a breaker may use thermal, magnetic, electronic, or other trip mechanisms to detect conditions that require disconnection.

1. Overload Protection

An overload occurs when a circuit carries more current than it is intended to handle for a period of time. Excessive current can cause conductors and connected equipment to overheat.

A circuit breaker with an appropriate overload-protection function can interrupt the circuit when the applicable trip conditions are reached. Correct selection requires consideration of the conductor rating, equipment load, expected operating current, and applicable electrical standards.

The breaker must be coordinated with the circuit it protects. A device with an unsuitable current rating or trip characteristic may not provide the intended protection.

2. Short-Circuit Protection

A short circuit can produce a very high current over a short period. If the fault is not interrupted appropriately, it can cause severe equipment damage and create electrical hazards.

A circuit breaker must have a suitable interrupting capacity for the prospective short-circuit current at its installation point. This rating must be verified from the manufacturer’s documentation rather than estimated from the physical size of the device.

Short-circuit protection also depends on the overall electrical design, including conductor sizing, upstream protective devices, grounding, and coordination between protective components.

3. Circuit Isolation

Circuit breakers may also provide a means of switching or isolating electrical circuits, depending on their design and rating. This function can support maintenance and inspection activities when the breaker is used in accordance with the applicable procedures.

However, switching a breaker to the off position should not automatically be treated as proof that equipment is safe to service. Personnel must follow the required isolation, lockout, and verification procedures before working on electrical equipment.

4. Protection Coordination

In industrial distribution systems, several protective devices may be installed between the power source and individual loads. Their trip characteristics should be coordinated so that a fault is interrupted at the appropriate point in the system whenever the design permits.

Correct coordination can help limit unnecessary shutdowns and reduce the impact of electrical faults on other equipment.

The MTE10N’s role in a particular installation must therefore be evaluated alongside the ratings and protection settings of connected equipment.

Role in Industrial Control Systems

Circuit breakers support the safe operation of industrial control systems by protecting electrical circuits and providing a defined switching point within the distribution architecture.

Power Distribution Panels

Industrial distribution panels divide incoming electrical power into individual circuits supplying machinery, control cabinets, and auxiliary loads. Protective devices are selected according to each circuit’s electrical requirements.

When a circuit breaker is used in a distribution panel, its voltage rating, current rating, interrupting capacity, and installation requirements must match the panel design.

PLC and Automation Cabinets

Programmable logic controllers, I/O modules, power supplies, communication devices, and other automation components require suitable electrical supplies. Circuit protection helps protect the relevant supply circuits and wiring when an abnormal condition occurs.

The exact breaker configuration depends on whether it protects an incoming supply, a branch circuit, a control transformer, or a specific item of equipment.

Motor-Control Systems

Motor circuits may experience high starting currents and other transient conditions during normal operation. Protective-device selection must account for these characteristics while providing appropriate protection for conductors and connected equipment.

A general circuit breaker should not be assumed to provide every function required for motor protection. Depending on the application, additional overload relays, motor-protection devices, contactors, or other components may be necessary.

Maintenance and Equipment Replacement

In legacy industrial systems, an existing breaker may need to be replaced because of wear, damage, or a wider equipment refurbishment project. Matching the original part number is an important first step, but engineers must also verify the electrical ratings, accessories, mounting arrangement, and compatibility with the installed switchgear.

Industrial Applications

Circuit breakers are used across a wide range of industrial electrical installations. The suitability of the Schneider MTE10N for a specific application must be confirmed using its verified ratings and configuration.

1. Industrial Electrical Distribution

Industrial facilities use distribution equipment to supply power to manufacturing areas, utility systems, and production machinery. Circuit breakers help protect individual circuits and provide switching functionality where permitted by their design.

Correct selection requires an assessment of the supply voltage, load current, fault level, and protective-device coordination.

2. Manufacturing Equipment

Production equipment often contains motors, control systems, heaters, sensors, and auxiliary electrical devices. Circuit protection is needed to address abnormal electrical conditions and support safe maintenance.

The appropriate breaker depends on the type of load and the electrical characteristics of the equipment being protected.

3. Automation Control Cabinets

Automation cabinets may contain PLCs, power supplies, industrial communication equipment, relays, and other control components. Suitable protective devices help protect their power circuits and wiring.

The breaker should be selected based on the actual branch-circuit requirements rather than the physical dimensions of the cabinet or the general category of the equipment.

4. Industrial Utility Systems

Utility systems in industrial facilities may include ventilation, pumping, auxiliary power distribution, and other supporting equipment. Circuit breakers can be used to protect the relevant electrical circuits where the device is appropriately rated.

Environmental conditions, enclosure requirements, load characteristics, and maintenance access should be considered during installation.

5. Electrical Equipment Refurbishment

During refurbishment, maintenance teams may replace ageing protective devices or restore an electrical panel to its documented configuration. Accurate identification of the installed breaker is essential to avoid introducing a device with unsuitable electrical or mechanical characteristics.

For replacement work, verify the complete model designation, ratings, terminal arrangement, accessories, and mounting requirements before procurement.

Installation and System Integration

Circuit breaker installation should be performed by qualified personnel in accordance with the manufacturer’s instructions and applicable electrical codes.

1. Verify Electrical Ratings

Before installation, confirm the rated operating voltage, rated current, pole configuration, and interrupting capacity. These values must be appropriate for the supply system and the circuit being protected.

The prospective short-circuit current at the installation point must not exceed the breaker’s applicable interrupting rating. Upstream and downstream protective devices should be assessed as part of the overall protection design.

2. Check Mechanical Compatibility

The supplied dimensions are 301 × 346 × 196 mm, with a listed weight of 18 kg. Verify these measurements against the actual product and its installation drawing before designing the mounting arrangement.

Check mounting points, terminal access, operating clearance, enclosure dimensions, and the space required for any accessories. A breaker that fits physically may still be electrically incompatible with the existing system.

3. Inspect Terminals and Connections

Inspect the terminals and contact areas for visible damage, contamination, corrosion, or signs of overheating. Use conductors and connection hardware appropriate for the exact breaker configuration.

Tightening torque, conductor size, and terminal preparation must follow the manufacturer’s instructions. Incorrect connections can cause excessive heating and unreliable operation.

4. Confirm Protective Coordination

Check that the selected breaker is coordinated with the circuit conductors and connected equipment. Consider normal operating current, starting or inrush current, expected fault current, and the requirements of the applicable electrical standards.

Where several protective devices are installed in series, review their time-current characteristics and coordination requirements.

5. Follow Electrical Safety Procedures

Before installing, removing, or servicing the breaker, isolate the relevant supply and follow the required lockout and verification procedures. Confirm the absence of hazardous voltage using an appropriate method.

Never assume that a circuit is safe merely because a breaker handle is in the off position. Additional sources of energy or backfeed may be present in industrial installations.

6. Perform Appropriate Inspection and Testing

After installation, qualified personnel should inspect the connections, verify the mechanical installation, and perform the checks required by the equipment manufacturer and applicable standards.

Any testing must follow approved procedures for the specific breaker type. Do not perform improvised high-current tests or attempt to adjust internal trip mechanisms without appropriate documentation and qualifications.

Compatible System Components

The MTE10N may be used within a broader electrical distribution or industrial control installation. The following components are examples of equipment that may be associated with a circuit breaker in a properly engineered system; they are not confirmed accessories supplied with this model.

The final configuration must be established from the actual electrical design and the breaker manufacturer’s documentation.

Alternative Models and Replacement Considerations

Selecting an alternative for the MTE10N requires more than finding a breaker with similar dimensions. Electrical ratings, mechanical design, and protection characteristics must all be compatible.

Before selecting a replacement, verify:

• Exact catalog number and nameplate data.
• Rated operational voltage and current.
• Number of poles and connection arrangement.
• Short-circuit interrupting capacity.
• Trip characteristics and protection functions.
• Compatibility with the existing panel or switchgear.
• Terminal arrangement and approved conductor sizes.
• Required accessories and operating mechanism.
• Applicable electrical standards and installation requirements.

A replacement should not be approved until these details have been confirmed.

Key Advantages of Correct Circuit Breaker Selection

Electrical Fault Interruption

A correctly rated circuit breaker can interrupt specified abnormal current conditions, helping protect wiring and connected equipment.

Circuit Switching and Isolation

Where supported by its design and rating, a breaker can provide a defined switching point for operating and maintenance procedures.

Integration into Distribution Systems

Circuit breakers form part of coordinated electrical protection systems used in industrial panels, switchgear, and automation installations.

Support for Maintenance Planning

Accurate model identification helps maintenance teams locate suitable spare parts and reduce the risk of incompatible replacements.

Improved Protection Coordination

When selected and coordinated correctly, a breaker can help limit the effects of electrical faults and reduce unnecessary interruptions to other circuits.

These benefits depend on correct product selection, proper installation, and compliance with the applicable electrical standards.

Technical FAQs

1. What is the Schneider MTE10N?

The Schneider MTE10N is identified in the supplied product information as a circuit breaker. Its exact electrical ratings and construction should be verified against the product nameplate and manufacturer documentation.

2. What are the dimensions and weight?

The supplied dimensions are 301 × 346 × 196 mm, and the supplied weight is 18 kg. Confirm these values against the physical unit before using them for shipping or installation planning.

3. What is the rated current of the MTE10N?

The rated current has not been reliably confirmed from the available model-specific information. Check the nameplate or technical documentation before selecting or installing the device.

4. What voltage can this breaker operate at?

The exact voltage rating should be verified from the product label and applicable manufacturer documentation. Do not assume a voltage rating from the model designation alone.

5. What is its short-circuit breaking capacity?

The breaking capacity has not been confirmed for this exact model. The breaker must have an interrupting rating suitable for the prospective short-circuit current at the installation point.

6. Can the MTE10N protect a motor?

Whether it is suitable for a motor circuit depends on its verified ratings, trip characteristics, and the overall motor-protection design. Additional motor overload protection or other devices may be required.

7. Can I replace it with another Schneider Electric circuit breaker?

Not automatically. The replacement must match the electrical ratings, protection characteristics, mounting arrangement, terminal configuration, and any required accessories.

8. What should I check before purchasing a used unit?

Verify the complete model designation, nameplate ratings, physical condition, terminal condition, operating mechanism, available testing records, and supplier warranty or return policy. Critical electrical equipment should be evaluated by qualified personnel before being returned to service.

9. Does the breaker require routine maintenance?

Maintenance requirements depend on the exact breaker design and its operating environment. Follow the manufacturer’s maintenance instructions and applicable inspection schedule. Any internal inspection or testing should be performed by qualified personnel using approved procedures.

10. Why should the nameplate be checked before ordering?

The nameplate identifies the actual device and its electrical ratings. These details are necessary to ensure the replacement is suitable for the system and to avoid selecting a product that merely looks similar.

Procurement and Maintenance Recommendations

When sourcing the Schneider MTE10N Circuit Breaker, begin by confirming the exact product designation and reviewing the nameplate. Obtain the rated current, voltage, pole configuration, interrupting capacity, and relevant trip characteristics before placing an order.

For used or surplus equipment, request clear photographs of the nameplate, terminals, operating mechanism, and mounting interfaces. Ask the supplier to clarify the unit’s condition, available test records, included accessories, and applicable warranty or return terms.

The supplied dimensions of 301 × 346 × 196 mm and weight of 18 kg can be used as preliminary listing information, but they should be checked against the actual product before shipment planning or cabinet design.

For maintenance, keep the electrical enclosure clean and ensure that the breaker and surrounding components remain in suitable operating conditions. Inspect for signs of overheating, contamination, loose connections, mechanical damage, or other abnormalities according to the manufacturer’s requirements.

If the breaker is being replaced as part of a wider system refurbishment, review the electrical protection coordination and verify that the new device remains suitable for the existing cables, busbars, load, and fault-current conditions. Changes to a protective device can affect the safety and performance of the entire installation.

Conclusion

The Schneider MTE10N Circuit Breaker is listed as an industrial electrical protection component with supplied dimensions of 301 × 346 × 196 mm and a weight of 18 kg. Circuit breakers are important elements of industrial power distribution, providing circuit interruption and, where supported by their design, switching and isolation functions.

For this exact model, the rated current, voltage, pole configuration, and breaking capacity must be confirmed before procurement or installation. Accurate identification and proper protection coordination are essential when sourcing a replacement for existing industrial electrical equipment.
