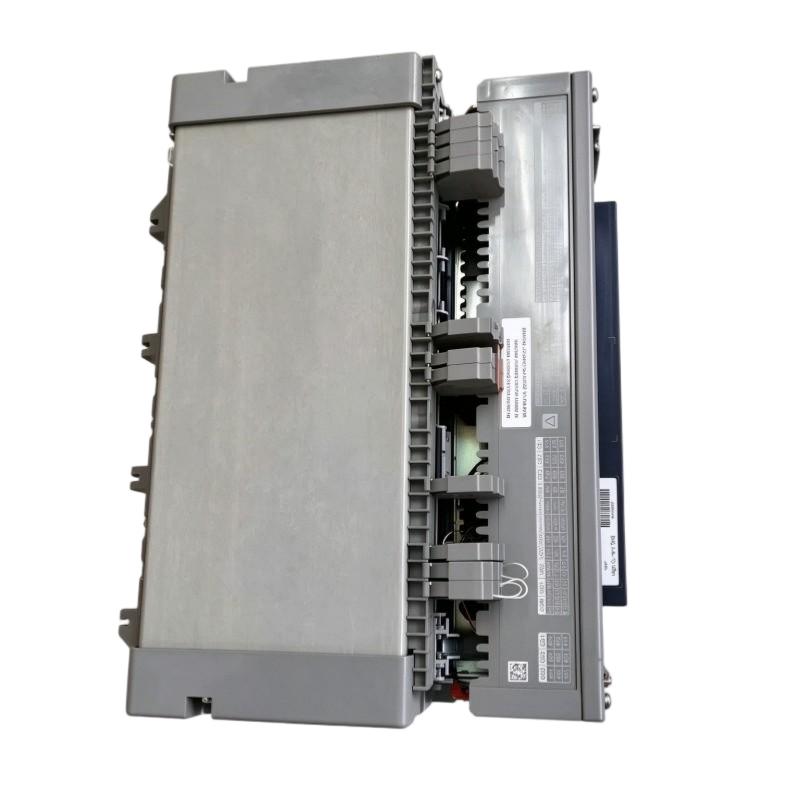

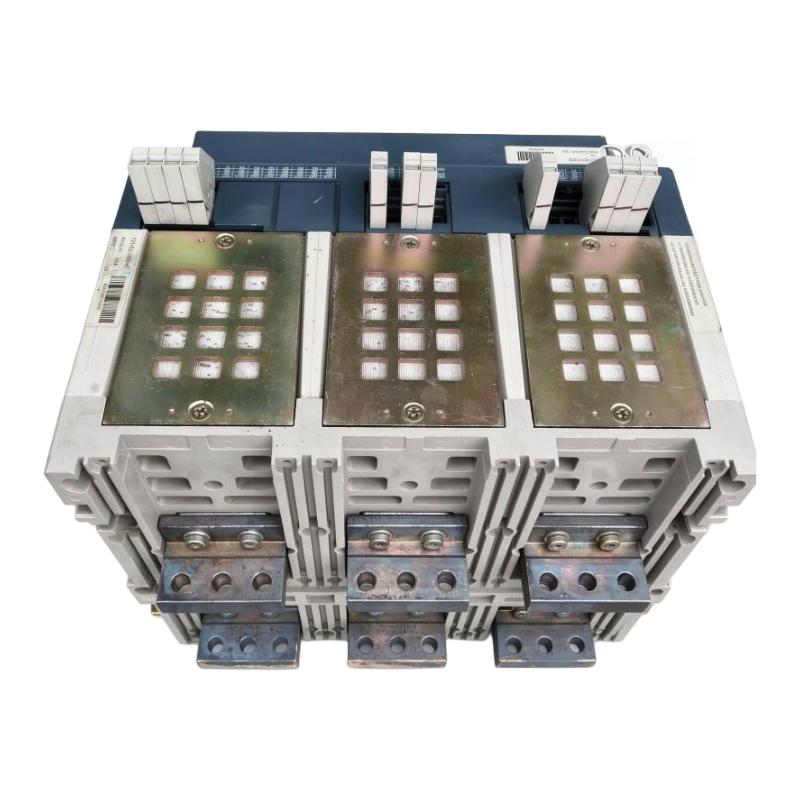

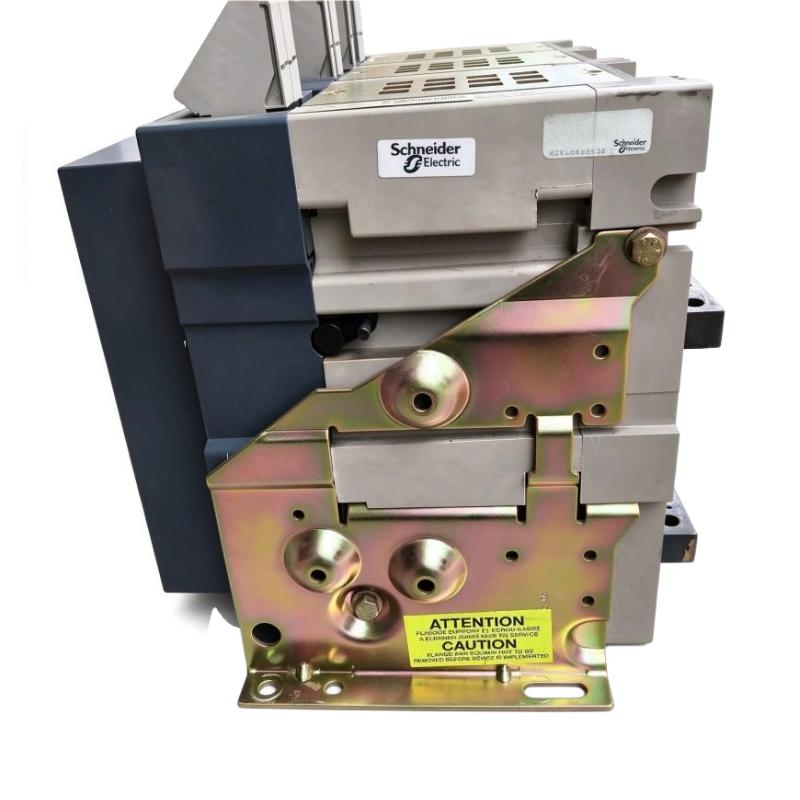

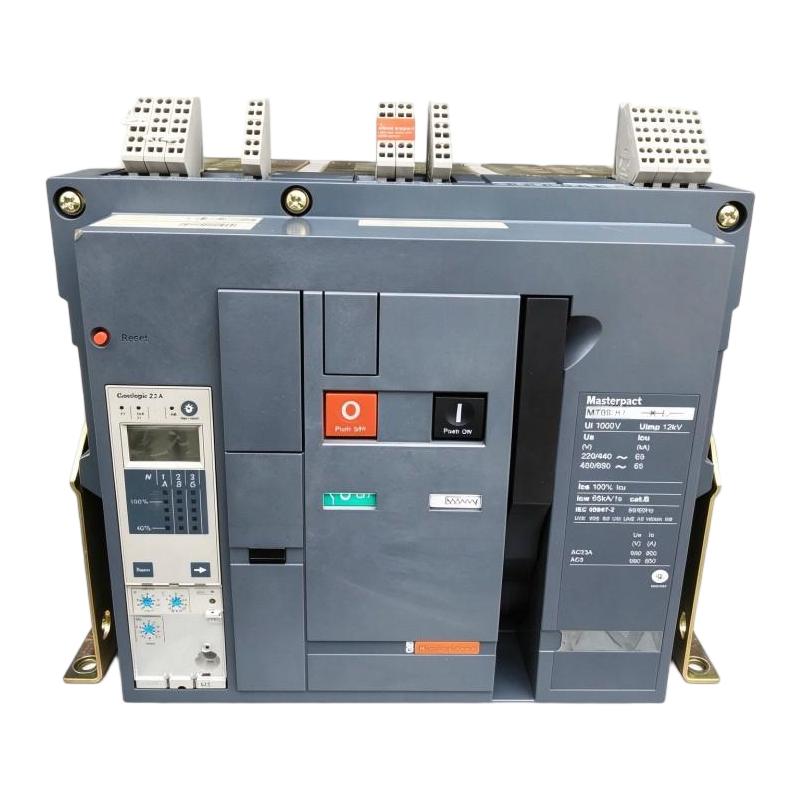

Product Overview

The Schneider MT08H2 Circuit Breaker is listed as an industrial low-voltage circuit protection device associated with the Masterpact product family. Masterpact circuit breakers are designed for demanding power distribution systems where reliable switching, overload protection, and short-circuit interruption are essential to electrical safety and operational continuity.

Circuit breakers are important components in industrial power distribution networks. They help protect electrical conductors and connected equipment by interrupting current when specified fault conditions occur. In large facilities, these devices may be installed in main switchboards, distribution panels, industrial substations, and other assemblies supplying power to production equipment.

The MT08H2 designation requires careful verification before purchase. It may refer to the Masterpact M08H2 model, which is associated with an 800 A, three-pole circuit breaker. It should not automatically be treated as equivalent to the newer MasterPact MTZ2 08H2 series. The complete catalog number, breaker frame, trip unit, pole configuration, and installation arrangement must be checked against the actual nameplate.

For the supplied product listing, the dimensions are 352 × 422 × 297 mm and the weight is 50 kg. These values are consistent with the general physical characteristics of some 800 A Masterpact circuit breakers, but the exact mechanical and electrical specifications should be confirmed for the unit being supplied.

When used in a correctly designed electrical distribution system, a suitable Masterpact breaker can support safe isolation, fault interruption, and coordinated protection of downstream circuits. Selecting the correct version is essential because interrupting capacity, trip-unit functionality, mounting type, and accessories can differ between models.

Technical Specifications

Important: The MT08H2 designation alone is not sufficient to confirm every electrical specification. Do not use the table as a substitute for the breaker nameplate, manufacturer documentation, or an engineering protection study.

Function and Working Principle

A circuit breaker is designed to carry current under normal operating conditions and interrupt the circuit when specified abnormal conditions occur. Its internal contacts, operating mechanism, and protection system work together to disconnect the protected circuit when a qualifying fault is detected.

1. Overload Protection

An overload occurs when a circuit carries more current than intended for a sustained period. If not cleared, excessive current can cause conductors and connected equipment to overheat.

Depending on the installed trip-unit configuration, a Masterpact breaker can provide long-time overcurrent protection. The trip threshold and delay must be coordinated with the rated current of the circuit, cable capacity, load profile, and applicable electrical standards.

For an 800 A application, the protection settings must be engineered for the actual installation. The breaker frame rating alone does not establish the correct trip settings.

2. Short-Circuit Protection

A short circuit can produce a very high current that may damage switchgear, busbars, cables, and connected equipment. Circuit breakers designed for industrial distribution systems must be able to interrupt fault currents within their specified limits.

The short-circuit interrupting capability depends on the exact breaker model, rated operational voltage, and applicable standard. Engineers must compare the available fault current at the installation point with the breaker’s published interrupting rating.

A model designation or nominal current rating alone is not enough to establish short-circuit suitability.

3. Switching and Isolation

Circuit breakers can also be used to switch electrical circuits and, where the product is rated for it, provide an isolation function. This allows authorized personnel to disconnect a circuit for maintenance or equipment replacement.

Safe maintenance still requires the correct isolation procedure, lockout and tagout practices, and verification that the circuit is de-energized. A circuit breaker should not be treated as the only safety measure for every maintenance task.

4. Protection Coordination

In a multi-level distribution network, the main breaker and downstream protective devices should be coordinated so that a fault is cleared by the appropriate device whenever the system design allows it.

Correct coordination can reduce unnecessary interruption to unaffected areas of a facility. Achieving this requires review of trip curves, short-time withstand ratings, fault-current calculations, and the characteristics of the downstream devices.

5. Mechanical Operation

Industrial circuit breakers use a mechanical operating mechanism to open and close the contacts. Depending on the exact model, the device may support manual operation and compatible accessories for additional control functions.

Maintenance procedures should follow the manufacturer’s instructions and account for the actual breaker type, operating mechanism, accessories, and service history.

Role in Industrial Power Distribution Systems

A suitable Masterpact circuit breaker can serve as a main or feeder protective device in an industrial low-voltage distribution network. Its role depends on the system design and the breaker’s verified ratings.

Main Switchboard Protection

Large industrial facilities often use a main switchboard to distribute power to multiple production areas, motor control centers, and auxiliary systems. A correctly rated main breaker can provide overcurrent and short-circuit protection for the associated circuit.

The selection must consider the expected load, prospective fault current, conductor ratings, and coordination with upstream protection.

Feeder Circuit Protection

A circuit breaker installed on a feeder can protect a distribution branch supplying downstream switchboards, equipment panels, or other electrical assemblies.

For feeder applications, the breaker’s current rating and trip settings must be matched to the actual circuit design. The requirements for a feeder supplying motors may differ from those for one supplying general distribution loads.

Integration with Electrical Monitoring

Some Masterpact configurations can support monitoring or communication through compatible trip units and accessories. However, these capabilities are not guaranteed by the MT08H2 listing alone.

Before integrating the breaker into a supervisory system, verify the installed trip unit, communication accessories, auxiliary contacts, and available interface. Do not assume that a specific digital monitoring function is included without checking the complete configuration.

Industrial Safety and Maintenance

A circuit breaker contributes to the protection of electrical infrastructure, but the overall safety of a facility also depends on proper system design, grounding, protective-device coordination, enclosure design, maintenance, and operating procedures.

For replacement projects, accurate identification is especially important because different generations of Masterpact products may have different accessories, mounting arrangements, and trip-unit compatibility.

Industrial Applications

1. Manufacturing Facilities

Manufacturing plants distribute electrical power to production machinery, control panels, material-handling systems, and auxiliary equipment. A correctly selected high-current circuit breaker can protect the relevant distribution circuit and help isolate electrical faults.

The exact rating and trip settings should be based on the facility’s load and protection study rather than on the nominal breaker frame alone.

2. Industrial Switchboards

Industrial switchboards combine protective devices, busbars, metering, and switching equipment to distribute power throughout a facility. Masterpact breakers may be used in main or feeder positions where their electrical and mechanical specifications meet the switchboard design.

Physical compatibility, busbar connection arrangements, and required clearances must be verified before replacing an existing breaker.

3. Motor Control Centers

Motor control centers supply and control groups of motors used in pumps, fans, compressors, conveyors, and production machinery. A main or feeder circuit breaker may protect the incoming supply to the assembly.

Motor starting current and downstream protection characteristics must be considered when determining the correct breaker settings and coordination requirements.

4. Commercial and Industrial Buildings

Large commercial facilities, campuses, and industrial buildings may use high-current breakers in their main distribution systems. The selected device must match the system voltage, load current, fault level, and applicable installation standards.

The breaker’s rated current should never be used as the only criterion for selecting a replacement.

5. Process Industries

Facilities in sectors such as chemical processing, water treatment, and general process manufacturing may require robust power distribution equipment to support continuous operation.

The breaker should be integrated into a protection scheme that considers critical loads, operational continuity, maintenance access, and the consequences of electrical faults.

Installation and System Integration

Correct installation is essential to the safe operation of high-current circuit breakers.

1. Confirm the Exact Model

Before installation or replacement, read the complete product label and verify the catalog number, rated current, number of poles, trip unit, mounting arrangement, and electrical ratings.

The listing model MT08H2 may be associated with Masterpact M08H2, but it should not be assumed to be a MasterPact MTZ2 08H2. Differences between product generations can affect mechanical fit, accessories, and electrical functionality.

2. Verify Electrical Ratings

Confirm the system voltage, frequency, expected load current, available fault current, and required interrupting capacity. Ensure the selected breaker meets the applicable requirements at the installation voltage.

A breaker with an adequate current rating may still be unsuitable if its short-circuit interrupting capacity is insufficient for the installation.

3. Check Mounting and Dimensions

The supplied dimensions are 352 × 422 × 297 mm, with a listed weight of 50 kg. Verify the manufacturer’s mechanical drawings before designing or modifying the switchboard.

Check the available mounting space, access to terminals, connection pitch, busbar alignment, operating clearances, and any requirements specific to fixed or drawout installations.

Because the breaker is heavy, handling and installation should use appropriate lifting equipment and procedures. Avoid relying on manual handling without a suitable risk assessment.

4. Verify Busbar and Cable Connections

The connection arrangement must match the switchboard and the manufacturer’s requirements. Verify conductor sizing, terminal compatibility, busbar dimensions, tightening torque, and the required clearances.

Poor connections can lead to overheating, contact damage, or equipment failure. All electrical work should be performed by qualified personnel using the appropriate procedures and tools.

5. Confirm Trip-Unit Compatibility

Protection characteristics depend on the trip unit installed in the breaker. Confirm its model, protection functions, current-sensor rating where applicable, and available settings.

The correct long-time, short-time, instantaneous, and ground-fault functions depend on the installed configuration. Never apply generic settings without a protection study and review of the manufacturer’s instructions.

6. Commissioning and Testing

Before energizing the circuit, verify mechanical installation, wiring, grounding, protective-device coordination, and the required electrical tests. Functional checks should be performed according to the manufacturer’s commissioning instructions.

Record the breaker identification, trip-unit settings, test results, and maintenance history. These records are valuable for future troubleshooting and replacement planning.

Compatible System Components

The breaker may be installed within a broader low-voltage distribution assembly. Actual compatibility depends on the exact model and switchboard design.

These components are examples of equipment that may form part of the same installation. They are not necessarily supplied with the breaker.

Alternative Models and Replacement Considerations

The correct replacement for an MT08H2 listing depends on the exact breaker installed in the original switchboard.

Before selecting a replacement, compare:

• Complete catalog number and product generation.
• Rated current and system voltage.
• Number of poles.
• Rated ultimate and service short-circuit breaking capacities.
• Short-time withstand current.
• Trip-unit model and protection functions.
• Fixed or drawout mounting arrangement.
• Busbar and terminal geometry.
• Auxiliary contacts and release accessories.
• Communication or monitoring requirements.
• Switchboard dimensions and clearances.

A replacement should not be approved solely because it has the same nominal current rating or similar external dimensions. Engineering review is necessary when the product generation or protection configuration changes.

Key Advantages

High-Current Distribution Capability

The related M08H2 model is listed at 800 A, making it relevant to high-current industrial distribution applications when its complete ratings match the installation.

Circuit Protection

A properly selected circuit breaker helps protect electrical circuits by interrupting qualifying overload and short-circuit conditions.

Switching and Isolation

Where the exact model and installation are rated for the intended use, the breaker can support circuit switching and isolation procedures.

Integration into Industrial Switchgear

Masterpact breakers are designed for use in low-voltage power distribution assemblies. Correctly specified devices can be incorporated into switchboards serving industrial and commercial loads.

Configurable Protection

Available protection functions depend on the installed trip unit and accessories. Selecting the correct configuration allows the breaker to be coordinated with the wider electrical distribution system.

Support for Maintenance and Replacement Projects

Clear identification of the breaker model, trip unit, and accessories helps maintenance teams plan replacements and reduce the risk of installing an incompatible device.

Technical FAQs

1. What is the Schneider MT08H2 Circuit Breaker?

It is a product listing for an industrial circuit breaker associated with the Masterpact family. The designation should be checked against the nameplate because it may refer to the M08H2 model rather than the MTZ2 08H2 series.

2. What is the rated current?

The related Masterpact M08H2 model is listed as an 800 A breaker. Verify the actual unit’s nameplate before using this rating for engineering or procurement.

3. What are the dimensions and weight?

The supplied listing specifies 352 × 422 × 297 mm and 50 kg. Confirm the exact product variant and manufacturer’s dimensional drawing before planning a replacement or shipment.

4. Is MT08H2 the same as MTZ2 08H2?

They should not be treated as the same model. M08H2 and MTZ2 08H2 refer to different product designations. The complete catalog number and nameplate are necessary to establish the exact product.

5. What is the circuit breaker’s interrupting capacity?

The interrupting capacity depends on the exact model and rated operational voltage. It must be confirmed from the manufacturer’s documentation and compared with the available fault current at the installation point.

6. Does it include a trip unit?

The supplied model description does not establish the exact trip-unit configuration. Check the actual breaker and its complete catalog number to determine which protection functions are installed.

7. Can it be integrated into a PLC-based monitoring system?

Potentially, if the breaker has compatible auxiliary contacts, communication accessories, or a suitable monitoring interface. These capabilities must be confirmed for the actual configuration.

8. Can it directly replace another 800 A Masterpact breaker?

Not necessarily. Breakers with the same current rating may differ in dimensions, mounting, connection geometry, trip-unit compatibility, and interrupting capacity. Confirm all relevant specifications before substitution.

9. What should be checked before purchasing a used breaker?

Verify the complete nameplate, rated current, voltage, pole configuration, trip-unit model, mechanical condition, accessories, and available inspection or test records. For critical installations, have the breaker assessed by qualified personnel before returning it to service.

10. What information is needed to confirm compatibility?

At minimum, obtain the complete catalog number, nameplate ratings, trip-unit details, mounting type, switchboard model, and the electrical requirements of the installation. These details are necessary to assess both mechanical fit and protection performance.

Procurement and Maintenance Recommendations

When purchasing the Schneider MT08H2 Circuit Breaker, start by confirming the full catalog number and identifying whether the unit is an M08H2 model or belongs to another Masterpact generation.

Request clear photographs of the nameplate, front panel, terminals, trip unit, and any accessory labels. Verify the rated current, voltage, pole configuration, interrupting capacity, mounting type, and protection functions before confirming an order.

For used or refurbished equipment, request available inspection and functional test records. Confirm the condition of the operating mechanism, contact system, terminals, insulation components, and any electronic trip unit. Establish whether accessories are included and whether the supplied unit matches the original switchboard arrangement.

Maintenance should follow the manufacturer’s instructions and applicable electrical safety procedures. Depending on the model and service conditions, inspection may include checking connections, mechanical operation, accessory functions, trip-unit settings, and relevant test results. Do not perform live work or modify protection settings without qualified personnel and the appropriate safety procedures.

For replacement projects, review the protection coordination study and the switchboard’s mechanical design. If moving to a newer breaker generation, determine whether mounting adapters, connection changes, accessory substitutions, or updated commissioning tests are necessary.

Conclusion

The Schneider MT08H2 Circuit Breaker is listed as an industrial power distribution protection device with supplied dimensions of 352 × 422 × 297 mm and a weight of 50 kg. The model designation requires confirmation because it may correspond to the Masterpact M08H2 rather than the separate MasterPact MTZ2 08H2 series.

For industrial procurement, maintenance, and replacement work, verify the complete catalog number, rated current, voltage, interrupting capacity, trip-unit configuration, and mounting arrangement. Matching these details to the actual installation is essential for safe circuit protection and reliable switchboard operation.
