Product Overview

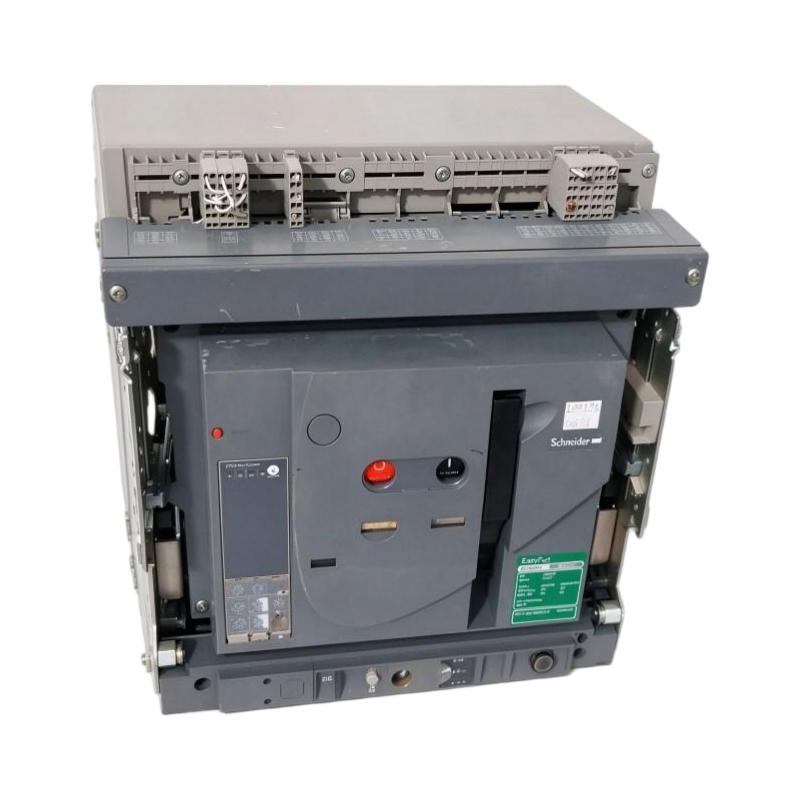

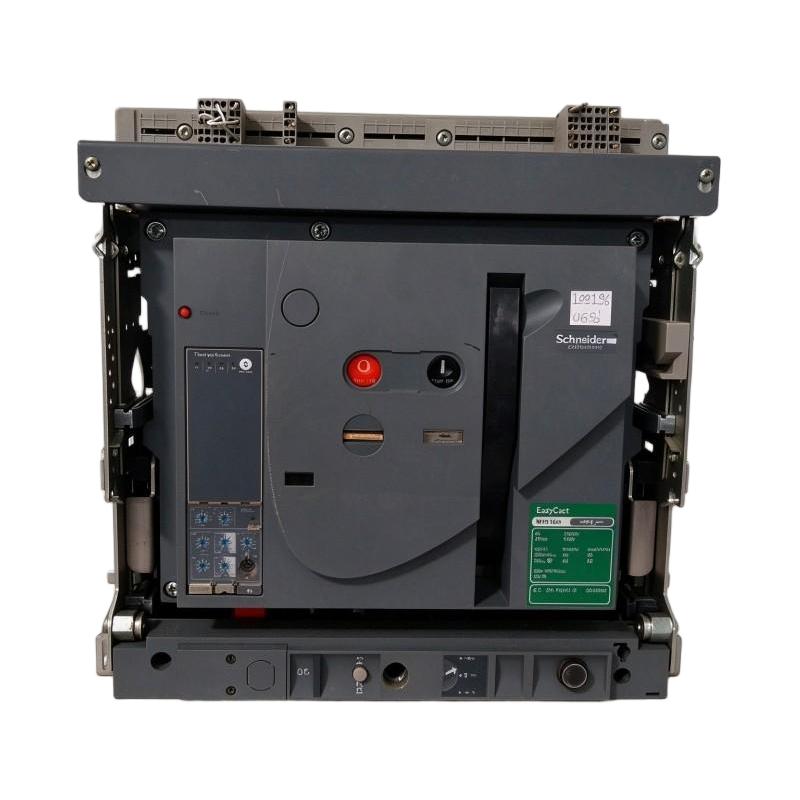

The Schneider Electric MVS16N Circuit Breaker is a low-voltage air circuit breaker (ACB) from the EasyPact MVS product range. Designed for industrial and commercial power distribution systems, it provides circuit switching, isolation, and protection against electrical faults when configured with the appropriate trip unit and accessories.

Air circuit breakers are commonly installed in main distribution panels, switchboards, industrial substations, and large electrical distribution assemblies. They protect electrical systems by interrupting current when an overload or short-circuit condition exceeds the configured protection thresholds. Their trip settings can be coordinated with upstream and downstream protective devices to support reliable operation and reduce unnecessary power interruptions.

The MVS16N designation identifies a 1600 A circuit breaker platform with a rated operational voltage of up to 690 V AC. The N breaking-capacity class provides a rated ultimate short-circuit breaking capacity of 50 kA under the specified conditions at 220–440 V AC. The exact short-circuit performance at other voltages must be checked against the applicable product documentation.

The EasyPact MVS range includes different pole configurations, mounting arrangements, operating mechanisms, and electronic trip units. Depending on the selected version, a breaker may provide overload protection, short-time short-circuit protection, instantaneous protection, or additional earth-fault protection. Manual and electrically operated configurations are also available.

For procurement and replacement purposes, MVS16N should not be treated as a complete orderable model by itself. The full reference number is required to confirm the pole count, trip unit, fixed or drawout construction, operating mechanism, auxiliary accessories, and other configuration details.

Technical Specifications

Important: The supplied dimensions of 439 × 556 × 395 mm and weight of 85 kg correspond to a four-pole drawout configuration listed for the MVS16N range. Confirm the complete catalog number before using these specifications for another configuration.

Function and Working Principle

The Schneider Electric MVS16N circuit breaker performs three primary functions in an electrical distribution system: carrying normal operating current, disconnecting circuits when required, and interrupting fault current when the configured protection system detects a qualifying electrical fault.

1. Normal Current Carrying

During normal operation, the circuit breaker’s main contacts conduct electrical current from the upstream power source to the connected load or downstream distribution circuit.

The 1600 A rating identifies the nominal current class of the relevant configuration. Actual continuous-current suitability depends on ambient temperature, installation conditions, terminal arrangements, enclosure design, and the manufacturer’s derating requirements.

2. Overload Protection

An overload occurs when current remains above the permitted operating level for a sufficient period. If an overload persists, conductors and electrical equipment can overheat.

An appropriately configured electronic trip unit measures current and compares it with the selected protection settings. When the overload reaches the configured trip threshold and delay, the breaker initiates an opening operation to disconnect the protected circuit.

The exact long-time protection range and delay settings depend on the installed trip unit.

3. Short-Circuit Protection

A short circuit can produce a very large current in a short period. The breaker must interrupt this current within its specified operating limits to help protect the distribution system and connected equipment.

Depending on the selected trip unit, short-circuit protection may include short-time and instantaneous functions. Their pickup thresholds and time delays must be coordinated with the electrical system’s available fault current and other protective devices.

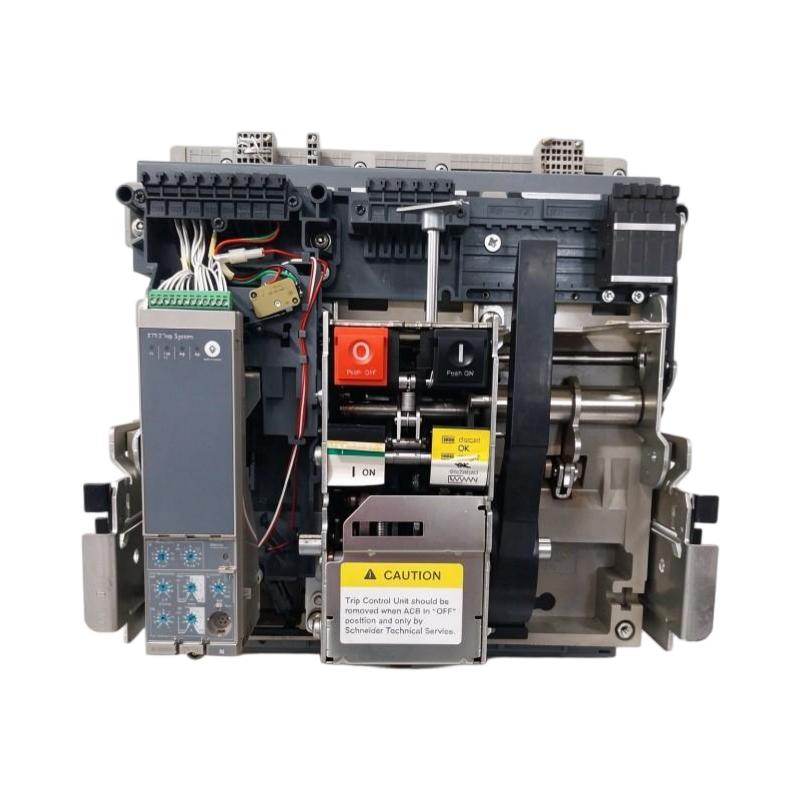

4. Electronic Trip Unit

The MVS16N family supports electronic trip-unit configurations. Depending on the selected unit, adjustable protection functions can help engineers coordinate the breaker with transformers, busbars, cables, motors, and downstream distribution circuits.

Different trip-unit variants provide different features. Some configurations focus on long-time, short-time, and instantaneous protection, while others add ground-fault or earth-fault functions. The installed trip-unit reference must be checked before documenting specific protection capabilities.

5. Isolation and Switching

The breaker can be used to isolate an electrical circuit when its configuration and installation permit the intended isolation function. A drawout version can be moved between defined positions according to the manufacturer’s operating procedure.

Isolation procedures must account for auxiliary supplies, stored energy, interlocks, and other sources of hazardous voltage. Opening the breaker alone should not be assumed to make every part of a switchboard safe for maintenance.

Role in Industrial Power Distribution Systems

The MVS16N is intended for use in distribution assemblies where high current capacity and coordinated circuit protection are required.

Main Incoming Power Protection

In a main distribution panel, an appropriately selected MVS16N breaker may be installed on the incoming supply to protect downstream busbars and distribution circuits.

The protection settings must be coordinated with the source’s available short-circuit current, the ratings of the conductors and busbars, and the requirements of downstream breakers.

Transformer Secondary Protection

An air circuit breaker may be used on the secondary side of a distribution transformer when its voltage, current, and short-circuit ratings are suitable for the installation.

The engineer must consider transformer impedance, expected fault current, cable ratings, grounding arrangements, and the selectivity requirements of the distribution system.

Industrial Switchboards

Industrial switchboards distribute power to manufacturing equipment, motor-control centers, auxiliary panels, and process systems. A 1600 A circuit breaker can provide a central switching and protection point in a properly engineered distribution assembly.

The breaker must be matched to the switchboard’s busbar rating, terminal arrangement, and short-circuit withstand capability.

Electrical Isolation and Maintenance

Where a drawout configuration is installed, its defined positions can support maintenance planning and equipment replacement. The operating procedure must follow the manufacturer’s instructions and all site electrical safety requirements.

A drawout mechanism does not eliminate the need for lockout/tagout, verification of absence of voltage, and control of all possible energy sources.

Industrial Applications

1. Manufacturing Facilities

Factories with substantial electrical loads may use air circuit breakers in main distribution switchboards and large feeder panels. The MVS16N can be considered where the system requires a 1600 A circuit breaker and the selected configuration meets the fault-protection requirements.

Typical downstream loads may include production lines, process machinery, utility equipment, and motor-control centers.

2. Commercial and Industrial Buildings

Large buildings may use air circuit breakers to protect main electrical distribution sections feeding lighting panels, HVAC systems, elevators, pumps, and other major loads.

The breaker must be selected according to the actual load current, prospective short-circuit current, system voltage, and coordination study.

3. Water and Wastewater Facilities

Water treatment and wastewater installations often contain pumps, blowers, treatment equipment, and auxiliary distribution systems. A suitable ACB can provide protection and switching at a main distribution point.

The electrical design should account for the facility’s motor starting currents, operating cycles, environmental conditions, and continuity-of-service requirements.

4. Industrial Utility Systems

Compressed-air systems, cooling plants, centralized ventilation systems, and other industrial utilities may require high-capacity distribution equipment.

The MVS16N can be evaluated for these installations when the current rating, breaking capacity, protection functions, and mechanical configuration are appropriate.

5. Power Distribution and Infrastructure Projects

Industrial substations and infrastructure distribution panels may use air circuit breakers to manage incoming supplies and large feeders. Selection should be based on a complete protection and coordination study rather than nominal current alone.

For critical infrastructure, engineers should also consider maintenance access, spare-part availability, service procedures, and the availability of compatible accessories.

Installation and System Integration

Correct installation is essential for electrical safety, reliable operation, and the intended protective performance of an air circuit breaker.

1. Verify the Complete Model Number

Before installation, identify the complete Schneider Electric reference. The MVS16N designation alone does not specify every mechanical and electrical option.

Confirm the number of poles, fixed or drawout construction, trip-unit type, operating mechanism, auxiliary contacts, and any electrical accessories.

2. Check System Voltage and Current

Confirm that the installation voltage is within the breaker’s rated operational voltage and that the expected continuous current is suitable for the selected configuration.

The 1600 A rating must be assessed alongside ambient temperature, enclosure conditions, connection design, and any required derating.

3. Verify Short-Circuit Ratings

Determine the prospective short-circuit current at the installation point. The breaker’s rated breaking capacity must be adequate for the system conditions.

The MVS16N breaking-capacity class is associated with a 50 kA rating at 220–440 V AC. Do not assume that the same figure applies at every voltage or under every system condition.

4. Install According to the Switchboard Design

The supplied dimensions are 439 × 556 × 395 mm. These correspond to the height, width, and depth listed for a particular four-pole drawout configuration.

Before modifying a panel, confirm the actual breaker’s dimensional drawing, mounting structure, terminal orientation, busbar interface, and required operating clearances. Do not rely on the family designation alone to determine interchangeability.

5. Configure Protection Settings

Set the electronic trip unit according to the protection study and the requirements of the installation. The settings should coordinate with cable ampacity, transformer characteristics, downstream devices, and the available fault current.

Where selective coordination is required, long-time, short-time, instantaneous, and any earth-fault settings must be reviewed together.

6. Perform Commissioning Tests

Before energizing the installation, inspect the mechanical mounting, busbar and terminal connections, grounding arrangements, and any control wiring. Confirm that interlocks and the operating mechanism function as specified.

Commissioning should include appropriate checks of the trip unit, protection settings, auxiliary circuits, and operating mechanisms. Testing must be carried out by qualified personnel using procedures suitable for the equipment and installation.

Compatible System Components

The MVS16N is installed as part of a complete electrical distribution assembly. The exact compatible accessories depend on the complete breaker reference.

Not every component listed above is included with every MVS16N circuit breaker. Confirm the bill of materials and accessory references before ordering.

Alternative Models and Replacement Considerations

The correct replacement depends on the installed breaker configuration, not simply the 1600 A rating.

Before approving a replacement, compare:

• Rated current and rated operational voltage.
• Rated ultimate and service short-circuit breaking capacities.
• Number of poles and neutral protection requirements.
• Fixed or drawout mounting arrangement.
• Electronic trip-unit model and protection functions.
• Manual or electrical operating mechanism.
• Auxiliary contacts and release accessories.
• Busbar and terminal connection arrangements.
• Overall dimensions and installation clearances.
• Switchboard compatibility and required commissioning tests.

A breaker should not be substituted solely because it has the same 1600 A current rating. A different breaking-capacity class, trip unit, or mechanical interface may make a seemingly similar model unsuitable.

Key Advantages

High Current Capacity

The 1600 A rating makes the relevant MVS16N configuration suitable for appropriately designed high-current distribution applications.

Short-Circuit Protection

Its 50 kA N-class breaking-capacity rating at specified voltage conditions supports use in distribution systems where the prospective fault current falls within the rated limits.

Electronic Protection Options

The MVS16N range supports electronic trip units with different protection functions, enabling selection according to the requirements of the installation.

Fixed and Drawout Configurations

The family includes different mounting arrangements. A suitable drawout configuration can facilitate maintenance and replacement procedures when used with the correct chassis and operating practices.

Industrial Distribution Applications

The product family can be used in industrial and commercial switchboards where the electrical ratings, mechanical configuration, and protection features match the system design.

Integration with Protection Systems

The breaker can form part of a coordinated protection strategy involving upstream devices, downstream feeders, and distribution monitoring equipment.

Technical FAQs

1. What is the Schneider Electric MVS16N circuit breaker?

It is an EasyPact MVS air circuit breaker designed for low-voltage AC power distribution and circuit protection. The MVS16N designation identifies a 1600 A product family with an N-class breaking-capacity rating.

2. What is the rated current of the MVS16N?

The rated current is 1600 A for the relevant configuration, specified at 40°C. Actual suitability depends on installation conditions and the exact model.

3. What is the rated voltage?

The product family has a rated operational voltage of up to 690 V AC. The applicable current and breaking-capacity ratings must be checked for the actual operating voltage.

4. What is the breaking capacity of the MVS16N?

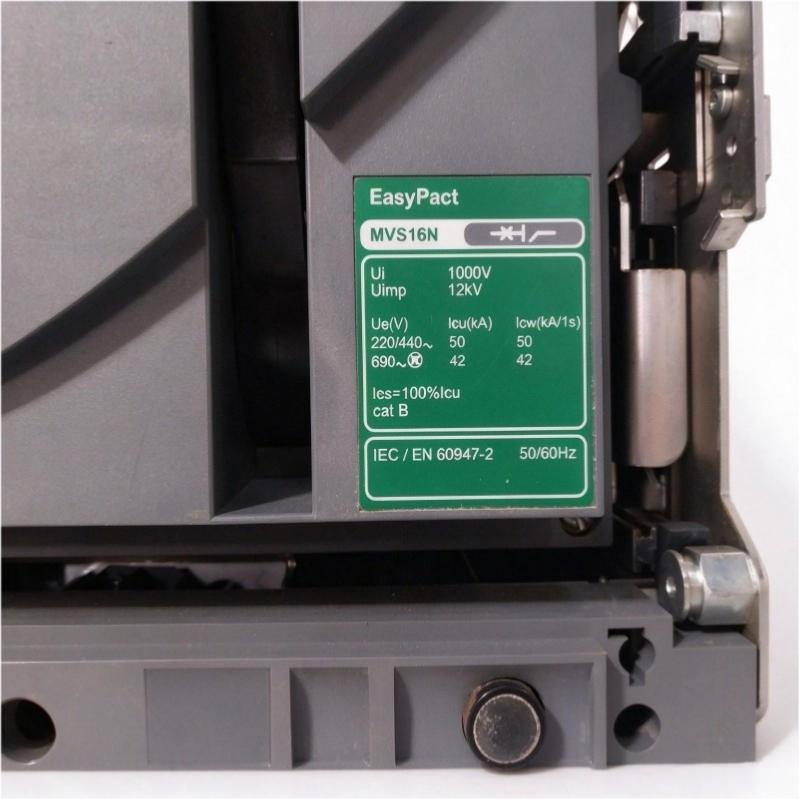

The N breaking-capacity class is rated at 50 kA at 220–440 V AC under the applicable product specifications. Verify the rating at the actual system voltage before selection.

5. Is the MVS16N manually or electrically operated?

Both manual and electrically operated configurations are available within the family. The full catalog number identifies the operating arrangement of the specific breaker.

6. Does every MVS16N include earth-fault protection?

No. Protection functions depend on the installed electronic trip unit. Confirm the trip-unit reference and its supported functions before documenting or configuring the protection system.

7. What are the dimensions and weight?

The supplied dimensions are 439 × 556 × 395 mm, with a weight of 85 kg. These figures match a listed four-pole drawout configuration. Other MVS16N versions may have different dimensions and weights.

8. Can an MVS16N replace another 1600 A breaker?

Not automatically. The replacement must match the required electrical ratings, breaking capacity, pole configuration, trip unit, mounting arrangement, terminal interface, and accessories.

9. What should be checked before purchasing a used breaker?

Verify the full catalog number, pole count, trip-unit model, mechanical condition, operating mechanism, terminal condition, accessories, and available test records. For critical installations, use an appropriate inspection and testing process before returning the breaker to service.

10. Why is the complete catalog number important?

The MVS16N label covers multiple configurations. The complete reference determines important characteristics such as pole count, mounting method, trip unit, and operating mechanism, all of which affect installation and compatibility.

Procurement and Maintenance Recommendations

When purchasing the Schneider Electric MVS16N circuit breaker, begin by identifying the complete catalog number on the installed unit or equipment documentation. Confirm the required current rating, operational voltage, breaking capacity, pole configuration, trip-unit model, and mounting arrangement.

For replacement projects, request clear photographs of the breaker nameplate, front panel, terminals, and any accessory labels. Confirm whether the breaker is new, surplus, refurbished, or used, and establish the applicable inspection, testing, warranty, and return conditions.

For a drawout breaker, check the condition and compatibility of the cradle, guide rails, racking mechanism, and position interlocks. A breaker that fits physically may still be incompatible with the installed switchboard or electrical protection scheme.

Maintenance should follow Schneider Electric’s applicable instructions and the site’s electrical safety procedures. Depending on the service conditions, inspections may include contact condition, mechanical operation, terminal connections, trip-unit settings, auxiliary circuits, and appropriate functional tests.

Keep a record of the full catalog number, trip-unit settings, inspection results, and any replaced accessories. This information helps maintenance teams identify compatible spare parts and reduce the risk of incorrect substitutions.

Conclusion

The Schneider Electric MVS16N Circuit Breaker is part of the EasyPact MVS range of low-voltage air circuit breakers for industrial and commercial power distribution. The relevant 1600 A configuration offers circuit switching, isolation, and electronic protection options, with an N-class breaking-capacity rating of 50 kA at specified voltage conditions.

For reliable procurement and installation, the complete catalog number must be confirmed. Pole configuration, trip-unit functions, operating mechanism, mounting arrangement, and short-circuit ratings should all be checked against the actual distribution system before the breaker is installed or replaced.
