- Ingersoll Rand
- 47556185001 23424922
- Coolant Filter
- USA
- 232.2 × 114.3 × 96.5 mm
- 2.3 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 6
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

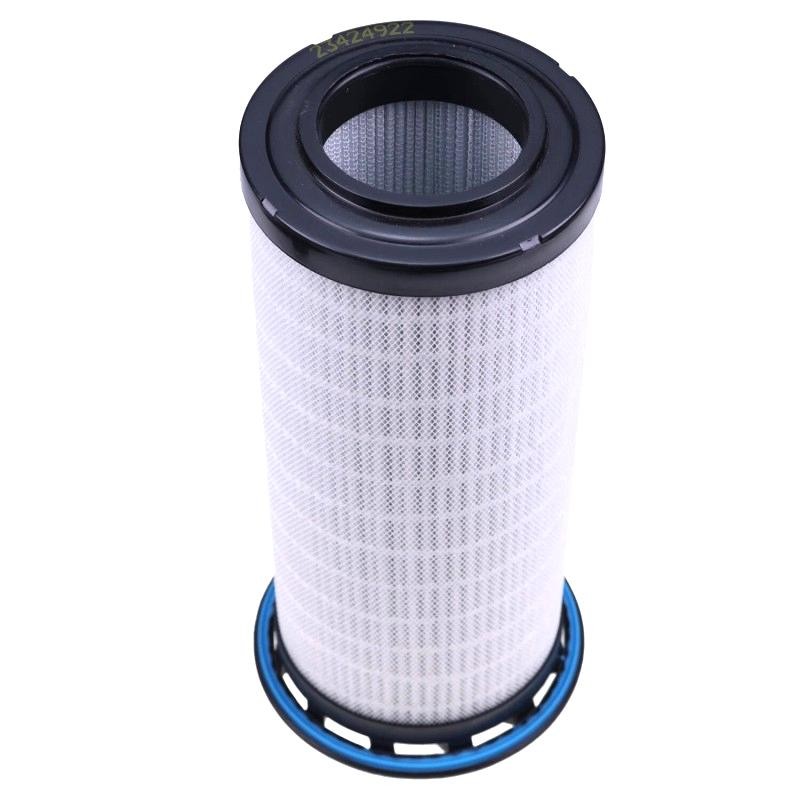

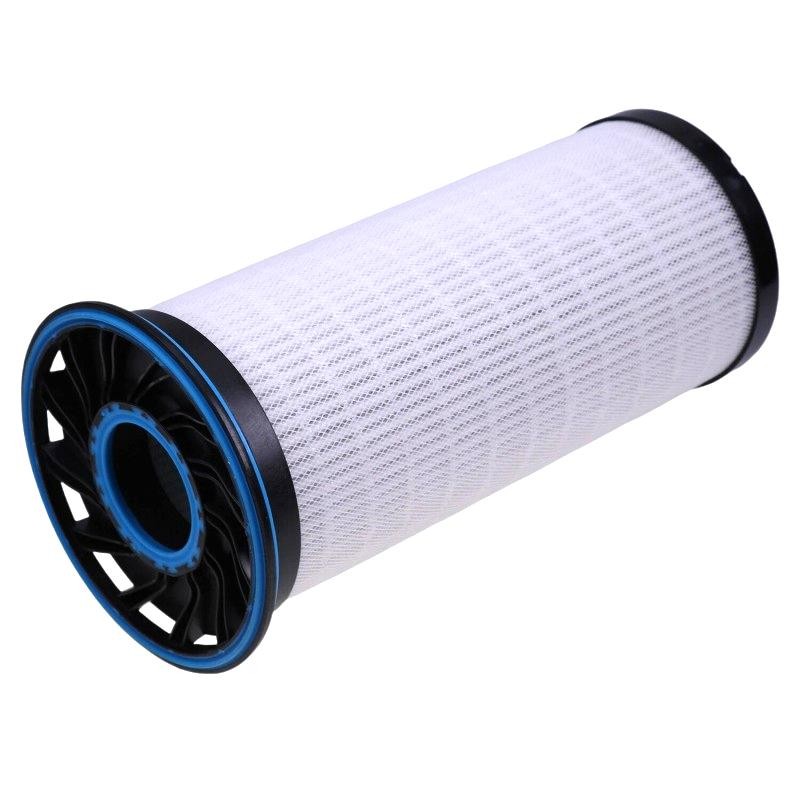

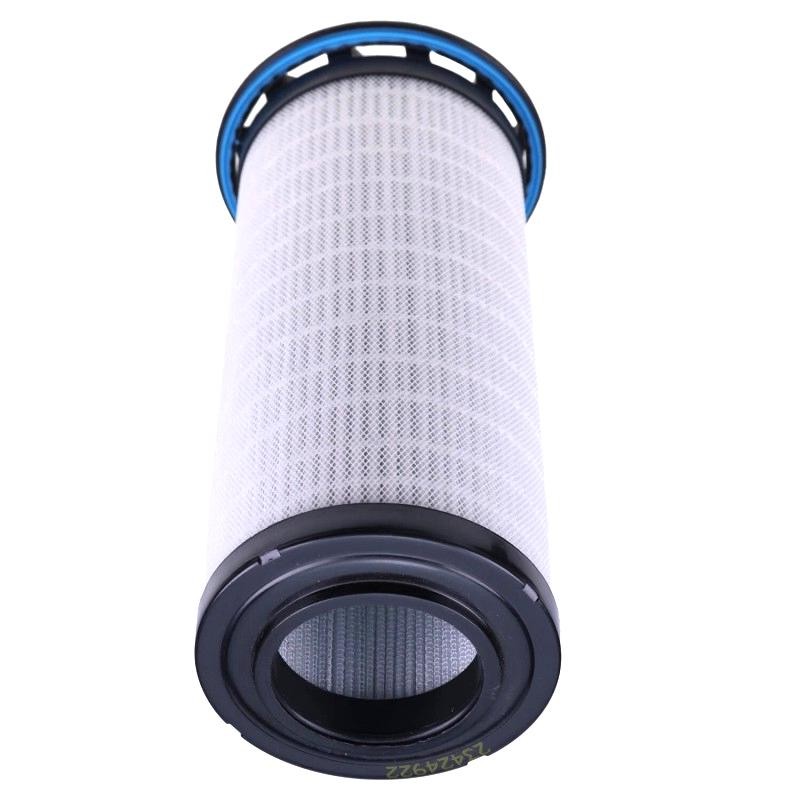

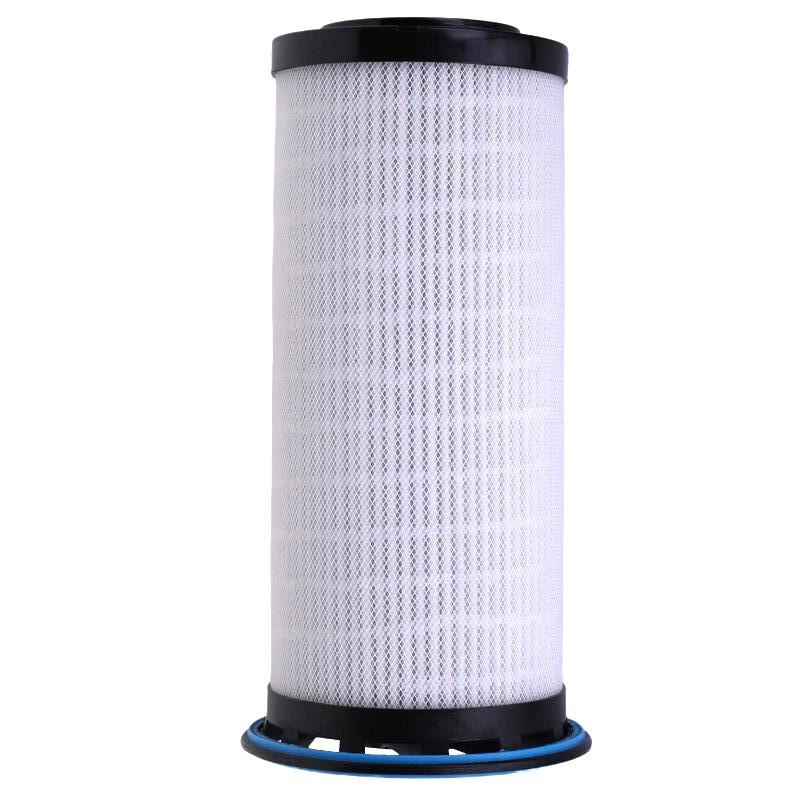

The Ingersoll Rand 47556185001 23424922 Coolant Filter is a replacement filtration component for compatible industrial air compressor systems. In oil-injected rotary screw compressors, the coolant circulates through the compression and cooling circuit, where it helps control temperature, lubricate moving parts, and support effective sealing between the rotors. Keeping this fluid clean is important for protecting internal components and maintaining the intended operating condition of the compressor.
During normal operation, coolant can carry fine particles, wear debris, and contaminants introduced through servicing or fluid degradation. The coolant filter captures specified contaminants as the fluid passes through the filtration media. If the filter becomes excessively loaded, flow resistance can increase, potentially affecting coolant circulation and the overall thermal performance of the compressor.
In a compressor operating for extended shifts, the coolant filter is part of routine preventive maintenance rather than a component that should be replaced only after a fault occurs. Its condition and replacement interval depend on the compressor model, coolant specification, operating hours, and service conditions. A filter that fits physically but has the wrong filtration characteristics may not provide the required protection.
The 47556185001 and 23424922 identifiers should be checked against the equipment’s parts documentation before installation. Ingersoll Rand uses different filtration components across compressor families, and coolant filters should not be confused with air filters, oil separators, or compressed-air line filters. Confirming the correct part number helps ensure that the replacement matches the intended coolant circuit and filter housing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Model / Part Number | 47556185001 |
| Associated Part Number | 23424922 |
| Product Type | Coolant Filter |
| Component Category | Compressor Coolant Filtration |
| Primary Function | Removes specified particulate contaminants from circulating coolant |
| Application | Compatible Ingersoll Rand compressor systems |
| Installation | Coolant circuit filter housing |
| Filter Media | Not specified |
| Filtration Rating | Not specified |
| Coolant Compatibility | Must match the compressor’s approved coolant and service requirements |
| Replacement Interval | According to the compressor maintenance schedule and operating conditions |
| Dimensions | 232.2 × 114.3 × 96.5 mm |
| Weight | 2.3 kg |
Product Features
- Coolant circuit filtration: Captures specified particulate contaminants carried by circulating compressor coolant.
- Internal component protection: Helps limit contaminant circulation through the compressor’s lubrication and cooling circuit.
- Thermal management support: Helps preserve coolant flow when maintained within the specified service interval.
- Maintenance replacement: Suitable for planned servicing when confirmed against the installed compressor configuration.
- Part-number identification: The two supplied identifiers help distinguish the filter from other compressor filtration components.
- System-specific selection: Requires confirmation of the filter housing, coolant type, and approved replacement specification.
Working Principle
The coolant filter operates as a fluid filtration element within the compressor’s coolant circuit. As the compressor circulates coolant through the system, the fluid passes through the filter media, where specified particles are retained before the coolant continues toward the relevant internal components.
A simplified flow path is:
Coolant Reservoir or Sump → Coolant Filter → Cooling and Lubrication Circuit → Compressor Components
The exact flow arrangement varies by compressor design. In an oil-injected rotary screw compressor, coolant is commonly circulated through the compression chamber and then routed through separation and cooling stages before returning to the operating circuit. The filter’s position within that arrangement determines which contaminants it captures and which components it protects downstream.
As particles accumulate in the media, the pressure drop across the filter may increase. A loaded filter can restrict circulation, particularly when the fluid is cold or the system is operating under demanding conditions. For this reason, maintenance should follow the specified service interval and take account of operating hours and coolant condition.
Replacing the filter does not correct every cause of coolant contamination. Persistent debris, abnormal coolant discoloration, or repeated filter loading may indicate other issues, such as deteriorating fluid, component wear, or contamination introduced during servicing. Those conditions should be investigated rather than addressed solely by installing another filter.
Role in the Compressor Coolant Circuit
The coolant filter supports the fluid-management section of a compatible compressor. It works alongside the coolant reservoir, circulation hardware, heat exchanger, and other components that maintain the required operating temperature and coolant condition.
Coolant Sump → Coolant Filter → Coolant Circulation Path → Compression and Cooling Components → Return Circuit
| System Component | Function |
|---|---|
| 23424922 Coolant Filter | Retains specified particulate contaminants from circulating coolant |
| Coolant Reservoir or Sump | Holds the operating coolant inventory |
| Coolant Pump or Pressure-Driven Circulation Path | Moves coolant through the system, depending on compressor design |
| Oil Cooler or Heat Exchanger | Removes heat from the circulating coolant |
| Oil Separator | Separates coolant from compressed air in oil-injected compressor designs |
| Thermostatic Valve, Where Fitted | Directs coolant flow according to operating temperature |
| Compressor Airend | Performs the compression process and relies on the specified coolant for lubrication, sealing, and heat removal |
| Coolant Lines and Fittings | Carry fluid between the circuit components |
| Temperature and Pressure Monitoring Devices | Help monitor operating conditions where installed |
Industrial Applications
| Application | Typical Use |
|---|---|
| Oil-Injected Rotary Screw Compressors | Filtering coolant circulated through the compression and cooling circuit |
| Continuous-Duty Compressor Stations | Maintaining coolant cleanliness during extended operating cycles |
| Manufacturing Plants | Supporting compressor maintenance in production air systems |
| Automotive Production Facilities | Servicing compressors supplying plant pneumatic equipment |
| Metalworking Operations | Maintaining coolant filtration in compressor systems exposed to demanding operating conditions |
| Packaging and Processing Lines | Supporting planned maintenance of compressors used for production air |
| Industrial Utility Rooms | Replacing coolant filters as part of scheduled compressor servicing |
| High-Utilization Compressor Installations | Managing particulate contamination in frequently operated equipment |
| Compressor Overhaul Projects | Renewing specified filtration components during major service work |
| Preventive Maintenance Programs | Replacing the filter according to operating hours and the approved service schedule |
Installation and Maintenance
- Confirm the part number: Check both 47556185001 and 23424922 against the compressor’s parts list and serial-specific configuration.
- Shut down the compressor: Follow the approved shutdown procedure and allow the system to reach a safe maintenance condition.
- Relieve stored pressure: Verify that the relevant coolant circuit and filter housing are depressurized before opening the assembly.
- Allow the coolant to cool: Hot coolant can cause burns. Wait until the system has cooled sufficiently for safe service.
- Prepare for fluid collection: Use a suitable container and absorbent materials to manage coolant released during filter removal.
- Remove the existing filter: Follow the specified removal procedure and avoid introducing dirt into the open coolant circuit.
- Inspect the filter housing: Check the sealing surface, threads, and adjacent fittings for damage, deposits, or signs of leakage.
- Check the replacement seal: Use the specified sealing arrangement and replace any seal that is damaged or designated for single use.
- Install the new filter: Follow the prescribed installation orientation and tightening method. Do not overtighten the housing or filter connection.
- Restore the coolant circuit: Refill or top up the coolant as required, using the approved fluid and following the equipment’s bleeding procedure.
- Check for leaks and abnormal operation: Restart according to the service procedure and inspect the filter connection, coolant level, and operating indications.
- Record the maintenance: Document the replacement part number, operating hours, coolant condition, and any abnormalities identified during service.
Compatible System Components
| Component | Function |
|---|---|
| Compatible Ingersoll Rand Compressor Airend | Compression assembly that relies on the specified coolant for lubrication, sealing, and heat removal |
| Coolant Reservoir or Sump | Stores the operating coolant |
| Coolant Pump or Circulation Arrangement | Moves coolant through the relevant circuit |
| Oil Cooler or Heat Exchanger | Transfers heat from the circulating coolant |
| Oil Separator | Separates coolant from compressed air in applicable compressor designs |
| Thermostatic Valve | Regulates coolant routing where fitted |
| Coolant Lines and Fittings | Connect the filter housing to the rest of the circuit |
| Filter Housing Seal | Seals the filter connection against leakage |
| Approved Compressor Coolant | Provides the fluid required by the specified compressor design |
| Temperature and Pressure Sensors | Monitor coolant-circuit conditions where installed |
Recommended Related Models
| Model | Product Type | Selection Consideration |
|---|---|---|
| Ingersoll Rand 23424922 | Coolant Filter | Associated part number supplied for this filter; verify the installed equipment configuration |
| Ingersoll Rand 47556185001 | Coolant Filter | Main part number for identifying the specified replacement component |
| Ingersoll Rand 23487457 | Air Filter Pad | A separate filtration component; not a coolant-filter substitute |
| Ingersoll Rand 49007941 | Pre-Filter Pad | A ventilation or pre-filtration component in compatible equipment; not interchangeable with a coolant filter |
| Ingersoll Rand 23523772 | Filter Pad | A separate filtration part whose application must be checked before selection |
Key Advantages
- Helps remove specified particulate contaminants from circulating compressor coolant.
- Supports the intended lubrication and cooling circuit when the correct filter is installed.
- Helps limit contaminant circulation through protected compressor components.
- Supports scheduled maintenance of compatible compressor systems.
- Allows filter condition to be managed alongside coolant quality and operating-hour checks.
Technical FAQs
What is the difference between a coolant filter and an oil separator?
A coolant filter removes specified particulate contaminants from the circulating fluid. An oil separator has a different purpose: in an oil-injected compressor, it separates coolant droplets from compressed air before the air continues downstream. The two components occupy different positions in the system and cannot be substituted for one another.
Can a coolant filter be replaced without draining the entire compressor system?
That depends on the compressor’s filter-housing arrangement and the prescribed maintenance procedure. Some configurations may allow filter replacement after isolating and depressurizing the relevant section, while others require additional coolant handling. Always follow the procedure for the exact compressor model and prevent contamination from entering the open circuit.
What symptoms may indicate that the coolant filter needs attention?
Potential signs include abnormal pressure differential where monitored, restricted coolant circulation, elevated operating temperature, or visible leakage around the filter housing. These symptoms can also result from other faults, so the filter should be inspected alongside coolant level, cooler condition, thermostatic components, and the wider circulation circuit.
Why must the replacement filter match the compressor model?
The filter must match the housing, sealing arrangement, fluid compatibility, and required filtration characteristics. A component with similar external dimensions may still have different media or flow characteristics. Verify the full part number and the compressor’s approved parts configuration before installation.
