- Siemens
- 6ES7131-4RD02-0AB0
- Digital Input Electronic Module
- Germany
- 15 × 81 × 52 mm
- 0.045 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 6
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

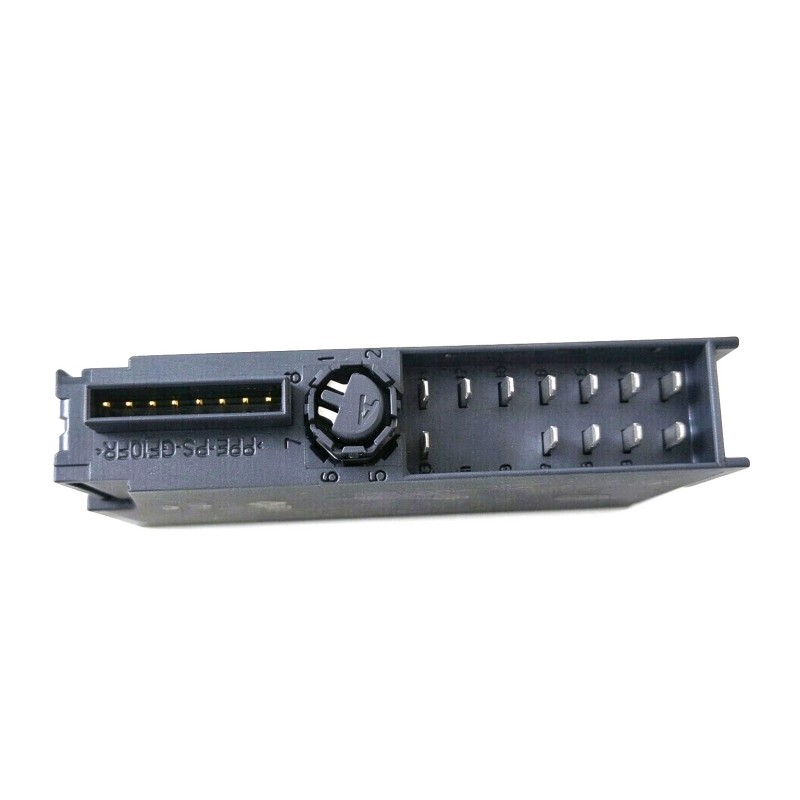

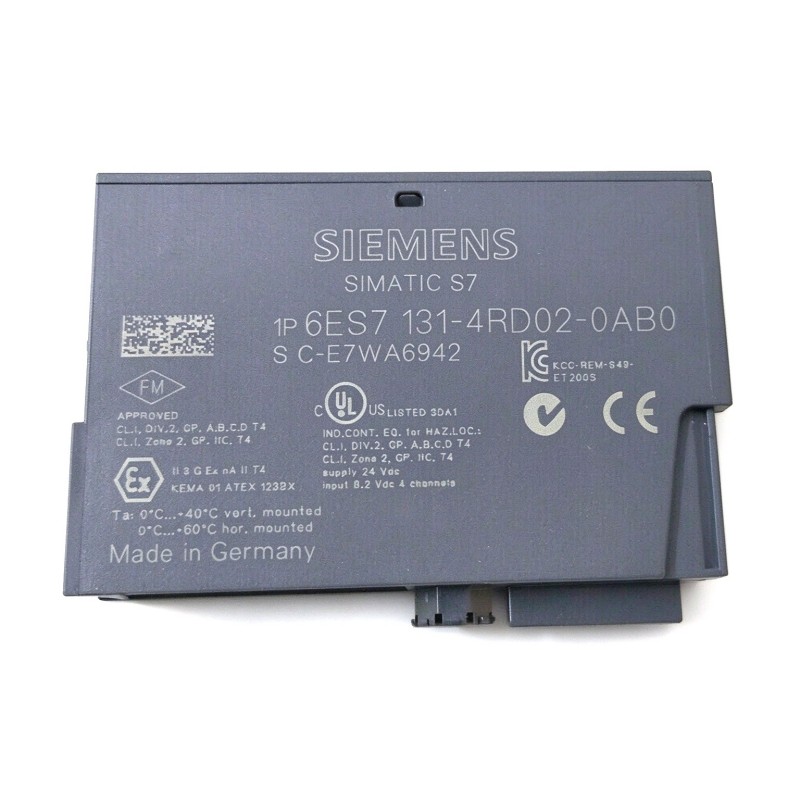

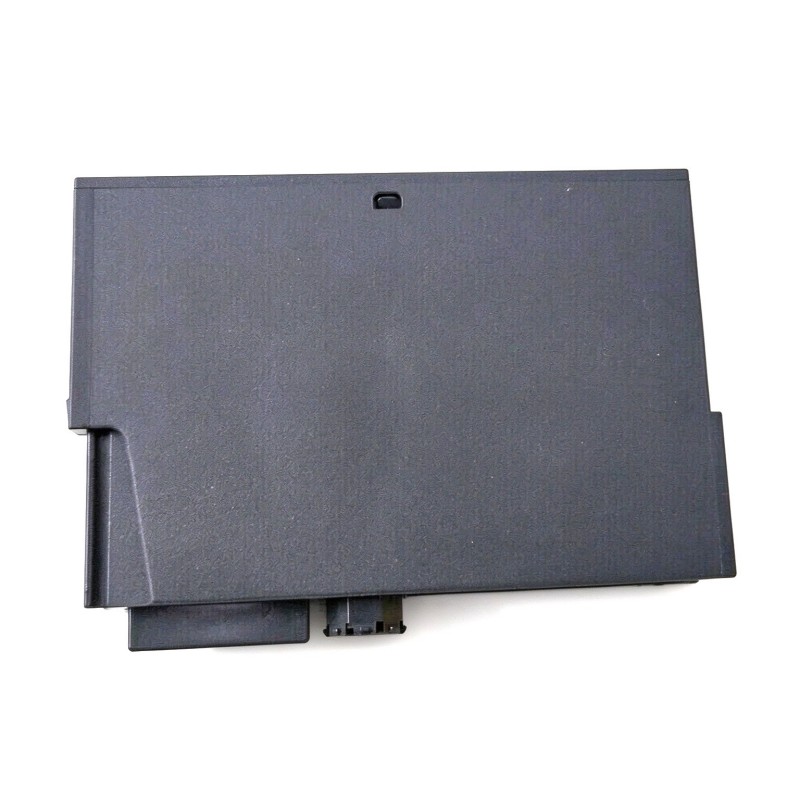

The Siemens 6ES7131-4RD02-0AB0 is a four-channel NAMUR digital input module for the SIMATIC ET 200S distributed I/O system. It accepts signals from compatible NAMUR sensors and supported mechanical contacts, allowing the controller to monitor switching conditions at individual machine or process points.
Unlike a standard 24 V DC digital input module, this variant supplies an 8.2 V DC encoder supply for its supported input devices. It evaluates changes in the connected sensor circuit and passes the resulting input states to the control system through the ET 200S backplane bus. This makes it suitable for applications where sensor interfaces must match NAMUR electrical characteristics rather than conventional PLC input levels.
In practical installations, the module can collect signals from proximity sensors used to detect the position of a mechanism, the presence of a moving component, or a change in a process condition. Four channels allow several sensing points to be monitored within one I/O station. A group fault indicator also helps maintenance personnel identify module-related fault conditions during troubleshooting.
The important selection point is the sensor interface. A NAMUR sensor should not be treated as an ordinary 24 V switching output, and this module should not be substituted for a standard digital input module without checking the electrical requirements. The connected sensors, terminal module, and controller configuration must match the intended application.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model / Article Number | 6ES7131-4RD02-0AB0 |
| Product Family | SIMATIC ET 200S |
| Product Type | Digital Input Electronic Module |
| Module Designation | 4DI DC 24V NAMUR |
| Number of Digital Inputs | 4 |
| Encoder Supply Voltage | 8.2 V DC |
| Supported Input Devices | NAMUR Sensors and Compatible Mechanical Contacts |
| Fault Indicator | SF LED (Group Fault) |
| Dimensions | 15 × 81 × 52 mm |
| Weight | 0.045 kg |
Product Features
- Four NAMUR input channels: Collects signals from compatible NAMUR sensors and supported mechanical contacts.
- Dedicated encoder supply: Provides an 8.2 V DC supply for supported sensing devices.

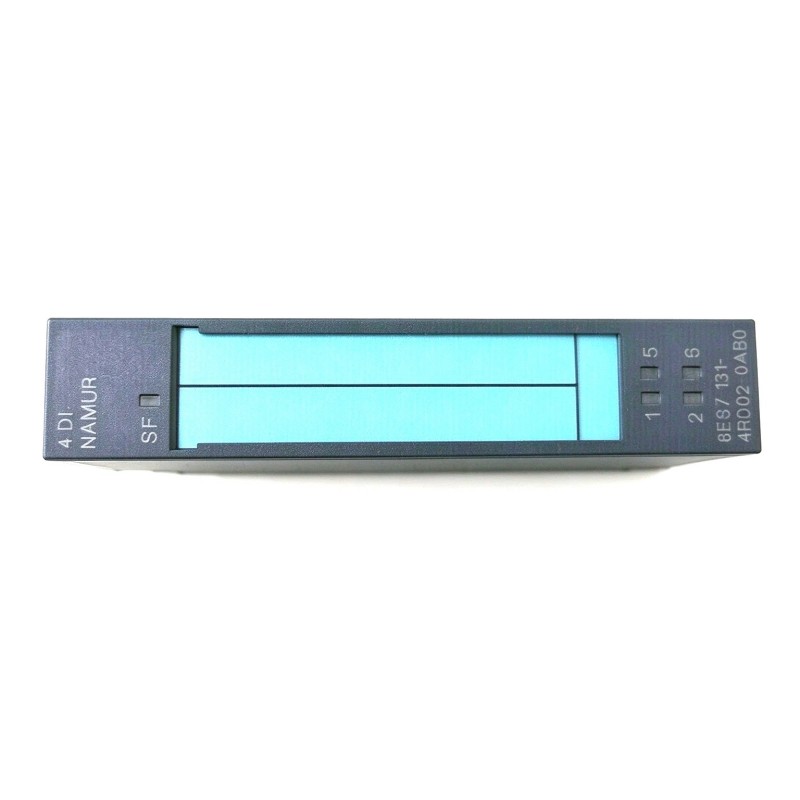

- Group fault indication: An SF LED helps identify fault conditions associated with the module.
- Distributed signal acquisition: Transfers detected input states through the ET 200S station to the controller.
- Multiple contact arrangements: Supports specified normally open, changeover, and other documented mechanical-contact configurations when used with suitable terminal modules.
- Compact I/O integration: Fits into the ET 200S distributed I/O architecture.
Working Principle
The 6ES7131-4RD02-0AB0 evaluates the electrical behavior of each connected input circuit. For a NAMUR sensor, the module’s encoder supply and input electronics work together to distinguish the sensor’s switching states from changes in circuit current.
When a target enters or leaves the sensing range, a compatible NAMUR sensor changes its electrical output. The module detects that change and updates the corresponding digital input information. The controller can then use the signal for position monitoring, sequence transitions, or process interlocks.
The typical signal path is:
NAMUR Sensor → 6ES7131-4RD02-0AB0 → ET 200S Backplane Bus → Interface Module → PLC
The module can also be used with supported mechanical contacts, but the wiring arrangement must match the contact type and the terminal module. A normally open contact, changeover contact, and single-contact circuit do not necessarily use identical connections.
The SF group fault indicator provides an additional troubleshooting reference. If a sensor signal is missing or a fault is reported, the investigation should include the sensor, field wiring, terminal connections, and configured input channel rather than assuming that the electronic module itself has failed.
Role in the SIMATIC ET 200S Control Architecture
This module occupies the sensor-input layer of a distributed automation station. Its specific role is to acquire compatible NAMUR signals and supported mechanical-contact states, then make those states available to the higher-level controller.
NAMUR Sensors or Mechanical Contacts → 6ES7131-4RD02-0AB0 → ET 200S Backplane Bus → Interface Module → SIMATIC PLC
| System Element | Function |
|---|---|
| 6ES7131-4RD02-0AB0 | Acquires four compatible sensor or contact signals |
| NAMUR Sensors | Provide switching information based on the specified electrical interface |
| Mechanical Contacts | Supply supported discrete switching states |
| ET 200S Terminal Module | Provides the electrical connection interface for field wiring |
| ET 200S Interface Module | Connects the distributed I/O station to the control system |
| SIMATIC PLC | Processes the input states and executes application logic |
Industrial Applications
| Application | Typical Use |
|---|---|
| Machine Position Monitoring | Detecting the position of moving mechanisms with compatible NAMUR sensors |
| Material Handling | Monitoring selected equipment positions and movement points |
| Industrial Process Equipment | Collecting sensor switching states at a distributed I/O station |
| Mechanical Contact Monitoring | Reading supported normally open or changeover contact arrangements |
| Automated Production Lines | Supplying discrete sensor states to sequence-control logic |
| Equipment Interlocking | Using sensor feedback to confirm a required machine condition |
| Distributed Control Cabinets | Collecting multiple sensor signals close to the controlled equipment |
Installation and Maintenance
- Verify the module identity: Confirm that 6ES7131-4RD02-0AB0 is the required four-channel NAMUR input module.
- Check sensor compatibility: Ensure that the connected sensors use the supported NAMUR interface or a documented mechanical-contact arrangement.
- Confirm the terminal module: Select a compatible ET 200S terminal module for the intended sensor or contact wiring.
- Isolate the station: Follow the applicable electrical safety procedure before installing, removing, or rewiring the electronic module.
- Inspect field wiring: Check for loose conductors, damaged insulation, incorrect terminal assignments, or contamination around the connection points.
- Verify the encoder supply: Confirm that the sensor supply arrangement follows the module’s specified 8.2 V DC interface.
- Check contact configuration: For mechanical contacts, verify that the wiring matches the documented normally open, changeover, or single-contact arrangement.
- Install the module correctly: Seat the electronic module in the designated ET 200S assembly and confirm that it is properly engaged.
- Check channel operation: Activate each connected sensor or contact under controlled conditions and verify the corresponding input state.
- Inspect the SF indicator: If a group fault is indicated, investigate the reported fault conditions and check the field circuit before replacing the module.
- Verify controller data: Confirm that each physical channel corresponds to the intended PLC input address and that the application logic reads the correct signal.
- Document the installation: Record sensor assignments, terminal arrangements, input addresses, and any faults identified during commissioning or maintenance.
Compatible System Components
| Component | Function |
|---|---|
| SIMATIC ET 200S Terminal Module | Provides the electrical interface for the electronic module |
| ET 200S Interface Module | Connects the distributed I/O station to the control system |
| Compatible NAMUR Sensors | Supply sensor signals matched to the module’s input interface |
| Supported Mechanical Contacts | Provide discrete switching signals through documented wiring arrangements |
| SIMATIC PLC | Processes the acquired input states |
| ET 200S Station Configuration | Defines module placement, input addressing, and the associated I/O arrangement |
Recommended Related Models
| Model | Product Type | Selection Consideration |
|---|---|---|
| Siemens 6ES7193-4CA50-0AA0 | SIMATIC ET 200S Terminal Module | A documented terminal-module option for the 4DI NAMUR module; verify the required connection arrangement |
| Siemens 6ES7193-4CA30-0AA0 | SIMATIC ET 200S Terminal Module | Check terminal assignment and field-wiring requirements |
| Siemens 6ES7193-4CA40-0AA0 | SIMATIC ET 200S Terminal Module | Verify the required spring-terminal configuration |
| Siemens 6ES7193-4CA80-0AA0 | SIMATIC ET 200S Terminal Module | Check the screw-terminal arrangement against the installation requirements |
Key Advantages
- Four input channels for compatible NAMUR sensors and supported mechanical contacts.
- Dedicated 8.2 V DC encoder supply.
- Group fault indication through the SF LED.
- Integration with the SIMATIC ET 200S distributed I/O system.
- Support for documented sensor and contact wiring arrangements.
Technical FAQs
How does the 6ES7131-4RD02-0AB0 differ from a standard 24 V DC digital input module?
This module is intended for NAMUR sensor signals and supported mechanical contacts, using an 8.2 V DC encoder supply. A conventional 24 V DC input module has different electrical interface requirements, so compatibility must be checked before selecting a replacement.
Can the module connect directly to any NAMUR sensor?
The sensor must match the module’s electrical interface and connection requirements. Check the sensor specifications, terminal assignment, and applicable wiring diagram before connecting it.
What does the SF LED indicate during operation?
The SF LED is the module’s group fault indicator. If it illuminates, investigate the relevant fault conditions and field circuits. The indicator should be used alongside the station’s available diagnostic information rather than as a definitive identification of a failed component.
Why does the terminal module matter when installing this input module?
The terminal module determines the available connection arrangement and supports the required field wiring. The correct variant depends on whether the installation uses NAMUR sensors, changeover contacts, or another documented contact configuration. A physically compatible terminal module should not be assumed electrically suitable without checking its connection assignment.
