Product Overview

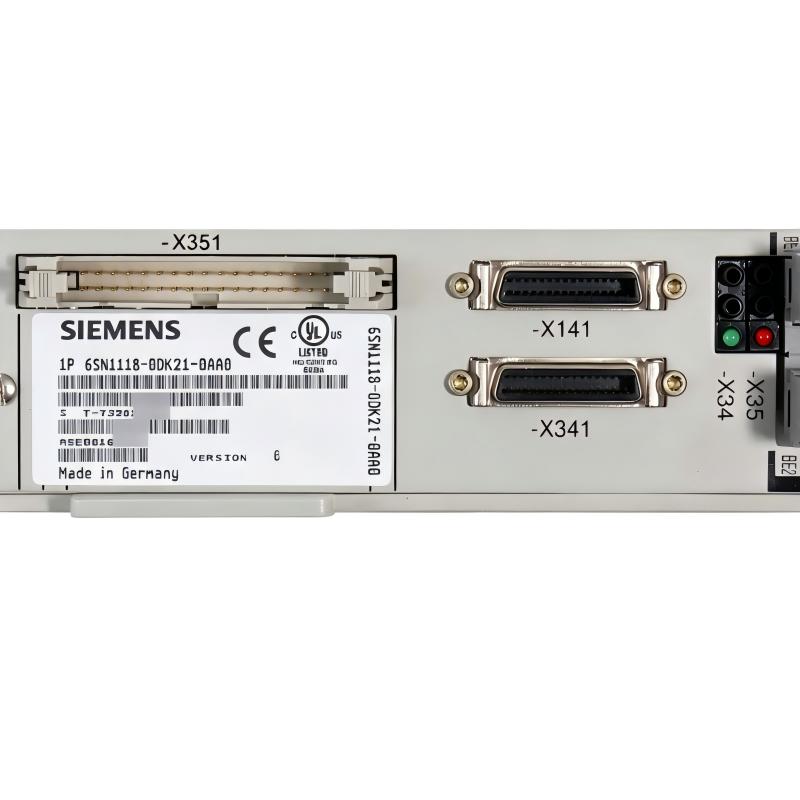

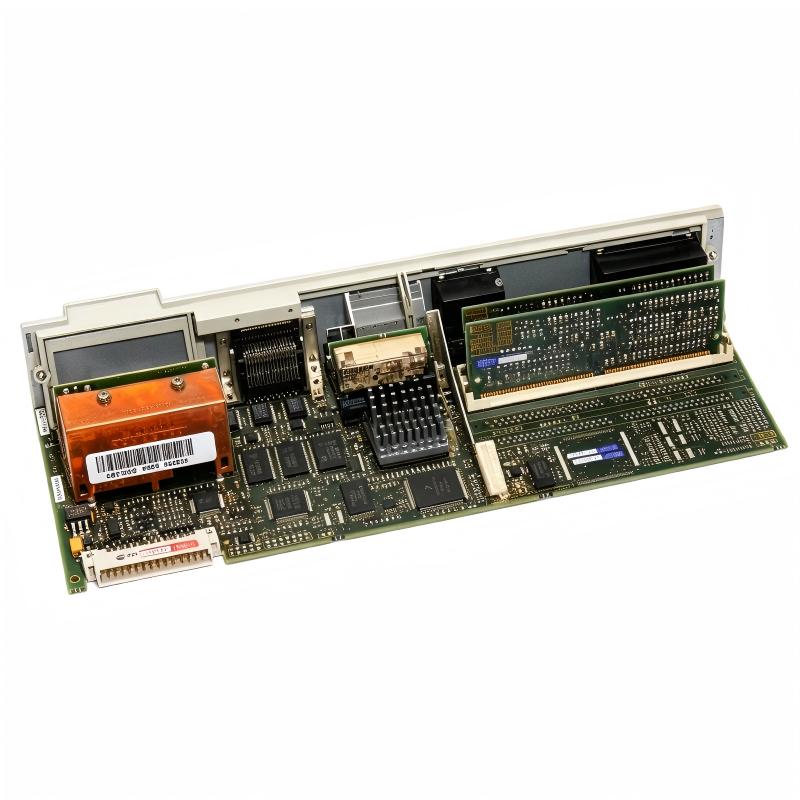

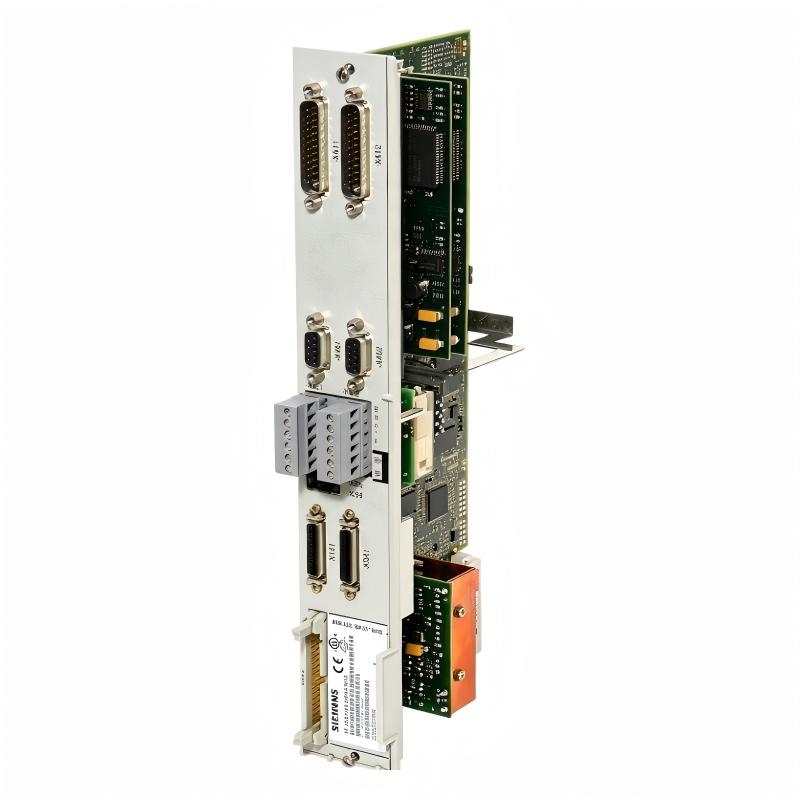

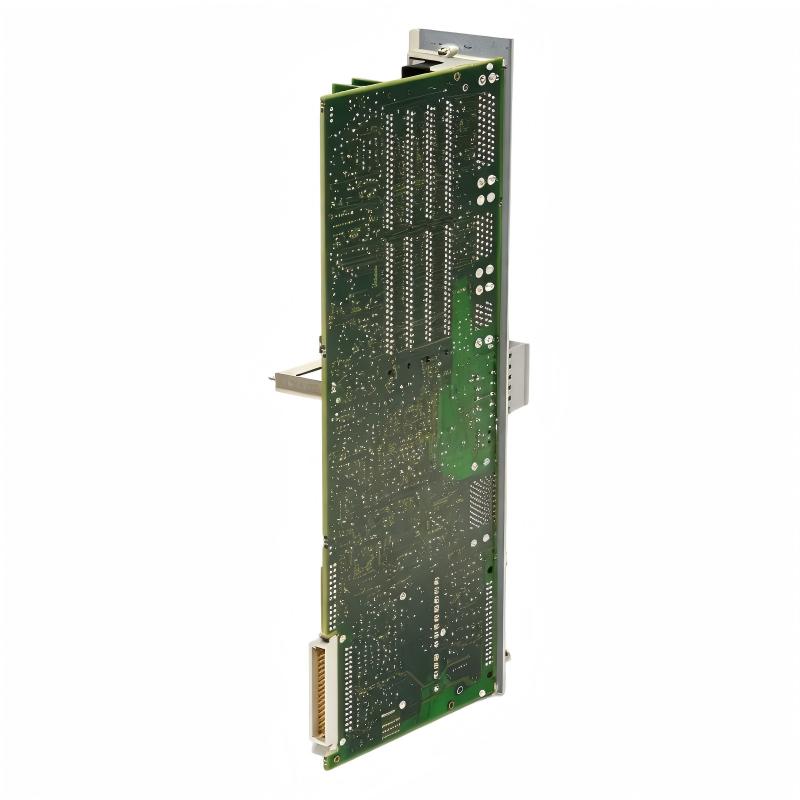

The Siemens 6SN1118-0DK21-0AA0 is a high-performance, two-axis closed-loop control unit belonging to the SIMODRIVE 611-D digital drive system. It handles motion-control tasks for feed drives and main spindle drives, processing encoder feedback and digital speed or torque setpoints within a compatible CNC drive configuration.
This version is configured for encoders with sin/cos 1 Vpp signals and operates without a direct measuring system. Its two-axis architecture allows drive-control functions to be integrated into a single plug-in unit, helping coordinate motion in machine tools where feed-axis positioning and spindle operation must follow the CNC program.
In a typical CNC installation, the control unit receives motion commands from the numerical control system, evaluates feedback from the connected drive’s measuring system, and participates in the regulation process that governs motor speed and torque. The drive power section supplies the electrical energy required by the motor, while the control unit handles the associated digital control functions.
The 6SN1118-0DK21-0AA0 is a component of the SIMODRIVE 611-D drive architecture rather than an independent servo drive. Its encoder interface, axis configuration, software requirements, and associated power modules must be considered when integrating it into an existing machine or replacing a failed control unit.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model / Article Number | 6SN1118-0DK21-0AA0 |
| Product Family | SIMODRIVE 611-D |
| Product Type | Digital High Performance Closed-Loop Control Unit |
| Control Configuration | Two-Axis |
| Drive Applications | Feed Drive and Main Spindle Drive |
| Encoder Interface | sin/cos 1 Vpp |
| Setpoint Interface | Digital Speed/Torque Setpoint |
| Direct Measuring System | Not Included in This Configuration |
| Control Function | Digital Closed-Loop Control |
| NC Software Requirement | Required from version 06.04.09 |
| Dimensions | 330 × 51 × 152 mm |
| Weight | 0.61 kg |
Product Features
- Two-axis drive control: Supports control functions for two drive axes within a compatible SIMODRIVE 611-D configuration.
- High-performance regulation: Handles digital closed-loop control tasks for demanding CNC feed and spindle applications.
- sin/cos 1 Vpp encoder interface: Supports the specified encoder signal type for drive feedback.
- Digital speed and torque setpoints: Works with the digital setpoint interface used by the associated feed and main spindle drive configuration.
- No direct measuring system: Matches applications configured without an additional direct measuring system.
- SIMODRIVE 611-D integration: Operates as a plug-in control component within the corresponding digital drive system.
Working Principle
The 6SN1118-0DK21-0AA0 participates in the closed-loop regulation of the connected drive axes. The CNC system provides the required motion commands, while encoder feedback supplies information about the drive’s movement. The control unit processes the relevant command and feedback information as part of the drive-control process.
For the specified sin/cos 1 Vpp encoder interface, the feedback signal must match the control unit’s electrical and configuration requirements. The unit’s digital speed or torque setpoint interface connects its control functions with the corresponding SIMODRIVE 611-D drive arrangement.
The typical control path is:
CNC Control → Digital Setpoint Processing → 6SN1118-0DK21-0AA0 → Drive Power Module → Motor → Encoder Feedback
The controller compares commanded motion with the available feedback information and adjusts the drive-control output accordingly. The power module handles motor power, while the control unit performs the associated regulation functions.
Because this variant operates without a direct measuring system, the feedback arrangement must match the machine’s intended configuration. Encoder wiring, drive assignment, NC software compatibility, and the parameters loaded into the control system all affect whether the unit can operate correctly after installation or replacement.
Role in the SIMODRIVE 611-D Control Architecture
The 6SN1118-0DK21-0AA0 occupies the drive-control layer of a SIMODRIVE 611-D installation. It connects the CNC motion commands with the feedback-based regulation of the associated drive axes.
CNC System → SIMODRIVE 611-D Control Unit → Drive Power Section → Feed Motor or Main Spindle Motor → Encoder Feedback
| System Element | Function |
|---|---|
| 6SN1118-0DK21-0AA0 | Performs digital closed-loop control functions for the configured axes |
| CNC Controller | Supplies motion commands and coordinates machine operation |
| SIMODRIVE 611-D Power Module | Supplies controlled electrical power to the connected motor |
| sin/cos 1 Vpp Encoder | Supplies the specified drive feedback signals |
| Feed Drive Motor | Produces controlled movement along a machine axis |
| Main Spindle Motor | Provides spindle motion for machining operations |
| NC Software and Drive Parameters | Define the supported control configuration and operating behavior |
Industrial Applications
| Application | Typical Use |
|---|---|
| CNC Machine Tools | Closed-loop control of configured feed and spindle drives |
| Milling Machines | Coordinating feed-axis movement with spindle operation |
| Turning Centers | Supporting controlled spindle and feed-axis motion |
| Precision Machining Equipment | Processing encoder feedback within the configured drive-control system |
| Multi-Axis Machine Systems | Integrating two drive-control axes within a compatible SIMODRIVE architecture |
| Machine Tool Retrofit Projects | Replacing an existing control unit when the original configuration and software requirements are satisfied |
| Industrial Drive Maintenance | Restoring drive-control functionality after a verified control-unit fault |
Installation and Maintenance
- Verify the complete article number: Confirm that the replacement is 6SN1118-0DK21-0AA0, not another SIMODRIVE 611-D variant with different feedback or measuring-system requirements.
- Check the drive configuration: Establish which feed or main spindle axes are assigned to the control unit and confirm that the intended arrangement supports its two-axis configuration.
- Verify encoder compatibility: Confirm that the connected feedback devices provide the specified sin/cos 1 Vpp signals and match the machine’s encoder configuration.
- Check NC software compatibility: Verify that the numerical control software meets the version requirements for this control unit and the associated machine configuration.
- Isolate the drive system: Disconnect the relevant power supplies and follow the machine manufacturer’s safety procedures before removing or installing the plug-in unit.
- Inspect the installation position: Check the control-unit slot, connectors, mating interfaces, and surrounding components for damage or contamination.
- Install the control unit correctly: Fit the unit into its designated position in the SIMODRIVE 611-D assembly and ensure that its connections are properly seated.
- Inspect encoder connections: Check the feedback wiring for loose connectors, damaged conductors, incorrect assignments, or signs of electrical interference.
- Verify the setpoint arrangement: Confirm that the configured digital speed or torque setpoint interface matches the intended drive application.
- Review drive parameters: Compare the configured axis assignments, motor data, feedback settings, and control parameters with the machine’s approved configuration.
- Test the drive under controlled conditions: After completing the required checks, verify axis response, feedback behavior, and fault indications before returning the machine to production.
- Document replacement details: Record the installed article number, software compatibility checks, parameter changes, test results, and any faults encountered during commissioning.
Compatible System Components
| Component | Function |
|---|---|
| SIMODRIVE 611-D Power Module | Supplies motor power for the configured drive |
| CNC Controller | Generates motion commands and coordinates axis operation |
| Compatible sin/cos 1 Vpp Encoder | Provides the specified feedback signals |
| Feed Drive Motor | Executes controlled feed-axis movement |
| Main Spindle Motor | Provides spindle motion where supported by the drive configuration |
| Drive Feedback Cabling | Carries encoder signals to the relevant control interface |
| NC Software and Drive Parameter Set | Establishes the control-unit configuration and operating characteristics |
Recommended Related Models
| Model | Product Type | Selection Consideration |
|---|---|---|
| Siemens 6SN1118-0DK21-0AA1 | SIMODRIVE 611-D Digital High Performance Closed-Loop Control Unit | Verify the complete configuration and hardware revision before selecting as a replacement |
| Siemens 6SN1118-0DK23-0AA0 | SIMODRIVE 611-D Digital High Performance Closed-Loop Control Unit | Check the measuring-system configuration and associated feedback requirements |
| Siemens 6SN1118-0DJ21-0AA0 | SIMODRIVE 611-D Digital High Performance Closed-Loop Control Unit | A different axis configuration; verify the required number of controlled axes |
| Siemens 6SN1118-0DH21-0AA0 | SIMODRIVE 611-D Digital High Performance Closed-Loop Control Unit | Compare the specific control configuration and feedback requirements before substitution |
Key Advantages
- Two-axis digital closed-loop control in a compatible SIMODRIVE 611-D system.
- Support for the specified sin/cos 1 Vpp encoder interface.
- Digital speed and torque setpoint processing for configured feed and spindle drives.
- Integration with CNC-based motion-control architectures.
- Suitable for replacement and maintenance projects where the original drive configuration is verified.
Technical FAQs
Which encoder signal does the 6SN1118-0DK21-0AA0 support?
This variant is specified for encoders with sin/cos 1 Vpp signals. The feedback device and wiring must match the control unit’s interface requirements; a different encoder signal type should not be assumed compatible.
Can this control unit operate with a direct measuring system?
The 6SN1118-0DK21-0AA0 configuration is specified without a direct measuring system. If the machine requires additional direct position feedback, the control-unit variant and complete drive configuration must be checked before selection.
What should be verified when replacing the unit in an existing CNC machine?
Check the full article number, axis assignment, encoder interface, NC software version, drive parameters, and associated power-module configuration. A similar-looking SIMODRIVE 611-D control unit may have different feedback or control characteristics.
Why is the two-axis configuration important when selecting a replacement?
The control unit is intended for a two-axis drive-control arrangement. The replacement must match the machine’s assigned axes and the relevant feed or spindle drive configuration. Selecting a unit solely by the SIMODRIVE 611-D family name is insufficient.
