Product Overview

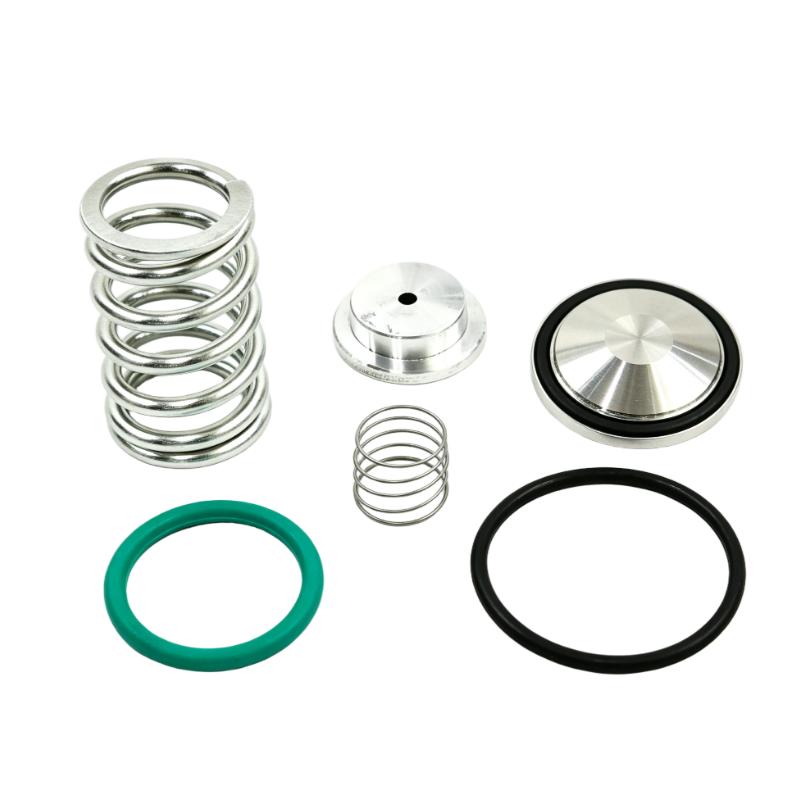

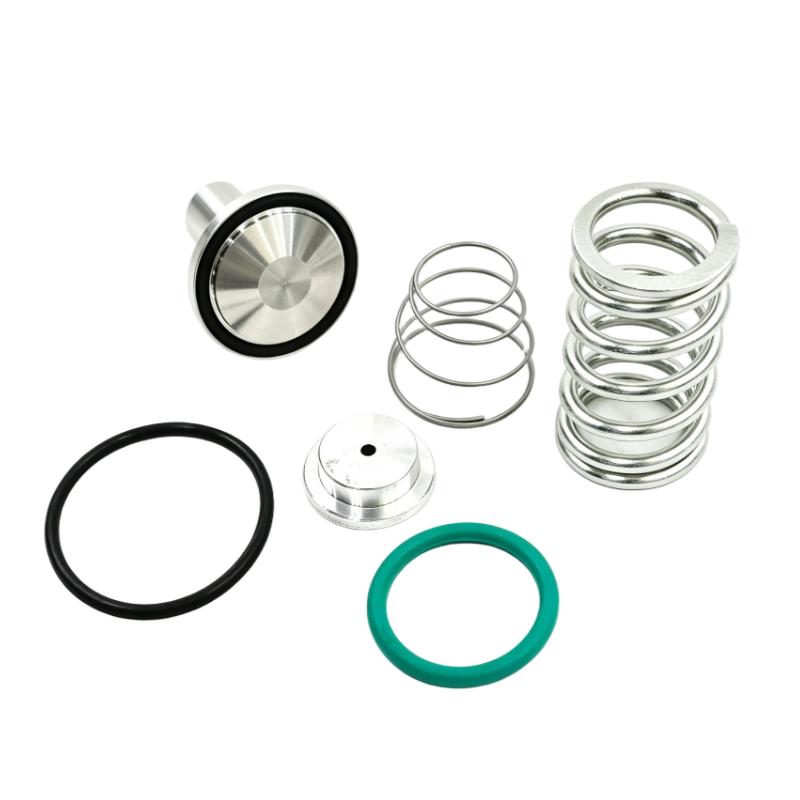

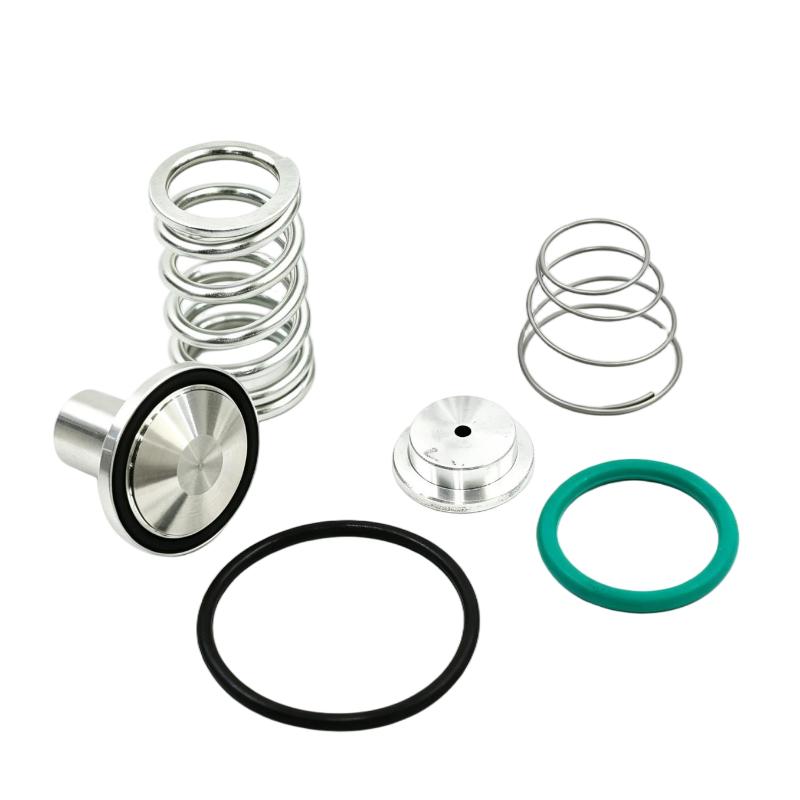

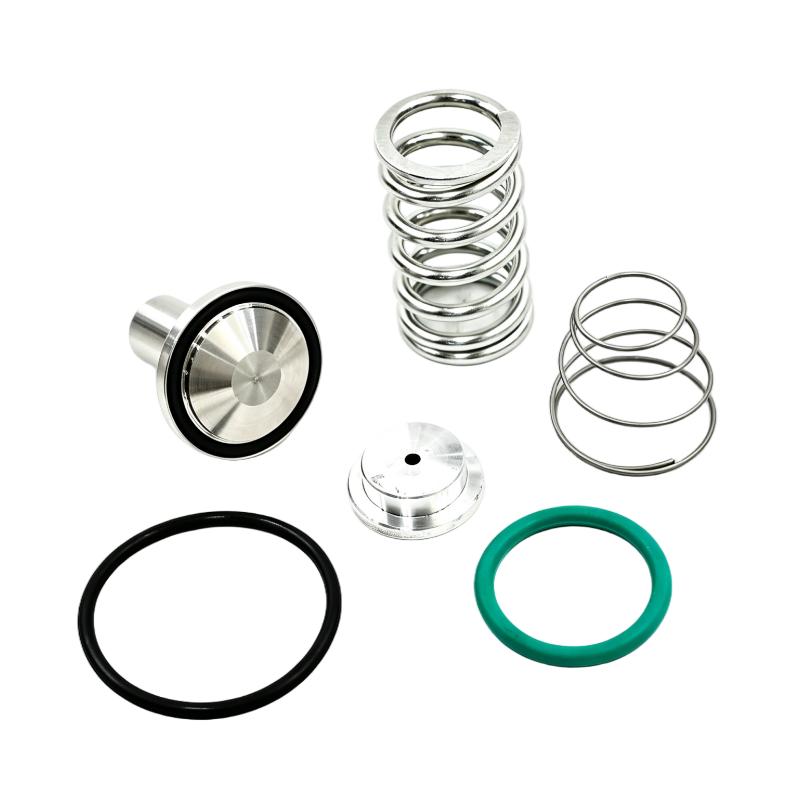

The Ingersoll Rand 24509200 Minimum Pressure Check Valve Kit is a compressor valve service kit used for maintenance of the minimum pressure check valve assembly. This valve serves two functions in applicable rotary screw compressor systems: maintaining the required minimum internal pressure during operation and restricting reverse airflow when pressure conditions change.
In an oil-injected rotary screw compressor, internal pressure helps support coolant circulation through the compression system. During startup, the minimum pressure valve helps the compressor establish the required internal pressure before compressed air is delivered downstream. Once operating pressure reaches the valve’s opening threshold, the valve permits air to flow toward the discharge system.
The check-valve function also helps prevent downstream pressure from flowing backward into the compressor package when operating conditions change. If the valve becomes worn, contaminated, or unable to seal correctly, the compressor may experience pressure-control problems or abnormal pressure behavior during startup and unloading.
The 24509200 kit is intended for valve servicing rather than replacement of the entire compressor. Before carrying out maintenance, technicians should confirm that the part number matches the installed valve assembly and inspect the valve for leakage, sticking, or sealing problems. A correct diagnosis helps distinguish valve wear from issues involving the separator system, blowdown arrangement, or other pressure-control components.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Model / Part Number | 24509200 |
| Product Type | Minimum Pressure Check Valve Kit |
| Component Category | Compressor Valve Service Kit |
| Primary Function | Minimum pressure control and prevention of reverse airflow |
| Application | Compatible Ingersoll Rand compressor systems |
| Dimensions | 100 × 15 × 80 mm |
| Weight | 0.1 kg |
Product Features
- Minimum pressure control: Supports the valve assembly responsible for maintaining the required internal operating pressure.
- Check-valve function: Helps restrict reverse airflow through the valve under applicable pressure conditions.
- Valve maintenance: Supports servicing of worn or damaged valve components when the kit matches the installed assembly.
- Pressure-system protection: Helps maintain the intended pressure behavior of the compressor’s internal circuit.
- Service-part identification: Provides a specific part number for maintenance planning and replacement-part control.
Working Principle
The minimum pressure check valve responds to the pressure difference between the compressor’s internal circuit and the downstream discharge line. A spring-loaded valve mechanism, where used, keeps the valve closed until the required opening pressure is reached.
During startup, the valve restricts discharge flow while the compressor establishes internal pressure. Once the pressure reaches the valve’s operating threshold, the valve opens and allows compressed air to pass downstream. This sequence helps maintain the internal pressure required by the compressor’s design.
During unloading or shutdown, the valve also performs a check function. It helps prevent compressed air in the downstream system from returning through the discharge path into the compressor package. The exact behavior depends on the valve design and the compressor’s associated blowdown arrangement.
A typical arrangement is:
Airend → Separator Vessel → Minimum Pressure Check Valve → Downstream Air System
If the valve’s internal sealing surfaces deteriorate or the moving parts become restricted, it may fail to open or close as intended. A valve that remains too restrictive can interfere with discharge flow, while a valve that does not seal properly may contribute to pressure loss or reverse flow.
The 24509200 service kit supports maintenance of the corresponding valve assembly. The precise repair procedure and included components should be established from the applicable parts documentation rather than assumed from the kit name alone.
Role in the Compressor Pressure Control System
The minimum pressure check valve sits between the compressor’s internal pressure circuit and the downstream compressed-air system. Its operation influences startup pressure buildup, discharge flow, and reverse-flow control.
Airend → Separator Vessel → Minimum Pressure Check Valve → Aftercooler or Downstream Piping → Air Receiver
| System Component | Function |
|---|---|
| 24509200 Minimum Pressure Check Valve Kit | Supports servicing of the designated valve assembly |
| Minimum Pressure Check Valve | Maintains the required minimum pressure and restricts reverse airflow |
| Airend | Compresses the incoming air |
| Separator Vessel | Separates coolant from compressed air in applicable oil-injected designs |
| Blowdown Valve | Releases pressure from designated internal circuits during unloading or shutdown |
| Aftercooler | Reduces compressed-air temperature where fitted |
| Air Receiver | Stores compressed air and helps manage downstream demand |
| Pressure Sensors | Monitor pressure at designated points in the system |
| Compressor Controller | Coordinates loading, unloading, and other operating functions |
Industrial Applications
| Application | Typical Use |
|---|---|
| Rotary Screw Compressor Maintenance | Servicing the minimum pressure valve when inspection identifies wear or leakage |
| Manufacturing Plants | Maintaining pressure-control components in compressed-air installations |
| Automotive Production | Supporting compressor maintenance for pneumatic production equipment |
| Metalworking Facilities | Maintaining pressure regulation in industrial air systems |
| Packaging Lines | Servicing compressors supplying pneumatic actuators and production machinery |
| Centralized Air Stations | Maintaining valve operation in compressors supplying multiple production areas |
| Continuous-Duty Operations | Addressing valve-related pressure issues during scheduled maintenance |
| Compressor Overhaul | Inspecting and servicing the minimum pressure valve assembly |
| Corrective Maintenance | Investigating abnormal pressure buildup, pressure loss, or reverse-flow symptoms |
| Preventive Maintenance Programs | Including valve inspection when required by the applicable service procedure |
Installation and Maintenance
- Verify the part number: Confirm that 24509200 matches the installed minimum pressure check valve assembly before beginning the repair.
- Review the valve arrangement: Identify the valve’s position in the compressor pressure circuit and check the applicable service procedure.
- Shut down the compressor: Follow the approved shutdown and energy-isolation procedure before opening the valve assembly.
- Relieve stored pressure: Verify that the relevant pressure vessels and connected passages are depressurized before removing fittings or valve components.
- Inspect the valve externally: Look for leakage, corrosion, damaged connections, or other visible signs of deterioration.
- Examine the internal mechanism: Where disassembly is permitted, inspect the moving parts and sealing surfaces for contamination, wear, or damage.
- Check the kit contents: Match the supplied service components against the applicable parts list before installation.
- Clean the service area: Prevent dirt and loose debris from entering the valve body or the compressor pressure circuit.
- Install the replacement components: Follow the specified assembly sequence and use the prescribed tightening requirements.
- Inspect related pressure-control parts: Check the associated blowdown arrangement and accessible connections for faults that could produce similar symptoms.
- Test valve operation: After reassembly, restore the compressor according to the approved procedure and verify pressure buildup, discharge behavior, and leakage.
- Record the repair: Document the part number, observed valve condition, replaced components, and operational test results.
Compatible System Components
| Component | Function |
|---|---|
| Compatible Ingersoll Rand Rotary Screw Compressor | Provides the compressor system in which the valve assembly operates |
| Minimum Pressure Check Valve Assembly | Controls minimum internal pressure and restricts reverse airflow |
| Separator Vessel | Separates coolant from compressed air in applicable compressor designs |
| Blowdown Valve | Releases pressure from the designated internal circuit during unloading |
| Airend | Produces compressed air |
| Aftercooler, Where Fitted | Reduces compressed-air temperature before downstream delivery |
| Pressure Sensors | Provide pressure feedback to the compressor control system |
| Compressor Controller | Coordinates operating states and monitors supported conditions |
| Downstream Air Receiver | Stores compressed air and supports system demand |
| Discharge Piping | Carries compressed air from the compressor to the downstream system |
Recommended Related Models
| Model | Product Type | Selection Consideration |
|---|---|---|
| Ingersoll Rand 24509200 | Minimum Pressure Check Valve Kit | The specified valve service kit; confirm the installed valve assembly before replacement |
| Ingersoll Rand 23392368 | Minimum Pressure Valve Service Kit | A separately identified service kit for specified NG R-Series and RM-Series compressor applications; not an automatic substitute |
| Ingersoll Rand 23531577 | MPCV Service Kit | A separate minimum pressure control valve service kit; verify the relevant compressor configuration |
| Ingersoll Rand 23531593 | Inlet Valve Kit | Services a different valve function and is not interchangeable with a minimum pressure check valve kit |
Key Advantages
- Supports maintenance of the compressor’s minimum pressure check valve.
- Helps restore intended valve sealing and movement when serviceable components are worn.
- Supports minimum pressure control and reverse-flow restriction.
- Allows targeted valve servicing without automatically replacing the entire compressor assembly.
- Provides a defined part number for service planning and inventory management.
Technical FAQs
What is the difference between a minimum pressure valve and an inlet valve?
The inlet valve regulates air entering the compressor airend. The minimum pressure check valve operates downstream of the airend and separator vessel, helping maintain internal pressure and restricting reverse airflow. Their positions and functions differ, so their service kits are not interchangeable.
Why does the minimum pressure check valve matter during startup?
The valve helps the compressor establish the required internal pressure before allowing normal discharge flow. In oil-injected designs, this pressure supports the intended coolant circulation and separation process. A valve that opens incorrectly may interfere with pressure buildup or normal compressor operation.
What symptoms may indicate a problem with the minimum pressure check valve?
Possible symptoms include abnormal pressure buildup, restricted discharge flow, pressure loss, or reverse airflow under conditions where the valve should provide isolation. These symptoms can also arise from other pressure-control components, so the valve should be inspected as part of a broader diagnosis.
Can the 24509200 kit be used on any Ingersoll Rand compressor?
No universal compatibility should be assumed. The required kit depends on the installed valve assembly and compressor configuration. Confirm the part number against the applicable parts documentation before servicing the equipment.
