Product Overview

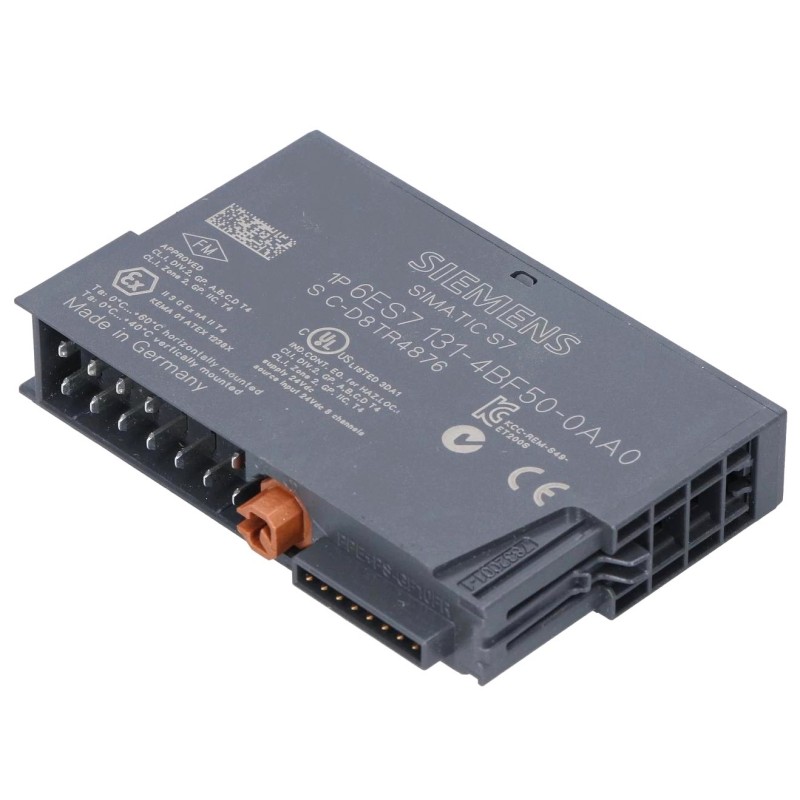

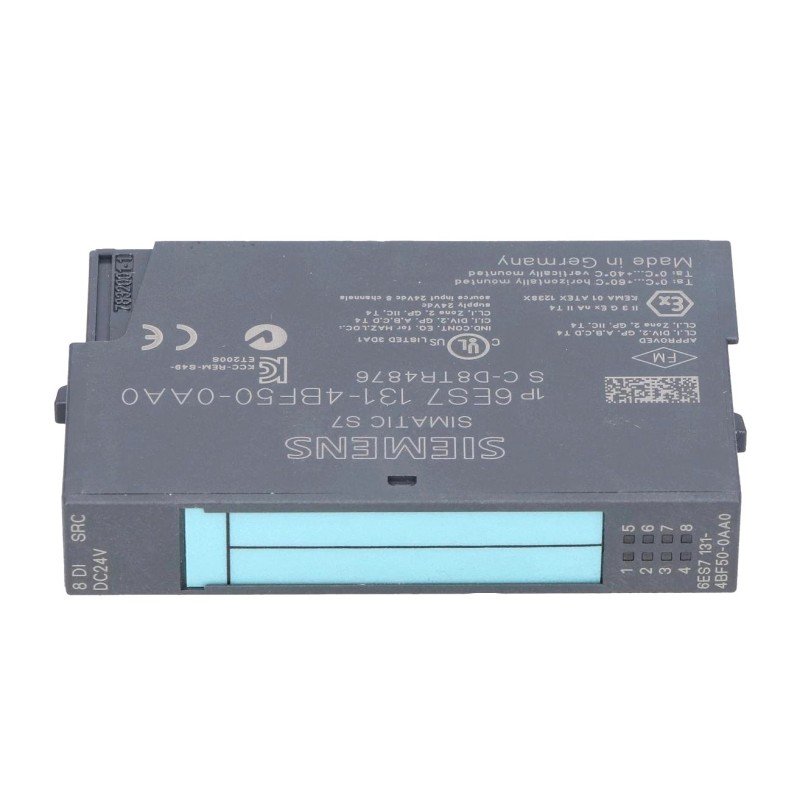

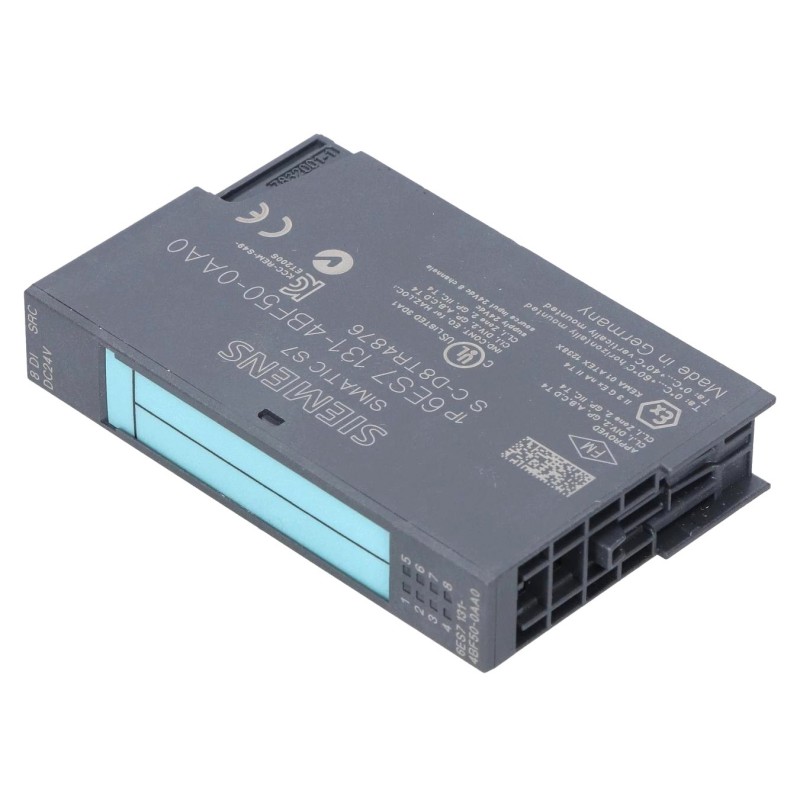

The Siemens 6ES7131-4BF50-0AA0 is an 8-channel digital input electronic module for the SIMATIC ET 200S distributed I/O system. It accepts 24 V DC source-input signals and transfers their status to the controller through the ET 200S backplane bus.
In a distributed control cabinet, this module can collect discrete signals from field devices such as pushbuttons, limit switches, and compatible two-wire sensors. Instead of routing every field signal directly to a central PLC rack, the ET 200S system allows input acquisition to take place closer to the machine or process equipment, reducing the need for long individual signal runs.
Each of the eight input channels has a green status indicator, allowing technicians to compare the electrical input state with the signal reported by the control program. This is useful when troubleshooting a machine that fails to recognize a limit switch, interlock, or other discrete field condition.
The 6ES7131-4BF50-0AA0 uses source-input signal logic, so its wiring and field-device polarity must match the module’s specified input arrangement. It is an electronic input module, not a standalone PLC or a complete I/O station; it operates as part of a properly configured ET 200S assembly.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model / Article Number | 6ES7131-4BF50-0AA0 |
| Product Family | SIMATIC ET 200S |
| Product Type | Digital Input Electronic Module |
| Number of Digital Inputs | 8 |
| Rated Input Voltage | 24 V DC |
| Input Type | Source Input |
| Typical Input Current at 24 V | 6 mA |
| Input Characteristic | IEC 61131 Type 1 |
| Typical Power Dissipation | 1.2 W |
| Channel Status Indicators | Green LED per channel |
| Diagnostics Function | No |
| Module Width | 15 mm |
| Dimensions | 15 × 81 × 52 mm |
| Weight | 0.041 kg |
Product Features
- Eight digital input channels: Collects eight discrete 24 V DC signals within one ET 200S electronic module.
- Source-input configuration: Supports field wiring matched to the module’s specified input logic.
- Channel-level indication: Green LEDs help technicians identify the electrical status of individual inputs.
- ET 200S backplane communication: Passes input states through the distributed I/O station to the controller.
- Two-wire sensor support: Accepts compatible two-wire sensors within the module’s specified electrical limits.
- Compact I/O arrangement: Uses a 15 mm module width within the ET 200S station.
Working Principle
The module reads the voltage state presented at each of its eight digital input channels. When a connected field device changes state, the corresponding input circuit detects the electrical change and updates the input status available to the controller through the ET 200S backplane bus.
The module operates with a rated input voltage of 24 V DC. Its source-input configuration requires the field signal and reference wiring to follow the specified polarity and electrical limits. Incorrect wiring can prevent a valid signal from being recognized or cause the input to remain in an unexpected state.
The typical signal path is:
Field Switch or Sensor → Digital Input Channel → ET 200S Backplane Bus → PLC Input Image → Control Logic
A green LED is provided for each channel, helping technicians check whether the module is detecting a field signal. However, the LEDs do not replace a wiring check or program-level diagnosis. This module has no diagnostic function, so it should not be treated as a channel-diagnostic module capable of independently identifying wiring faults.
The input delay is typically around 3 ms in the associated module manual. This response characteristic is suitable for many conventional discrete control tasks, such as position detection and machine sequencing, but it should be considered when an application depends on precise timing.
Role in the SIMATIC ET 200S Control Architecture
The 6ES7131-4BF50-0AA0 occupies the input-acquisition layer of a distributed automation station. It converts field-level discrete electrical states into input data that the controller can use for interlocks, sequence control, and equipment status monitoring.
Field Devices → 6ES7131-4BF50-0AA0 → ET 200S Backplane Bus → Interface Module → PLC or Automation Controller
| System Element | Function |
|---|---|
| 6ES7131-4BF50-0AA0 | Reads eight 24 V DC digital input signals |
| Field Sensors and Switches | Provide discrete machine or process states |
| ET 200S Terminal Module | Provides the field wiring interface for the electronic module |
| ET 200S Interface Module | Connects the distributed I/O station to the higher-level control system |
| SIMATIC PLC | Executes logic using the collected input states |
| Control Program | Processes interlocks, operating conditions, and sequence signals |
Industrial Applications
| Application | Typical Use |
|---|---|
| Machine Automation | Reading pushbuttons, limit switches, and machine-position signals |
| Conveyor Systems | Monitoring product presence and position switches |
| Packaging Equipment | Collecting discrete signals from machine stations and access interlocks |
| Material Handling | Reading end-position and equipment-status contacts |
| Assembly Lines | Monitoring station-ready and part-present signals |
| Process Utility Systems | Acquiring discrete equipment states in local I/O cabinets |
| Distributed Control Cabinets | Collecting field signals near the equipment rather than routing each input to a central rack |
Installation and Maintenance
- Verify the module identity: Confirm that the installed module is 6ES7131-4BF50-0AA0 and that the application requires an eight-channel 24 V DC source-input module.
- Check the station configuration: Confirm that the electronic module, terminal module, interface module, and controller configuration are appropriate for the ET 200S station.
- Isolate the power supply: De-energize the relevant circuits and follow the site’s electrical safety procedures before installing or removing the module.
- Verify field wiring polarity: Check that the 24 V DC supply, signal conductors, and reference connections follow the module’s source-input arrangement.
- Inspect the terminal connections: Look for loose conductors, damaged terminals, corrosion, or wiring that could produce intermittent input signals.
- Check sensor compatibility: Confirm that connected switches and two-wire sensors meet the module’s electrical requirements, including the permitted residual current for two-wire sensors.
- Seat the module correctly: Install the electronic module in its specified ET 200S assembly position and verify that it is properly engaged.
- Inspect the channel LEDs: During controlled testing, compare the green channel indicators with the actual states of the connected field devices.
- Test the PLC input states: Verify that the controller receives the expected signal for each field input and that the configured addresses match the wiring plan.
- Investigate missing signals: If an input does not change state, check the sensor, wiring, reference connection, terminal module, and module seating before replacing components.
- Check response behavior: For timing-sensitive sequences, confirm that the input delay is compatible with the machine’s required response.
- Document the I/O assignment: Record channel addresses, field-device references, wiring changes, and test results for future maintenance.
Compatible System Components
| Component | Function |
|---|---|
| SIMATIC ET 200S Terminal Module | Provides the electrical connection interface for the electronic module |
| ET 200S Interface Module | Connects the distributed I/O station to the automation controller |
| SIMATIC PLC | Processes the digital input data |
| 24 V DC Power Module | Supplies the relevant station or field circuits according to the station design |
| Compatible 24 V DC Sensors | Supply discrete input signals within the module’s electrical limits |
| Pushbuttons and Limit Switches | Provide operator commands and machine-position signals |
Recommended Related Models
| Model | Product Type | Selection Consideration |
|---|---|---|
| Siemens 6ES7131-4BB01-0AA0 | SIMATIC ET 200S Digital Input Electronic Module | Compare the input configuration and electrical characteristics before substitution |
| Siemens 6ES7131-4BB01-0AB0 | SIMATIC ET 200S Digital Input Electronic Module | Verify the exact input variant and wiring requirements |
| Siemens 6ES7131-4BD01-0AA0 | SIMATIC ET 200S Digital Input Electronic Module | Confirm channel configuration and signal compatibility |
| Siemens 6ES7131-4BF00-0AA0 | SIMATIC ET 200S Digital Input Electronic Module | Check the specific input configuration and technical requirements before selection |
Key Advantages
- Eight discrete inputs in a 15 mm-wide module.
- 24 V DC source-input operation for compatible field devices.
- Individual green LEDs for straightforward channel-state checks.
- Integration with the SIMATIC ET 200S distributed I/O architecture.
- Support for compatible two-wire sensors and conventional switching devices.
Technical FAQs
How should the 6ES7131-4BF50-0AA0 be wired for source-input operation?
The field-device wiring must follow the module’s source-input configuration and specified reference polarity. Confirm the terminal assignment for the installed ET 200S terminal module before connecting the 24 V DC signals.
Does this module provide channel-level fault diagnostics?
No. The module provides a green status indicator for each input channel, but it does not have a diagnostic function. Troubleshooting must therefore include checks of the field device, wiring, terminal connections, and PLC input data.
Can the module read signals from two-wire sensors?
Yes, compatible two-wire sensors are supported. Their residual current must remain within the specified limit, and their electrical characteristics must be suitable for the module’s input circuit.
What should be checked when an input LED changes but the PLC does not respond?
Check the configured input address, ET 200S station configuration, controller input image, and logic conditions in the PLC program. The LED indicates the channel’s electrical input state; it does not confirm that the application logic is using the correct address.
