Product Overview

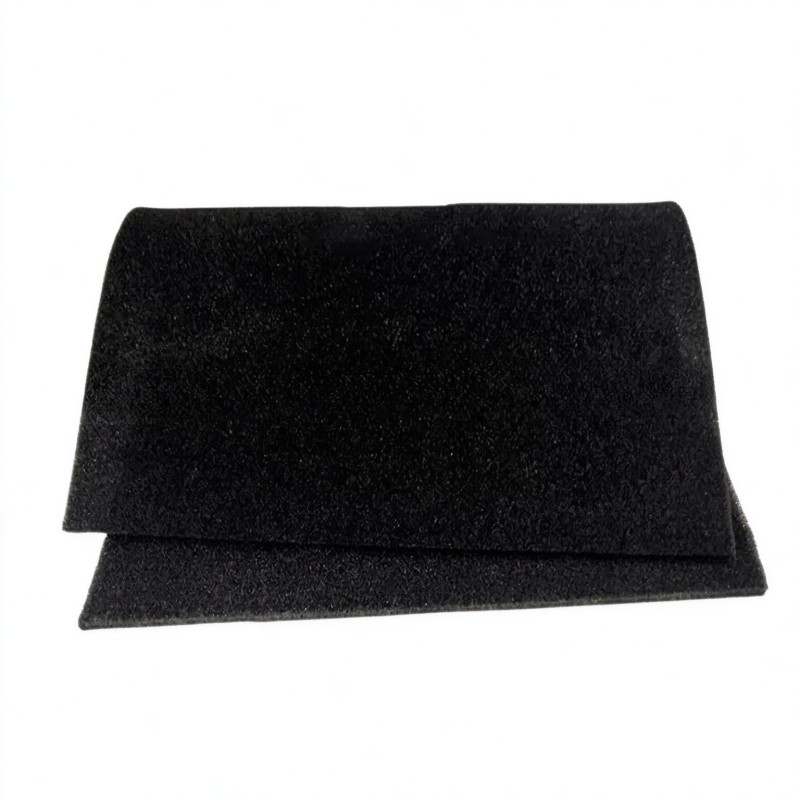

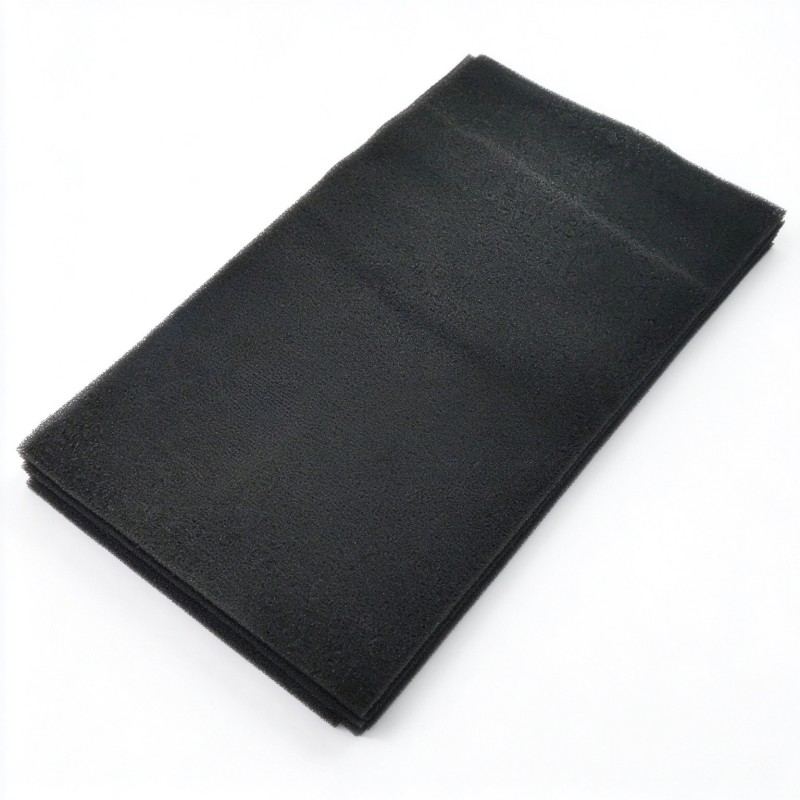

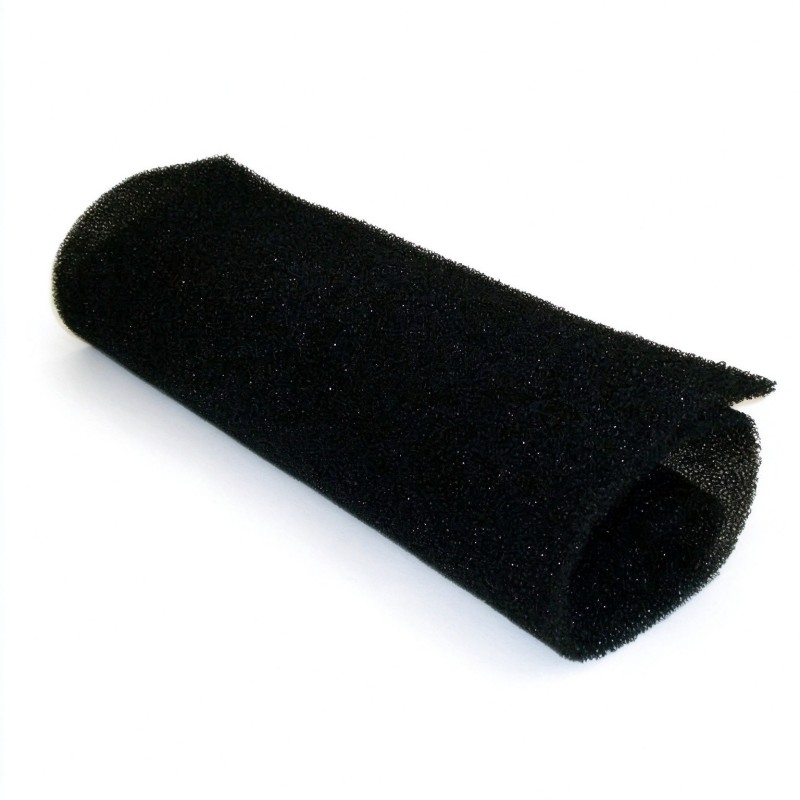

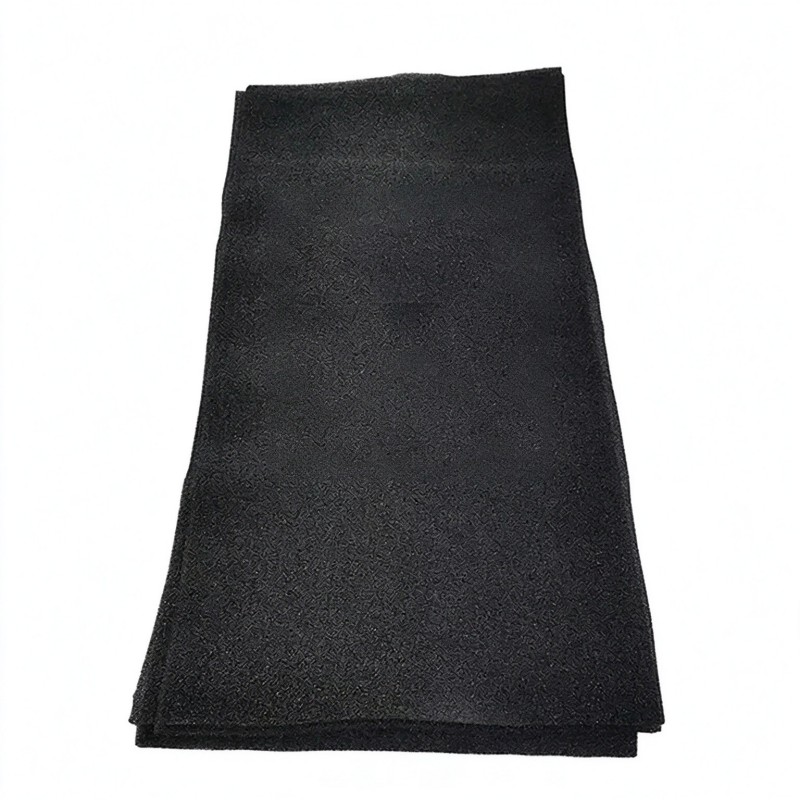

The Ingersoll Rand 47555204001 23497001 Panel Filter is a filtration component associated with industrial air compressor equipment. Panel-style filters and pre-filter pads are commonly installed in ventilation paths to capture airborne dust and debris before these contaminants reach internal equipment areas. Their condition can affect cabinet airflow, cooling performance, and the amount of particulate matter entering the compressor enclosure.
In a compressor room where airborne dust accumulates around machinery, the panel filter acts as an initial barrier against environmental contamination. Dust collected on the filter gradually increases airflow resistance. If the filter becomes heavily loaded, the reduced airflow may affect ventilation and contribute to higher operating temperatures in equipment that depends on enclosure cooling.
The 23497001 part number is also associated with a pre-filter foam pad used in compatible Ingersoll Rand compressor assemblies. Because the supplied product title identifies this item as a Panel Filter, the exact installation location and filter construction should be confirmed against the equipment’s parts configuration before replacement. A cabinet ventilation filter and a compressed-air process filter perform different functions and are not interchangeable simply because both are classified as filters.
For maintenance planning, the important considerations are the original part number, filter mounting arrangement, airflow direction where specified, and the condition of the surrounding sealing surfaces. A correctly fitted replacement helps prevent unfiltered air from bypassing the filtration media and entering the protected area.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Model | 47555204001 |
| Part Number | 23497001 |
| Product Type | Panel Filter |
| Component Category | Compressor Filtration Component |
| Primary Function | Airborne dust and particulate filtration, subject to the specified installation |
| Filter Construction | Verify the exact media and frame configuration for the installed assembly |
| Installation Type | Panel or pre-filter arrangement, depending on equipment configuration |
| Application | Compatible Ingersoll Rand compressor equipment |
| Replacement Criteria | Filter condition, airflow restriction, and equipment maintenance requirements |
| Dimensions | 510 × 510 × 10 mm |
| Weight | 0.4 kg |
Product Features
- Panel-style filtration: Provides a broad filtration surface for capturing airborne particulate matter in compatible equipment arrangements.
- Pre-filtration application: Can serve as an initial barrier where the equipment configuration uses a panel or foam pre-filter.
- Ventilation support: Helps limit dust accumulation in protected equipment areas without replacing the function of downstream filters.
- Maintenance-oriented replacement: Allows filter condition to be addressed as part of routine compressor inspection.
- Fit-dependent installation: Requires the correct mounting arrangement and sealing contact to prevent air bypass.
- Part-number identification: The associated part number helps distinguish the replacement component from other filters used in the same equipment family.
Working Principle
The panel filter works by passing air through a filtration medium that retains a portion of the suspended particles carried by the airflow. Larger particles may be captured at the surface, while finer particles can be retained within the media, depending on its construction and filtration characteristics.
A typical ventilation arrangement follows this path:
Ambient Air → Panel Filter → Protected Ventilation Area → Compressor Enclosure Components
As air passes through the filter, dust and debris accumulate in the media. The retained contamination gradually reduces the available flow paths, increasing resistance across the filter. The effect depends on the amount and type of dust, operating airflow, media properties, and the condition of the filter.
When the filter is clean, air can pass through with less resistance. As contamination builds up, airflow may decrease, particularly in ventilation systems with limited fan capacity. If the filter serves an enclosure cooling path, reduced airflow can affect heat removal from motors, electrical components, and other heat-generating equipment.
The panel filter should not be confused with an oil separator, compressed-air line filter, or compressor inlet element. Those components handle different media and contamination requirements. The exact function of the 23497001 item depends on its designated position in the relevant compressor assembly.
Role in the Compressor Filtration and Ventilation System
The panel filter forms part of the equipment’s air-management arrangement. Where installed in an enclosure ventilation path, it helps control particulate entry while allowing the airflow needed for cooling and ventilation.
Ambient Air → Panel Filter → Ventilation or Protected Equipment Area → Internal Heat-Generating Components
| System Element | Function |
|---|---|
| 23497001 Panel Filter | Captures airborne particles in the designated filtration path |
| Filter Frame or Retainer | Holds the filter in the intended mounting position |
| Sealing Surface | Limits unfiltered air bypass around the filter |
| Ventilation Fan, Where Fitted | Moves air through the enclosure ventilation path |
| Compressor Enclosure | Houses and protects internal compressor equipment |
| Motor and Electrical Components | Generate heat that may require ventilation |
| Temperature Monitoring Devices | Monitor equipment temperature where fitted |
| Downstream Filtration Components | Perform additional filtration duties where required by the equipment design |
Industrial Applications
| Application | Typical Use |
|---|---|
| Rotary Screw Compressor Enclosures | Filtering airborne particles in compatible ventilation arrangements |
| Industrial Compressor Rooms | Limiting dust entry into equipment ventilation paths |
| Manufacturing Facilities | Reducing particulate accumulation around compressor components |
| Workshops | Filtering ambient air where airborne dust is present |
| Packaging Plants | Supporting cleaner equipment ventilation in production areas |
| General Industrial Utilities | Maintaining filtration in compressor equipment used for plant services |
| Compressor Cooling Systems | Supporting airflow cleanliness where the panel is installed in the cooling-air path |
| Preventive Maintenance Programs | Replacing loaded or damaged filters during scheduled inspections |
| Dust-Prone Operating Areas | Managing particulate entry into compatible equipment enclosures |
| Compressor Refurbishment | Restoring the specified filtration arrangement during equipment servicing |
Installation and Maintenance
- Verify the part number: Confirm that 47555204001 and 23497001 match the required component in the equipment’s parts documentation.
- Identify the installation location: Determine whether the filter is used for enclosure ventilation, pre-filtration, or another designated air path before removing the existing component.
- Shut down safely: Follow the compressor manufacturer’s approved shutdown and isolation procedures before accessing internal panels or ventilation assemblies.
- Inspect the existing filter: Check for dust loading, tears, deformation, moisture, or damage to the filter frame.
- Clean the mounting area: Remove loose debris from the filter seat without allowing contamination to enter the protected equipment area.
- Check the sealing surfaces: Inspect the frame, retainer, and contact surfaces for gaps or damage that could allow unfiltered air to bypass the media.
- Confirm orientation: Follow the equipment’s specified airflow direction and installation orientation where these are marked.
- Fit the replacement correctly: Ensure the filter sits evenly in its holder and does not fold, buckle, or leave uncovered gaps.
- Inspect adjacent ventilation components: Check accessible fan guards, grilles, and air passages for accumulated dust or obstructions.
- Assess airflow condition: After reassembly, confirm that the ventilation path is unobstructed and that the equipment operates within its normal temperature range.
- Set a practical inspection interval: Adjust inspection frequency to the actual dust level, compressor operating hours, and observed filter loading rather than relying on calendar intervals alone.
- Record maintenance findings: Document the replacement part number, filter condition, inspection date, and any ventilation or contamination issues identified during service.
Compatible System Components
| Component | Function |
|---|---|
| Compatible Ingersoll Rand Compressor Assembly | Provides the equipment housing and designated filter installation location |
| Panel Filter Frame or Retainer | Supports the filter within the intended opening |
| Ventilation Grille | Protects the air opening and helps maintain the intended airflow path |
| Enclosure Ventilation Fan, Where Fitted | Moves cooling or ventilation air through the equipment |
| Compressor Cooling-Air Passage | Directs airflow through the relevant equipment area |
| Sealing Strip or Gasket, Where Specified | Helps prevent air bypass around the installed filter |
| Temperature Sensors | Monitor equipment temperature where incorporated into the system |
| Compressor Controller | Monitors operating conditions and displays supported alarms |
| Other Designated Compressor Filters | Provide separate filtration functions elsewhere in the equipment |
Recommended Related Models
| Model | Product Type | Selection Consideration |
|---|---|---|
| Ingersoll Rand 23497001 | Pre-Filter Foam Pad | Related part-number identification; verify the exact assembly and intended installation before ordering |
| Ingersoll Rand ZS1062472 | RSa 4-11 Pre-Filter Panel | A pre-filter panel for the RSa 4-11 rotary screw compressor family |
| Ingersoll Rand TEN012973 | UP6 20-30 Pre-Filter Panel | A pre-filter panel for compatible UP6 20-30 rotary screw compressors |
| Ingersoll Rand 32170979 | Inlet Filter Element | An inlet filter element for specified reciprocating compressor applications; not a direct substitute for a panel filter |
| Ingersoll Rand 23487457 | Air Filter Pad | A related compressor filtration component whose compatibility must be checked against the target equipment |
Key Advantages
- Helps capture airborne dust before it reaches the designated equipment area.
- Supports cleaner ventilation paths in compatible compressor installations.
- Helps reduce particulate accumulation on internal surfaces.
- Allows filter condition to be managed through routine inspection and replacement.
- Supports equipment maintenance when the correct filter configuration and sealing arrangement are used.
Technical FAQs
Is the 23497001 panel filter the same as a compressor inlet air filter?
Not necessarily. A panel filter or pre-filter pad may be installed in an enclosure ventilation path, while an inlet air filter treats the air entering the compressor’s compression system. Their media, filtration requirements, and mounting arrangements can differ. Confirm the intended location before selecting a replacement.
What happens if the panel filter becomes heavily loaded with dust?
Accumulated dust can increase airflow resistance and reduce the volume of air passing through the filter. If the filter is part of an enclosure cooling path, restricted airflow may contribute to elevated internal temperatures. Inspection and replacement should follow the equipment’s maintenance requirements and the filter’s actual condition.
Can the panel filter be cleaned and reused?
That depends on the specified filter media and the equipment maintenance instructions. Some filter materials may be damaged by washing, compressed air, or aggressive handling. If cleaning is not explicitly permitted for the installed filter, replacement is the safer maintenance approach.
How can the correct replacement be confirmed for an existing compressor?
Check the complete part number, compressor model, serial number, and filter installation location against the equipment’s parts documentation. This is particularly important when the same part number is described as a pre-filter pad in one listing and a panel filter in another. Similar descriptions do not guarantee identical fit or function.
