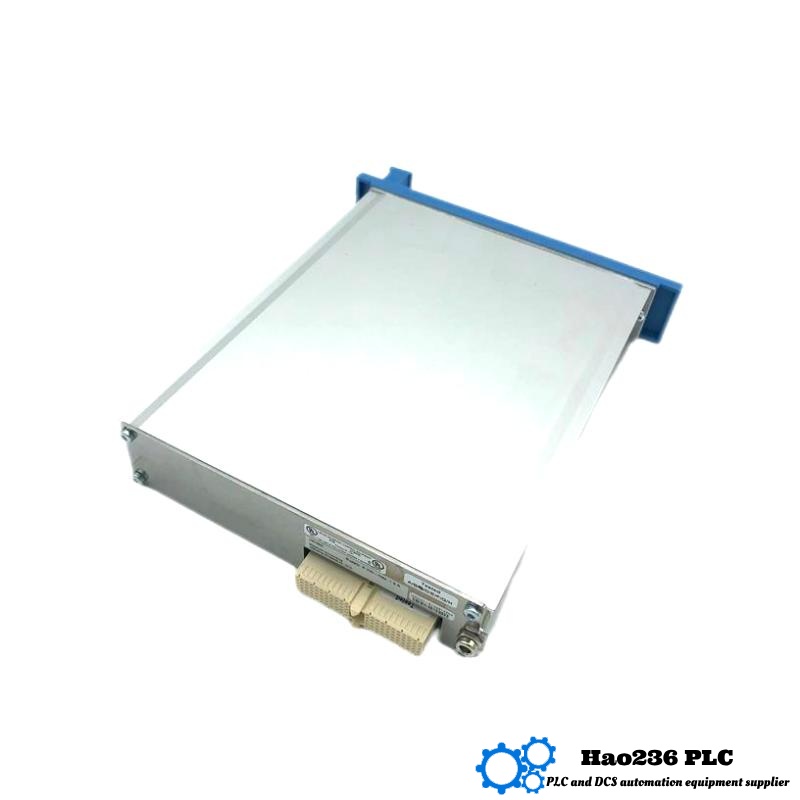

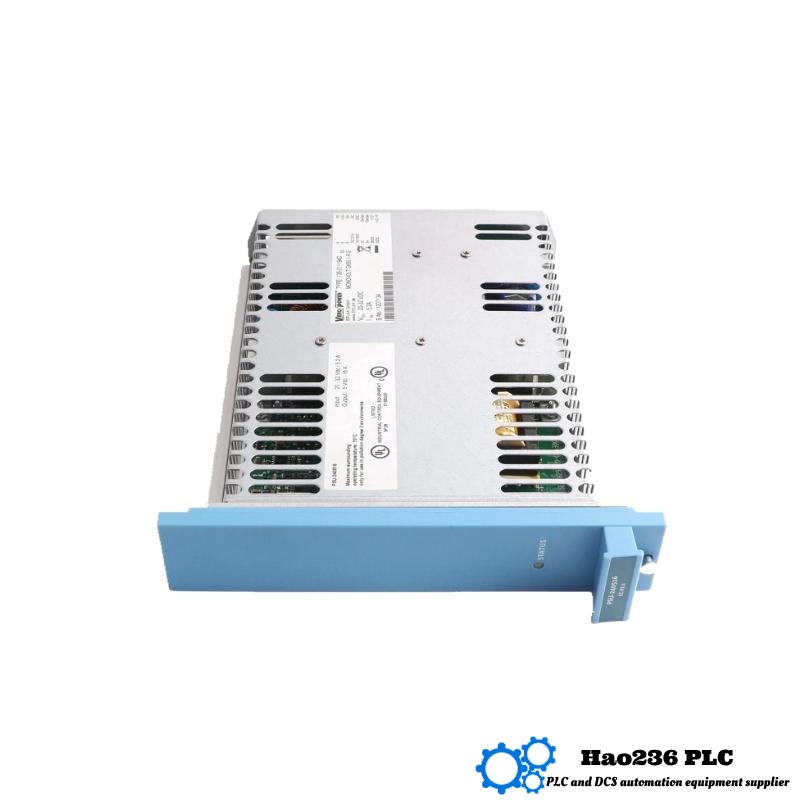

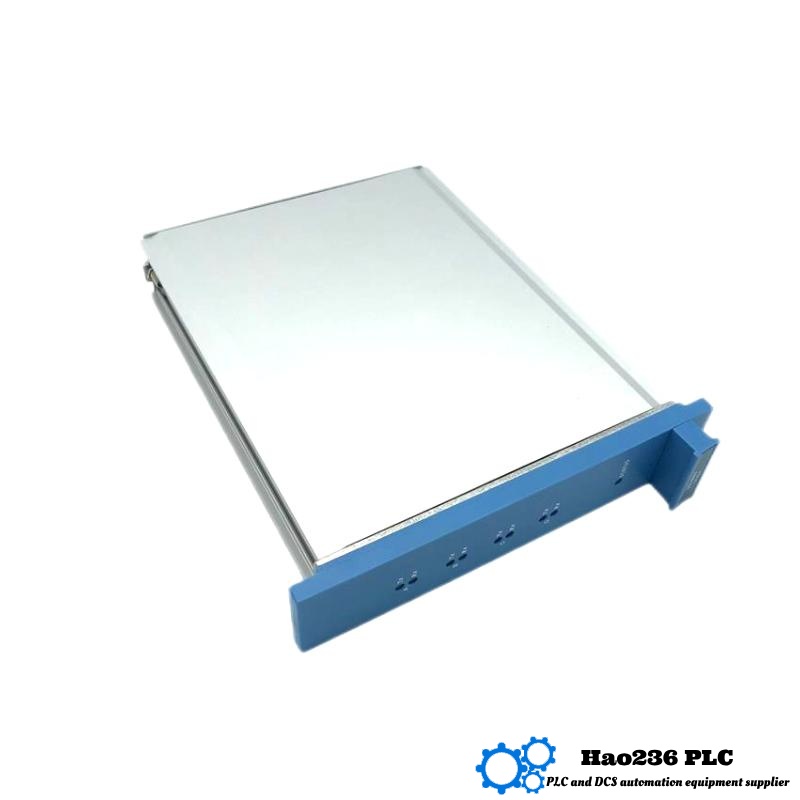

Product: Honeywell FC-USI-0002
1. Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | FC-USI-0002 |
| Product Type | Universal Signal Isolator |
| Power Supply | 24 V DC |
| Input Signal | 0-20 mA, 4-20 mA, 0-10 V, 1-5 V |
| Output Signal | 4-20 mA, 0-10 V |
| Accuracy | ±0.1% of Full Scale |
| Response Time | ≤ 250 ms |
| Operating Temperature | -40°C to +70°C |
| Dimensions (L×W×H) | 115 mm × 90 mm × 60 mm |
| Weight | 0.35 kg |
| Mounting | DIN Rail |
| Isolation Voltage | 3000 VAC |
| Certifications | IEC 61010-1, CE, UL |
2. Product Introduction
The FC-USI-0002 is an advanced Universal Signal Isolator designed to provide precise electrical isolation and signal conditioning for various industrial inputs. It is tailored to convert standard current and voltage signals with high accuracy while isolating the control system from potentially harmful electrical disturbances.
Featuring a broader input range and higher isolation voltage compared to its predecessor, the FC-USI-0002 is perfect for safeguarding sensitive control equipment and ensuring accurate data transmission in industrial automation.
3. Product Applications
-
Industrial process control
-
Instrumentation signal isolation
-
Data acquisition systems
-
Building management systems
-
Power plant monitoring
-
Chemical processing plants
-
Machine safety systems
-
Energy management systems
4. Product Advantages
-
Wide Input Range: Supports 0-20 mA, 4-20 mA, 0-10 V, and 1-5 V input signals for versatile usage.
-
High Isolation Voltage: 3000 VAC isolation protects sensitive electronics from high-voltage surges and noise.
-
Excellent Accuracy: ±0.1% full scale ensures precision measurement and control.
-
Fast Response Time: 250 ms or less allows near real-time signal processing.
-
Compact DIN Rail Mounting: Enables easy and space-saving installation in control panels.
-
Robust Operating Temperature: Operates reliably across a wide temperature range from -40°C to +70°C.
-
Certified Quality: Complies with IEC 61010-1, CE, and UL standards to guarantee safety and reliability.
5. Brand and Series Information
| Brand | Series |
|---|---|
| Honeywell | FC Universal Signal Isolators |
6. Recommended Related Models (Same Series or Similar)
| Model | Input Signal Type | Output Signal | Dimensions (mm) | Weight (kg) | Key Feature |
|---|---|---|---|---|---|
| FC-USI-0001 | Voltage, Current, TC, RTD | 4-20mA, 0-10V | 110×90×58 | 0.32 | Universal inputs with thermocouple and RTD support |
| FC-USI-0003 | Thermocouple, RTD | 4-20mA | 110×90×60 | 0.35 | Optimized for temperature sensors |
| FC-USI-0004 | Current (0-20mA) | 0-10V | 105×85×55 | 0.31 | Low power consumption |
| FC-USI-0005 | Voltage (0-10V) | 4-20mA | 115×95×60 | 0.36 | High isolation voltage |
| FC-USI-0006 | Universal Inputs | Multiple Outputs | 110×90×58 | 0.34 | Multi-channel input support |
7. Popular Models from the Same Brand
| Model | Type | Input Signal | Output Signal | Dimensions (mm) | Weight (kg) | Application Focus |
|---|---|---|---|---|---|---|
| FC-TSRO-0824 | Temperature Sensor | 0-10V, 4-20mA | Analog | 120×40×30 | 0.25 | HVAC, industrial temperature |
| FC-TUIO11 | Safety Universal I/O | 0-10V, 4-20mA | Analog/Digital | 191×188×65 | 0.40 | Safety critical control systems |
| FC-PRS-2000 | Pressure Sensor | Analog Current | Analog | 110×38×28 | 0.23 | Fluid pressure measurement |
| FC-HUM-1500 | Humidity Sensor | Resistive | 4-20mA | 100×35×25 | 0.21 | Environmental monitoring |
| FC-FLOW-3000 | Flow Sensor | Pulse Output | Pulse | 130×45×35 | 0.35 | Water and gas flow metering |
8. FAQ (QA Format)
Q1: What input signals are compatible with the FC-USI-0002?
A1: It supports 0-20 mA, 4-20 mA, 0-10 V, and 1-5 V signals, making it highly adaptable.
Q2: What is the maximum isolation voltage provided by this model?
A2: The FC-USI-0002 offers up to 3000 VAC isolation voltage for protection against electrical surges.
Q3: What accuracy can I expect from this isolator?
A3: The device provides ±0.1% full scale accuracy to ensure reliable signal processing.
Q4: How fast does this device respond to input changes?
A4: It responds in 250 milliseconds or less, suitable for real-time applications.
Q5: Can the FC-USI-0002 operate in extreme temperatures?
A5: Yes, it is rated for -40°C to +70°C, suitable for harsh environments.
Q6: What power supply voltage does this device require?
A6: It operates on a 24 V DC power supply.
Q7: How is the device installed?
A7: The isolator is designed for DIN rail mounting to ease panel integration.
Q8: Does the FC-USI-0002 meet safety certifications?
A8: Yes, it complies with IEC 61010-1, CE, and UL standards.
Q9: Is this model suitable for hazardous areas?
A9: While it offers high isolation, specific hazardous area approvals should be verified for your application.
Q10: What types of output signals can the device provide?
A10: It outputs standard 4-20 mA and 0-10 V signals compatible with most control systems.
