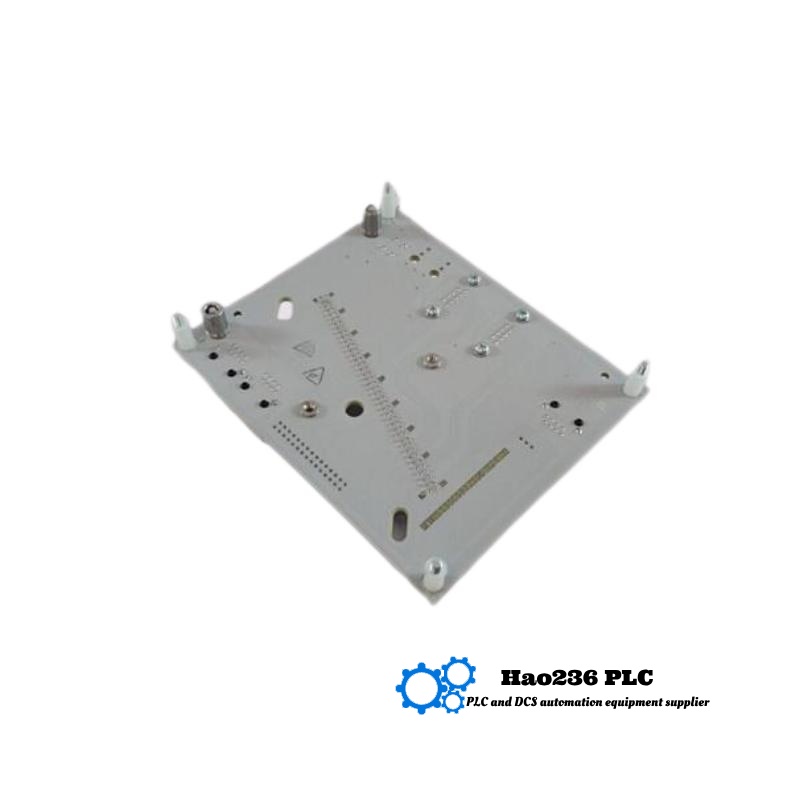

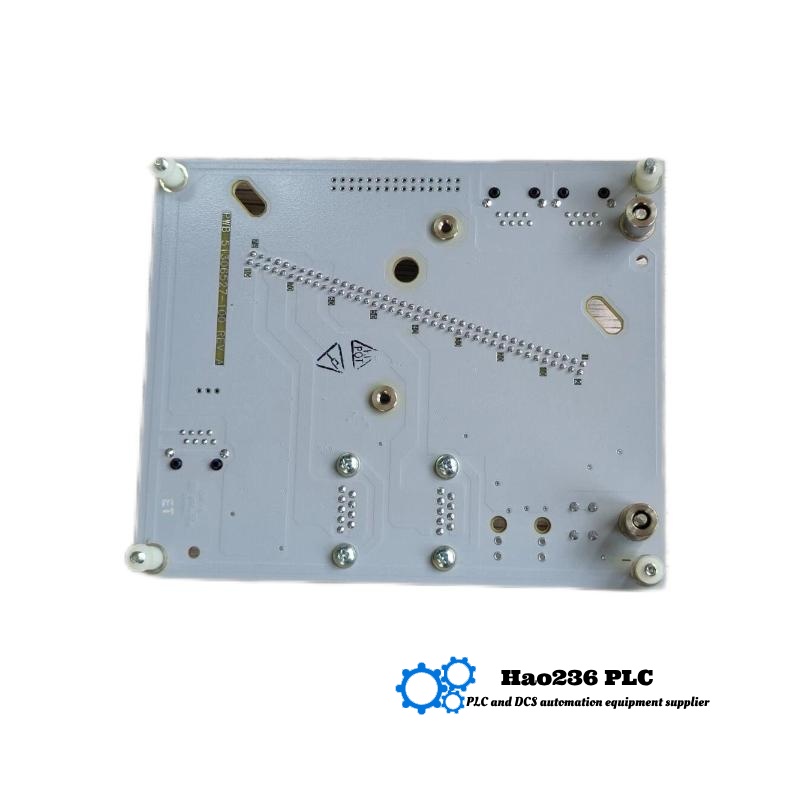

Honeywell DC-TPOX01 51307770-176 Pulse Module Backplane Module
Product Overview
The Honeywell DC-TPOX01 51307770-176 is a high-performance pulse module designed to provide digital pulse input and output functionality within Honeywell’s automation systems. It is part of Honeywell’s control system offerings, enabling precise control, signal transmission, and processing. This backplane module is ideal for industries that require real-time signal handling, such as process automation, industrial machinery, and control systems.
The module provides fast and reliable digital pulse processing, which is crucial for applications requiring high-speed data acquisition, pulse counting, frequency measurements, and signal conditioning. The DC-TPOX01 offers high isolation levels, fast response times, and a flexible design, making it a vital component in modern control systems.
Product Parameters
| Parameter | Details |
|---|---|
| Model | Honeywell DC-TPOX01 51307770-176 |
| Module Type | Pulse Module (Backplane) |
| Dimensions | 22 x 124 x 126 mm |
| Weight | 0.5 kg |
| Input/Output Type | Digital Pulse |
| Channels | 4 Channels |
| Pulse Frequency | 0-500 Hz |
| Power Supply | 24V DC ±20% |
| Response Time | < 10 ms |
| Mounting Type | Backplane Mount |
| Protection Class | IP20 |
| Operating Temperature | –10°C to +60°C |
| Power Consumption | 3 W |
| Signal Type | Digital Pulse Input/Output |
| Isolation | 1500V RMS |
Applications
The Honeywell DC-TPOX01 51307770-176 pulse module is used in various industrial and automation applications where pulse-based signal processing and high-speed data transmission are essential. Here are some key applications:
-
Motor Control: Used for monitoring the speed, position, and status of motors in industrial applications, particularly in automated systems requiring accurate pulse-based signals.
-
Process Automation: Ideal for systems that require precise control of input/output devices based on pulse signals, such as flow meters or counters in manufacturing environments.
-
Data Acquisition Systems: Essential for data collection and real-time processing in systems requiring continuous pulse measurement, such as in testing or monitoring applications.
-
Signal Conditioning: Provides precise digital pulse input/output to ensure proper signal conditioning for control systems.
-
Frequency Measurement: Used for measuring frequency in industrial control systems where timing and synchronization are critical.
Advantages
The Honeywell DC-TPOX01 pulse module comes with several key advantages that make it ideal for industrial automation:
-
High Precision: Capable of handling pulse frequencies from 0-500 Hz, ensuring accurate measurements and control.
-
Fast Response Time: With a response time of less than 10 ms, this module can handle high-speed applications with minimal delay.
-
Compact Design: The module’s small size (22 x 124 x 126 mm) and lightweight design (0.5 kg) make it easy to integrate into existing control systems, especially where space is limited.
-
Reliable Performance: With a 1500V RMS isolation and IP20 protection class, the module is built for robustness in harsh industrial environments.
-
Energy Efficient: Consumes just 3W of power, contributing to lower energy usage in long-term operations.
-
Temperature Flexibility: The module can operate in temperatures ranging from –10°C to +60°C, offering versatility in different industrial settings.
-
Seamless Integration: Designed to integrate seamlessly into Honeywell’s broader automation systems, allowing for easy scalability and maintenance.
-
Low Maintenance: Designed for longevity, minimizing downtime and reducing maintenance costs.
Recommended Models (Same Series / Related)
| Model | Channels | Pulse Frequency | Power Supply | Isolation | Dimensions | Weight |
|---|---|---|---|---|---|---|
| Honeywell DC-TPOX02 | 4 | 0-500 Hz | 24V DC ±20% | 1500V RMS | 22 x 124 x 126 mm | 0.5 kg |
| Honeywell DC-TPOX03 | 8 | 0-500 Hz | 24V DC ±20% | 1500V RMS | 22 x 124 x 126 mm | 0.5 kg |
| Honeywell DC-TPOX04 | 4 | 0-500 Hz | 24V DC ±20% | 1500V RMS | 22 x 124 x 126 mm | 0.5 kg |
| Honeywell DC-TPOX05 | 8 | 0-500 Hz | 24V DC ±20% | 1500V RMS | 22 x 124 x 126 mm | 0.5 kg |
| Honeywell DC-TPOX06 | 4 | 0-500 Hz | 24V DC ±20% | 1500V RMS | 22 x 124 x 126 mm | 0.5 kg |
Popular Honeywell Models
| Model | Channels | Pulse Frequency | Power Supply | Isolation | Dimensions | Weight |
|---|---|---|---|---|---|---|
| Honeywell DC-TAOX11 | 4 | 0-500 Hz | 24V DC ±20% | 1500V RMS | 156 x 66 x 30 mm | 0.5 kg |
| Honeywell DC-TAOX02 | 4 | 0-500 Hz | 24V DC ±20% | 1500V RMS | 120 x 80 x 40 mm | 0.4 kg |
| Honeywell DC-TPOX01 | 4 | 0-500 Hz | 24V DC ±20% | 1500V RMS | 63.5 x 124 x 126 mm | 0.5 kg |
| Honeywell DC-TPOX07 | 8 | 0-500 Hz | 24V DC ±20% | 1500V RMS | 120 x 80 x 40 mm | 0.6 kg |
| Honeywell DC-TPOX08 | 4 | 0-500 Hz | 24V DC ±20% | 1500V RMS | 85 x 100 x 60 mm | 0.4 kg |
FAQ
Q1: What is the primary function of the Honeywell DC-TPOX01?
A1: The Honeywell DC-TPOX01 is a pulse module designed for processing digital pulse input and output within Honeywell’s automation systems. It enables precise signal handling in applications like motor control, process automation, and data acquisition.
Q2: How many channels does the Honeywell DC-TPOX01 support?
A2: The DC-TPOX01 supports 4 channels for digital pulse input and output.
Q3: What is the maximum pulse frequency supported by this module?
A3: The DC-TPOX01 supports pulse frequencies up to 500 Hz.
Q4: What is the input power requirement for this module?
A4: The module requires a 24V DC ±20% power supply.
Q5: What type of protection does this module have?
A5: The DC-TPOX01 has 1500V RMS isolation, providing excellent protection against electrical surges and interference.
Q6: Can this module be used in high-temperature environments?
A6: Yes, the module operates within a temperature range of –10°C to +60°C.
Q7: What is the mounting type for this module?
A7: The module is designed for backplane mounting.
Q8: How much power does the DC-TPOX01 consume?
A8: The module consumes 3W of power.
Q9: What is the module’s protection class?
A9: The DC-TPOX01 has an IP20 protection class, making it suitable for industrial environments where dust and moisture are not a significant concern.
Q10: Is this module easy to integrate into Honeywell control systems?
A10: Yes, it is designed to seamlessly integrate into Honeywell’s automation systems, allowing for easy scalability and compatibility with other Honeywell products.
