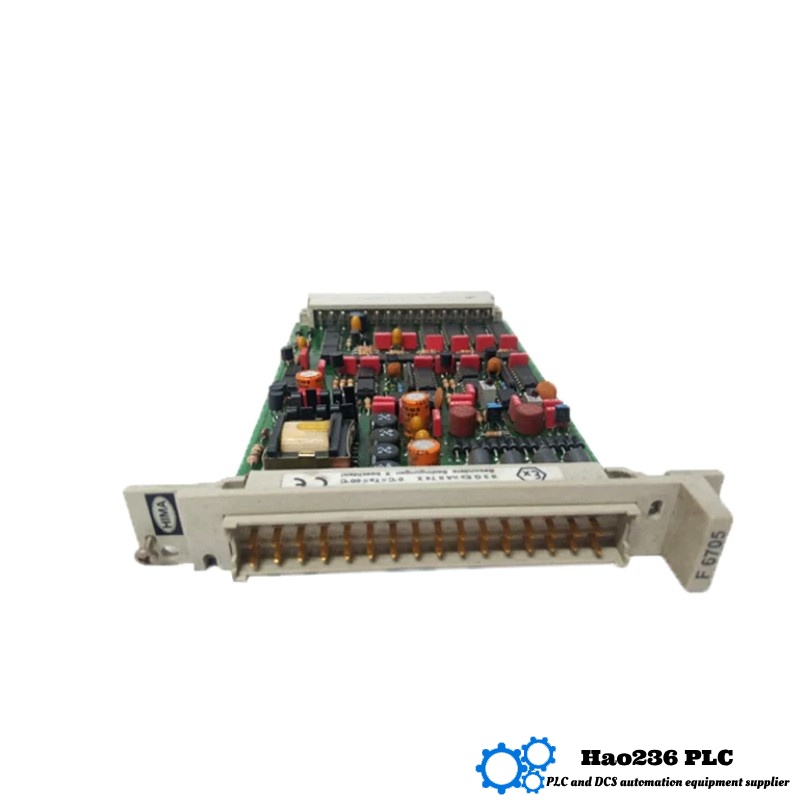

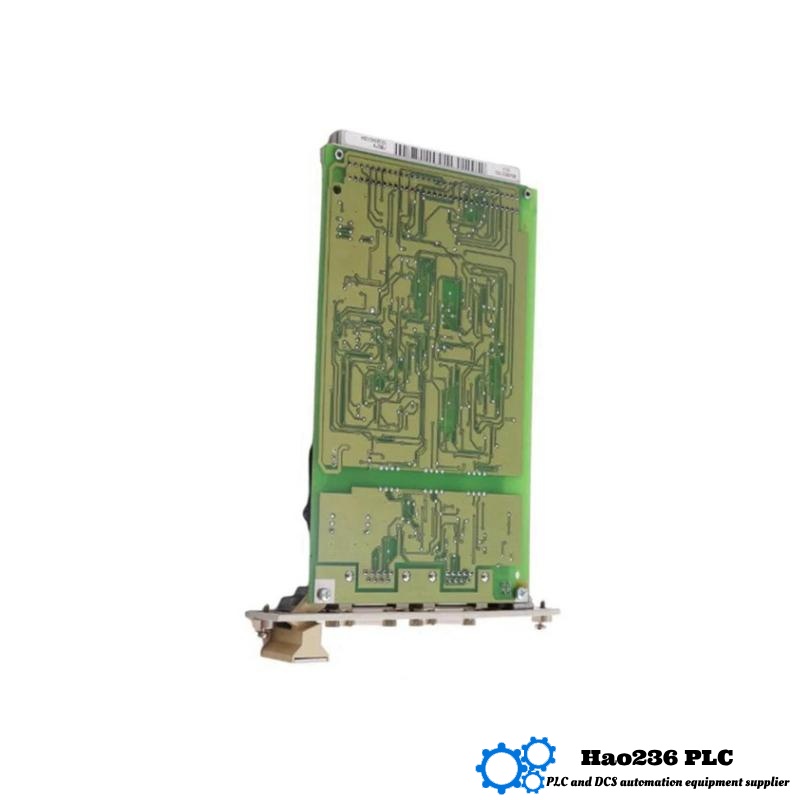

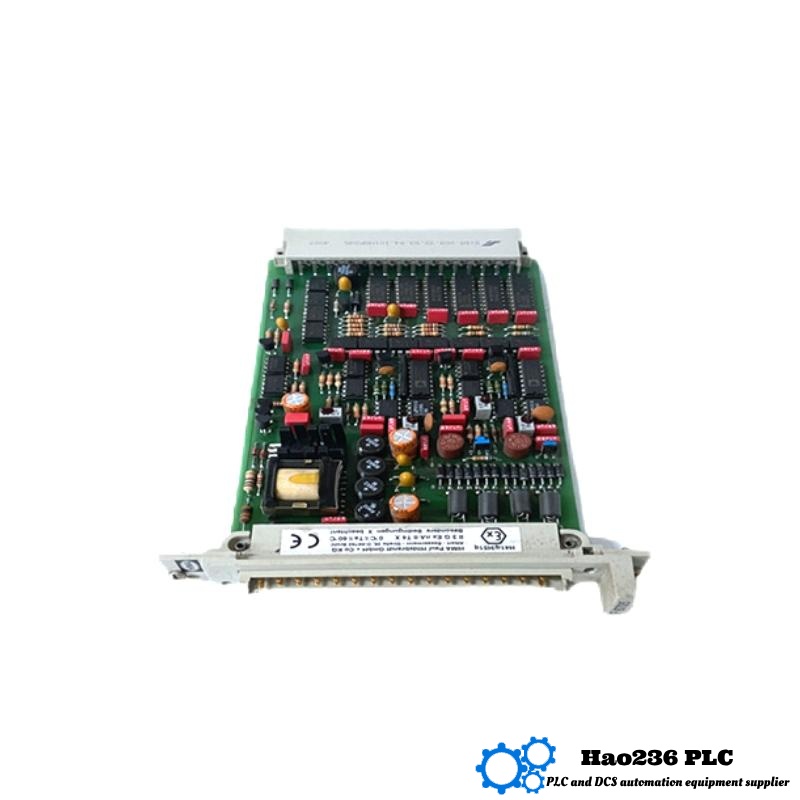

HIMA F6705 Analog Output Module
Product Introduction
The HIMA F6705 is a robust and reliable analog output module designed for use in safety-critical and mission-critical applications. Part of HIMA’s high-performance series, this module ensures precise and dependable output of analog signals, integral for industrial automation systems that require accuracy, reliability, and flexibility.
The F6705 module is widely used in process control systems, chemical plants, and power generation systems where high-performance analog signal control is crucial. It is engineered to provide 2 analog voltage or current output channels, supporting a wide range of field devices, including actuators, variable frequency drives, and control valves.
With a focus on maintaining high standards of safety and precision, the F6705 module is certified to meet the highest levels of functional safety (SIL 3) as per IEC 61508 and IEC 61511.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | F6705 |
| Type | Analog Output Module |
| Series | F6700 series |
| Output Channels | 2 Analog Voltage or Current Output Channels |
| Output Type | Voltage: 0-10V / Current: 4-20 mA |
| Resolution | 16 bits |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel isolation |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 160 x 100 x 30 mm |
| Weight | 0.25 kg |
| Mounting | DIN rail, suitable for compact installations |
| Communication | PROFIBUS DP, Modbus RTU, HART |
| Power Supply | 24 VDC ±20% |
| Compliance | SIL 3, IEC 61508, IEC 61511 |
| Enclosure | IP20 (Protection against dust and solid objects) |
| Calibration | Factory calibrated, field-calibration available |
| Certifications | CE, UL, TÜV |
Product Applications
-
Process Control Systems
Provides accurate analog control of field devices like pumps, actuators, and valves in chemical, petrochemical, and pharmaceutical plants. -
Power Generation
Used in turbine controls, regulators, and motor controllers, where precise output signals are essential for safe operations. -
Safety Instrumented Systems
Meets the requirements of SIL 3 safety applications, such as emergency shutdown systems, fire and gas detection systems, and more. -
Industrial Automation
Integrates into factory automation systems, where it interfaces with PLCs, DCSs, and SCADA systems to control various types of machinery. -
Energy Distribution
Essential for controlling power regulation devices in substations and electrical grid systems.
Product Advantages
-
High Accuracy and Reliability
With 16-bit resolution and an accuracy of ±0.1% of full scale, the F6705 offers precise analog output, ensuring reliable operation in industrial applications. -
Functional Safety Certification (SIL 3)
The module meets SIL 3 safety standards, ensuring it operates in safety-critical applications with high levels of risk mitigation. -
Dual Output Channels
Capable of providing 2 independent output channels, reducing the need for multiple modules and simplifying system architecture. -
Flexible Integration
Supports a wide range of communication protocols such as PROFIBUS DP, Modbus RTU, and HART, making it easy to integrate into various automation systems. -
Compact and Robust Design
The module’s DIN rail mountable design, coupled with an IP20 enclosure, ensures durability and easy installation in compact control cabinets. -
Scalable and Versatile
Ideal for both small-scale operations and large-scale industrial processes, thanks to its scalability and compatibility with a variety of field devices.
Brand Information
HIMA is a global leader in functional safety and automation solutions, recognized for providing high-quality systems designed to ensure the safety and reliability of industrial processes. The F6705 module belongs to HIMA’s F6700 series, which is known for its cutting-edge technology and stringent adherence to safety standards.
Related Models in the F6700 Series
| Model | Description | Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| F6702 | Analog Input Module for continuous process control | 4 Analog Inputs | 160 x 100 x 30 | 0.25 |
| F6703 | Digital Input/Output Module for discrete control | 16 I/O Channels | 160 x 100 x 30 | 0.25 |
| F6704 | Analog Output Module with 4 channels | 4 Output Channels | 160 x 100 x 30 | 0.28 |
| F6706 | Universal I/O Module for various process signals | 8 I/O Channels | 160 x 100 x 30 | 0.26 |
| F6707 | Temperature and Pressure Sensor Module | 2 Channels | 160 x 100 x 30 | 0.27 |
Popular HIMA Models
| Model | Description | Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| F7131 | Safety PLC for critical processes | 32 I/O Channels | 220 x 180 x 75 | 1.5 |
| F7132 | Modular Safety PLC for industrial applications | 64 I/O Channels | 220 x 180 x 75 | 1.6 |
| F7221 | Analog I/O Module for safety applications | 8 Channels | 160 x 100 x 30 | 0.25 |
| F7401 | Smart Safety System Controller | 32 Channels | 200 x 150 x 70 | 1.8 |
| F7300 | Safety Controller for high-risk processes | 48 I/O Channels | 250 x 200 x 80 | 2.0 |
FAQs
Q1: What is the output type of the F6705 module?
A1: The module provides both analog voltage (0-10V) and current output (4-20mA) for flexibility in controlling field devices.
Q2: How many output channels are available?
A2: The F6705 has 2 independent output channels.
Q3: What safety certifications does the F6705 have?
A3: It is certified for SIL 3 functionality as per IEC 61508 and IEC 61511.
Q4: Can it be used in safety-critical systems?
A4: Yes, it is designed for use in safety instrumented systems (SIS) and complies with safety standards.
Q5: What is the resolution of the output signal?
A5: The module offers a 16-bit resolution, ensuring high precision.
Q6: What are the power requirements for this module?
A6: It operates on a 24 VDC power supply.
Q7: What is the operating temperature range of the F6705?
A7: The module can operate in temperatures from -20°C to +60°C.
Q8: What protocols does it support for communication?
A8: It supports PROFIBUS DP, Modbus RTU, and HART communication protocols.
Q9: Can the module be mounted easily?
A9: Yes, the F6705 is designed for easy DIN rail mounting, making installation simple and secure.
Q10: How durable is the F6705 in industrial environments?
A10: With an IP20 protection class, the module is well-suited for use in industrial control cabinets, offering durability and reliability.
