🔧 Product Overview
Product Name: HIMA F7130A
Brand: HIMA
Series: Power Supply & Distribution Modules
The HIMA F7130A is a compact, industrial-grade DC-DC power supply module used in safety-critical automation systems. It converts a 24 V DC supply into isolated 5 V DC outputs to reliably power both the central processing components and the system bus (HIBUS) within a safety controller architecture. Its protective design includes short-circuit proof outputs, current limitation, and overvoltage protection, making it ideal for systems where uninterrupted, secure power is essential.

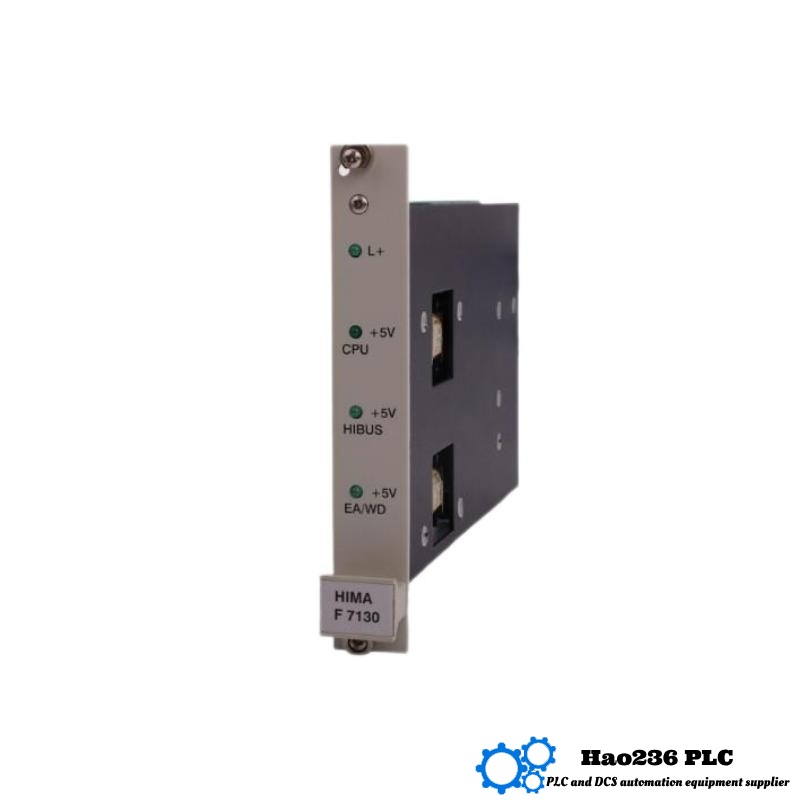

With front-facing LED indicators and robust internal diagnostics, the F7130A offers clear status feedback, allowing for easier maintenance and higher system reliability. It fits into standard modular racks and supports hot-swappable maintenance with minimal downtime.
📐 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | F7130A |
| Function | DC-DC power supply for CPU and HIBUS |
| Input Voltage | 24 V DC (typical industrial input) |
| Output Voltage – CPU Rail | 5 V DC ±5%, up to 10 A |
| Output Voltage – HIBUS | 5 V DC ±5%, up to 1 A |
| Output Isolation | Galvanically isolated from input |
| Efficiency | Approximately 70% |
| Protection Features | Short-circuit proof, overvoltage, current limit |
| Status Indicators | LED for input voltage, output CPU, HIBUS |
| Mounting Width | 4 TE |
| Dimensions (L × W × H) | 127 × 25 × 203 mm |
| Weight | 0.30 kg |
| Operating Temperature | −25 °C to +60 °C |
| Storage Temperature | −40 °C to +85 °C |
| Relative Humidity | 5% – 95% (non-condensing) |
🏭 Applications
-
Safety Controllers: Powers logic CPUs and internal buses in safety PLC systems.
-
Process Automation: Supplies reliable, isolated low-voltage power for critical operations in oil & gas, chemicals, and manufacturing.
-
Modular Rack Systems: Integrates with HIMA’s modular rack architecture for distributed safety systems.
-
Redundant Power Architectures: Used in redundant supply designs to ensure fail-safe power continuity.
-
Control Cabinets: Ideal for tight spaces due to compact size and low weight.
✅ Key Advantages
-
Dual Output Rails: Separately powers CPU logic and HIBUS communication rail for improved signal integrity.
-
Fail-Safe Design: Fully protected outputs guard against faults without risk to downstream components.
-
Visual Diagnostics: LED indicators provide quick insight into power status and module health.
-
Slim Profile: Occupies just 4 TE in rack, maximizing cabinet efficiency.
-
Low Maintenance: Durable construction, wide temperature range, and hot-swap capability reduce system downtime.
-
Certified Reliability: Designed for use in high-reliability, safety-certified environments (SIL-rated systems).
🔁 Related Models (Same Series or Function)
| Model | Description |
|---|---|
| F7130A | DC-DC converter module; 24 V to dual 5 V outputs (CPU & HIBUS) |
| F7131 | Power distribution module with multiple output protection |
| F7133 | Output monitoring module with fusing and LED indicators |
| F7126 | DC-DC converter for logic module power |
| F7553 | Interface coupling module between CPU and I/O racks |
🔝 Popular Modules from Same Brand
| Model | Description |
|---|---|
| F8627 | Safety controller CPU module for high-integrity systems |
| F8650X | Redundant high-performance safety CPU |
| F3237 | Digital input module for field signal monitoring |
| F6217 | Analog input module for precise signal acquisition |
| F3349 | Combined digital input/output module |
❓ Frequently Asked Questions (FAQ)
Q1: What is the purpose of the HIMA F7130A?
A1: It converts 24 V DC input into two isolated 5 V outputs—one for the CPU modules and one for the internal system bus (HIBUS).
Q2: Can the F7130A operate in harsh environments?
A2: Yes, it is designed for industrial use, with operating temperatures from −25 °C to +60 °C and wide humidity tolerance.
Q3: How much current can it provide?
A3: Up to 10 A for CPU power and up to 1 A for HIBUS rail.
Q4: Is the module hot-swappable?
A4: Yes, it can be replaced in a powered rack under proper maintenance conditions.
Q5: Does it include protection mechanisms?
A5: Yes, it features current limiting, overvoltage protection, and short-circuit protection.
Q6: What do the LED indicators show?
A6: They provide visual feedback on input voltage presence and the health of each 5 V output rail.
Q7: What type of isolation does it provide?
A7: The outputs are galvanically isolated from the input to ensure electrical safety and signal integrity.
Q8: What is the module’s footprint in a rack?
A8: It occupies 4 TE (horizontal rack units).
Q9: Can it support redundant system configurations?
A9: Yes, it is commonly used in redundant power configurations for safety systems.
Q10: What makes F7130A suitable for safety applications?
A10: Its fail-safe design, protective features, and dual-output isolation make it ideal for SIL-compliant safety systems.
