1. Product Introduction, Brand & Series
Brand: HIMA
Series: Power Distribution / Power Supply Monitoring Modules

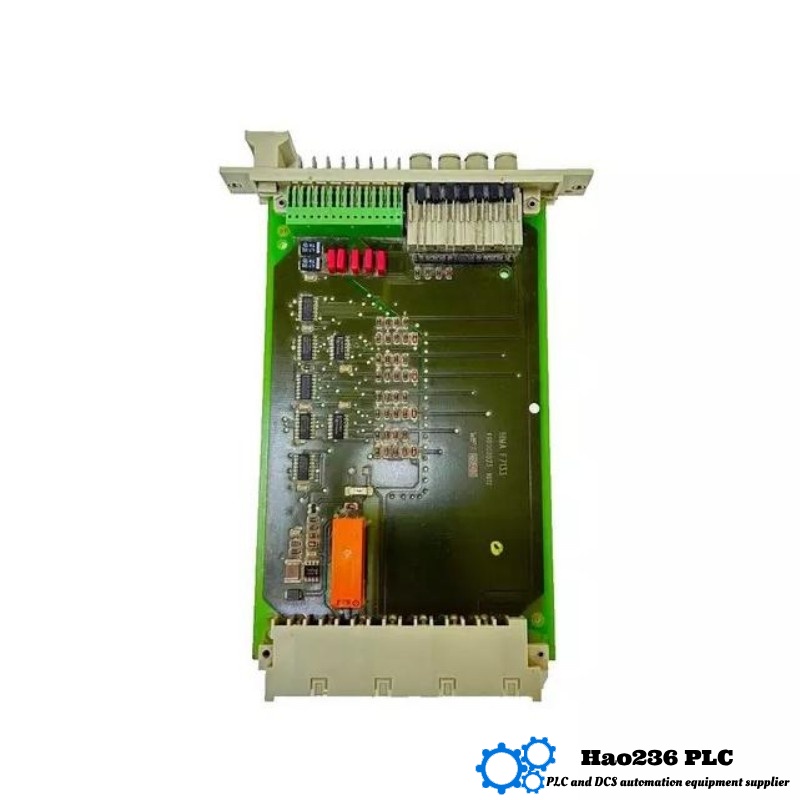

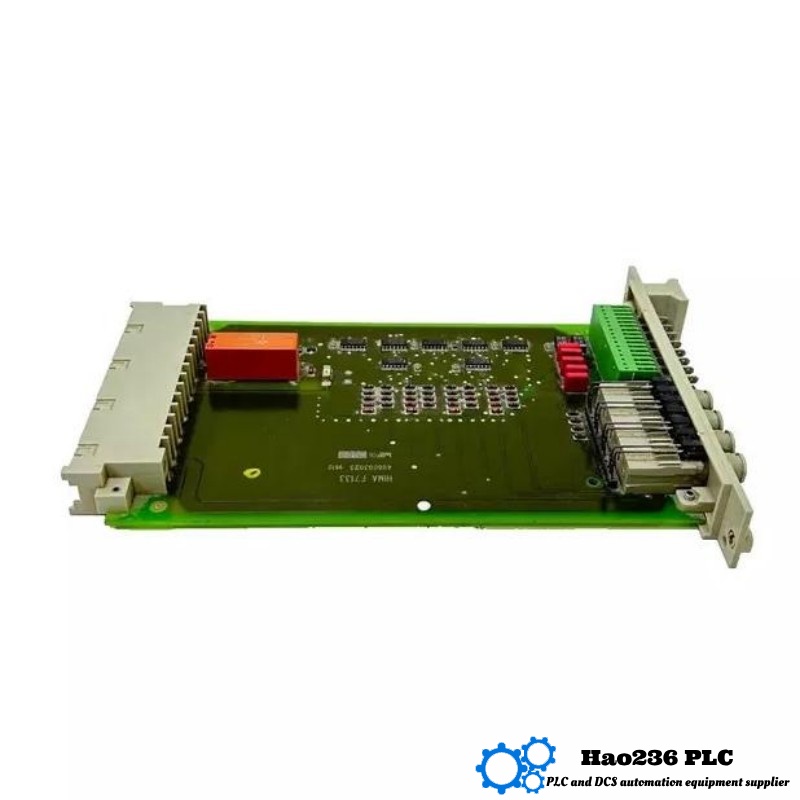

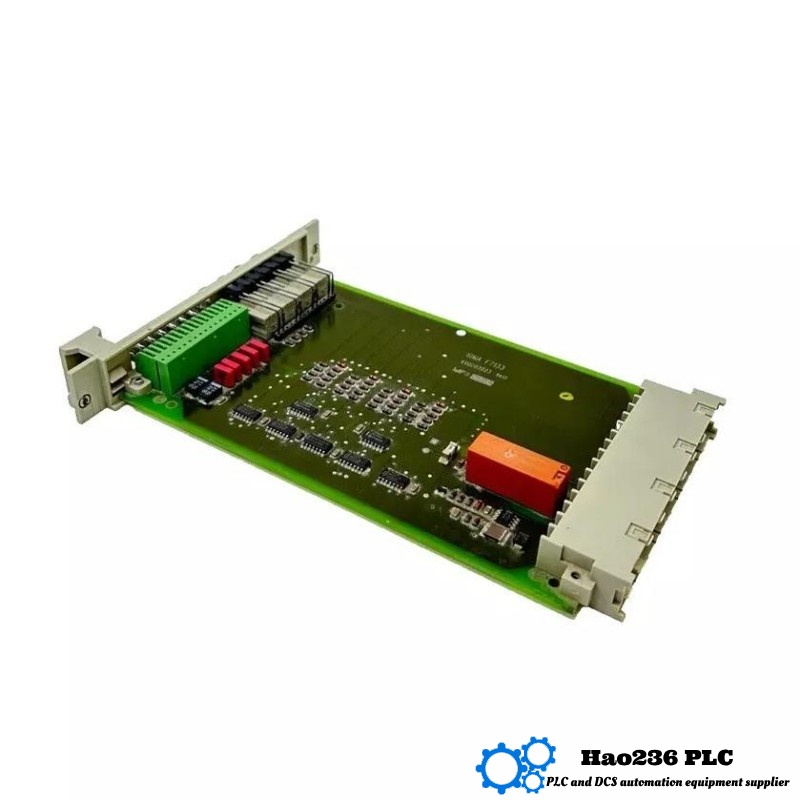

The HIMA F7133 is a 4‑channel power distribution module intended for safety‑critical industrial automation contexts. It distributes 24 V DC (or 48 V DC in some variants) power to four independent output channels, each protected by individual fuses and monitored via LED indicators. It provides real‑time fuse status (normal, fault, missing), residual voltage detection, short‑circuit protection, and is designed to integrate into safety PLC / safety instrumentation racks with redundant or non‑redundant power arrangements. Its compact, lightweight form allows installation in space‑constrained control panels while maintaining safety and reliability under harsh environmental conditions.
2. Technical Specifications
Here are the known / typical parameters for HIMA F7133:
| Parameter | Specification |
|---|---|
| Model | F7133 |
| Function | 4‑channel power distribution with fuse protection & monitoring |
| Input Voltage | 24 V DC (±15%) ([turn0search0][turn0search2]) |
| Number of Output Channels | 4 independent output channels ([turn0search0][turn0search2]) |
| Fuse Rating per Channel | 4 A slow‑blow fuses, replaceable, miniature (5×20 mm) ([turn0search0][turn0search2]) |
| Module Current Consumption (no load) | ~ 60 mA at 24 V DC ([turn0search0][turn0search2]) |
| Residual Voltage if Fuse Tripped | 0 V ([turn0search0][turn0search2]) |
| Residual Current if Fuse Tripped | 0 mA |
| Residual Voltage if Supply Missing | ≤ 3 V ([turn0search0][turn0search2]) |
| Residual Current if Supply Missing | < 1 mA |
| Space Requirement | 4 TE (rack / slot width units) ([turn0search2]) |
| Dimensions (L × W × H) | ≈ 125 mm × 25 mm × 203 mm (given as 2.5 cm × 12.7 cm × 20.3 cm ≈ 25 mm × 127 mm × 203 mm) ([turn0search2][turn0search0]) |
| Weight | ≈ 0.25 kg ([turn0search0][turn0search2]) |
| Operating Temperature | ‑25 °C to +60 °C ([turn0search0][turn0search2]) |
| Humidity | 5 % – 95 % relative, non‑condensing ([turn0search0]) |
| Certifications / Compliance | CE, RoHS; designed for safety‑critical systems; often used with redundant I/O bus systems in HIMA PLC architectures ([turn0search0][turn0search2]) |
3. Applications
Typical uses / application domains for HIMA F7133 include:
-
Safety PLC racks / safety instrumentation systems where multiple downstream modules or sensors require protected power.
-
Distributed power systems in control panels for industrial plants: chemical, petrochemical, manufacturing, refining.
-
Emergency shutdown systems, safety interlocks, where status of power supplies needs monitoring.
-
Environments with constrained space but requiring reliable safety‑rated power distribution.
-
Systems with redundancy: the module supports redundant I/O bus architectures or multiple power supplies.
-
Harsh conditions: elevated humidity, temperature swings, need for fuse‑based channel protection to avoid propagation of faults.
4. Advantages / Key Features
Here are the key advantages of F7133:
-
Real‑time fuse monitoring: LEDs show fuse status (normal / fault / missing) for each channel, enabling quick diagnosis and reducing downtime.
-
Channel isolation: each channel has its own fuse so a fault in one channel does not necessarily affect others.
-
Residual voltage/current detection: ensures that when a channel or supply fails, residual voltage or current is minimized, enhancing safety.
-
Compact & lightweight: approx. 0.25 kg, 4 TE width; saves panel space and eases installation.
-
Compatibility: works with HIMA’s PLCs (H51X, H51Q, etc.), supports redundant I/O bus systems.
-
Built for safety environments: operates in ‑25 °C to +60 °C, wide humidity range.
-
Replaceable fuses: allows maintenance without module replacement; minimal service cost.
-
Good protection against short‑circuits / overcurrent, and safe shutdown behaviour for failed channels.
5. Related Models & Popular Models from Same Brand
Here are tables recommending similar models (same series or similar functionality) and other popular modules from HIMA.
5.1 Similar / Related Models (Power Distribution / Monitoring)
| Model | Key Specifications / Role |
|---|---|
| F7126 | Power supply module / DC‑DC converter; supplies regulated power (e.g. 5 V or logic voltage) to downstream modules. |
| F7130A | Power distribution / monitoring module with multiple rails, possibly with buffer or battery backup. |
| F7131 | Power supply monitoring and distribution module; monitors CPU/logic rails and interface rails. |
| F3349 | Digital I/O heavy module; multiple input/output channels; more focused on driving loads and signal switching. |
| F6217 | Analog input module; used for measuring analog signals (4‑20 mA etc.), complements distribution modules like F7133. |
5.2 Popular HIMA Modules (Different Roles)
| Model | Function / Key Specifications |
|---|---|
| F8627 | Central CPU / controller module; processes safety logic, coordinates I/O; high reliability. |
| F8650X | High‑capacity or redundant safety controller; often used in larger plants. |
| F3237 | Digital input module; many input channels; used in safety interlock / status sensing. |
| F6217 | Analog input module; measures process variables for safety. |
| F3349 | As above: digital I/O module; driving outputs + inputs, heavier load capacity. |
6. FAQ (10 Questions & Answers)
Here are ten likely questions (Q) with answers (A) about HIMA F7133.
Q1: What is the maximum fuse rating per channel on F7133?
A1: Each channel is protected by a 4 A slow‑blow fuse.
Q2: How many output channels does it provide?
A2: It has 4 independent output channels, each of which is fuse‑protected.
Q3: What is the input voltage required?
A3: The module is designed for 24 V DC supply (with ±15 % tolerance).
Q4: What is the no‑load current consumption of the module?
A4: About 60 mA when the module has its supply but no external load.
Q5: What is the weight and physical size?
A5: Approximately 0.25 kg, with dimensions around 125 mm × 25 mm × 203 mm (or in metric ≈ 12.7 cm × 20.3 cm × 2.5 cm thick for width).
Q6: What happens if a fuse blows or is missing?
A6: The LED for that channel will indicate fault / missing fuse; the residual voltage for that channel is 0 V; residual current is 0 mA. Other channels remain operational.
Q7: Is there residual output if the main supply is missing?
A7: Yes, in that case the module may show up to ≈ 3 V residual voltage and < 1 mA residual current.
Q8: What environmental conditions (temperature / humidity) can it handle?
A8: Designed for −25 °C to +60 °C operation, and 5 % to 95 % relative humidity, non‑condensing.
Q9: Is F7133 compatible with redundant I/O bus systems or safety PLCs?
A9: Yes. It supports HIMA PLC architectures (such as H51X, H51Q) and is compatible with redundant I/O bus setups.
Q10: What kind of diagnostic or status feedback does it provide?
A10: It has LED indicators per channel for fuse status (normal / fault / missing); no‑load or blown‑fuse situations lead to visible indication; the module monitors residual voltage/current and provides channel status via the LEDs.
