Product Technical Documentation – ABB CP440C-ETH (1SBP260187R1001)
1) Brand and Series Overview
Brand: ABB
Series: CP4xx Operator Interface Terminal Series
The CP4xx series is a range of industrial operator interface terminals designed for machine operation, process monitoring, alarm management, and parameter entry. These devices provide a cost-effective human-machine interaction layer between operators and programmable logic controllers (PLCs) or other automation systems. The series emphasizes industrial durability, clear visualization, and reliable integrated communication.
The CP440C-ETH is a high-function operator interface terminal in this series, featuring enhanced communication capabilities including Ethernet support, a color display, and ergonomic interaction features suitable for mid-to-large scale automation projects.
2) Product Overview

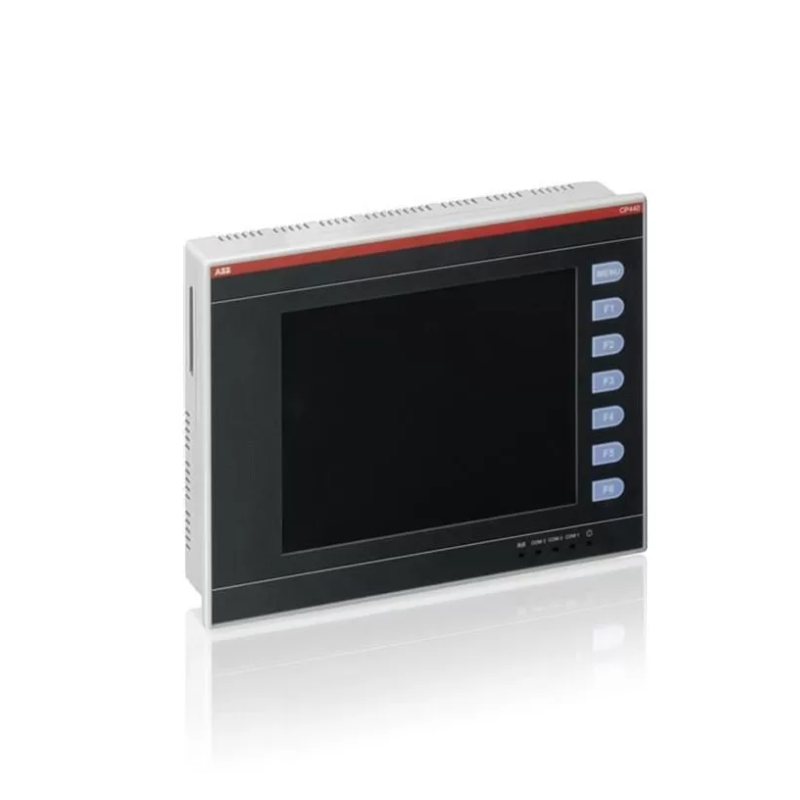

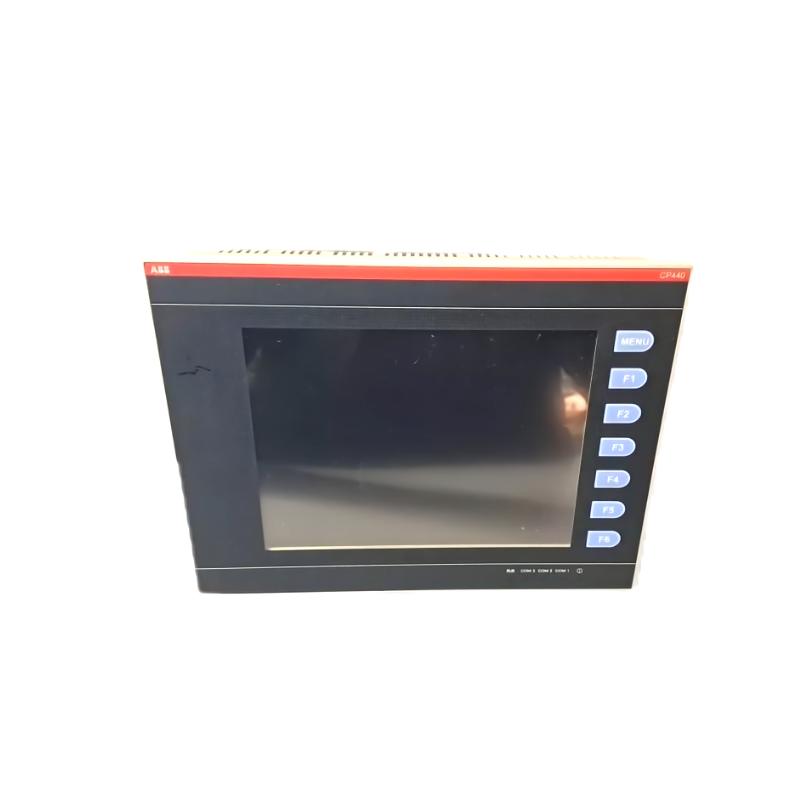

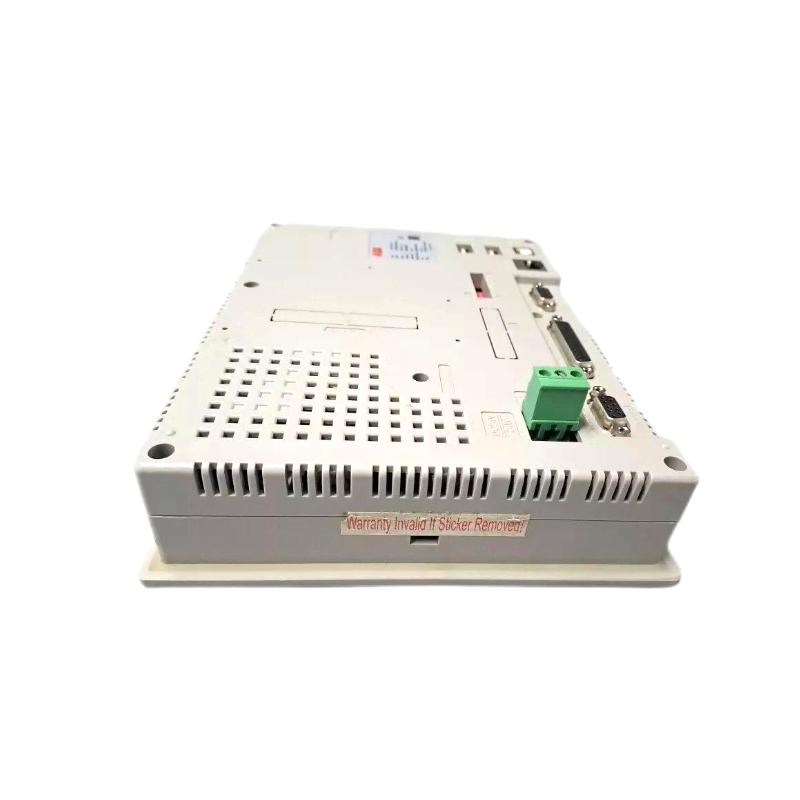

The ABB CP440C-ETH (1SBP260187R1001) is an advanced operator interface terminal featuring a color graphical display, extended keypad with navigation controls, and built-in Ethernet communication. It is designed for integration into industrial control panels, machine operator stations, and production monitoring consoles.
This model supports communication over industrial Ethernet networks, enabling high-speed data exchange with controllers and PLCs. Its color display provides vivid, structured visualization of process variables, alarms, and diagnostics, enhancing operator situational awareness and reducing operator response time to events.
The CP440C-ETH is suited for applications that require clear visualization, frequent parameter adjustment, and integration into modern networked automation architectures.
3) Technical Parameters
| Parameter | Specification |
|---|---|
| Model | CP440C-ETH (1SBP260187R1001) |
| Product Type | Operator Interface Terminal – Color Graphic with Ethernet |
| Series | CP4xx |
| Display Type | Color TFT LCD |
| Display Size | Approx. 10.1 in diagonal |
| Resolution | 800 × 600 pixels |
| Keypad | 30 Function Keys + Navigation Keys |
| Backlight | LED Backlight |
| Communication Interfaces | Ethernet (RJ45), Serial Port |
| Network Speed | 10/100 Mbps |
| Supply Voltage | 24 V DC |
| Power Consumption | ≤ 15 W |
| Mounting | Panel Mount |
| Front Protection Rating | IP65 (when panel mounted) |
| Operating Temperature | −10 °C to +55 °C |
| Storage Temperature | −20 °C to +70 °C |
| Relative Humidity | 10–90 % non-condensing |
| Dimensions (H × W × D) | 220 × 285 × 60 mm |
| Panel Cut-out Size | 210 × 270 mm |
| Weight (kg) | 1.50 kg |
| Housing Material | Industrial-grade reinforced polymer |
4) Detailed Product Description
The CP440C-ETH is a full-featured color operator terminal designed for advanced industrial automation systems. Its vivid 10.1-inch color LED display provides high-visibility visualization of machine processes, real-time data trends, alarms, and graphical indicators. The interface supports rich graphical content including charts, symbols, and contextual data layouts that improve operator situational awareness.
The integrated Ethernet interface ensures high-speed, reliable communication within industrial Ethernet networks, enabling remote monitoring, multi-station access, and seamless integration with supervisory systems. The extensive keypad, combined with navigation keys, allows intuitive and ergonomic user interaction.
The terminal is built for continuous duty in demanding environments and includes IP65 front panel protection when installed properly in control cabinets. Designed to work with PLCs and automation controllers, the CP440C-ETH serves as a central interaction point in modern distributed control systems.
5) Key Advantages
• Large High-Definition Color Display – Provides superior visual clarity for process graphics and data.
• Ethernet Communication – Facilitates fast data exchange and network integration.
• Industrial-Grade Durability – IP65 front rating protects against dust and splashes.
• Extensive Keypad and Navigation Buttons – Improves operator interaction and reduces errors.
• Robust Construction – Designed for demanding industrial environments with extended operating temperatures.
• Protective Backlight – LED backlighting ensures readability in variable lighting.
• Energy Efficient for Its Class – ≤ 15 W operation despite large display.
• Enhanced Integration – Works with distributed PLC systems and supervisory networks.
6) Typical Applications
• Centralized machine operator panels
• Process monitoring and visualization terminals
• Alarm and event management stations
• Batch operation interface screens
• Industrial Ethernet-connected automation systems
• Production line dashboards
• Distributed control systems (DCS) operator workstations
• Integrated diagnostics and maintenance interfaces
7) Five Related Models (Same Series or Closely Related)
| Model | Display Size | Communication | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| CP420C | 7.0 in | Serial | 150 × 190 × 45 | 0.60 |
| CP430C | 7.0 in | Serial | 150 × 220 × 50 | 0.65 |
| CP430C-ETH | 7.0 in | Ethernet | 150 × 220 × 50 | 0.68 |
| CP440C | 10.1 in | Serial | 220 × 285 × 60 | 1.40 |
| CP450C-ETH | 12.1 in | Ethernet | 240 × 310 × 65 | 1.80 |
8) Five Popular ABB Industrial Models
| Model | Product Type | Main Rating / Feature | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| ACS580-01-07A6-4 | Variable Frequency Drive | 7.5 kW | 358 × 152 × 203 | 5.8 |
| ACS880-01-022A-4 | High Performance Drive | 22 kW | 400 × 220 × 210 | 8.0 |
| Emax 2 E2.2 | Air Circuit Breaker | 1600 A | 371 × 210 × 268 | 8.2 |
| Tmax XT4N | Molded Case Circuit Breaker | 250 A | 140 × 105 × 160 | 2.1 |
| AF16-30-10 | Contactor | 16 A | 90 × 55 × 78 | 0.42 |
9) Frequently Asked Questions (FAQ)
Q1: What is the primary use of the CP440C-ETH?
A1: It is a color operator interface terminal designed for advanced industrial automation, visualization, and operator interaction.
Q2: What type of display does it have?
A2: It features a 10.1-inch color TFT LCD display with 800 × 600 pixel resolution.
Q3: What communication interfaces are supported?
A3: It supports Ethernet (10/100 Mbps) and serial communication for PLC integration.
Q4: What is the required supply voltage?
A4: It operates on a 24 V DC supply.
Q5: What are the physical dimensions of the terminal?
A5: 220 × 285 × 60 mm.
Q6: How much does the CP440C-ETH weigh?
A6: Approximately 1.50 kg.
Q7: Can the terminal display alarms and process values?
A7: Yes, it supports structured visualization of process data, alarms, and diagnostics.
Q8: Is it suitable for harsh industrial environments?
A8: Yes, it has IP65 front protection when mounted properly in a control panel.
Q9: What are typical applications?
A9: It is used in machine operator panels, process visualization terminals, and distributed control stations.
Q10: What advantage does Ethernet provide?
A10: Ethernet ensures fast and reliable network communication with controllers, enabling seamless integration into industrial networks.
