Product Technical Documentation – ABB CP430T-ETH (1SBP260196R1001)
1) Brand and Series Information
Brand: ABB
Series: CP4xx Operator Interface Terminal Series
The CP4xx series is a range of compact human-machine interface (HMI) terminals designed for industrial automation environments. These terminals provide a structured and reliable interface between operators and PLC-controlled systems.
The CP430T-ETH is part of the advanced models within this family. It integrates a graphic monochrome display with a tactile keypad and built-in Ethernet communication, making it suitable for modern network-based automation systems requiring stable data exchange and clear operator visualization.
2) Product Overview

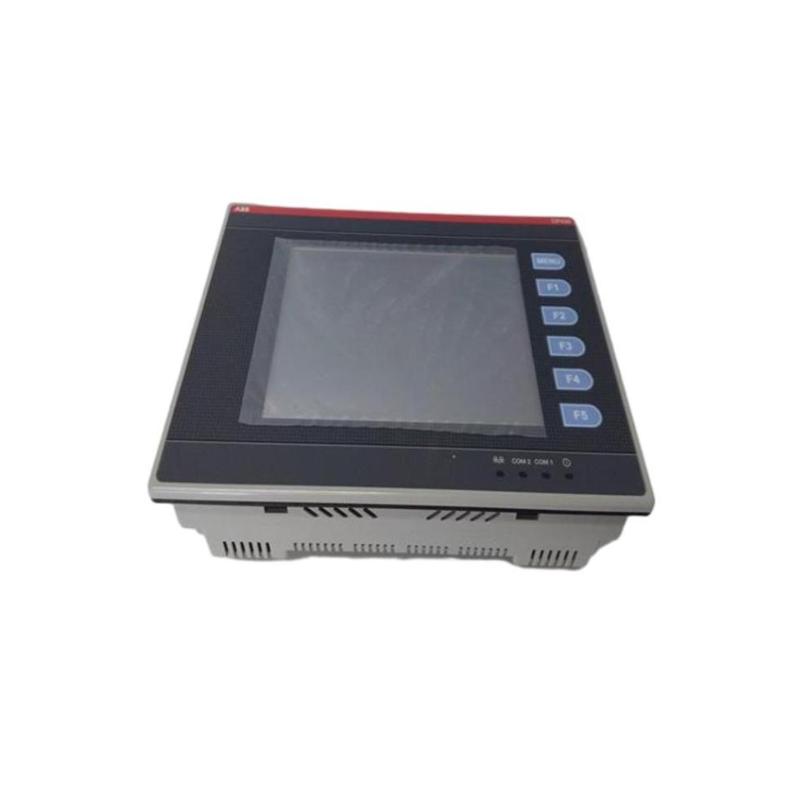

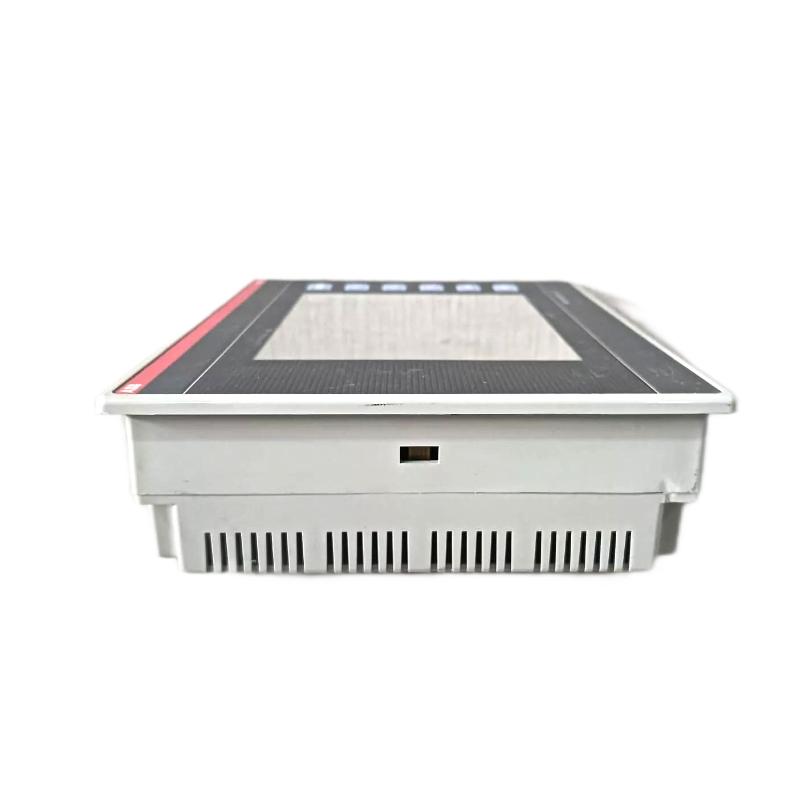

The ABB CP430T-ETH (1SBP260196R1001) is a panel-mounted operator terminal featuring a monochrome graphical LCD display, integrated Ethernet connectivity, and a functional keypad layout optimized for industrial operation.
This model is designed to provide efficient operator interaction in machinery control, process supervision, and distributed automation systems. The Ethernet interface allows fast and reliable communication with PLCs and other network devices.
Compared to standard serial versions, the CP430T-ETH enables integration into structured industrial Ethernet networks, simplifying system architecture and improving communication performance.
3) Technical Parameters
| Parameter | Specification |
|---|---|
| Model | CP430T-ETH (1SBP260196R1001) |
| Product Type | Operator Interface Terminal – Monochrome with Ethernet |
| Series | CP4xx |
| Display Type | Monochrome Graphic LCD |
| Display Size | Approx. 5.7 in diagonal |
| Resolution | 320 × 240 pixels |
| Keypad | 20 Function Keys + Navigation Keys |
| Backlight | High-intensity LED |
| Communication Interfaces | Ethernet (RJ45), Serial Port |
| Network Speed | 10/100 Mbps |
| Supply Voltage | 24 V DC |
| Power Consumption | ≤ 9 W |
| Mounting Method | Panel Mount |
| Front Protection Rating | IP65 (when panel mounted) |
| Operating Temperature | −10 °C to +55 °C |
| Storage Temperature | −20 °C to +70 °C |
| Relative Humidity | 10–90 % non-condensing |
| Dimensions (H × W × D) | 120 × 190 × 45 mm |
| Panel Cut-out Size | 112 × 182 mm |
| Weight (kg) | 0.44 kg |
| Housing Material | Reinforced industrial polymer |
4) Detailed Product Description
The CP430T-ETH is designed to serve as a reliable operator interface in industrial control systems. Its monochrome graphic LCD ensures clear presentation of operational data, process parameters, system messages, and alarm notifications.
The keypad-based design provides precise tactile feedback, which is particularly useful in environments where operators wear gloves or require reliable mechanical input.
The integrated Ethernet port enables high-speed communication with PLCs and automation networks, allowing centralized monitoring and distributed control applications.
Its compact construction, IP65 front protection, and robust materials make it suitable for demanding environments such as manufacturing plants, packaging lines, and automated production systems.
5) Product Advantages
• Integrated Ethernet Connectivity – Supports modern industrial network integration.
• Reliable Graphic Display – 320 × 240 resolution ensures structured data visualization.
• Industrial Keypad Operation – Suitable for harsh production environments.
• IP65 Front Protection – Resistant to dust and water splashes.
• Compact Installation Dimensions – Fits standard panel openings.
• Energy Efficient – Operates on 24 V DC with low power consumption.
• Stable Communication Performance – 10/100 Mbps Ethernet capability.
• Designed for Continuous Operation – Suitable for 24/7 industrial use.
6) Typical Applications
• Operator interface for PLC-controlled machinery
• Network-based automation panels
• Packaging and assembly line control stations
• Alarm management and diagnostics display
• Process parameter configuration terminals
• Distributed manufacturing systems
• Machine maintenance interface
• Industrial monitoring and supervision systems
7) Five Related Models (Same Series or Closely Related)
| Model | Display Type | Communication | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| CP410M | Monochrome LCD | Serial | 84 × 138 × 35 | 0.25 |
| CP415M | Monochrome LCD | Serial | 100 × 160 × 40 | 0.35 |
| CP420B | Monochrome LCD | Serial | 110 × 170 × 42 | 0.38 |
| CP430B | Monochrome Graphic | Serial | 120 × 190 × 45 | 0.41 |
| CP430BP-ETH | Monochrome Graphic | Ethernet + Serial | 120 × 190 × 45 | 0.45 |
8) Five Popular ABB Industrial Models
| Model | Product Type | Main Rating | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| ACS580-01-07A6-4 | Variable Frequency Drive | 7.5 kW | 358 × 152 × 203 | 5.8 |
| ACS880-01-022A-4 | High Performance Drive | 22 kW | 400 × 220 × 210 | 8.0 |
| Emax 2 E2.2 | Air Circuit Breaker | 1600 A | 371 × 210 × 268 | 8.2 |
| Tmax XT4N | Molded Case Circuit Breaker | 250 A | 140 × 105 × 160 | 2.1 |
| AF16-30-10 | Contactor | 16 A | 90 × 55 × 78 | 0.42 |
9) Frequently Asked Questions (FAQ)
Q1: What is the primary function of CP430T-ETH?
A1: It provides operator interaction and visualization for PLC-based automation systems with Ethernet connectivity.
Q2: What power supply does it require?
A2: 24 V DC.
Q3: What are its physical dimensions?
A3: 120 × 190 × 45 mm.
Q4: What is the device weight?
A4: Approximately 0.44 kg.
Q5: Does it support Ethernet communication?
A5: Yes, it includes a 10/100 Mbps Ethernet interface.
Q6: Is it touchscreen-based?
A6: No, it uses a keypad-based interface.
Q7: What is the display resolution?
A7: 320 × 240 pixels.
Q8: Is it suitable for industrial environments?
A8: Yes, it has IP65 front protection when mounted.
Q9: Can it display alarms and system diagnostics?
A9: Yes, it supports alarm visualization and system messages.
Q10: What distinguishes CP430T-ETH from non-ETH models?
A10: The integrated Ethernet port enables faster and more flexible network communication.
