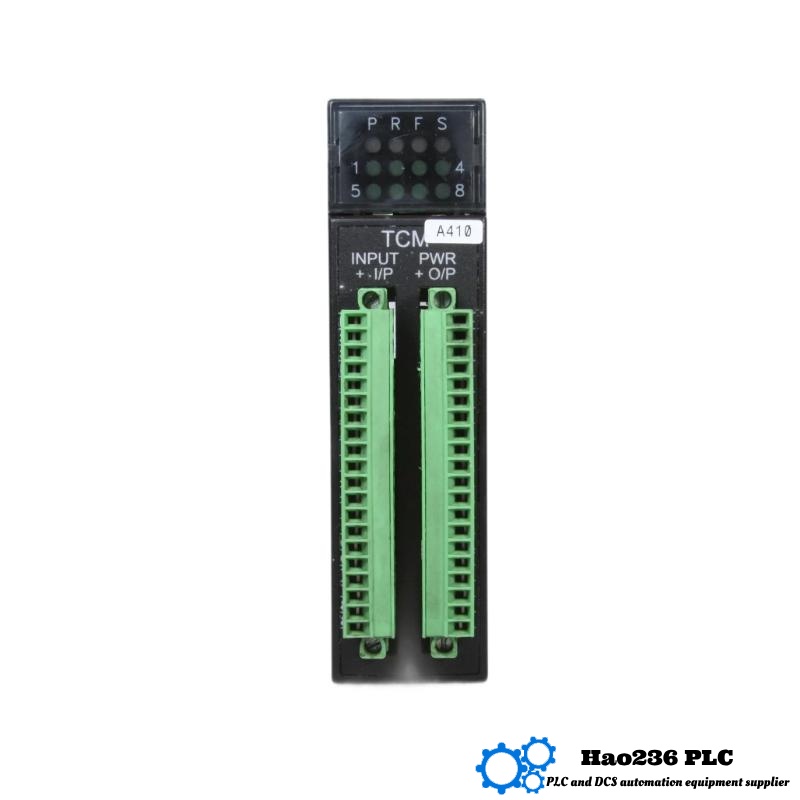

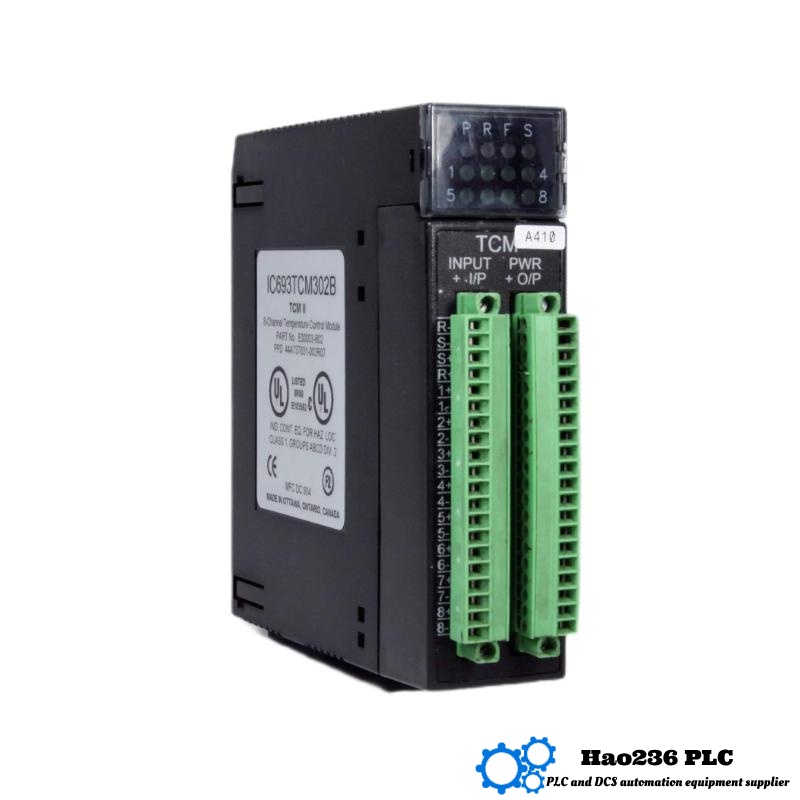

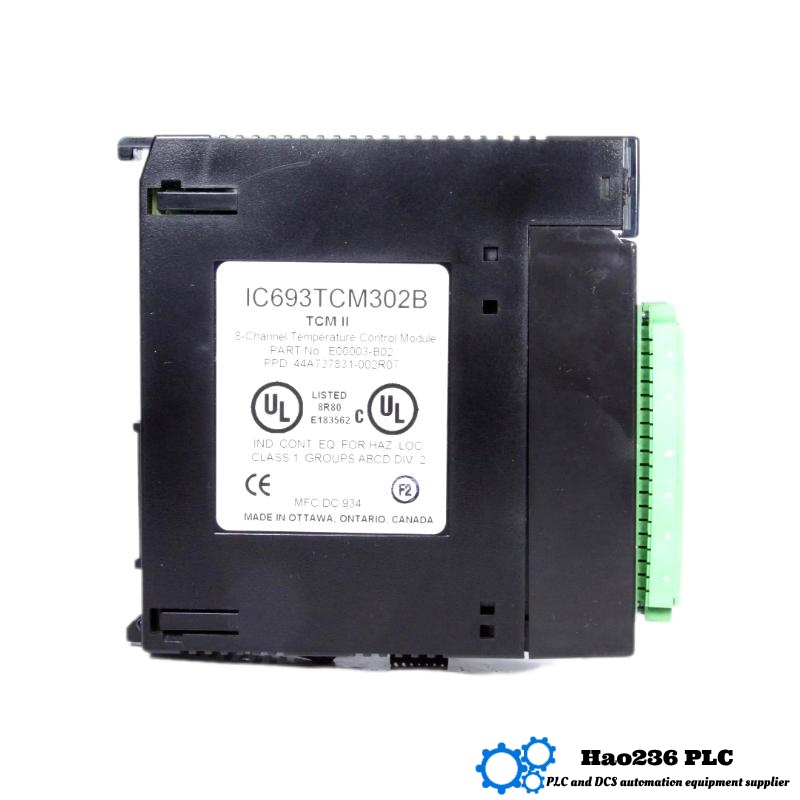

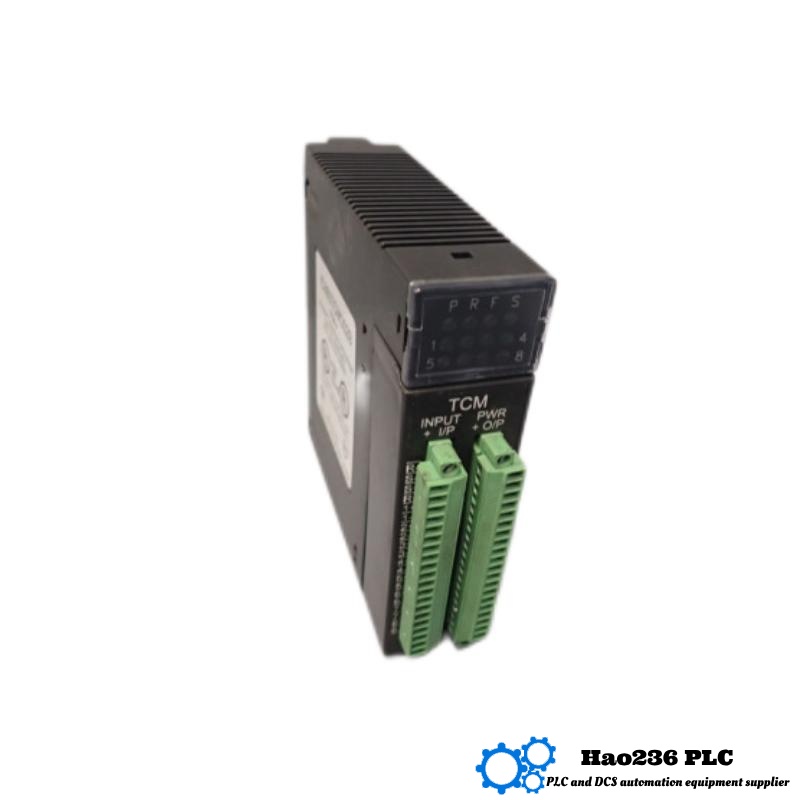

GE IC693TCM302 Temperature Control Module
Product Introduction
The GE IC693TCM302 is an advanced temperature control module designed for use with the GE 90-30 Series programmable logic controller (PLC). This module allows precise control of temperature-sensitive processes, ensuring reliable operation in a variety of industrial applications. It is engineered for high-performance temperature monitoring and control, providing flexibility to users who need to manage temperature in complex systems.
With the IC693TCM302, operators can easily monitor, adjust, and maintain temperature setpoints in real time. The module supports both input from various temperature sensors (such as RTDs and thermocouples) and can provide control outputs to manage heating or cooling devices, making it ideal for process industries like manufacturing, pharmaceuticals, food production, and more.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | IC693TCM302 |
| Dimensions (mm) | 135 x 135 x 35 |
| Weight (kg) | 0.24 |
| Input Type | RTD, Thermocouple |
| Output Type | Control outputs for heating/cooling systems |
| Control Method | On/Off, PID control |
| Input Range | RTD: –200°C to +850°C, Thermocouple: –200°C to +1800°C |
| Output Range | 0V to 10V DC (for heating/cooling systems) |
| Operating Temperature | 0°C to 60°C |
| Power Supply | 24V DC |
| Communication | Modbus RTU (RS-485) or GE PLC communication |
| Mounting | Standard rail mount |
| Status Indicators | LED indicators for power, fault, and operation status |
Product Applications
The GE IC693TCM302 is used in a variety of industries that require precise temperature control and monitoring. Some common applications include:
-
Manufacturing: Used in systems where temperature control is crucial, such as in plastic molding, metal heating, or curing processes.
-
Pharmaceutical Industry: Essential for regulating and monitoring the temperature of drug production, storage, and transportation.
-
Food Processing: Ideal for controlling temperatures in food cooking, freezing, and preservation processes.
-
HVAC Systems: Can be used to regulate heating and cooling in large industrial or commercial buildings.
-
Automated Laboratories: Used to maintain precise environmental conditions for testing and experiments.
-
Energy Management: Controls temperatures in equipment used in power plants, oil refineries, and renewable energy facilities.
Product Advantages
-
High Precision Control: The IC693TCM302 provides precise temperature control using advanced feedback mechanisms, ensuring that processes remain within optimal temperature ranges.
-
Wide Temperature Range: It supports a broad input range from –200°C to +850°C for RTD sensors, and from –200°C to +1800°C for thermocouple inputs, making it suitable for various temperature-sensitive applications.
-
Versatile Control: The module can provide on/off control or PID control, giving users the flexibility to choose the most appropriate control method for their application.
-
Easy Integration: Designed for use with the GE 90-30 PLC, the IC693TCM302 integrates seamlessly into automation systems, ensuring smooth operation without complex setup.
-
Compact Design: With compact dimensions of 135 x 135 x 35 mm and a weight of only 0.24 kg, the module fits into tight spaces and is ideal for industrial environments where space is limited.
-
Reliable Communication: It supports Modbus RTU communication, providing a reliable interface for temperature data transfer and integration into wider control networks.
-
Energy Efficient: The 24V DC power supply and efficient operation ensure minimal energy consumption, making it ideal for long-term, sustainable use in industrial environments.
Brand Information
-
Brand: General Electric (GE)
-
Industry Standing: GE is a global leader in industrial automation, offering innovative solutions across many sectors, including power, healthcare, aviation, and manufacturing. The 90-30 Series PLCs, including the IC693TCM302 temperature control module, are renowned for their reliability, precision, and ease of integration in industrial applications.
Recommended Related Models (Same Series or Similar)
| Model Number | Description | Dimensions (mm) | Weight (kg) | Key Features |
|---|---|---|---|---|
| IC693TCM301 | Temperature Control Module, 2 channels | 135 x 135 x 35 | 0.24 | Dual-channel temperature control for complex systems |
| IC693PWR331 | Power Supply, 24V DC, 5A | 150 x 120 x 130 | 0.54 | Provides reliable power for GE 90-30 PLC |
| IC693CPU350 | CPU Module, 5-slot, 24V DC | 115 x 160 x 125 | 1.2 | Core processing unit for GE 90-30 PLC systems |
| IC693ALG223 | Analog Input Module, 16 channels | 150 x 120 x 130 | 0.5 | High-density analog inputs for various sensors |
| IC693CMM311 | Communication Module | 120 x 130 x 70 | 0.45 | Facilitates communication between PLC and devices |
Recommended Popular GE Models (Other Types)
| Model Number | Product Type | Dimensions (mm) | Weight (kg) | Application Area |
|---|---|---|---|---|
| IC693CPU351 | CPU Module, 5-slot, 24V DC | 115 x 160 x 125 | 1.2 | Ideal for mid-range PLC control systems |
| IC693MDL731 | Discrete Output Module, 32 points | 150 x 120 x 130 | 0.6 | Provides relay outputs for field actuators |
| IC693ALG391 | Analog Input Module, 16 channels | 150 x 120 x 130 | 0.5 | Used for analog input applications in control systems |
| IC693IFR301 | I/O Interface Module | 140 x 110 x 80 | 0.55 | Connects PLC to various peripheral I/O devices |
| IC693MDL740 | Discrete Output Module, 16 points | 150 x 120 x 130 | 0.5 | Compact solution for digital outputs in industrial systems |
FAQ (Q&A)
Q1: What is the primary function of the GE IC693TCM302?
A1: The IC693TCM302 is a temperature control module designed to monitor and regulate temperature-sensitive processes in industrial automation systems.
Q2: What types of temperature sensors does this module support?
A2: The module supports RTD and thermocouple sensors, making it versatile for different temperature measurement applications.
Q3: What is the temperature range of the IC693TCM302?
A3: The module supports RTD inputs from –200°C to +850°C and thermocouple inputs from –200°C to +1800°C.
Q4: Can this module provide PID control?
A4: Yes, the IC693TCM302 supports PID control, offering precise regulation for temperature-dependent processes.
Q5: What kind of outputs does the module provide?
A5: It provides control outputs, typically 0V to 10V DC, to manage heating or cooling systems.
Q6: What is the power requirement for the IC693TCM302?
A6: The module requires a 24V DC power supply.
Q7: How is the module integrated into a control system?
A7: It integrates with GE 90-30 PLCs via Modbus RTU communication or direct PLC connections.
Q8: What is the weight of the IC693TCM302?
A8: The module weighs 0.24 kg.
Q9: Is this module suitable for use in hazardous environments?
A9: It is designed for general industrial use, but for hazardous environments, additional certification may be required.
Q10: Does the module have any built-in diagnostic features?
A10: Yes, the IC693TCM302 has LED status indicators for power, fault, and operational status.
