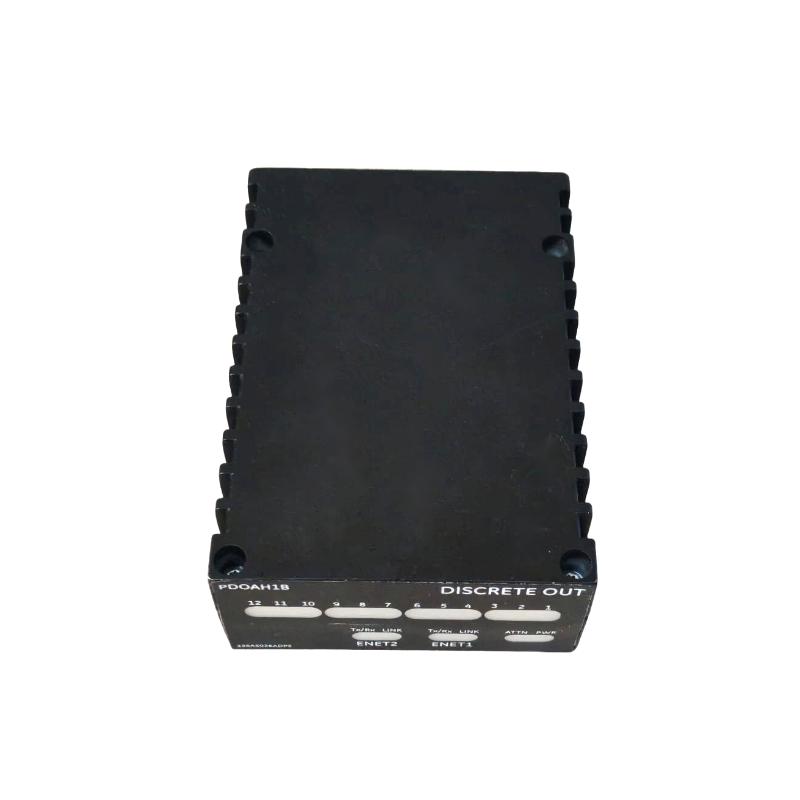

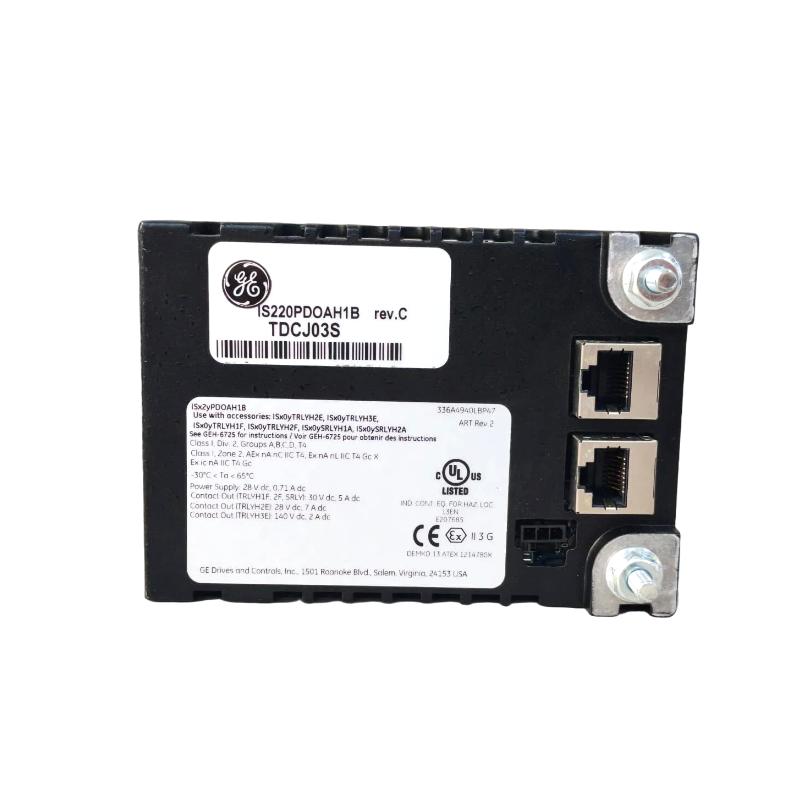

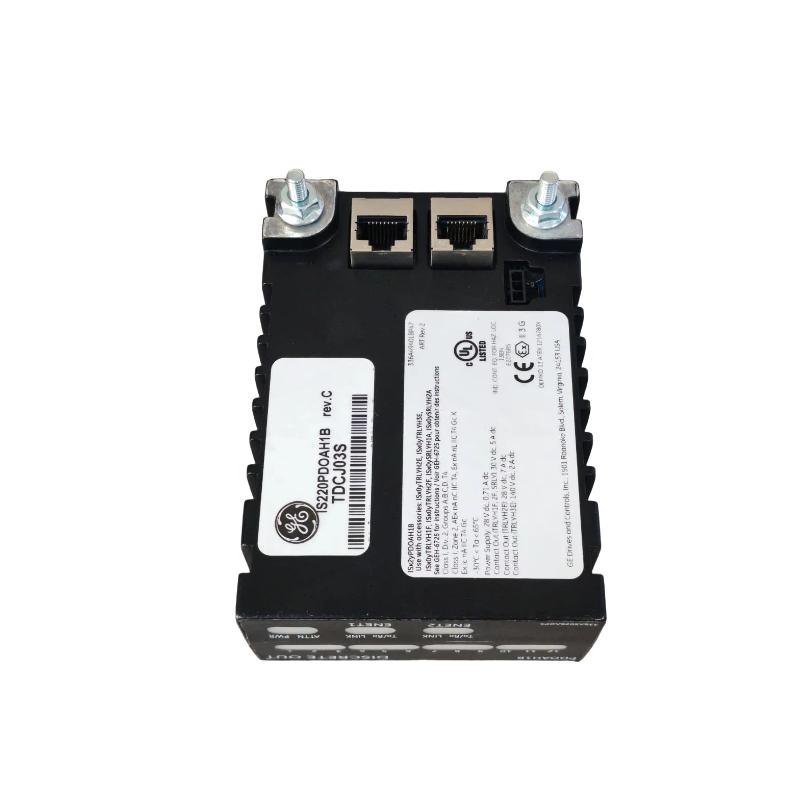

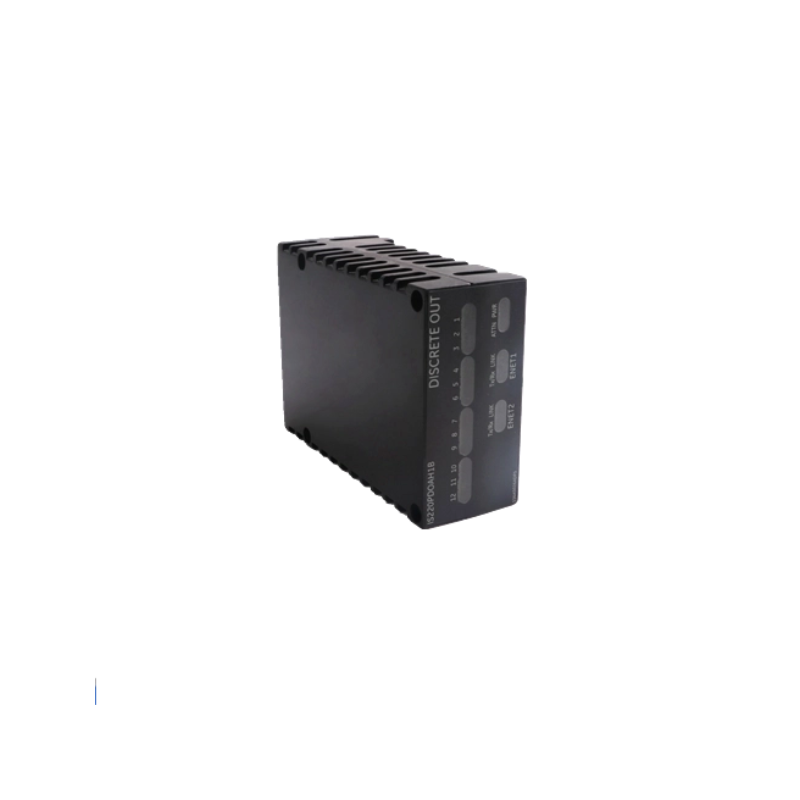

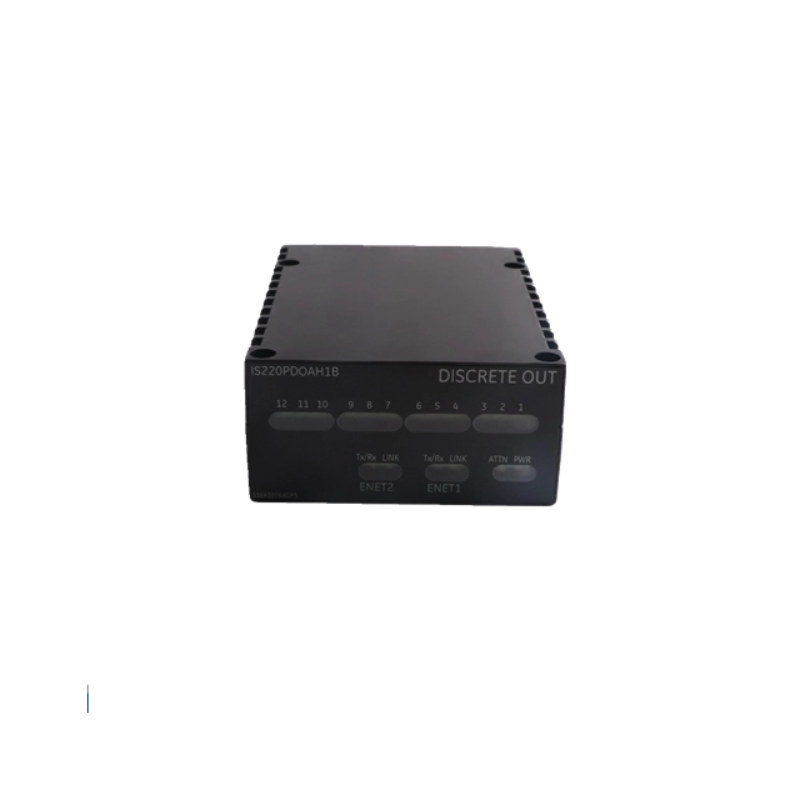

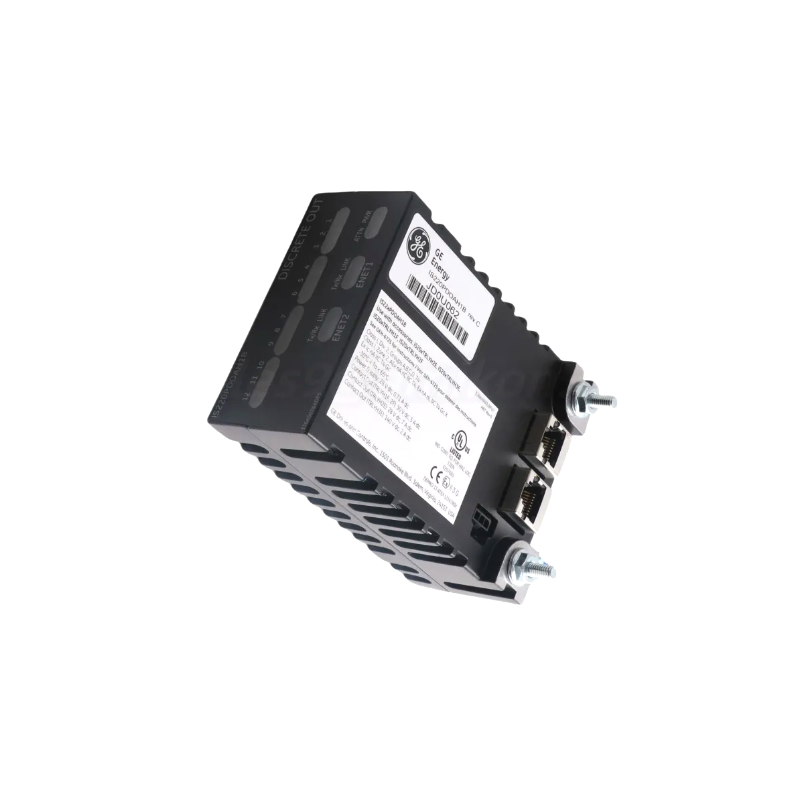

Product Introduction
-
Brand: GE
-
Series: Mark VIe Discrete I/O Modules
-
Model: IS220PDOAH1B
-
Product Type: Isolated Discrete Output I/O Pack
-
Description: The IS220PDOAH1B is a high-reliability isolated discrete output module designed for Mark VIe control systems. It is used to switch or control field devices such as relays, solenoids, valves, and motor starters in industrial automation, turbine control, and power generation applications. The module provides individual channel isolation to prevent signal interference and is suitable for hazardous and heavy-duty environments.
Specifications
| Parameter | Specification |
|---|---|
| Module Power Voltage | 24–28 V DC typical |
| Max Module Current | ~0.75 A total |
| Output Voltage | 24 V DC nominal |
| Output Channels | 16 isolated discrete output channels |
| Max Output Load | 1 A per channel |
| Communication Interface | Dual RJ‑45 Ethernet ports (IONet/Ethernet) |
| Operating Temperature | ‑30 °C – +65 °C |
| Dimensions | ~20 cm × 12 cm × 6 cm |
| Weight | ~1.42 kg |
| Hazardous Area Certification | IECEx / UL certified |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Response Time | ≤1 ms typical per channel |
Applications
-
Power Plant Turbine Control: Driving valves, trip relays, and annunciators.
-
Oil & Gas / Petrochemical: Operating solenoids, warning systems, and interlocks in hazardous environments.
-
Industrial Automation: Switching actuators, motors, and alarms while maintaining electrical isolation.
-
DCS/PLC Systems: Extending output capacity for distributed control systems with high reliability and redundancy.
Advantages
-
High Channel Isolation – Reduces electrical interference and improves signal integrity.
-
Hazardous-Area Ready – IECEx/UL certified for safe use in explosive or flammable zones.
-
Redundant Ethernet – Dual ports provide network redundancy for uninterrupted communication.
-
Hot-Swappable Design – Can be replaced without shutting down the system under proper procedures.
-
Compact and Lightweight – ~1.42 kg, fits easily into control cabinets.
-
Industrial Temperature Tolerance – Operates reliably in harsh environments.
-
Wide Compatibility – Fully compatible with Mark VIe control systems and terminal boards.
-

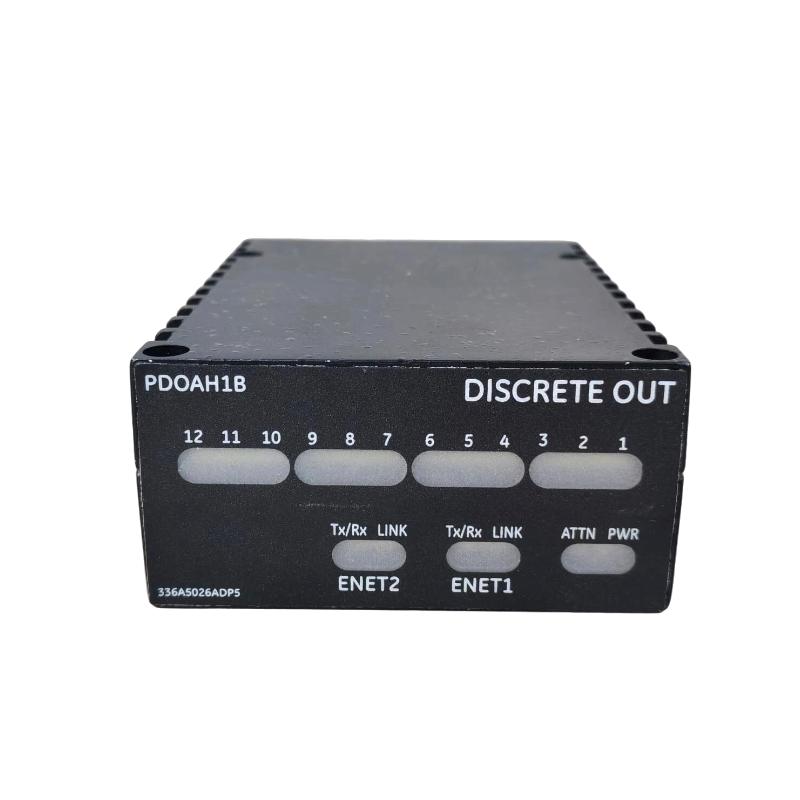

Quick Diagnostics – Front-panel LEDs allow rapid troubleshooting of faults or channel issues.
Recommended Models
Same Series / Related Models (Mark VIe Discrete I/O)
| Model | Series | Key Specifications |
|---|---|---|
| IS220PDIIH1B | Mark VIe Discrete Input | 16 isolated input channels; 28 V DC; 1 kg |
| IS220PDIAH1B | Mark VIe Discrete Input (Non-isolated) | 24 input channels; 24 V DC; ‑40 °C to +85 °C |
| IS220PDIOH1B | Mark VIe Input/Output | 24 input + 12 output channels; dual Ethernet; 24 V DC |
| IS220PAICH1B | Mark VIe Analog I/O | 8 analog input + 2 output channels; ±5 V / ±10 V / 0–20 mA; ~0.5 kg |
| IS220PCLAH1B | Mark VIe Analog I/O (Turbine) | High-load analog signals; ‑30 °C to +65 °C; 0.6 kg |
Popular Models from the Same Brand (GE)
| Model | Application | Key Specifications |
|---|---|---|
| IS220UCSAH1A | Mark VIe Controller | 667 MHz processor; 18–36 V DC; 12 W; 150×100×50 mm |
| IS220PAOCH1B | Mark VIe Analog Output | 8 analog output channels; 4–20 mA; high precision |
| IS220PTCCH1B | Mark VIe Thermocouple Input | 12 thermocouple channels; cold junction compensation; turbine monitoring |
| IS220PPRFH1B | Mark VIe PROFIBUS Module | PROFIBUS DP network; 28 V DC; 0.18 A |
| IS220PHRAH1B | Mark VIe HART Module | 10 analog input + 2 output channels; HART protocol support |
FAQ
Q1: Can the IS220PDOAH1B drive relays directly?
A1: Yes, it can switch relays or solenoids within its 1 A per channel limit.
Q2: Does it support hot-swapping?
A2: Yes, under correct Mark VIe maintenance procedures.
Q3: Are output channels isolated?
A3: Yes, each channel is isolated from the others and from the ground.
Q4: Is it suitable for hazardous locations?
A4: Yes, IECEx/UL certified for explosive atmospheres.
Q5: What is the operating temperature range?
A5: ‑30 °C to +65 °C.
Q6: How is a faulty output channel diagnosed?
A6: LEDs on the front panel indicate the status of each channel and system attention signals.
Q7: Can the module be replaced with a non-isolated model?
A7: Replacement should be done with an approved module to maintain isolation and system integrity.
Q8: How much current can each output channel handle?
A8: Maximum 1 A per channel.
Q9: Which communication interface does it use?
A9: Dual RJ‑45 Ethernet ports for IONet/Ethernet.
Q10: What is the typical lifespan of the module?
A10: Lifespan depends on environment and usage, but industrial-grade design ensures long-term reliability with proper maintenance.
