Product Introduction

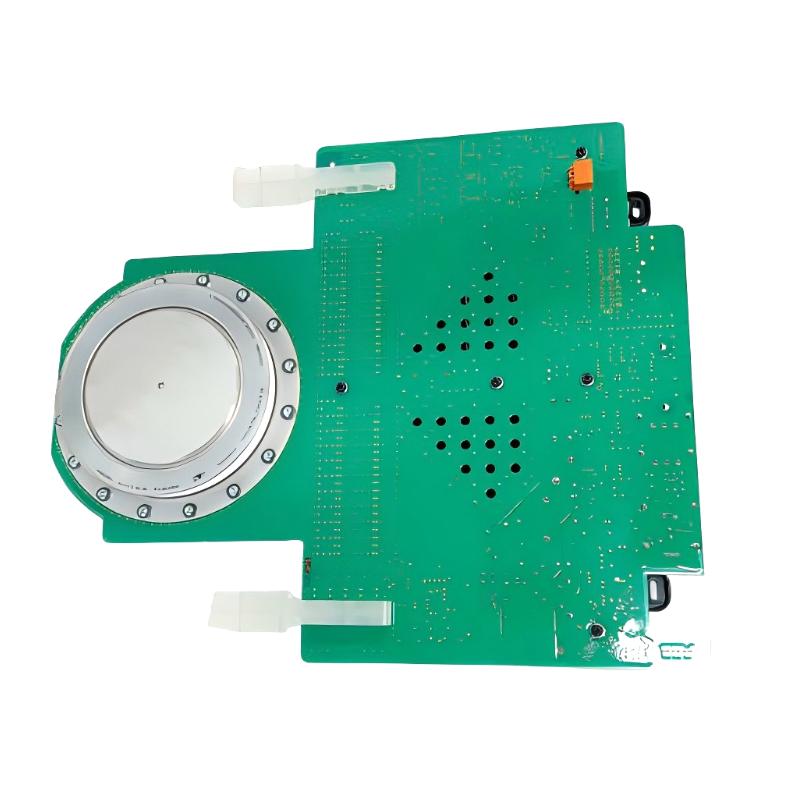

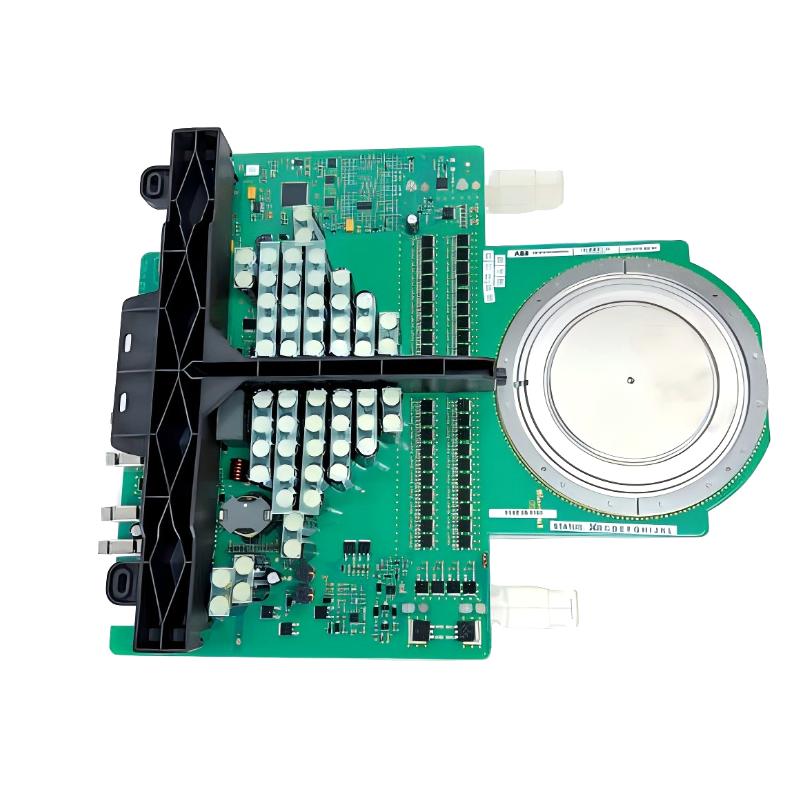

The ABB 5SHX2645L0001, also referenced as 3BHL000389P0101, is a high-performance IGCT (Integrated Gate Commutated Thyristor) module engineered for advanced medium- and high-power industrial applications.

Developed by ABB, this IGCT device is designed for superior switching performance, high current density, and optimized thermal behavior in demanding power conversion systems.

IGCT technology combines the ruggedness of thyristors with the fast switching capability of IGBTs, making it suitable for mission-critical power electronics installations.

Technical Specifications

What Is an IGCT Module?

An IGCT (Integrated Gate Commutated Thyristor) is a high-power semiconductor switching device designed for:

• High current switching

• Low conduction losses

• High voltage blocking capability

• Fast turn-off performance

Unlike conventional SCRs, IGCTs integrate the gate drive closely with the semiconductor wafer, significantly reducing switching losses and improving dynamic performance.

The 5SHX2645L0001 module is optimized for high reliability under continuous heavy electrical load conditions.

Core Application Areas

This IGCT module is typically used in:

• Medium-voltage variable speed drives

• Industrial motor control systems

• High-power inverters

• Traction systems

• Renewable energy converters

• Static VAR compensators (SVC)

• Grid stabilization equipment

In such systems, IGCTs act as primary switching elements controlling large electrical currents with minimal loss and high operational stability.

Engineering Advantages

The ABB 5SHX2645L0001 offers several technical benefits:

• High surge current capability

• Low on-state voltage drop

• Fast and controlled turn-off behavior

• Excellent thermal cycling endurance

• High mechanical stability via press-pack design

• Optimized for series connection in high-voltage stacks

Its press-pack housing ensures uniform pressure distribution and superior heat dissipation, which is critical in high-power assemblies.

Installation & Handling Notes

Proper integration of IGCT modules requires:

• Uniform clamping force according to manufacturer specifications

• High-quality thermal interface material

• Adequate cooling system (air or liquid)

• Gate unit compatibility verification

• Protection circuit validation

Improper clamping or insufficient cooling can significantly reduce device lifespan.

Recommended Related IGCT Models

Why Choose ABB IGCT Technology?

ABB IGCT modules are widely recognized in heavy industry for:

• Proven field reliability

• High efficiency under load

• Long operational lifespan

• Reduced system losses

• Strong mechanical and electrical robustness

For high-power drive engineers and system integrators, selecting the correct IGCT module directly impacts efficiency, reliability, and total lifecycle cost.
