Overview

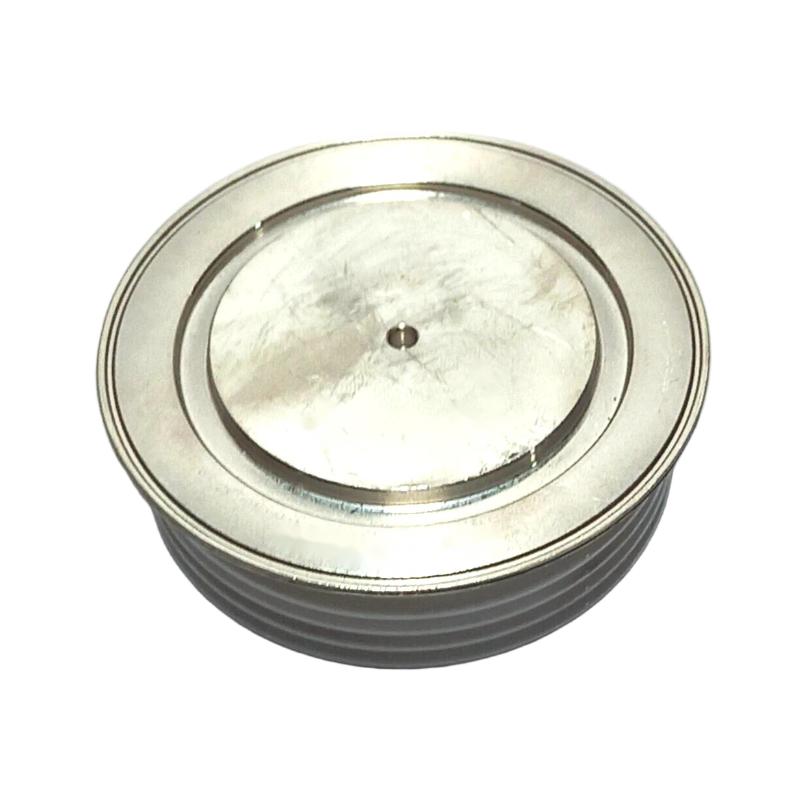

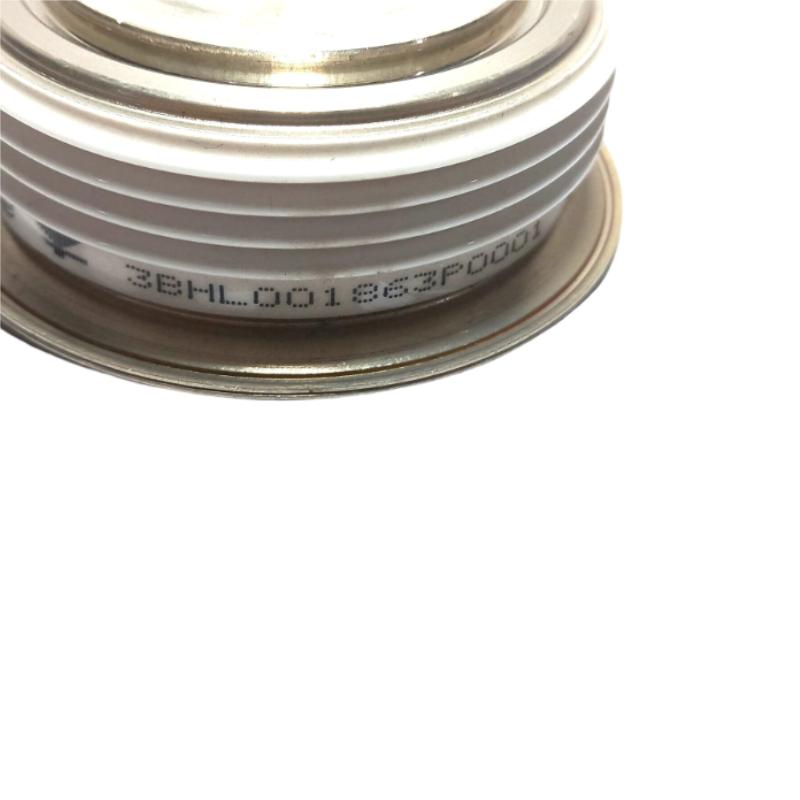

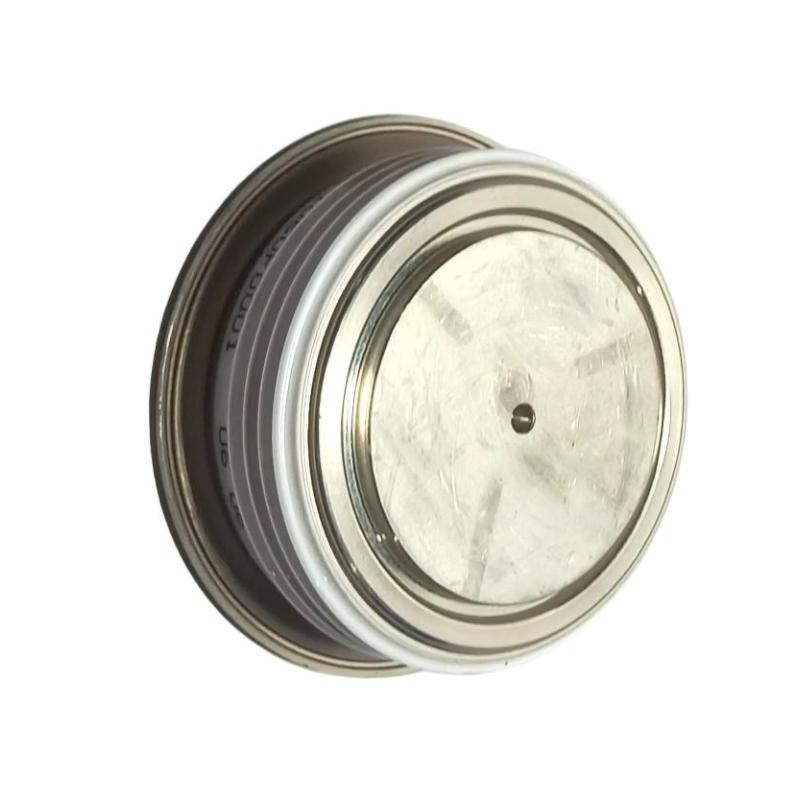

The ABB 5SDD1060F0001, also identified as 3BHL001863P0001, is a high-current industrial rectifier diode designed for demanding power conversion applications. Manufactured by ABB, this component is engineered for reliable AC to DC rectification in heavy-duty industrial environments.
With a 50 mm diameter stud-mounted structure and a weight of approximately 0.45 kg, this diode is built for high thermal capacity and stable electrical performance in large-scale power systems.
Technical Data
| Parameter | Specification |
|---|---|
| Product Model | 5SDD1060F0001 |
| Alternate Part Number | 3BHL001863P0001 |
| Manufacturer | ABB |
| Component Type | High-Power Rectifier Diode |
| Mechanical Design | Stud-mounted semiconductor |
| Diameter | 50 mm |
| Weight | 0.45 kg |
| Mounting Style | Threaded base for heatsink mounting |
| Cooling Method | Conduction cooling via heatsink |
| Application Category | Industrial power conversion |
| Polarity | Unidirectional current flow |
| Construction | High thermal mass metal housing |
Functional Description
The ABB 5SDD1060F0001 is a power semiconductor that allows current to pass in one direction while blocking reverse voltage. In industrial systems, it serves as a key rectification element inside high-power converters.
Its mechanical mass and diameter indicate a design optimized for:
-
High surge current capability
-
Stable thermal distribution
-
Reliable long-term operation
-
Resistance to electrical stress
This type of diode is typically installed in rectifier bridges or power stacks where high reliability and consistent voltage blocking are critical.
Typical Applications
This diode is commonly integrated into:
-
Industrial rectifier units
-
Variable frequency drive (VFD) rectifier stages
-
High-power DC supply systems
-
Converter cabinets
-
Renewable energy power conditioning systems
-
Heavy-duty motor drive platforms
In these systems, the diode converts AC input into controlled DC output, forming the foundation of stable power electronics architecture.
Performance Advantages
-
High current handling capability
-
Excellent reverse voltage blocking performance
-
Robust mechanical structure for vibration environments
-
Strong thermal conductivity when properly mounted
-
Long operational service life
When properly installed with adequate cooling, the 5SDD1060F0001 ensures consistent system uptime and minimizes semiconductor stress.
Installation Considerations
To maximize operational lifespan:
-
Always mount on a properly rated heatsink
-
Apply thermal compound for optimal conduction
-
Ensure correct torque on the stud terminal
-
Verify voltage and current ratings within system limits
-
Confirm polarity during installation
Correct thermal management is essential for high-power semiconductor reliability.
Recommended Related Models
| Model | Description | Application Focus |
|---|---|---|
| 5SDD1070F0002 | Higher current variant | Large converter systems |
| 5SDD1050 Series | Standard industrial diode | Medium power rectifiers |
| High-Voltage SCR Series | Controlled rectification alternative | Phase-controlled systems |
| Industrial Diode Modules | Multi-diode assemblies | Rectifier bridge integration |
Conclusion
The ABB 5SDD1060F0001 / 3BHL001863P0001 is a heavy-duty industrial diode built for demanding rectification tasks in converter and drive systems. Its large 50 mm stud package and 0.45 kg mass indicate high thermal resilience and strong current capacity.
For industrial maintenance teams and system integrators, selecting the correct power diode ensures electrical stability, system longevity, and minimized downtime in critical operations.
