ABB AO920B (3KDE175532L9200) Product Overview
Product Overview:

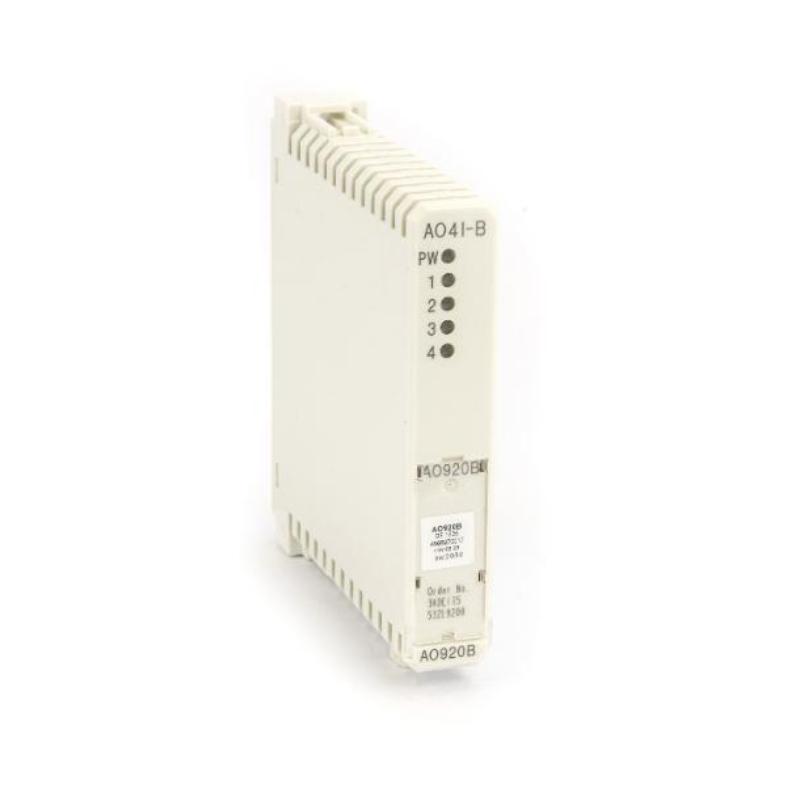

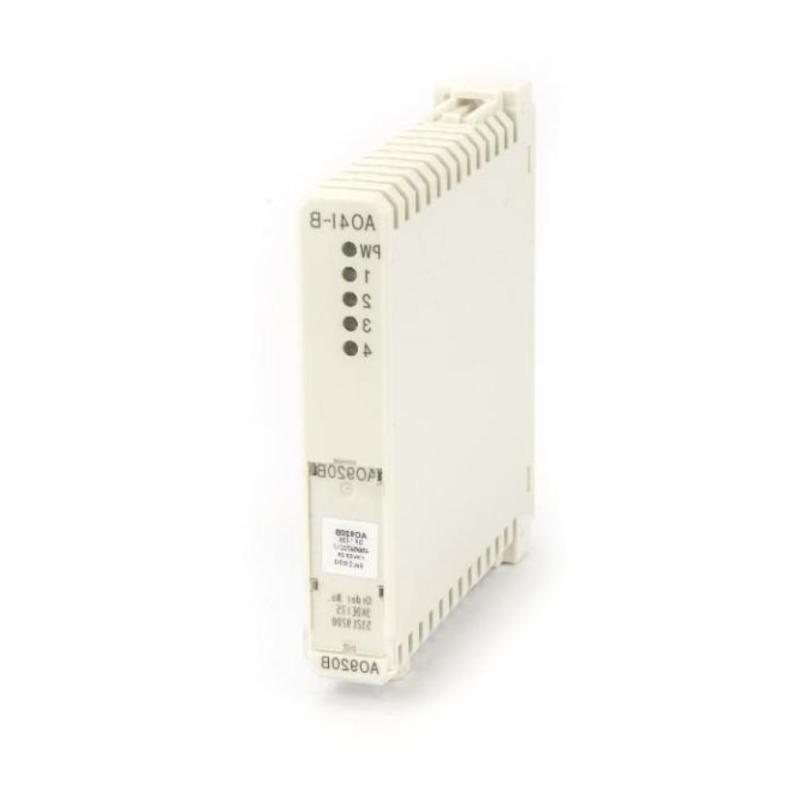

The ABB AO920B (product code: 3KDE175532L9200) is an analog output module designed to meet the needs of modern industrial automation systems. It is part of the AO series from ABB, known for delivering precise and reliable analog signals to control systems. This module provides output signals that are critical for controlling devices such as actuators, valves, and pumps in various industrial applications.
The AO920B offers multiple output configurations, including 0-10 V and 4-20 mA, making it suitable for a variety of applications in industries such as process control, building automation, and energy management. With easy DIN rail mounting and a robust design, this module is built to withstand the rigors of industrial environments.
Key Specifications and Parameters:
| Parameter | Value |
|---|---|
| Product Name | ABB AO920B |
| Product Code | 3KDE175532L9200 |
| Weight | 0.55 kg |
| Dimensions (LxWxH) | 120 mm x 90 mm x 60 mm |
| Power Supply | 24 V DC |
| Output Range | 0-10 V, 4-20 mA |
| Current Consumption | 150 mA |
| Signal Type | Analog (Voltage and Current) |
| Mounting | DIN Rail |
| Protection Features | Overload, Short-circuit protection |
| Temperature Range | -10°C to 60°C |
| Housing | Polycarbonate |
| Communication Interface | MODBUS RTU, CANopen |
Product Introduction:
The ABB AO920B is an advanced analog output module offering precise control for DC actuators, valves, and other industrial equipment requiring analog output signals. The AO920B provides 0-10 V and 4-20 mA outputs, making it a flexible choice for a variety of industrial control applications.
The module operates on a 24 V DC power supply, consuming 150 mA of current. Its compact design allows for DIN rail mounting, which simplifies installation and makes it compatible with most industrial control panels. The AO920B is built with polycarbonate housing for durability and features overload protection and short-circuit protection to safeguard the module and connected devices. The device operates in a temperature range of -10°C to 60°C, ensuring reliable performance in demanding industrial environments.
Applications:
The ABB AO920B is suitable for a range of applications where precise control of analog signals is required, including:
-
Process Control: Provides output signals for controlling valves, actuators, and pumps in chemical, oil, and gas industries.
-
Building Automation Systems (BMS): Controls HVAC systems, lighting, and energy management devices in commercial buildings and facilities.
-
Energy Management: Used in solar inverters, energy meters, and smart grid systems for optimized energy distribution and monitoring.
-
Water and Wastewater Treatment: Controls pumps and actuators in water treatment plants, ensuring efficient flow regulation.
-
Manufacturing and Robotics: Provides signal outputs for controlling robots, conveyors, and other automated manufacturing equipment.
Advantages:
-
Precise and Reliable Output: The AO920B provides highly accurate analog signals, including 0-10 V and 4-20 mA, for reliable control of various industrial devices.
-
Wide Application Range: Supports a variety of applications in industries such as process control, energy, and building automation.
-
Built-in Protection: Includes overload and short-circuit protection, ensuring both safety and longevity for connected equipment.
-
Durable Design: With polycarbonate housing, the module is built to withstand harsh industrial conditions and provides protection from environmental factors like dust and moisture.
-
Easy Integration: The DIN rail mounting feature makes the module easy to install and integrate into existing control systems.
-
Energy Efficient: The module operates on a 24 V DC power supply and consumes only 150 mA, making it efficient and cost-effective for long-term operation.
Brand and Series:
-
Brand: ABB
-
Series: AO Series (Analog Output)
Similar Models in the ABB AO Series
| Model | Key Specifications |
|---|---|
| AO910B | 24 V DC, 0-10 V and 4-20 mA outputs, 100 mA, 0.45 kg, 120 mm x 90 mm x 60 mm |
| AO911B | 24 V DC, 0-10 V and 4-20 mA outputs, 130 mA, 0.5 kg, 130 mm x 95 mm x 65 mm |
| AO912B | 24 V DC, 0-10 V and 4-20 mA outputs, 160 mA, 0.55 kg, 140 mm x 100 mm x 70 mm |
| AO913B | 24 V DC, 0-20 mA and 0-10 V outputs, 180 mA, 0.6 kg, 150 mm x 110 mm x 80 mm |
| AO914B | 24 V DC, 0-10 V and 4-20 mA outputs, 200 mA, 0.7 kg, 160 mm x 120 mm x 90 mm |
Top 5 Popular ABB Models (Same Brand)
| Model | Key Specifications |
|---|---|
| IRB 6700 | 6-axis industrial robot, 50 kg payload, 3.2 m reach, 3200 mm/s speed |
| PM810 | Power meter, 24 V DC, 60 mm x 80 mm x 100 mm, 0.5 kg |
| AC500 | Modular PLC, 24 V DC, supports Ethernet/IP, PROFIBUS, CANopen |
| A60 | Low-voltage switchgear, 690 V, 50 A, 4000 A, 6 kA short circuit |
| AF50 | Circuit breaker, 50 A, 1-3 pole, 400 V AC, 80 mm x 50 mm x 40 mm |
Frequently Asked Questions (FAQ)
Q1: What is the ABB AO920B used for?
A1: The ABB AO920B is an analog output module used to provide precise analog control signals for devices like actuators, valves, and pumps in industrial systems.
Q2: What output ranges does the ABB AO920B support?
A2: The AO920B supports 0-10 V and 4-20 mA output ranges, which are commonly used in industrial automation systems for precise control.
Q3: What is the power supply requirement for the ABB AO920B?
A3: The AO920B operates on a 24 V DC power supply, consuming 150 mA of current.
Q4: What is the mounting method for the ABB AO920B?
A4: The AO920B is designed for DIN rail mounting, making it easy to install in industrial control panels and systems.
Q5: What protection features does the ABB AO920B include?
A5: The AO920B includes overload protection and short-circuit protection, ensuring that both the module and connected devices are protected from electrical faults.
Q6: What is the operating temperature range of the ABB AO920B?
A6: The AO920B operates within a temperature range of -10°C to 60°C, ensuring reliable performance in a variety of industrial environments.
Q7: Can the ABB AO920B be integrated into existing control systems?
A7: Yes, the AO920B is compatible with systems that support MODBUS RTU or CANopen communication protocols, allowing for easy integration into existing control systems.
Q8: What is the weight of the ABB AO920B?
A8: The AO920B weighs approximately 0.55 kg, making it a lightweight and compact solution for analog signal control.
Q9: What materials is the ABB AO920B made from?
A9: The AO920B is housed in polycarbonate, offering durability and protection against environmental damage such as dust and moisture.
Q10: Is the ABB AO920B suitable for use in harsh environments?
A10: Yes, the AO920B is designed for use in industrial environments, with its robust polycarbonate housing and protection features ensuring reliable performance even in challenging conditions.
