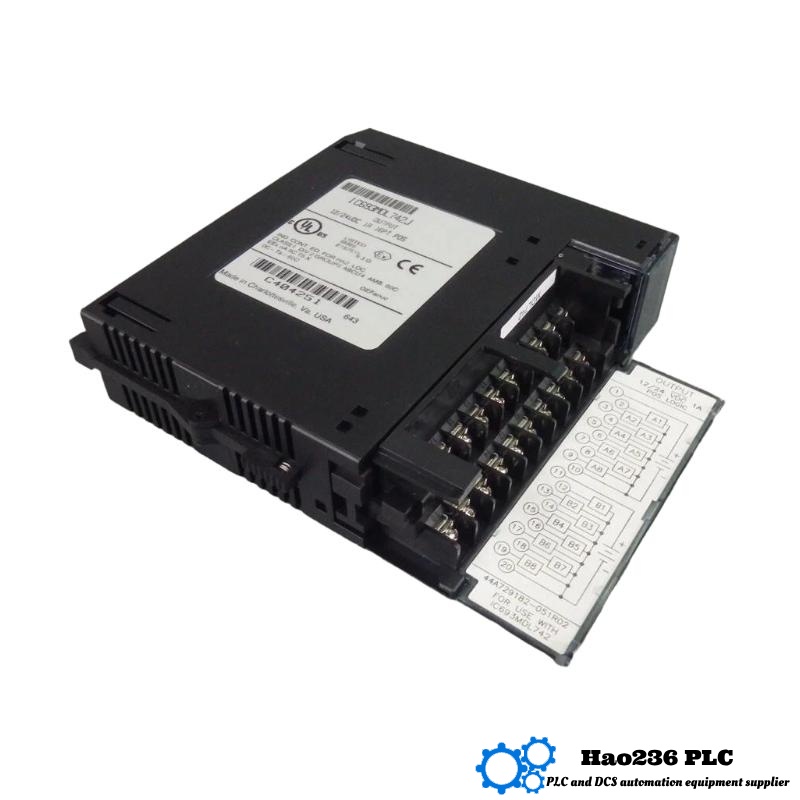

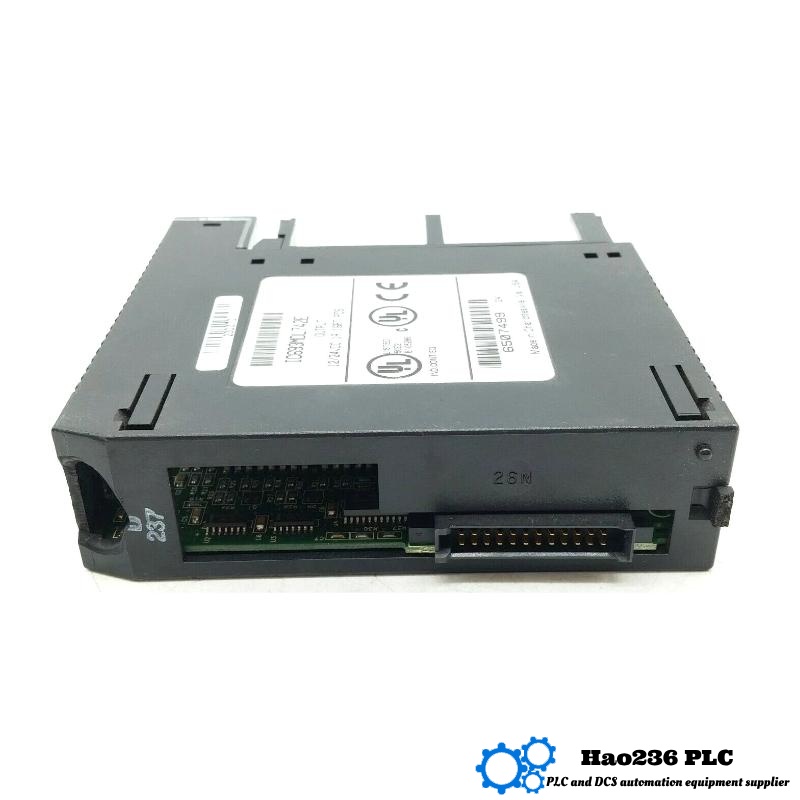

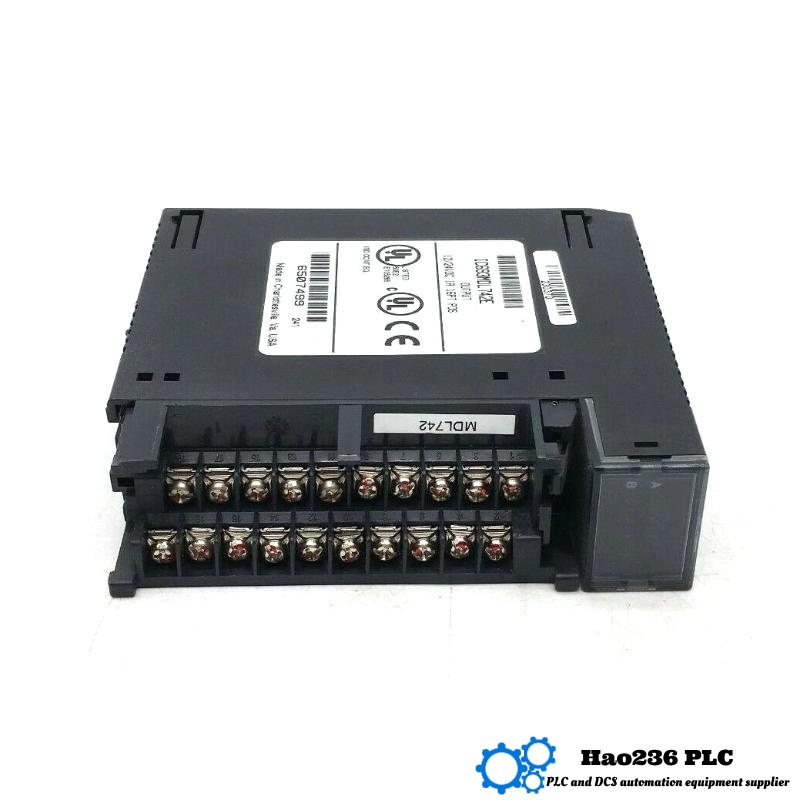

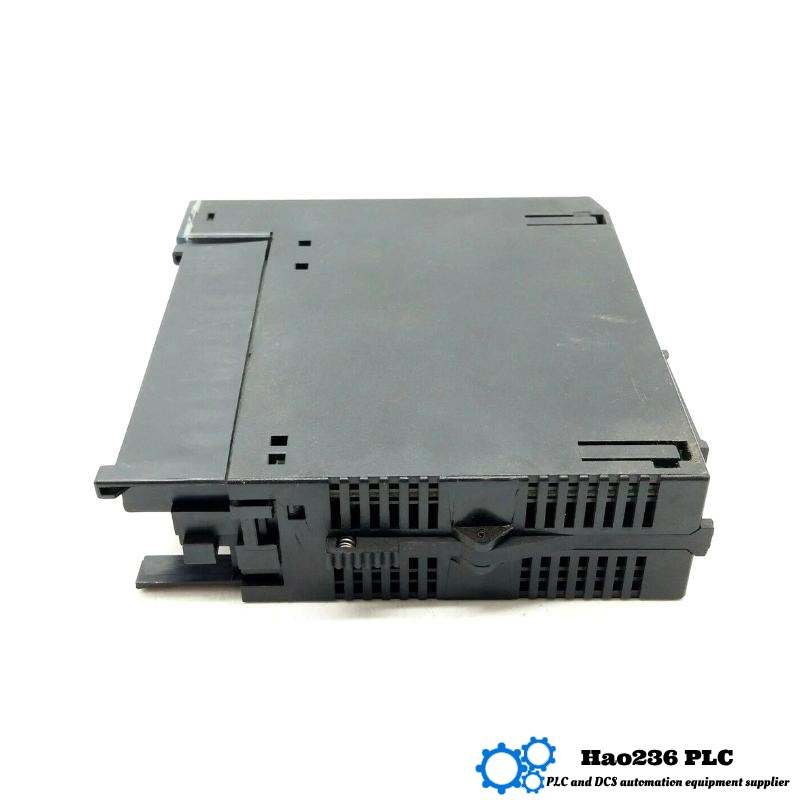

GE IC693MDL742 Positive/Negative Logic Output Module

Product Introduction:

The GE IC693MDL742 is a high-performance, reliable positive/negative logic output module designed for use in industrial control systems, particularly those utilizing GE’s PLC platforms. This module is engineered to handle the demanding requirements of both positive and negative logic applications, making it ideal for a wide range of automation tasks, from basic control functions to complex industrial processes.

The IC693MDL742 module provides 16 output points that can be configured to operate with either positive logic (active high) or negative logic (active low). This flexibility makes it a versatile component in control systems that need to interface with different types of devices, such as relays, solenoids, and other output-driven devices. The module is designed to ensure long-lasting, stable performance in environments where reliability and precision are essential.

Product Parameters:

The following table summarizes the key technical specifications of the GE IC693MDL742 Positive/Negative Logic Output Module:

Product Applications:

The IC693MDL742 is commonly used in industries where robust and versatile I/O capabilities are required. Its applications include:

1. Industrial Automation: Used in controlling various industrial machinery, the module supports the operation of relays, actuators, and valves, enabling precise control in manufacturing systems.

2. Process Control: The IC693MDL742 is ideal for process control applications, ensuring outputs respond accurately to input signals from sensors or control devices.

3. Energy Management: It helps in controlling power equipment, managing lighting, heating, and air conditioning systems in buildings, optimizing energy usage.

4. Automated Production Lines: The module supports automated systems in production lines, particularly in switching and controlling the actuators in robotics, conveyors, or material handling systems.

5. Water Treatment and Environmental Control: It is widely used in water and wastewater treatment systems, controlling pumps, valves, and monitoring sensors.

Product Advantages:

1. Flexible Logic Configuration: With the ability to support both positive and negative logic output, the IC693MDL742 offers greater flexibility in various industrial control scenarios.

2. High Isolation Capacity: The module is designed with a high level of isolation (1500 V RMS), ensuring that electrical faults or surges on the output side do not affect the control system.

3. Reliable Performance: The IC693MDL742 is engineered for high reliability, offering stable performance even in challenging industrial environments with extreme temperatures ranging from -20°C to 60°C.

4. Space-Efficient: Compact dimensions (118 x 33 x 89 mm) and lightweight design (0.2 kg) make the module easy to install and integrate into existing systems without taking up much space.

5. Ease of Installation: As a rack-mounted module designed for GE PLC systems, installation is straightforward and quick, reducing downtime and ensuring smooth operations.

6. High Output Capability: Each of the 16 output points can handle a maximum current of 0.5 A, making the module suitable for controlling a wide range of output devices such as solenoids, relays, and motors.

Brand: GE (General Electric)

General Electric (GE) is a global leader in industrial automation, providing advanced solutions for control, monitoring, and power management across various industries. GE’s PLC systems, including their modules like the IC693MDL742, are recognized for their reliability, flexibility, and performance, enabling efficient and safe automation in everything from manufacturing to energy systems.
