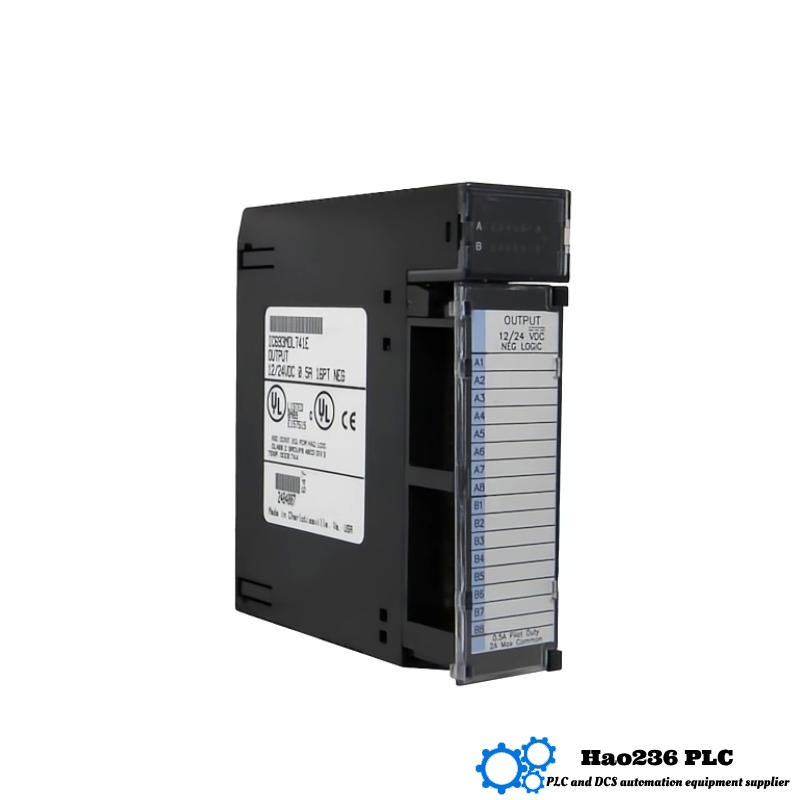

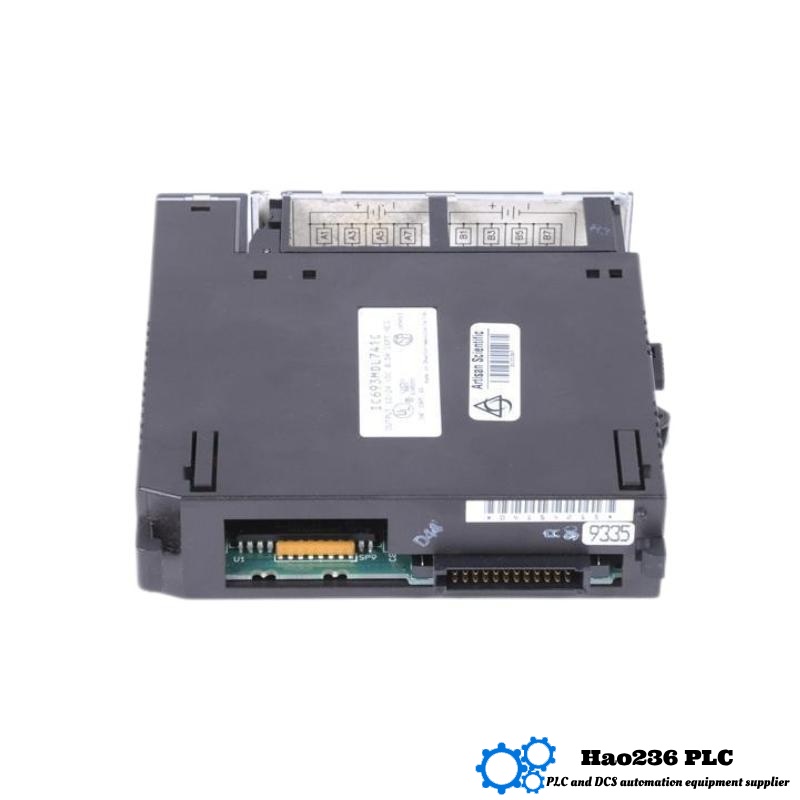

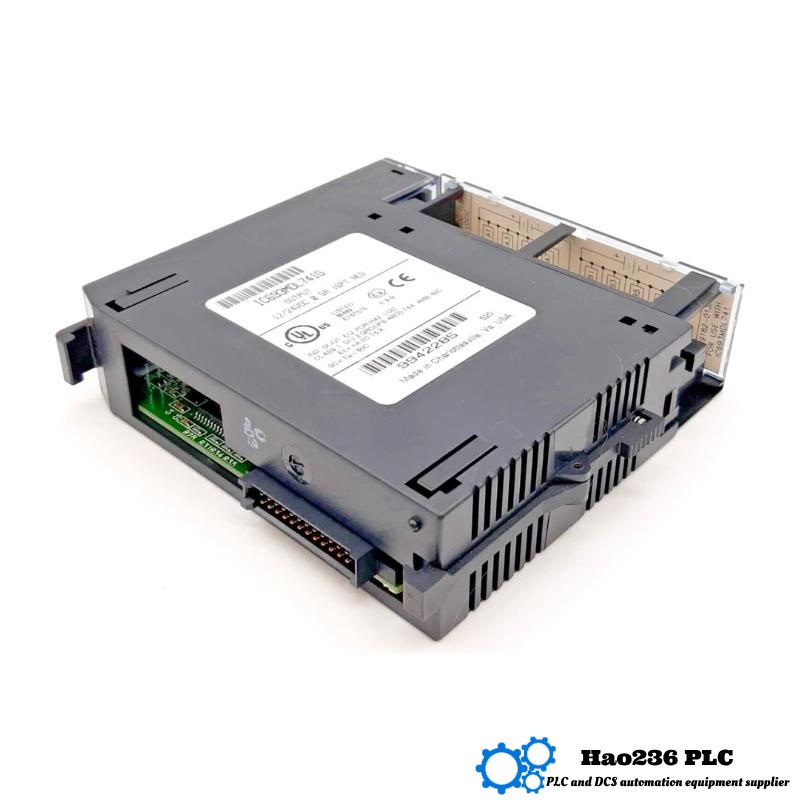

GE IC693MDL741 — 12/24 V DC Sinking Output Module (0.5 A)
Product Introduction
The GE IC693MDL741 is a high-performance 12/24 V DC sinking (negative logic) output module designed for the GE Fanuc 90-30 Series PLC platform. This module is engineered to provide reliable and precise control of low-current DC loads with a maximum output current of 0.5 A per channel. The module supports 16 discrete outputs, making it an ideal choice for controlling actuators, indicators, and low power devices in automation systems.
Constructed for industrial environments, the IC693MDL741 offers compact dimensions of 150 × 100 × 70 mm and weighs approximately 0.4 kg, facilitating easy installation in control cabinets with limited space. The module features built-in diagnostics and fault detection, enhancing system reliability and reducing maintenance time.
The IC693MDL741 is part of the well-established GE Fanuc 90-30 Series, widely recognized for its robustness, scalability, and integration flexibility across various industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC693MDL741 |
| Module Type | DC Output Module (Sinking, Negative Logic) |
| Output Voltage | 12/24 V DC |
| Output Current per Channel | 0.5 A |
| Number of Outputs | 16 outputs |
| Logic Type | Negative Logic (Sinking) |
| Dimensions (W x H x D) | 150 × 100 × 70 mm |
| Weight | 0.4 kg |
| Power Supply | 5 V DC (from backplane) |
| Isolation | Optical isolation between outputs and logic circuits |
| Operating Temperature Range | 0 °C to 60 °C |
| Storage Temperature Range | -40 °C to 85 °C |
| Certifications | UL, CE, CSA |
| Mounting | DIN rail or rack mount |
Product Applications
-
Industrial Automation: Controlling small DC actuators, solenoids, and indicator lights in manufacturing lines.
-
Process Control: Driving low-power devices in chemical, pharmaceutical, and food & beverage industries.
-
Material Handling: Operating conveyor belts, gates, and small motors in warehousing and logistics.
-
Building Automation: Managing lighting control systems and HVAC components requiring DC outputs.
-
Energy Systems: Control of monitoring devices and auxiliary equipment in power plants and substations.
Product Advantages
-
Compact and Lightweight: Small size and low weight ease integration in existing control panels.
-
Reliable Negative Logic Outputs: Sinking outputs minimize noise interference and provide safe wiring configurations.
-
Comprehensive Diagnostics: Module-level fault detection for faster troubleshooting and improved uptime.
-
Standardized Integration: Seamless compatibility with the 90-30 series ensures easy replacement and system expansion.
-
Low Power Consumption: Efficient design reduces overall system energy use.
-
Robust Industrial Grade: Designed for harsh industrial environments with wide operating temperature and robust certifications.
-
Flexible Mounting Options: Supports both DIN rail and rack mounting for installation convenience.
Brand and Series Information
-
Brand: GE (General Electric)
-
Series: Fanuc 90-30 Series
The 90-30 series is a reliable and proven family of automation modules that provide versatile and scalable solutions for industrial control systems worldwide.
Recommended Models from the 90-30 Series (Related or Same Series)
| Model Number | Description | Output Type | Number of Outputs | Dimensions (mm) | Weight (kg) | Notes |
|---|---|---|---|---|---|---|
| IC693MDL742 | 12/24 V DC Sourcing Output Module | Sourcing (Positive) | 16 | 150 × 100 × 70 | 0.4 | Complementary module to IC693MDL741 |
| IC693MDL940 | AC Relay Output Module | Relay | 8 | 150 × 100 × 70 | 0.5 | For AC output switching |
| IC693MDL740 | DC Sinking Output Module | Sinking | 16 | 150 × 100 × 70 | 0.4 | Higher current rating |
| IC693MDL730 | Digital Input Module | NPN/PNP inputs | 16 | 150 × 100 × 70 | 0.4 | Compatible input module |
| IC693MDL741-C | DC Sinking Output Module (Enhanced) | Sinking | 16 | 150 × 100 × 70 | 0.4 | Enhanced diagnostics and features |
Popular GE Fanuc Models
| Model Number | Description | I/O Type | Number of I/O | Dimensions (mm) | Weight (kg) | Notes |
|---|---|---|---|---|---|---|
| IC693CPU312 | CPU Processor Module | CPU | N/A | 180 × 130 × 110 | 1.1 | High performance processor |
| IC693MDL940 | AC Relay Output Module | Relay Output | 8 | 150 × 100 × 70 | 0.5 | Used widely for switching AC loads |
| IC693MDL730 | Digital Input Module | Digital Input | 16 | 150 × 100 × 70 | 0.4 | Standard digital input module |
| IC693MDL742 | DC Sourcing Output Module | Sourcing Output | 16 | 150 × 100 × 70 | 0.4 | Companion to sinking output module |
| IC693ALG220 | Analog Input Module | Analog Input | 8 channels | 150 × 100 × 70 | 0.6 | For analog sensor inputs |
Frequently Asked Questions (FAQ)
Q1: What are the dimensions and weight of the IC693MDL741?
A1: The module measures 150 × 100 × 70 mm and weighs approximately 0.4 kg.
Q2: What type of output logic does the IC693MDL741 use?
A2: It uses sinking (negative logic) outputs for controlling DC loads.
Q3: What is the maximum current output per channel?
A3: Each output channel can handle up to 0.5 A.
Q4: How many discrete outputs does the module provide?
A4: The module provides 16 discrete output channels.
Q5: Is the IC693MDL741 compatible with other 90-30 series modules?
A5: Yes, it is fully compatible and designed to integrate seamlessly with the 90-30 series platform.
Q6: What is the operating temperature range?
A6: The module operates within 0 °C to 60 °C.
Q7: Can this module be mounted on a DIN rail?
A7: Yes, it supports both DIN rail and rack mounting options.
Q8: Does the IC693MDL741 have built-in diagnostics?
A8: Yes, it includes fault detection and diagnostic features to facilitate maintenance.
Q9: What power supply does the module require?
A9: It draws 5 V DC power from the backplane.
Q10: What industries commonly use this module?
A10: It is widely used in manufacturing, process control, building automation, and energy sectors.
