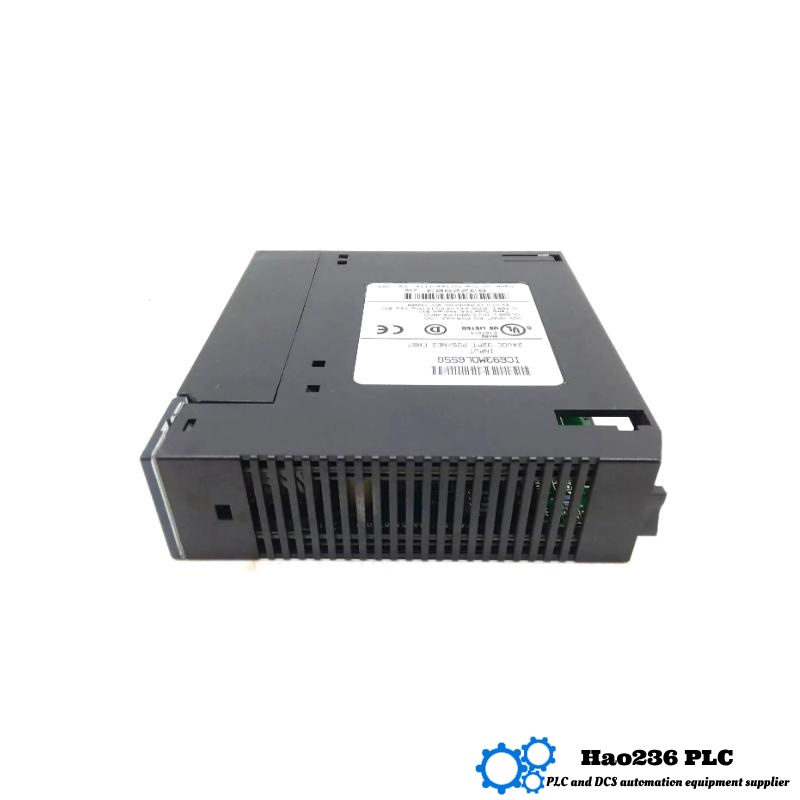

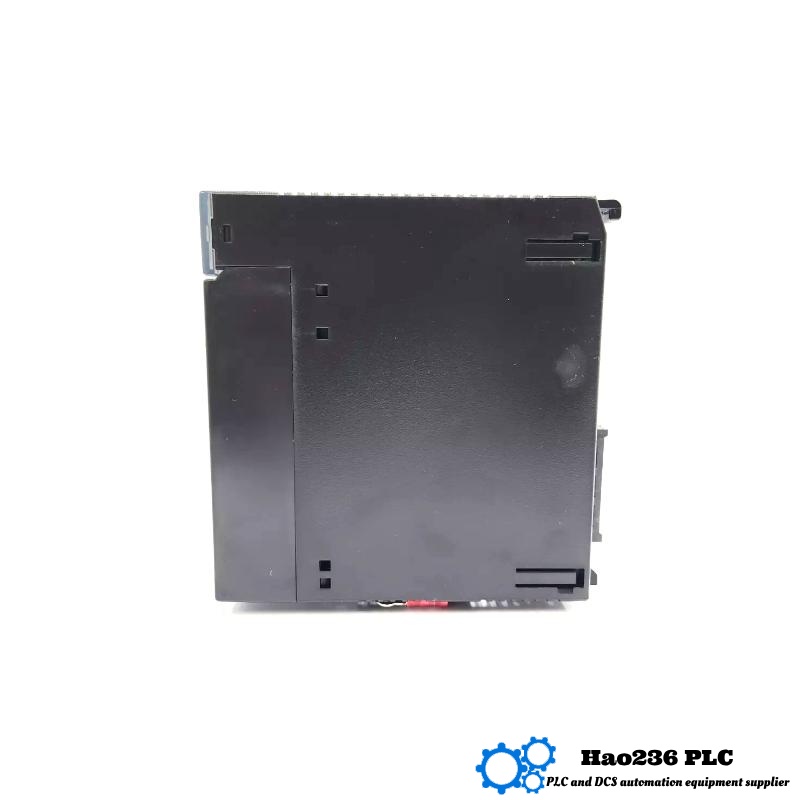

GE IC693MDL655 Positive/Negative Logic Input Module
Product Introduction
The GE IC693MDL655 is a positive/negative logic input module designed for use in GE 90-30 PLC systems. It offers 16 discrete inputs and can be configured to operate in either positive logic (sinking) or negative logic (sourcing). This versatility allows it to be used with a wide variety of industrial sensors, switches, and other input devices.
Operating on 24 VDC input voltage, the IC693MDL655 is built to be integrated easily into complex control systems, offering a reliable interface for gathering input signals from various field devices. The module’s compact design and efficient performance make it suitable for use in industrial automation and control systems where real-time signal processing is crucial.
As a part of the GE 90-30 series, the IC693MDL655 supports various applications in industries like automated manufacturing, process control, and machine control, delivering high reliability in demanding environments.
Applications
The GE IC693MDL655 input module is used in a range of industrial applications where digital inputs need to be received from devices such as sensors, switches, or relays. Typical use cases include:
-
Automated Manufacturing: Collecting signals from equipment like conveyor belts, presses, and robotic arms.
-
Process Control: Monitoring inputs from temperature, pressure, and flow sensors.
-
Machine Control: Interfacing with machines to ensure they are operating within specified conditions.
-
Energy Management: Gathering signals from devices such as energy meters and control switches in energy systems.
-
Building Automation: Integrating with HVAC, lighting control, and other building management systems to automate operations.
Advantages
-
Flexible Logic Configuration: The IC693MDL655 supports both positive and negative logic, which allows it to interface with a wide variety of devices.
-
High Input Density: The module features 16 discrete inputs, ideal for applications requiring numerous input channels in a compact form.
-
Compact Design: With its small size, it fits easily into control panels or enclosures with limited space.
-
Industrial-Grade Durability: Built to withstand the rigors of industrial environments, ensuring long-term, reliable operation.
-
Fast Response: With a 1ms response time, the module is well-suited for high-speed input signal processing.
-
Ease of Integration: Designed to be easily installed in GE 90-30 PLC racks, ensuring smooth integration into existing systems.
Brand Information
-
Brand: GE Fanuc (now part of Emerson)
-
Product Type: Positive/Negative Logic Input Module
-
Series: GE 90-30 Series
-
Certification: UL, CE, CSA
-
Functionality: Designed for handling 24 VDC digital inputs from various field devices
-
Target Applications: Industrial automation, process control, machine control, and more
Parameters (GE IC693MDL655)
| Parameter | Value |
|---|---|
| Module Type | Positive/Negative Logic Input Module |
| Dimensions (WxHxD) | 128 x 55 x 105 mm |
| Weight | 0.281 kg |
| Input Voltage | 24 VDC |
| Input Type | 16 Discrete Inputs |
| Input Configuration | Sinking or Sourcing |
| Operating Temperature Range | -20°C to +60°C |
| Mounting | Rack-mountable (90-30 Series) |
| Input Current | 5-10 mA per input |
| Response Time | 1ms |
| Certification | UL, CE, CSA |
Recommended Models
5 Models from the Same Series or Related:
| Model | Type | Dimensions (WxHxD) | Weight | Input Type | Input Voltage |
|---|---|---|---|---|---|
| IC693MDL654 | Discrete Input Module | 142 x 30 x 130 mm | 0.58 kg | 16 Inputs, Positive Logic | 24 VDC |
| IC693MDL653 | Discrete Input Module | 142 x 30 x 130 mm | 0.58 kg | 16 Inputs, Negative Logic | 24 VDC |
| IC693MDL652 | Discrete Input Module | 142 x 30 x 130 mm | 0.56 kg | 16 Inputs, Negative Logic | 24 VDC |
| IC693MDL641 | Discrete Input Module | 142 x 30 x 130 mm | 0.58 kg | 8 Inputs, Positive Logic | 24 VDC |
| IC693MDL650 | Discrete Input Module | 142 x 30 x 130 mm | 0.57 kg | 16 Inputs, Sinking | 24 VDC |
5 Popular GE Models
| Model | Type | Dimensions (WxHxD) | Weight | Input Type | Input Voltage |
|---|---|---|---|---|---|
| IC693MDL756 | Discrete Output Module | 142 x 30 x 130 mm | 0.62 kg | 16 Outputs, Sinking | 24 VDC |
| IC693MDL740 | Discrete Output Module | 142 x 30 x 130 mm | 0.61 kg | 8 Outputs, Sourcing | 24 VDC |
| IC693MDL755 | Discrete Output Module | 142 x 30 x 130 mm | 0.63 kg | 16 Outputs, Sourcing | 24 VDC |
| IC693PSA350 | Power Supply | 142 x 30 x 130 mm | 1.2 kg | – | 120/240 VAC |
| IC693CPU363 | PLC CPU Module | 142 x 30 x 130 mm | 1.8 kg | – | 24 VDC |
FAQ (Frequently Asked Questions)
Q1: What is the GE IC693MDL655 module used for?
A1: The IC693MDL655 module is a positive/negative logic input module used in GE 90-30 PLC systems to handle signals from devices like sensors, switches, and relays.
Q2: What voltage does the IC693MDL655 module operate on?
A2: The IC693MDL655 module operates on a 24 VDC input signal, which is standard for many industrial automation devices.
Q3: How many inputs does the IC693MDL655 module have?
A3: The module provides 16 discrete inputs, which can be configured for either positive logic (sinking) or negative logic (sourcing).
Q4: What is the operating temperature range of the IC693MDL655 module?
A4: The IC693MDL655 module operates within the temperature range of -20°C to +60°C, making it suitable for a wide range of industrial environments.
Q5: Can the module be configured for both positive and negative logic?
A5: Yes, the IC693MDL655 module can be configured for either positive logic (sinking) or negative logic (sourcing) input configurations.
Q6: What is the response time of the IC693MDL655 module?
A6: The IC693MDL655 module has a fast response time of 1ms, making it ideal for real-time signal processing.
Q7: Is the IC693MDL655 module UL certified?
A7: Yes, the IC693MDL655 module is certified by UL, CE, and CSA, ensuring it meets industry standards for safety and performance.
Q8: How is the IC693MDL655 module mounted?
A8: The module is designed to be mounted on a rack as part of the GE 90-30 PLC system.
Q9: What is the weight of the IC693MDL655 module?
A9: The IC693MDL655 module weighs approximately 0.281 kg, making it compact and lightweight.
Q10: What type of devices can the IC693MDL655 module interface with?
A10: The module can interface with sensors, switches, and relays, enabling it to collect digital signals from various field devices in industrial automation systems.
