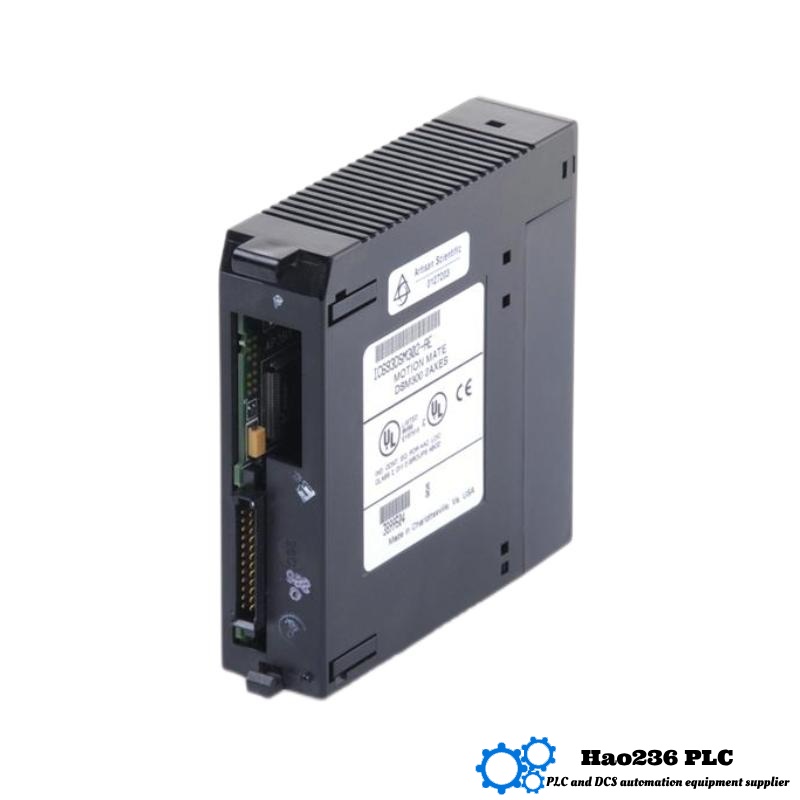

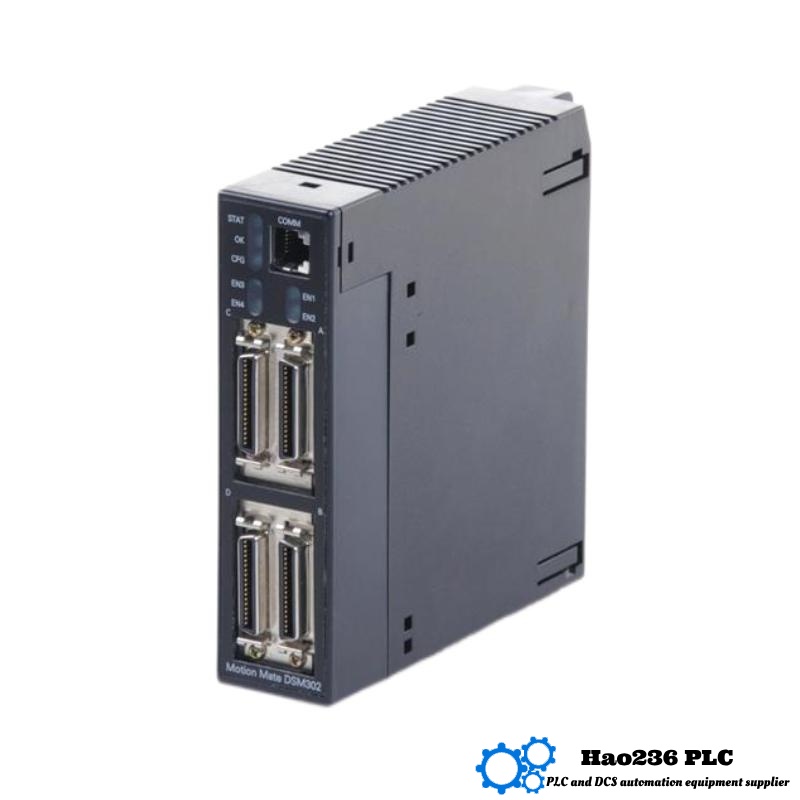

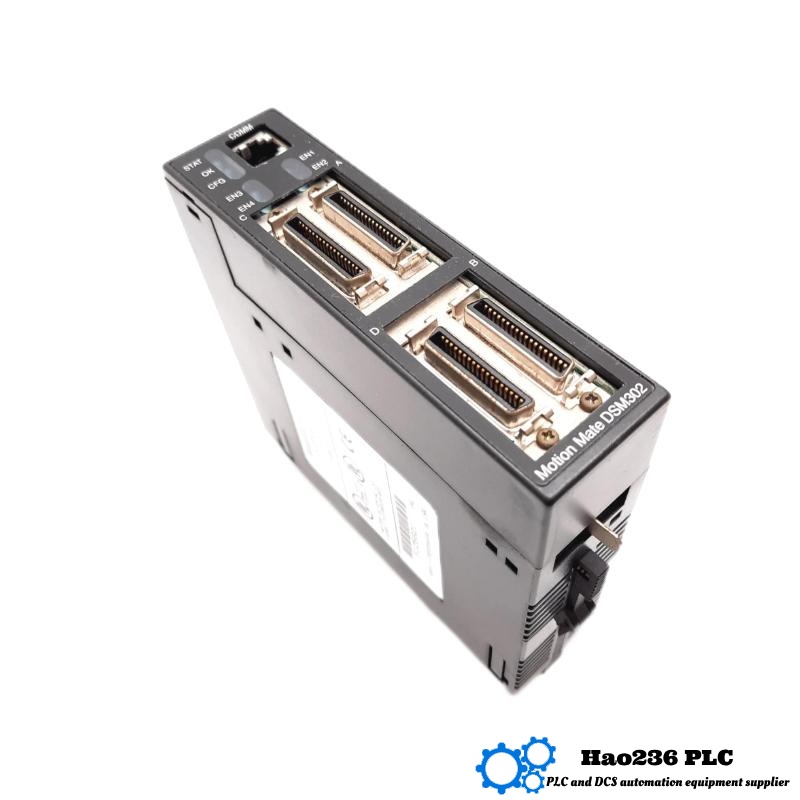

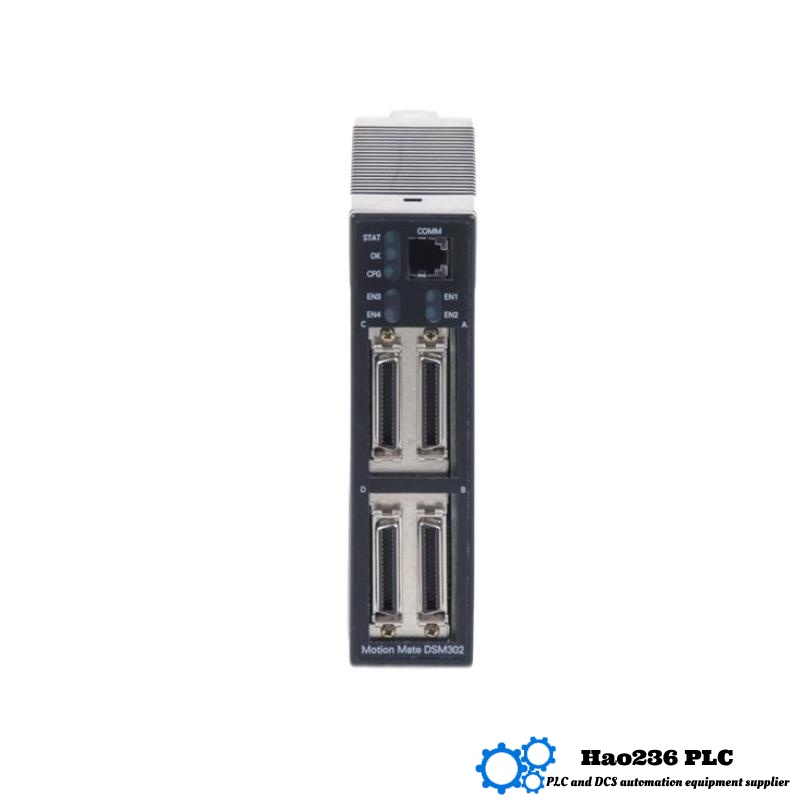

GE IC693DSM302 Dual-Axis Motion Control Module
Product Overview
The GE IC693DSM302 is a highly capable Dual-Axis Motion Control Module designed for the 90-30 series PLCs. It offers precise motion control for two independent axes, making it ideal for applications requiring accurate positioning, speed control, and synchronization. The module provides comprehensive motion control functionalities, including point-to-point positioning, velocity profiling, and electronic gearing.
With its robust construction and advanced features, the IC693DSM302 is engineered to handle demanding industrial environments while maintaining precise control over servo and stepper motors. It supports multiple control modes and integrates seamlessly with other GE automation systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 100 x 38 x 80 mm |
| Weight | 0.39 kg |
| Number of Axes | 2 |
| Input Power | 24V DC |
| Communication | Serial RS-232/RS-485 |
| Control Modes | Position, Velocity, Torque |
| Feedback Types | Encoder, Resolver, Pulse |
| Data Transfer Rate | Up to 500 Kbps |
| Operating Temperature | 0°C to 60°C |
| Diagnostics | LED status indicators for each axis |
Product Applications
- Packaging Systems: Provides accurate control for synchronized motion in packaging machinery, ensuring precise placement and handling of products.
- Robotics: Facilitates smooth motion control for robotic arms, enabling coordinated movements in automated assembly lines.
- CNC Machines: Supports precise axis control for milling, drilling, and cutting applications, enhancing production quality and repeatability.
- Material Handling: Enables precise conveyor belt control, optimizing product flow and minimizing material damage.
- Printing and Labeling Machines: Maintains accurate registration and positioning during high-speed printing and labeling processes.
Product Advantages
- Dual-Axis Control: Simultaneous control of two axes, ideal for multi-axis applications requiring synchronized movement.
- High Precision: Supports advanced control modes, ensuring precise positioning and velocity control.
- Compact Design: Measuring only 100 x 38 x 80 mm, it is space-efficient and easy to install in compact control panels.
- Flexible Feedback Options: Compatible with various feedback devices, including encoders and resolvers.
- Integrated Diagnostics: LED status indicators for real-time monitoring and fault detection.
Brand
- Brand: GE (General Electric)
- Series: 90-30 Series
GE is a global leader in industrial automation and control systems, known for its reliable and innovative products. The 90-30 series PLCs and related modules, such as the IC693DSM302, are widely used in diverse industrial sectors for motion control, data acquisition, and process automation.
Related Models (Same Series or Related Models)
| Model Number | Description | Key Parameters |
| IC693DSM324 | Quad-Axis Motion Control | 4 Axes, 24V DC, RS-232/RS-485 |
| IC693DNM200 | DeviceNet Master Module | 24V DC, 500 Kbps |
| IC693DNB106 | DeviceNet I/O Module | 24V DC, 8 Channels |
| IC693PWR330 | Power Supply Module | 5V DC, 10A |
| IC693ALG221 | Analog I/O Module | 24V DC, 16 Channels |
Popular GE Models
| Model Number | Description | Key Parameters |
| IC693CMM321 | Comm Processor Module | Ethernet, 10/100 Mbps |
| IC693CMM342 | Ethernet Comm Module | 100 Mbps, Modbus |
| IC693PWR330 | Power Supply Module | 5V DC, 10A |
| IC693LDS531 | Digital Output Module | 24V DC, 16 Channels |
| IC693ALG221 | Analog I/O Module | 24V DC, 16 Channels |
FAQ (10 Questions and Answers)
Q1: What is the maximum number of axes supported by the IC693DSM302?
A1: The IC693DSM302 supports up to two independent axes for motion control.
Q2: What is the weight of the IC693DSM302 module?
A2: The weight is 0.39 kg.
Q3: What types of feedback devices can be connected to the IC693DSM302?
A3: The module is compatible with encoders, resolvers, and pulse devices.
Q4: What is the communication protocol used by the IC693DSM302?
A4: The module communicates via RS-232/RS-485 serial interfaces.
Q5: Can the IC693DSM302 be used in CNC machines?
A5: Yes, it is ideal for CNC applications requiring precise positioning and velocity control.
Q6: Is there diagnostic functionality in the IC693DSM302?
A6: Yes, the module has LED indicators for each axis, providing real-time diagnostic feedback.
Q7: What is the operating temperature range?
A7: The module operates between 0°C and 60°C.
Q8: Does the IC693DSM302 require an external power supply?
A8: Yes, it requires a 24V DC power supply.
Q9: Can the IC693DSM302 be used with other GE PLCs?
A9: Yes, it is compatible with other modules in the 90-30 series.
Q10: How is the module mounted?
A10: It is designed for DIN rail mounting, making installation easy and secure.
