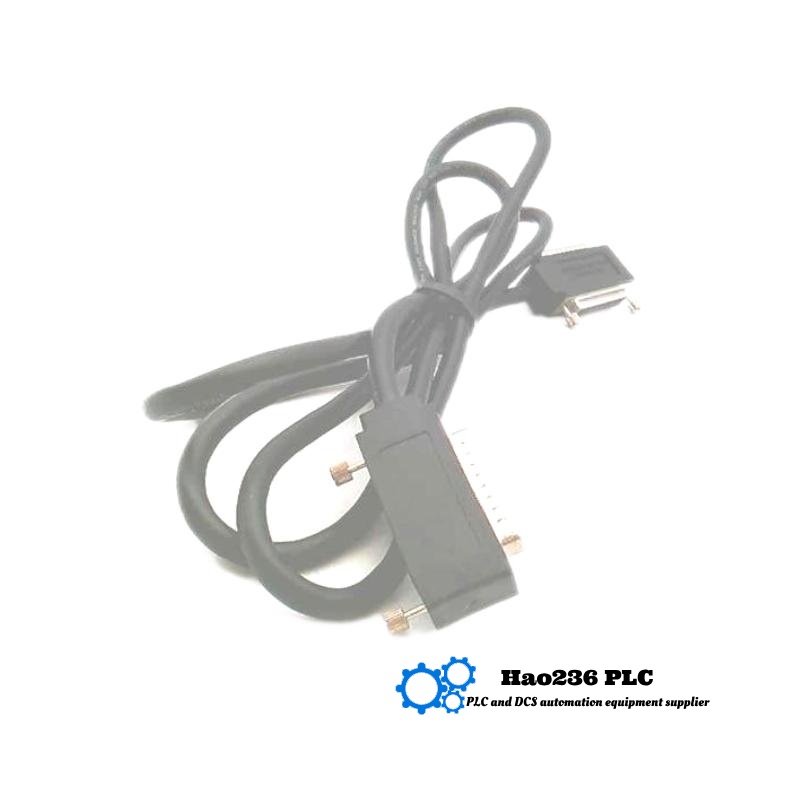

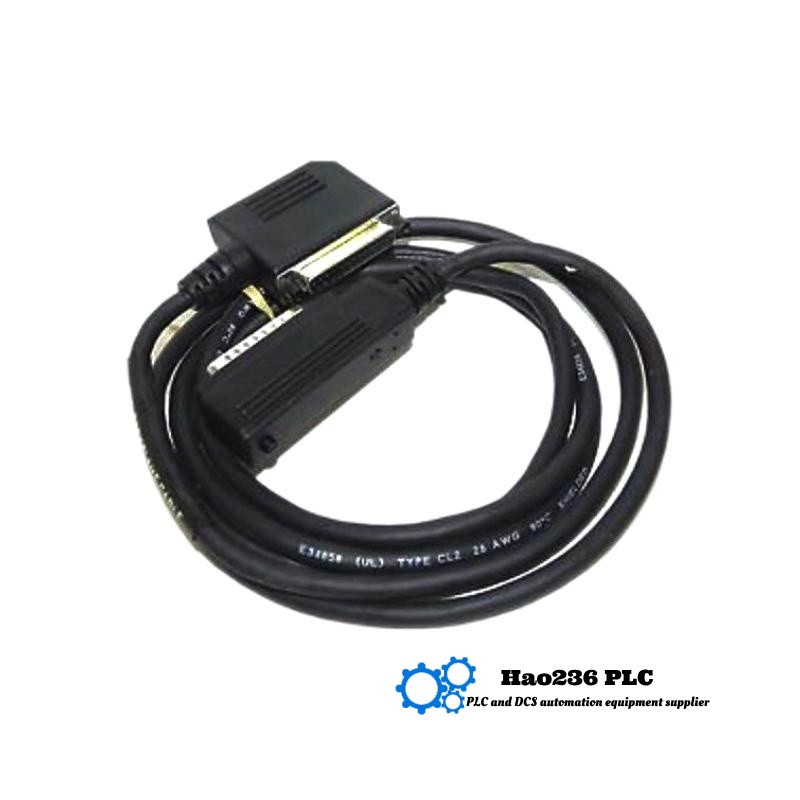

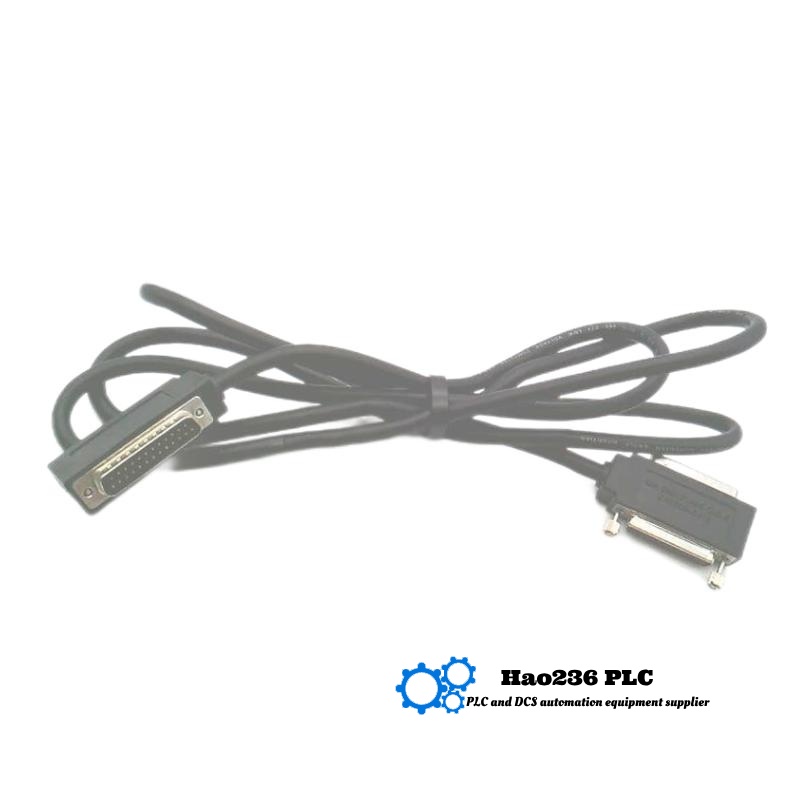

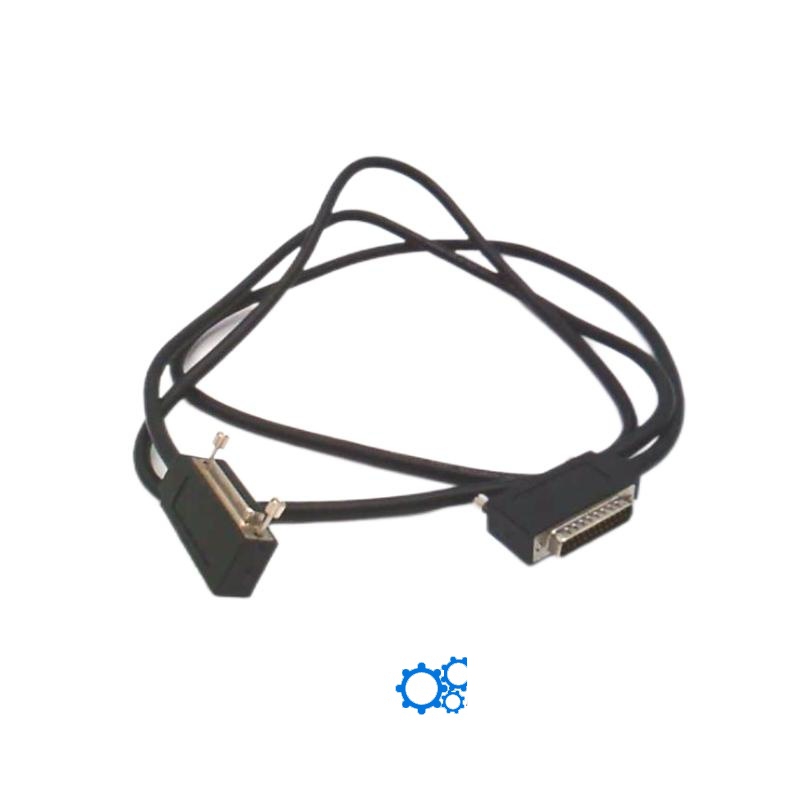

GE IC693CBL301 I/O Bus Extension Cable
Product Introduction
The GE IC693CBL301 is a 2-meter I/O bus extension cable designed specifically for the 90-30 series PLC systems. This cable allows for flexible system configurations by extending the I/O bus, enabling remote placement of I/O racks from the CPU rack, which is essential for complex control systems and large installations. With a rugged build and high-speed data transmission, the IC693CBL301 ensures reliability and performance in industrial environments.
Product Parameters
| Parameter | Details |
|---|---|
| Cable Length | 2 meters |
| Weight | 0.25 kg |
| Conductor | 24 AWG, stranded copper |
| Number of Conductors | 20 |
| Shielding | Tin-plated copper braid |
| Connector Type | 20-pin DIN connector |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Maximum Data Rate | 1 Mbaud |
| Jacket Material | PVC, oil-resistant |
Applications
The IC693CBL301 is designed to extend the I/O bus of a GE 90-30 PLC by 2 meters, providing flexibility for I/O module placement in large systems.
This cable is typically used in industrial automation systems, including manufacturing plants, machine control panels, and process control applications where I/O racks need to be located at a distance from the CPU.
It is ideal for modular and distributed control systems, where multiple racks need to be interconnected for controlling large machines or processes such as conveyors, pumps, motors, and more.
The cable is also well-suited for OEM machinery, automated assembly lines, packaging systems, and other applications that require flexible and reliable I/O configurations.
Advantages
The GE IC693CBL301 cable provides the following advantages:
-
Enhanced Flexibility: With a 2-meter length, it offers greater distance flexibility between the CPU and remote I/O racks, allowing for flexible machine layouts and control system design.
-
Robust Design: The tin-plated copper braid ensures effective EMI/RFI protection, making it ideal for noisy factory environments.
-
Industrial-Grade Materials: The PVC jacket is resistant to oils, chemicals, and environmental factors, ensuring durability and long service life.
-
Standardized Connectivity: The 20-pin DIN connectors ensure a secure, reliable connection to the 90-30 I/O racks, supporting simple, tool-free installation.
-
High-Speed Data Transmission: With a data rate of up to 1 Mbaud, the cable supports high-speed communication without data loss or interference.
Brand Information
Brand: GE Fanuc (now part of Emerson Automation) is a global leader in industrial automation and control solutions. GE Fanuc’s 90-30 series PLC has been a preferred choice for industrial control systems for over two decades due to its reliability, flexibility, and ease of use.
90-30 Series
The 90-30 series is a modular PLC platform that includes CPUs, I/O modules, communication modules, and other accessories. It is known for its robustness and scalability in industrial environments. The series is suitable for a wide range of applications from simple control systems to complex automation solutions, offering flexible system configurations.
Recommended Models (Same Series or Related)
| Model | Description | Cable Length | Weight | Notes |
|---|---|---|---|---|
| IC693CBL304 | I/O Bus Extension Cable | 4 meters | 0.45 kg | Extended reach for larger setups |
| IC693CBL306 | I/O Bus Extension Cable | 6 meters | 0.68 kg | Suitable for large control panels |
| IC693CBL310 | I/O Bus Extension Cable | 10 meters | 1.13 kg | Maximum reach for large systems |
| IC693CBL305 | I/O Bus Extension Cable with Lock | 5 meters | 0.57 kg | Screw-lock connectors for secure installation |
| IC693CBL320 | I/O Bus Extension Cable | 20 meters | 2.25 kg | Ideal for very large distances |
Recommended Models from GE
| Model | Description | Key Features | Applications |
|---|---|---|---|
| IC693CPU352 | 90-30 Series CPU Module | 16 MHz, 64 KB user memory, high speed | Machine control, process automation |
| IC693MDL745 | 16-Point Digital Input Module | 24 V DC inputs, LED status indicators | Discrete sensing, machine safety |
| IC693MDL740 | 16-Point Digital Output Module | 24 V DC outputs, 0.5 A per channel | Valve and relay control |
| IC693ALG223 | 8-Channel Analog Input Module | ±10 V/4–20 mA, 12-bit resolution | Process measurement, PID loops |
| IC693APU300 | Ethernet Communication Module | 10/100 Mbps, Modbus TCP, FTP | Networking, remote programming |
FAQ (Frequently Asked Questions)
-
Q: What is the function of the IC693CBL301?
A: The IC693CBL301 is an I/O bus extension cable that extends the I/O bus of a 90-30 PLC system, allowing for remote placement of I/O racks up to 2 meters away from the CPU rack. -
Q: Is the IC693CBL301 compatible with all 90-30 PLC I/O modules?
A: Yes, it is fully compatible with any standard 90-30 I/O racks using the 20-pin DIN connectors. -
Q: What is the maximum recommended length for the extension cable?
A: For the best performance, GE recommends using the IC693CBL301 cable for up to 2 meters; longer lengths can be achieved using IC693CBL304 or other extended cables. -
Q: Does the IC693CBL301 support high-speed data transfer?
A: Yes, the cable supports a data transfer rate of up to 1 Mbaud. -
Q: Can the cable be used in harsh industrial environments?
A: Yes, the cable is designed with industrial-grade PVC and tin-plated copper shielding to protect against EMI/RFI interference and environmental factors. -
Q: How are the connections secured?
A: The IC693CBL301 uses 20-pin DIN connectors that ensure secure, reliable connections between the CPU and remote I/O racks. -
Q: Is the cable resistant to oil and chemicals?
A: Yes, the PVC jacket is resistant to oils, chemicals, and other environmental factors commonly found in industrial settings. -
Q: Can the cable be installed without tools?
A: Yes, the 20-pin DIN connectors are designed for easy, tool-free installation into the I/O racks. -
Q: Does the cable comply with industry standards?
A: Yes, the IC693CBL301 complies with the necessary industrial standards for safe operation and performance. -
Q: Is the cable suitable for outdoor use?
A: The cable is primarily designed for indoor use in controlled industrial environments. For outdoor use, additional protection against UV rays and weather conditions is recommended.
