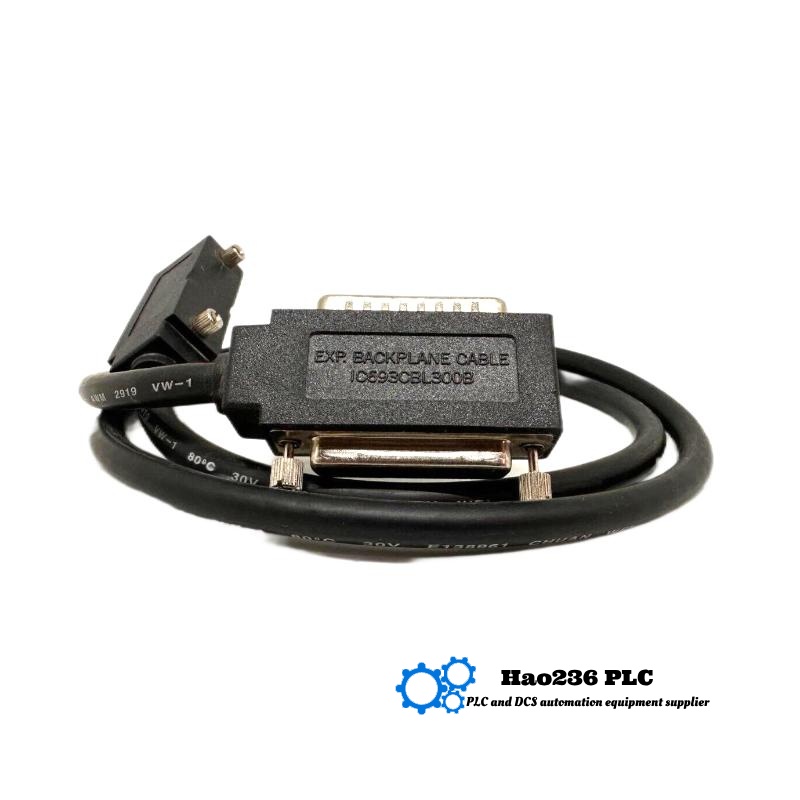

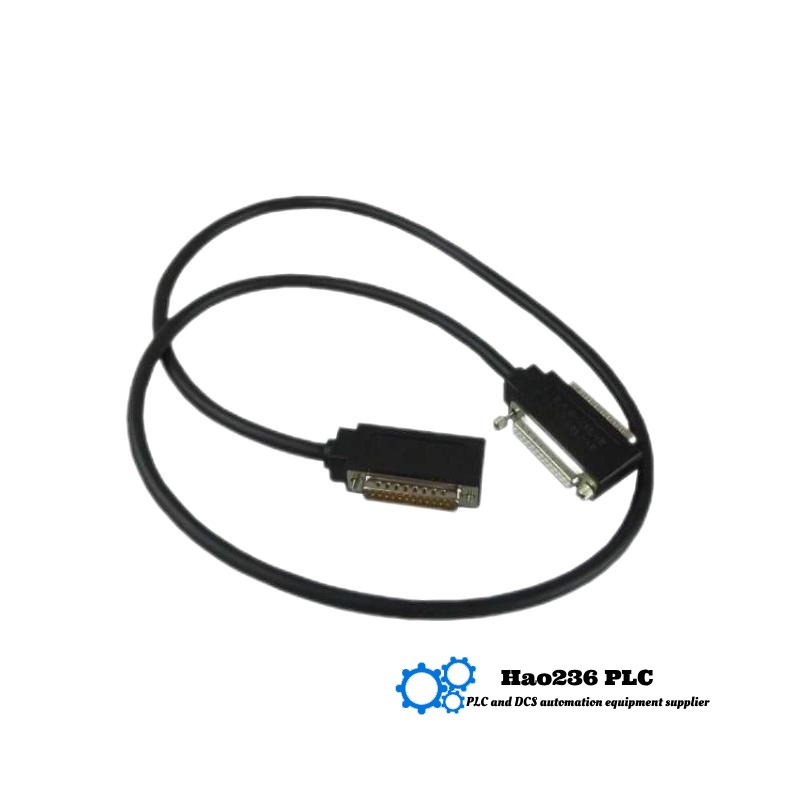

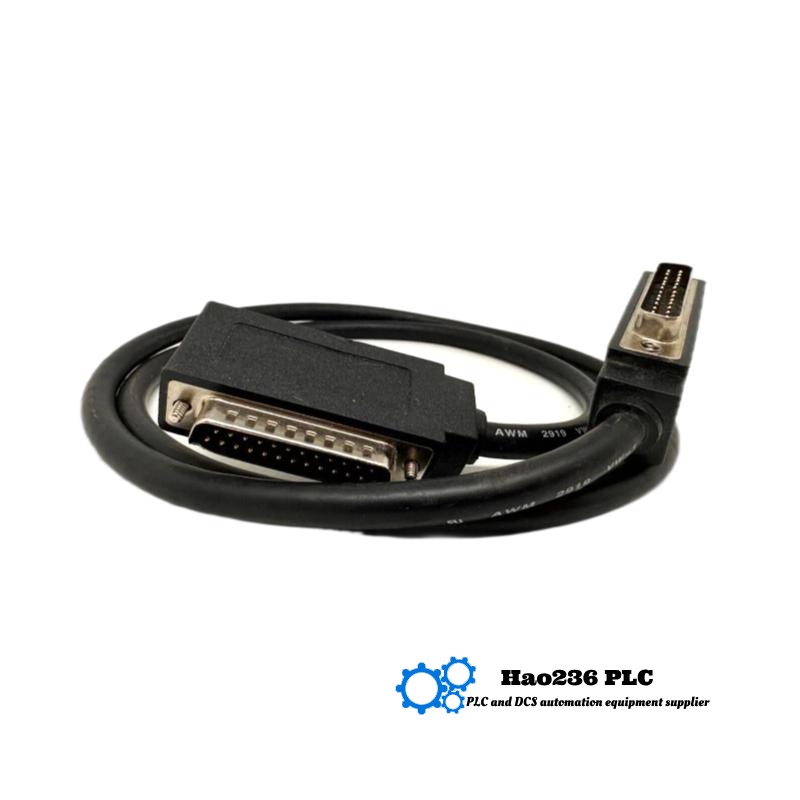

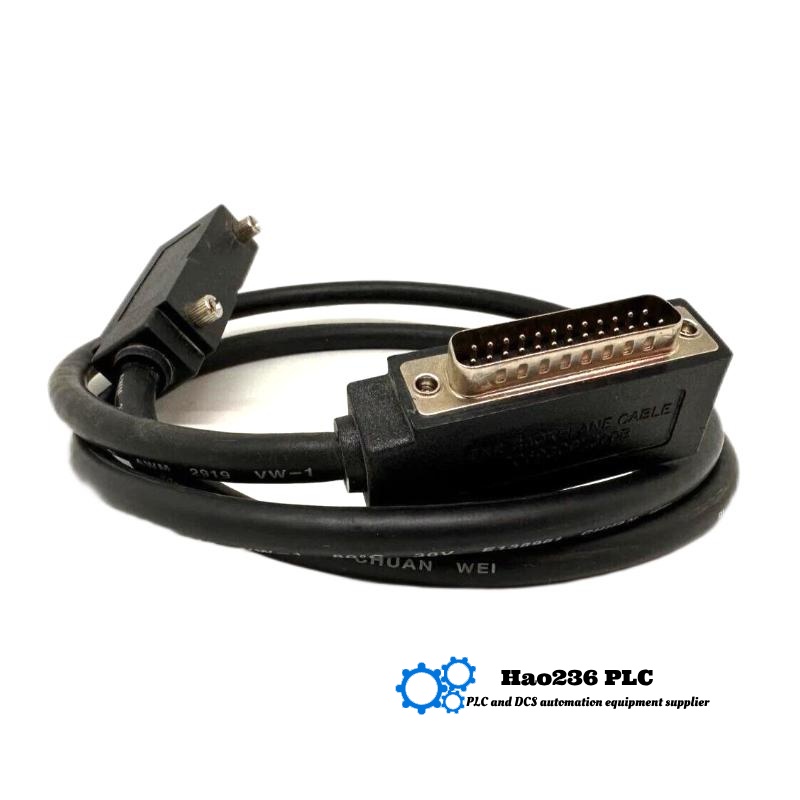

GE IC693CBL300 I/O Bus Extension Cable
Product Introduction
The GE IC693CBL300 is a 1 meter I/O bus extension cable designed for the 90-30 series of GE Fanuc PLCs. It provides reliable, high-speed communication between the CPU rack and remote I/O racks, enabling flexible system layouts and simplified wiring. Its rugged construction ensures long-term performance in industrial environments.
Product Parameters
| Parameter | Details |
|---|---|
| Cable Length | 1 meter |
| Weight | 0.113 kg |
| Conductor | 24 AWG, stranded copper |
| Number of Conductors | 20 |
| Shielding | Tin-plated copper braid |
| Connector Type | 20-pin DIN connector |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Maximum Data Rate | 1 Mbaud |
| Jacket Material | PVC, oil-resistant |
Applications
The IC693CBL300 cable is used to extend the I/O bus of 90-30 PLC systems, allowing remote I/O racks to be positioned up to 1 meter from the main CPU rack.
It is ideal for machine control panels, skid-mounted equipment, and modular production lines where rack spacing flexibility is required.
In process environments, it connects distributed I/O assemblies for temperature, pressure, and flow control loops.
It is also used in OEM machinery, packaging systems, and assembly stations to simplify wiring and reduce installation time.
Advantages
The IC693CBL300 offers low-loss, shielded transmission for noise immunity in electrically noisy factories.
Its 24 AWG stranded conductors provide flexibility and durability for repeated bend cycles.
Industrial-grade PVC jacket resists oil, coolant, and UV exposure, ensuring long service life.
Standard 20-pin DIN connectors allow tool-free rack installation and easy replacement.
Compatibility with all 90-30 series I/O modules ensures seamless integration into existing GE PLC systems.
Brand Information
Brand: GE Fanuc Automation (now Emerson – GE Automation Solutions) is a pioneer in programmable logic controllers and industrial automation. With decades of innovation in PLC hardware, software, and networking, GE’s 90-30 series remains a workhorse in manufacturing, energy, and process sectors.
90-30 Series
The 90-30 series is a modular PLC platform featuring high-performance CPUs, analog and digital I/O modules, communication modules, and specialty cards. Known for robustness and longevity, the series supports applications from simple machine control to complex process automation.
Recommended Models (Same Series or Related)
| Model | Description | Cable Length | Weight | Notes |
|---|---|---|---|---|
| IC693CBL304 | I/O Bus Extension Cable | 4 meters | 0.45 kg | Longer reach for remote racks |
| IC693CBL306 | I/O Bus Extension Cable | 6 meters | 0.68 kg | Ideal for larger cabinet spacing |
| IC693CBL310 | I/O Bus Extension Cable | 10 meters | 1.13 kg | Extended run lengths |
| IC693CBL320 | I/O Bus Extension Cable | 20 meters | 2.25 kg | Maximum recommended length |
| IC693CBL305 | I/O Bus Extension Cable with Lock | 5 meters | 0.57 kg | Screw-lock connectors for secure fit |
Recommended Models from GE
| Model | Description | Key Features | Applications |
|---|---|---|---|
| IC693CPU352 | 90-30 Series CPU Module | 16 MHz, 64 KB user memory, high speed | Machine control, process automation |
| IC693MDL745 | 16-Point Digital Input Module | 24 V DC inputs, LED status indicators | Discrete sensing, machine safety |
| IC693MDL740 | 16-Point Digital Output Module | 24 V DC outputs, 0.5 A per channel | Valve and relay control |
| IC693ALG223 | 8-Channel Analog Input Module | ±10 V/4–20 mA, 12-bit resolution | Process measurement, PID loops |
| IC693APU300 | Ethernet Communication Module | 10/100 Mbps, Modbus TCP, FTP | Networking, remote programming |
FAQ (Frequently Asked Questions)
-
Q: What is the purpose of the IC693CBL300 cable?
A: It extends the I/O bus of a 90-30 PLC rack up to 1 meter, enabling placement of remote I/O modules where needed. -
Q: Is the IC693CBL300 compatible with all 90-30 I/O racks?
A: Yes, it mates with any standard 90-30 bus backplane using the 20-pin DIN connector. -
Q: What environment can the cable operate in?
A: It operates from –20 °C to +70 °C and is rated for indoor industrial use. -
Q: How is the cable shielded?
A: A tin-plated copper braid over the conductors provides effective EMI/RFI protection. -
Q: Can longer cables be used?
A: For distances beyond 1 meter, GE recommends IC693CBL304 or longer lengths up to 20 meters. -
Q: How are the connectors secured?
A: Standard push-fit 20-pin DIN connectors latch into the rack backplane. -
Q: What maintenance does the cable require?
A: Periodic inspection for cuts or abrasions in the PVC jacket is recommended. -
Q: Does the cable support hot-swap of I/O modules?
A: Yes, remote I/O modules can be replaced without shutting down the CPU, provided safe-power procedures are followed. -
Q: What is the data rate over the cable?
A: The cable supports up to 1 Mbaud communication between CPU and I/O racks. -
Q: Is the IC693CBL300 RoHS compliant?
A: Yes, it meets RoHS standards for hazardous substance reduction.
