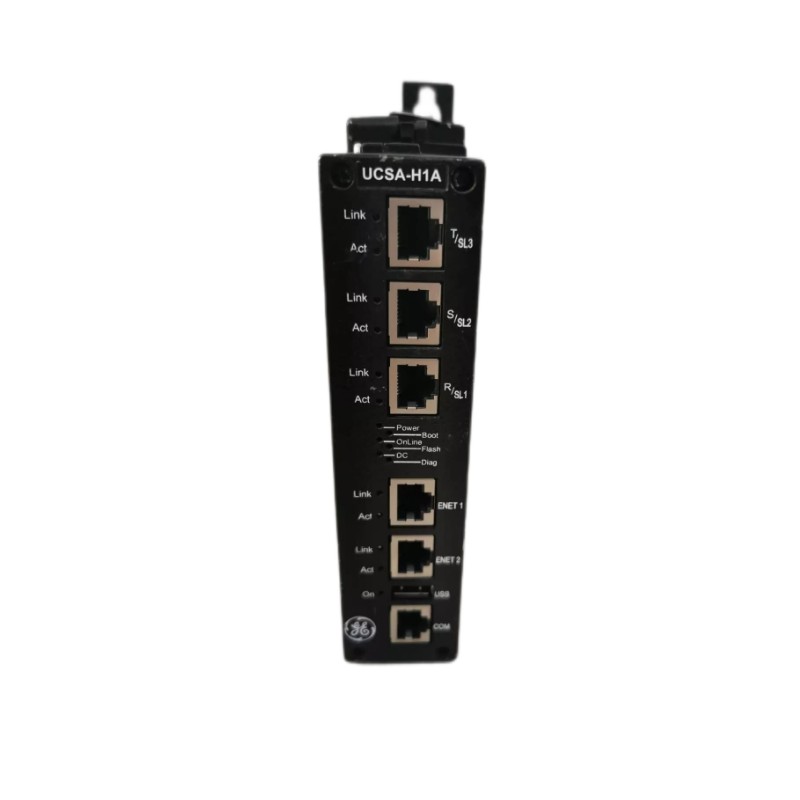

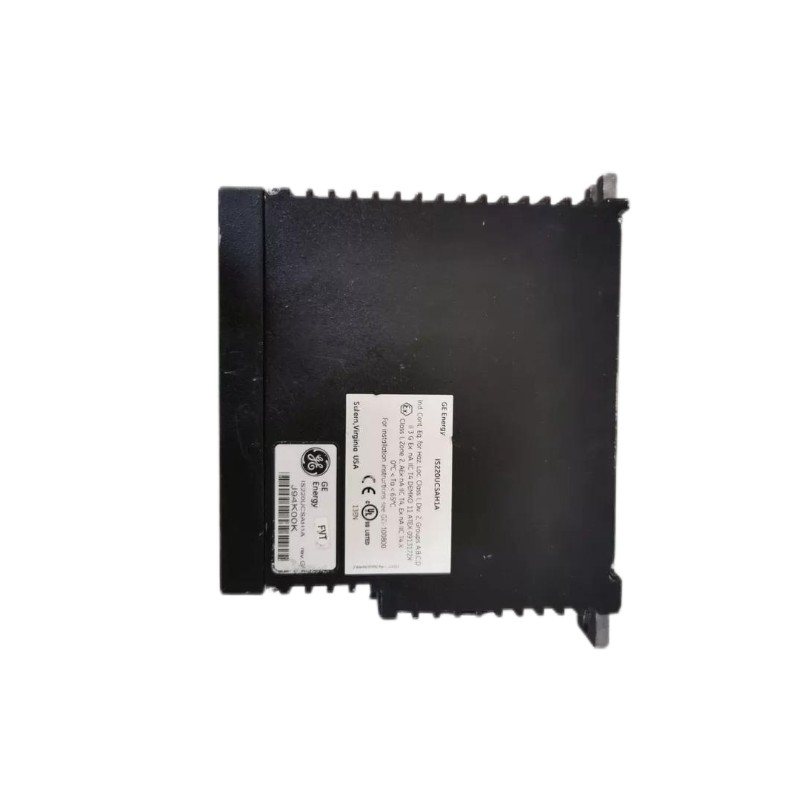

- IS220UCSAH1A
- Mark VIe Embedded Controller Module
- USA
- 233.4 mm × 177.8 mm × 44.45 mm
- 2.27kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 33
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| sales@plc-automations.com | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Introduction
The IS220UCSAH1A is a high-performance embedded controller module designed for the Mark VIe distributed control system (DCS) family. It serves as a central processing or “brain” module, executing control logic, supervising I/O networks, and coordinating automation tasks in demanding industrial applications.
It is engineered for real-time response and reliability, using a robust micro-processor, passive cooling (fan-less), multiple network ports, and rugged design for industrial and turbine control environments. The module supports redundant configurations and integration with multiple I/O packs, providing flexibility and longevity in system architectures.
This controller is typically placed within the I/O rack architecture of a control system, and communicates with other modules via high-speed Ethernet connections. It enables complex tasks such as equipment protection, process automation, turbine load control, and network management. Its design emphasises maintainability, scalability and serviceability in industrial automation installations.
Technical Specifications
| Parameter | Description |
|---|---|
| Processor | 667 MHz Freescale PowerQUICC II Pro (PowerPC) |
| Memory | 256 MB DDR SDRAM (some variants show 512 MB) |
| Operating System | QNX Neutrino real-time OS |
| Supply Voltage | 18 V DC to 36 V DC (nominal 24–28 V typical) |
| Power Consumption | Approx. 12 W typical |
| Communication Ports | Multiple Ethernet RJ-45 ports (5 to 6 ports depending on revision), USB port |
| Mounting | Module for installation in Mark VIe controller rack or cabinet |
| Operating Temperature Range | 0 °C to +65 °C (some sources extend to –20 °C) |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5 % to 95 % non-condensing |
| Dimensions | Approx. 233.4 mm × 177.8 mm × 44.45 mm (approx 23.34 cm × 17.78 cm × 4.445 cm) |
| Weight | Approx. 2.27 kg |
| Cooling | Passive (fanless) design |
| Protection Rating | IP20 (module installed in enclosure) |
| Redundancy Support | Triple-redundancy capability in control system architecture |
Applications
The IS220UCSAH1A is used broadly in high-demand industrial control environments including:
-
Gas and steam turbine control systems: executing startup/shutdown logic, load control, protection, and monitoring of turbine assets.
-
Power generation plants: acting as the main controller coordinating I/O modules, field devices, network communication and overall system logic.
-
Oil & gas processing facilities: managing compressors, pumps, and instrumentation in hazardous or harsh environments, often with redundant architectures.
-
Renewable energy systems: wind turbine farms, large scale integration where advanced control logic and robust communications are required.
-
Process automation industries: chemical plants, refining, manufacturing lines where modular control, high reliability and diagnostics are essential.
Because of its modular design and compatibility with I/O rack systems, the IS220UCSAH1A is also used in retrofit or upgrade projects where legacy systems are modernised but require continuity and compatibility.
Product Advantages
Key advantages of the IS220UCSAH1A include:
-
High-performance controller core: With a 667 MHz processor and real-time OS, it handles complex logic and I/O tasks with speed and determinism.
-
Passive cooling and rugged design: The module uses no fan, reducing maintenance and improving reliability in dusty or vibrating environments.
-
Compact and serviceable form-factor: Its dimensions allow installation in dense control cabinets; front-panel ports and LEDs simplify maintenance and diagnostics.
-
Redundancy support: Enables triple-redundant controller architectures, dual/ multiple Ethernet ports, enhancing system availability and fault tolerance.
-
Wide integration capability: Interfaces with a broad range of I/O modules, networks and field devices—allowing flexible system design and expansion.
-
Long-term support and compatibility: Belongs to a mature series of industrial control modules, enabling lifecycle stability and system investment protection.
-
Diagnostics and maintainability: LED indicators, USB connection, accessible ports and network connectivity make monitoring, commissioning and servicing more efficient.
Brand and Series
-
Brand: GE Fanuc (General Electric)
-
Series: Mark VIe Distributed Control System (IS220 I/O/Controller Pack Series)
-
Product Type: Embedded Controller Module
The IS220UCSAH1A is part of the IS220 “Pack” family of modules for the Mark VIe architecture, which includes analog I/O packs, discrete I/O packs, communication packs and controller packs. The “UCS” within its name denotes a controller class within the family (UCSA family).
Related Models – Same Series or Compatible
Here are five other modules within the same series or closely related, with brief description and key parameters:
| Model | Function Description | Key Parameters (Size / Weight) |
|---|---|---|
| IS220PPRFH1A | PROFIBUS Master Gateway I/O Pack – integrates PROFIBUS field devices into the Mark VIe network. | Approx. 263 mm × 58 mm × 28 mm ; ~0.43 kg |
| IS220PSVOH1A | Servo Valve Output Pack – provides analog/PWM outputs for servo valve control in turbine systems. | Approx. 224 mm × 89 mm × 100 mm ; ~0.45 kg |
| IS220PAICH2A | Analog Input/Output Pack – high-density analog I/O module for process variables. | Approx. 170 mm × 100 mm × 35 mm ; ~0.72 kg |
| IS220PSCAH1A | Serial Communication I/O Pack – handles RS-232/RS-422/RS-485 devices in the I/O network. | Approx. 292 mm × 130 mm × 27 mm ; ~0.36 kg |
| IS220PPDAH1A | Power Distribution I/O Pack – manages DC power distribution and monitoring within the I/O rack. | Approx. 170 mm × 110 mm × 30 mm ; ~0.65 kg |
Popular Models – Same Brand
Here are five popular models from the GE Fanuc brand which are often used in similar automation systems:
| Model | Function Description | Key Parameters (Size / Weight) |
|---|---|---|
| IS220PSVOH1A | Servo Valve Output Pack – for precise valve control in turbine/industrial systems. | Approx. 224 mm × 89 mm × 100 mm ; ~0.45 kg |
| IS220PAOCH1B | Analog Output Pack – provides high-precision analog outputs for control loops. | Approx. 150 mm × 100 mm × 50 mm ; ~0.36 kg |
| IS220PAICH1A | Analog Input/Output Pack – earlier generation analog I/O module. | Approx. 150 mm × 100 mm × 50 mm ; ~2.0 kg |
| IS220PCLAH1B | Power/Control Distribution Module – for internal DC power distribution in the I/O rack. | Approx. 227 mm × 175 mm × 88 mm ; ~1.3 kg |
| IS220PPRAS1A | Some communication or distribution pack – used for I/O network bridging in the Mark VIe system. | Dimensions and weight vary by variant, typical ~0.40 kg |
FAQ (10 Questions & Answers)
Q1: What is the main function of the IS220UCSAH1A?
A1: It acts as the central controller in a Mark VIe system, executing control logic, supervising I/O modules and managing network communications.
Q2: What supply voltage does the module require?
A2: The module operates on DC power ranging approximately from 18 V to 36 V, typically around 24 V to 28 V DC.
Q3: What are the size and weight of this controller?
A3: Approximate dimensions are 233.4 mm × 177.8 mm × 44.45 mm and the weight is about 2.27 kg.
Q4: What kind of processor and memory does it include?
A4: It uses a 667 MHz Freescale PowerQUICC II Pro processor and typically 256 MB of DDR SDRAM (some variants 512 MB).
Q5: Can the module operate in harsh environments?
A5: Yes, it is designed for industrial conditions, passive cooling (no fans), temperature range typically 0 °C to +65 °C (some variants extend further) and supports wide humidity ranges.
Q6: What kind of communication ports does it provide?
A6: It provides multiple Ethernet RJ-45 ports (5-6), a USB port and other network/diagnostic interfaces to connect with I/O modules and system networks.
Q7: Does it support redundant configurations?
A7: Yes, the design supports triple-redundancy in control architectures, enabling high availability systems.
Q8: In which industries is this controller commonly used?
A8: Key industries include power generation (gas/steam turbines), oil & gas, renewable energy, process automation and manufacturing lines.
Q9: What are the maintenance benefits of this module?
A9: Its plug-in form, front-panel LEDs, USB port, and modular design simplify diagnostics, replacement and servicing, reducing downtime.
Q10: How does this controller contribute to system investment protection?
A10: Because it belongs to a mature architecture (IS220/Mark VIe), it enables long-term lifecycle support, integration with many I/O modules and upgrade paths without full system replacement.
