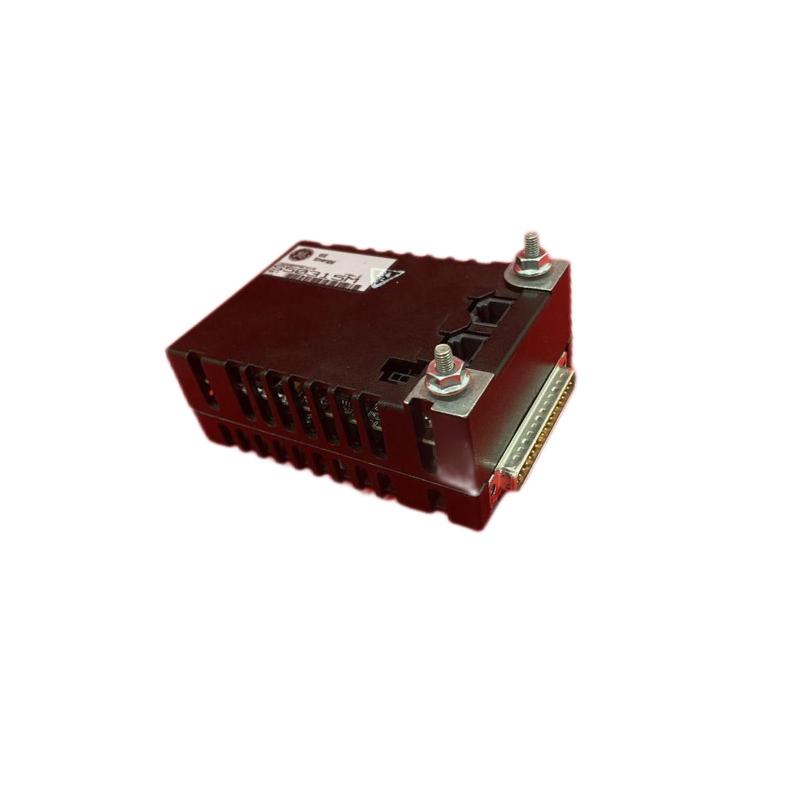

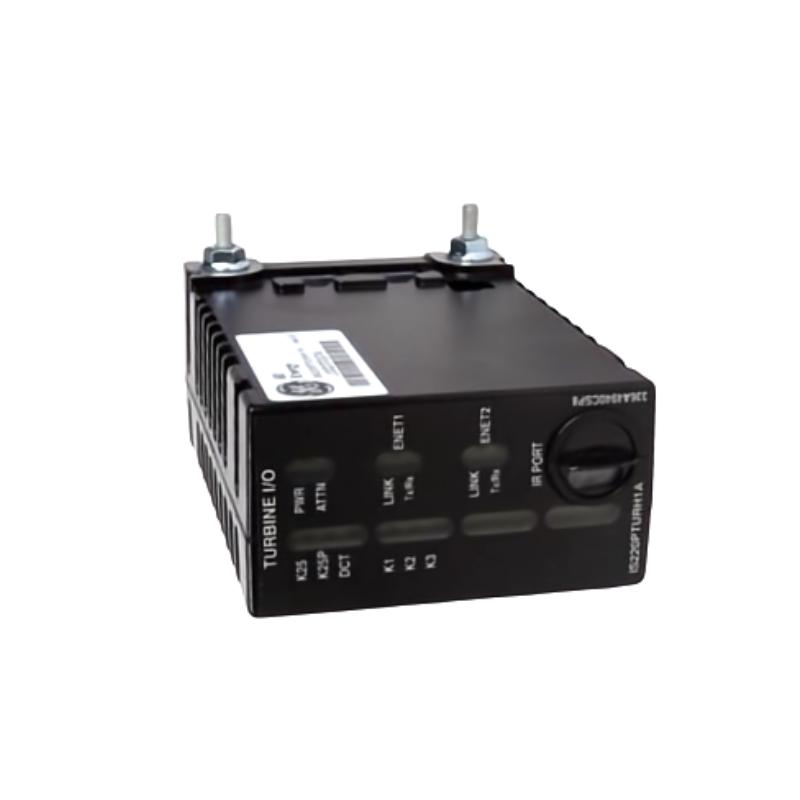

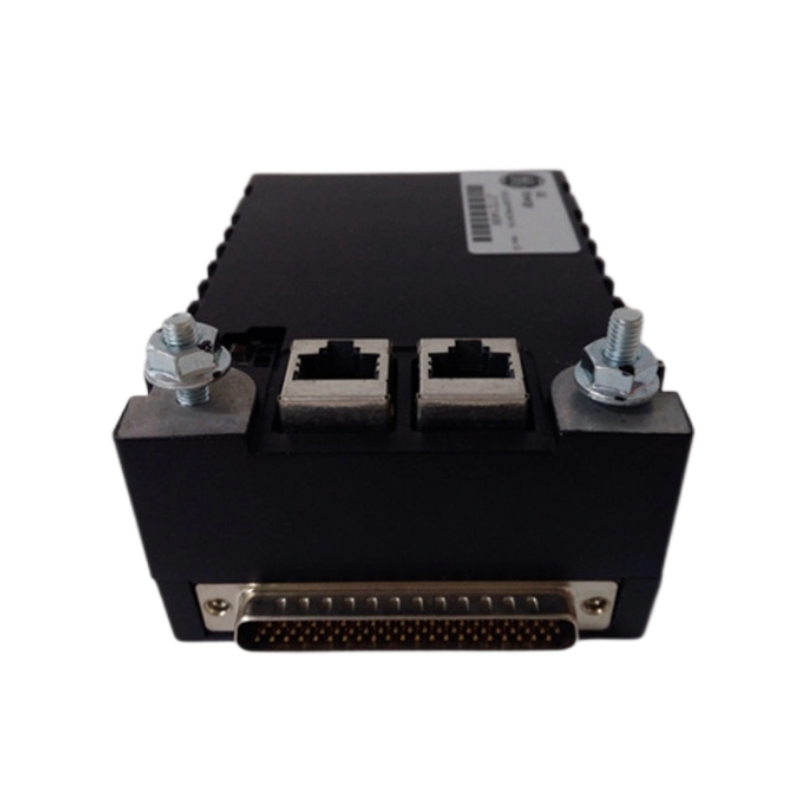

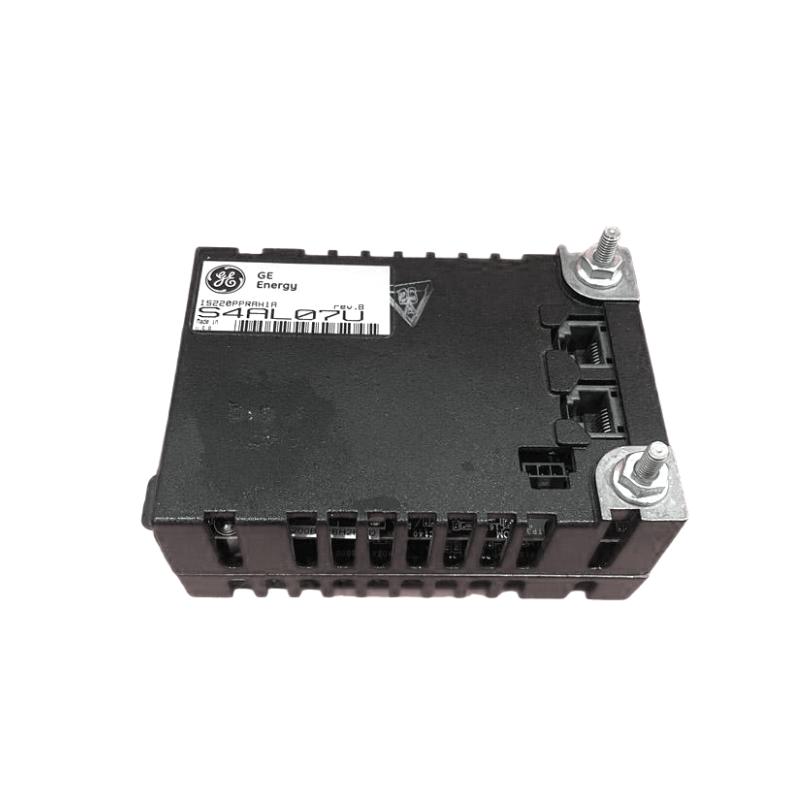

Product Overview – IS220PPRFH1A
The IS220PPRFH1A is a PROFIBUS Master Gateway I/O Pack designed for use within the Mark VIe Distributed Control System (DCS) family. It serves as an intelligent gateway between PROFIBUS DP field devices and the Ethernet-based I/O network used by the Mark VIe control platform.
This module enables seamless integration of legacy PROFIBUS equipment—such as sensors, transmitters, and actuators—into modern high-speed control systems. It provides full PROFIBUS Master functionality, real-time communication, diagnostic monitoring, and network redundancy support.
Its rugged, compact design allows it to operate reliably in industrial environments such as power plants, petrochemical facilities, and process automation systems.
Technical Parameters
| Parameter | Description |
|---|---|
| Rated Supply Voltage | 28 V DC nominal |
| Operating Voltage Range | 27 V DC – 29 V DC |
| Power Consumption | 0.18 A (typical) |
| Communication Interface | PROFIBUS DP (RS-485 D-sub 9 connector) and Dual Ethernet RJ-45 ports |
| Supported Baud Rates | 9.6 kbit/s – 12 Mbit/s |
| PROFIBUS Device Capacity | Up to 125 slave devices |
| Data Size per Slave | Up to 244 bytes input / 244 bytes output |
| Mounting Type | Plug-in module for Mark VIe I/O rack |
| Status Indication | LED indicators for module health, communication, and power |
| Operating Temperature | –20 °C to +55 °C |
| Storage Temperature | –40 °C to +70 °C |
| Humidity Range | 5 % – 95 % (non-condensing) |
| Dimensions | 26.3 cm × 5.8 cm × 2.8 cm |
| Weight | 0.43 kg |
| Cooling Method | Natural convection |
| Enclosure Rating | IP20 (when installed in enclosure) |
| Compliance | IEC industrial electronic standards, CE compliant |
Product Applications
The IS220PPRFH1A is widely used in industrial and energy automation systems where PROFIBUS field devices are integrated with Ethernet control platforms. Typical applications include:
-
Turbine Control Systems: Provides the gateway for PROFIBUS-based sensors and actuators to communicate with the Mark VIe turbine controller.
-
Process Automation: Enables monitoring and control of field instruments in chemical, petrochemical, and refinery plants.
-
Power Generation: Connects PROFIBUS-enabled power equipment to high-speed distributed control systems for improved visibility and control.
-
Oil & Gas Platforms: Provides reliable communication in rugged offshore environments with redundant Ethernet support.
-
Industrial Manufacturing: Integrates machine control networks with higher-level plant control systems for centralized monitoring.
Product Advantages
-
Efficient Legacy Integration: Easily connects existing PROFIBUS DP devices to Ethernet-based control networks without replacing field instruments.
-
High Capacity: Supports up to 125 PROFIBUS devices, making it ideal for large distributed networks.
-
Dual-Port Ethernet Redundancy: Provides fault-tolerant network communication and continuous data flow even if one link fails.
-
Compact, Lightweight Design: Weighs only 0.43 kg, enabling installation in space-limited control cabinets.
-
Industrial-Grade Durability: Operates reliably from –20 °C to +55 °C with strong resistance to vibration and electrical noise.
-
Plug-and-Play Architecture: Simple installation and quick replacement reduce downtime during maintenance.
-
Diagnostic Intelligence: Real-time status and fault indicators enhance troubleshooting and system reliability.
-
Proven Reliability: Built on the Mark VIe system’s industrial heritage, ensuring long-term operational stability.
Brand and Series
-
Brand: GE Fanuc
-
Series: Mark VIe Distributed Control System (IS220 I/O Pack Series)
-
Product Type: PROFIBUS Master Gateway I/O Module
The IS220PPRFH1A belongs to the IS220 I/O Pack family, a modular series of intelligent I/O interface units designed to connect process signals, communication buses, and networked devices to the Mark VIe system controller.
Related Models – Same Series or Compatible
| Model | Function Description | Key Parameters (Size / Weight) |
|---|---|---|
| IS220PPDAH1A | Power Distribution I/O Pack – manages power delivery across I/O racks. | 17 cm × 11 cm × 3 cm ; 0.65 kg |
| IS220PAICH1A | Analog I/O Pack – processes multiple analog input and output channels. | 15 cm × 10 cm × 5 cm ; 2.0 kg |
| IS220PTCCH1A | Thermocouple Input Pack – collects and processes temperature data. | 8.2 cm × 12.2 cm × 6 cm ; 0.36 kg |
| IS220PDOAH1A | Discrete Output Pack – controls binary field devices and relays. | 10 cm × 5 cm × 3 cm ; 0.34 kg |
| IS220PSCAH1A | Serial Communication I/O Pack – supports serial device interfacing (RS-232/422/485). | 29.2 cm × 13 cm × 2.7 cm ; 0.36 kg |
Popular Models – Same Brand (GE Fanuc)
| Model | Function Description | Key Parameters (Size / Weight) |
|---|---|---|
| IS220PSVOH1A | Servo Control Pack – controls electro-hydraulic servo valves. | 22.4 cm × 8.9 cm × 10 cm ; 0.45 kg |
| IS220PAOCH1B | Analog Output Pack – provides precision control outputs. | 15 cm × 10 cm × 5 cm ; 0.36 kg |
| IS220PAICH2B | Second-Generation Analog I/O Pack – improved accuracy and channel density. | 12.2 cm × 8.2 cm × 6 cm ; 0.4 kg |
| IS220PCLAH1B | Power/Control Distribution Module – distributes and monitors DC power. | 22.7 cm × 17.5 cm × 8.8 cm ; 1.3 kg |
| IS220UCSAH1A | Controller Pack – main CPU for Mark VIe system operation. | 15 cm × 10 cm × 5 cm ; 0.5 kg |
FAQ (10 Q&A)
Q1: What is the main function of the IS220PPRFH1A?
A1: It acts as a PROFIBUS Master Gateway, linking field PROFIBUS DP devices to the Mark VIe Ethernet I/O network.
Q2: What is the typical supply voltage for this module?
A2: The rated supply voltage is 28 V DC with a working range of approximately 27 – 29 V DC.
Q3: How many PROFIBUS devices can it connect?
A3: Up to 125 PROFIBUS slave devices can be managed simultaneously.
Q4: What type of connector is used for PROFIBUS communication?
A4: A standard 9-pin D-sub connector provides RS-485 PROFIBUS interface capability.
Q5: Does the module support redundant networking?
A5: Yes, dual Ethernet ports allow redundant network paths for continuous communication.
Q6: What are the size and weight of the IS220PPRFH1A?
A6: The module measures approximately 26.3 cm × 5.8 cm × 2.8 cm and weighs about 0.43 kg.
Q7: What is the operating temperature range?
A7: The module operates reliably between –20 °C and +55 °C.
Q8: What are the main industries that use this module?
A8: It is used in power generation, oil & gas, process automation, and heavy industrial control systems.
Q9: Is the module field-replaceable?
A9: Yes, it is designed as a plug-in I/O pack, allowing quick removal and replacement.
Q10: What diagnostic features are provided?
A10: LED indicators display communication status, network activity, and fault conditions for real-time monitoring.
