Product Introduction

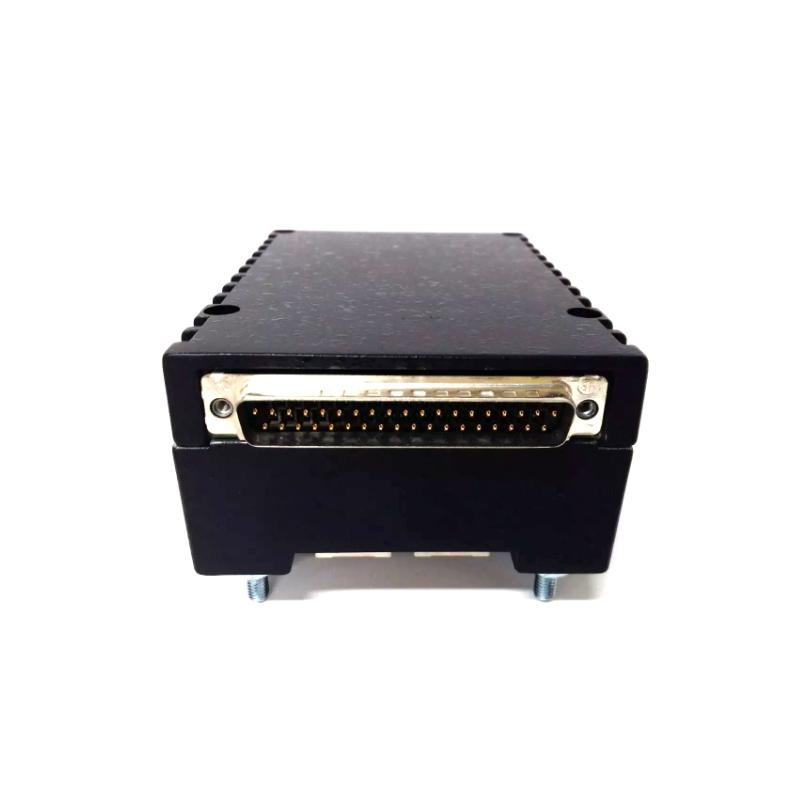

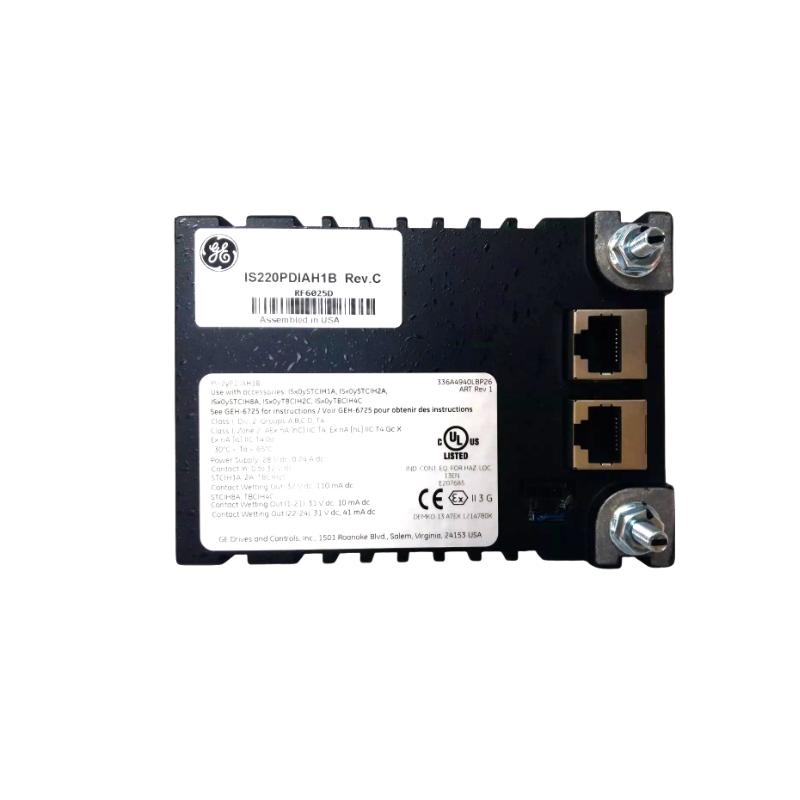

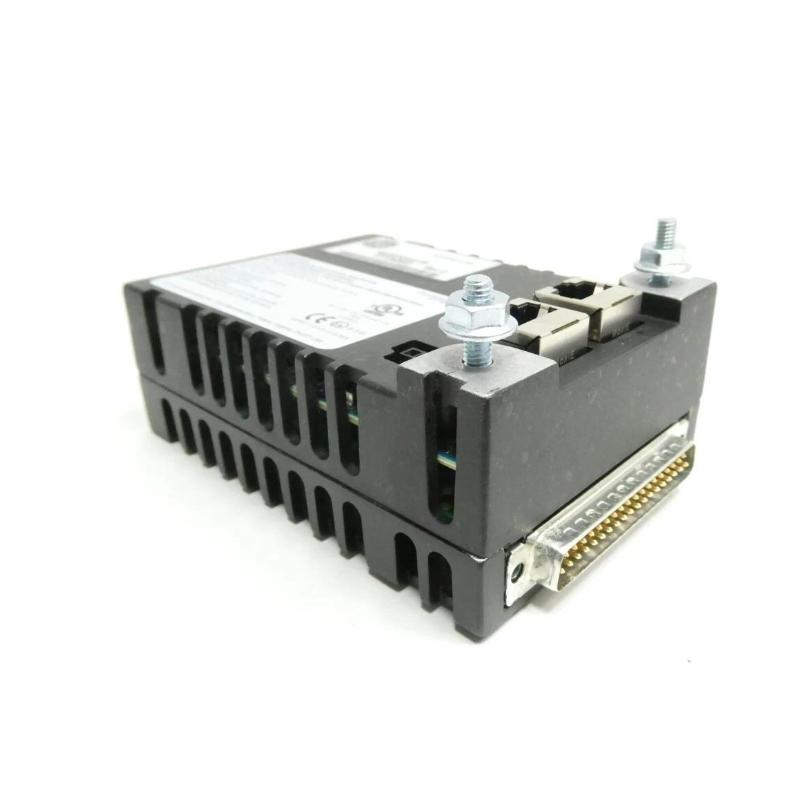

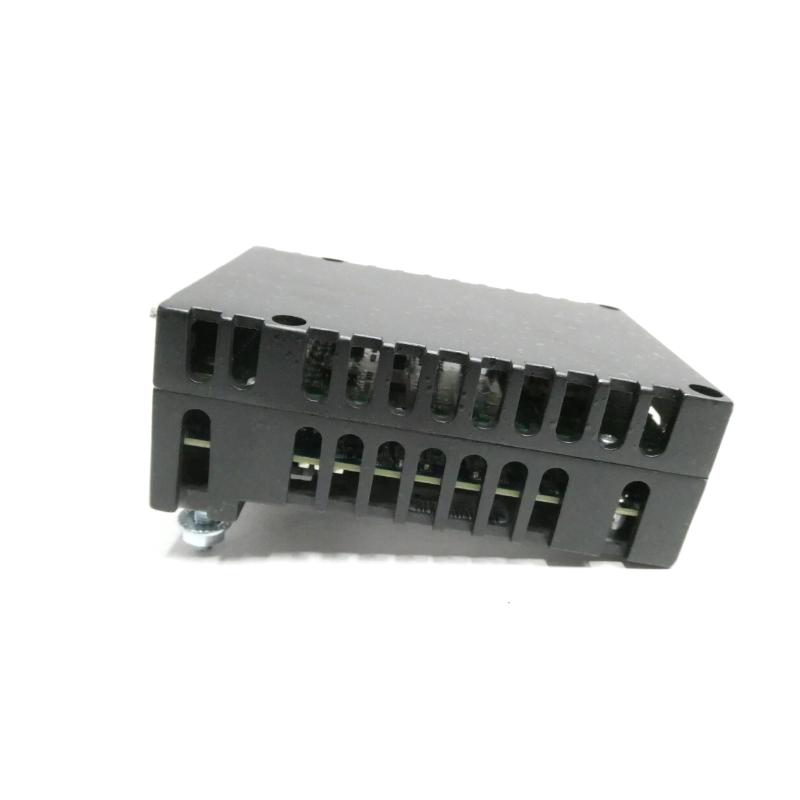

The IS220PDIAH1B is a discrete input I/O module designed for industrial automation and turbine control systems.
It is part of the IS220 family used in modular I/O racks for capturing discrete (on/off) signals from field devices such as switches, sensors, and trip contacts.
This module is engineered to provide high reliability in harsh industrial environments, including power generation, process control, and turbine systems.
The IS220PDIAH1B supports network redundancy, has hazardous-location approvals, and can withstand wide temperature ranges.
Its primary role is to translate real-world discrete inputs into signals the control system can process safely and accurately.
Technical Specifications
| Parameter | Description |
|---|---|
| Module Type | Discrete Input I/O Pack (24 contact inputs typical) |
| Nominal Supply Voltage | 24 V DC |
| Maximum Supply Voltage | 28.6 V DC |
| Number of Discrete Inputs | 24 |
| Operating Temperature | –30 °C to +65 °C |
| Storage Temperature | –40 °C to +70 °C |
| Network Interfaces | Dual Ethernet (redundant) |
| Isolation / Input Filter | Optical isolation, hardware filter (~4 ms) |
| Dimensions | Approx. 159 mm × 178 mm × 32 mm |
| Weight (kg) | Approx. 0.8 kg |
| Compliance | Hazardous/non-hazardous location approved |
Applications
-
Turbine control systems: Monitors trip contacts, speed sensors, and other discrete signals.
-
Power generation plants: Provides high-reliability monitoring for generator protection and auxiliary systems.
-
Process automation: Interfaces with valves, end-of-travel switches, alarms, and safety devices.
-
System retrofits: Upgrades existing I/O racks without replacing the entire system.
-
Harsh environments: Suitable for hazardous areas and wide temperature ranges.
Advantages
-
Specialized discrete input handling with optical isolation and noise filtering.
-
Compact design with high channel density reduces rack space and wiring.
-
Redundant Ethernet ports ensure continuous communication.
-
Hazardous-location approved for industrial safety.
-
Consistent 24 V DC supply compatibility.
-
Easy maintenance with diagnostics and modular form factor.
-
Investment protection within the IS220 family.
Brand and Series
-
Brand: GE Fanuc
-
Series: IS220 I/O Pack Series (Mark VIe / Mark VI compatible)
-
Product Type: Discrete Input Module
The IS220 series includes discrete I/O, analog I/O, communication modules, and turbine control packs.
Related Models – Same Series
| Model | Function Description | Key Parameters (Size / Weight) |
|---|---|---|
| IS220PDOAH1B | Discrete Output Pack | 263 mm × 58 mm × 28 mm ; 1.42 kg |
| IS220PPDAH1B | Power Distribution / Feedback I/O Pack | 160 mm × 160 mm × 120 mm ; 1.0 kg |
| IS220PAICH1B | Analog Input/Output Pack | 133 mm × 70 mm × 39 mm ; 1.0 kg |
| IS220PSVOH1A | Servo Valve Output Pack | 224 mm × 89 mm × 100 mm ; 0.45 kg |
| IS220PSCAH1A | Serial Communication Pack | 292 mm × 130 mm × 27 mm ; 0.36 kg |
Popular Models – Same Brand
| Model | Function Description | Key Parameters (Size / Weight) |
|---|---|---|
| IS220UCSAH1A | Controller Pack (CPU) | 233 mm × 177 mm × 44 mm ; 2.27 kg |
| IS220PAOCH1B | Analog Output Pack | 132 mm × 94 mm × 35 mm ; 0.20 kg |
| IS220PAICH1A | Analog Input Pack | 150 mm × 100 mm × 50 mm ; 0.70 kg |
| IS220PCLAH1B | Power/Control Distribution Module | 227 mm × 175 mm × 88 mm ; 1.30 kg |
| IS220PPRFH1A | PROFIBUS Master Gateway I/O Pack | 263 mm × 58 mm × 28 mm ; 0.43 kg |
FAQ (10 Questions & Answers)
Q1: What is the function of IS220PDIAH1B?
A1: It captures discrete input signals and relays them to the control system.
Q2: How many channels are available?
A2: 24 discrete input channels.
Q3: What voltage does it operate at?
A3: Nominal 24 V DC, maximum 28.6 V DC.
Q4: What is the operating temperature range?
A4: –30 °C to +65 °C.
Q5: Is it suitable for hazardous areas?
A5: Yes, approved for hazardous/non-hazardous locations.
Q6: Does it support network redundancy?
A6: Yes, via dual Ethernet ports.
Q7: What are its dimensions and weight?
A7: 159 mm × 178 mm × 32 mm, approximately 0.8 kg.
Q8: Can it be used in retrofits?
A8: Yes, fully compatible with existing Mark VIe I/O racks.
Q9: What type of isolation is provided?
A9: Optical isolation with hardware filtering (~4 ms).
Q10: Why choose it over generic input modules?
A10: Specifically designed for turbine/control systems, with reliability, hazardous location approval, and modular compatibility.
