Product Overview

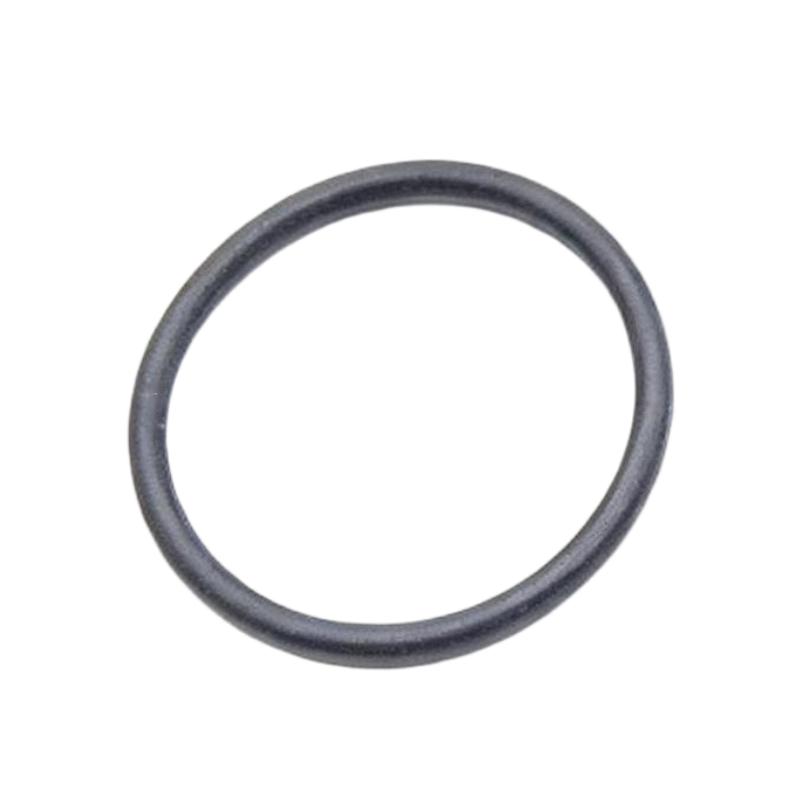

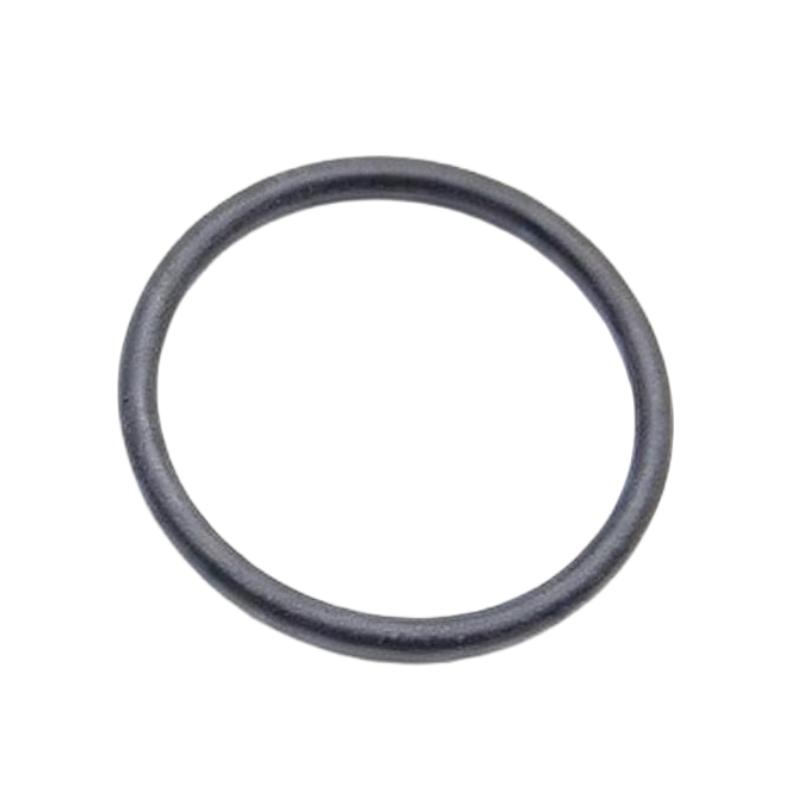

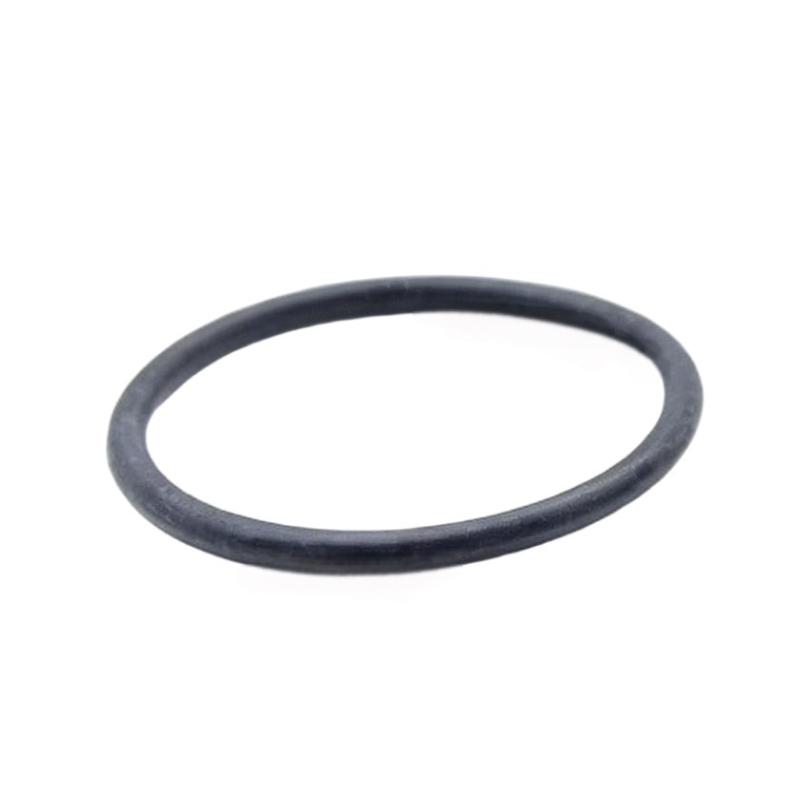

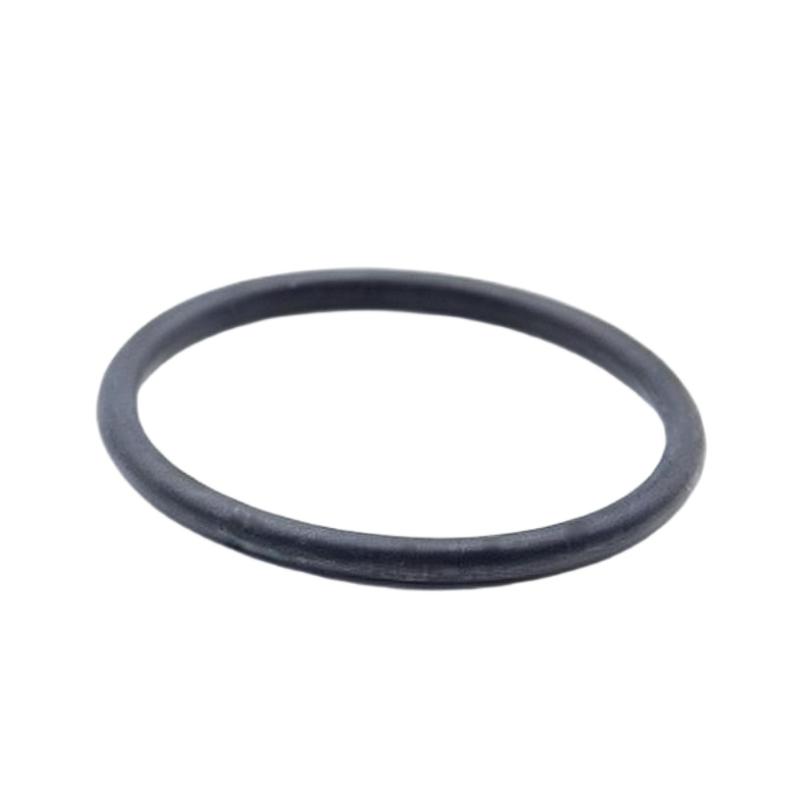

The Allen Bradley MPL-M40-ORING is an MP-Series O-Ring Kit used with compatible M23/M40 DIN connector arrangements in industrial motion-control systems. It serves as a replacement sealing component for connector interfaces where an O-ring is part of the mechanical sealing arrangement.

M23 and M40 connector assemblies are used in industrial servo and motor applications where electrical connections need to remain mechanically protected during machine operation. The O-ring sits at the appropriate mating interface and forms a seal when the connector is correctly assembled.

The MPL-M40-ORING is a passive maintenance component. It does not transmit motor power, feedback signals, or communication data. Its purpose is to support the physical sealing condition of compatible MP-Series connector assemblies during installation, servicing, and refurbishment.

Technical Specifications

Product Features

• MP-Series O-ring kit for compatible M23/M40 DIN connector arrangements.
• Provides a replacement sealing component for applicable connector interfaces.
• Supports maintenance of electrical connector sealing in industrial motion systems.
• Suitable for servicing compatible MP-Series servo motor connections.
• Functions as a passive mechanical component rather than an electrical device.
• Helps maintain the intended sealing interface when the connector is correctly assembled.
• Useful during servo motor connector replacement, refurbishment, and maintenance.
• Suitable for established Allen-Bradley MP-Series motion-control installations.

Working Principle

The MPL-M40-ORING operates through mechanical compression at the compatible connector mating interface. When correctly positioned and the connector is fully assembled, the O-ring is compressed against the corresponding sealing surfaces.

This compression creates a physical barrier around the connector interface, helping limit the entry path for moisture, dust, and other contaminants that could otherwise reach the connection area.

M23/M40 Connector → O-Ring → Mating Interface → Sealed Connector Assembly

The O-ring itself carries no electrical signal and performs no motor-control function. Motor power, feedback, and other electrical signals continue to pass through the appropriate connector contacts and wiring.

During maintenance, the condition of the sealing element and mating surfaces should be checked together. A damaged, twisted, incorrectly positioned, or contaminated O-ring can prevent the connector from achieving its intended sealing condition.

Role in an Allen-Bradley MP-Series Motion Control Architecture

The MPL-M40-ORING belongs to the mechanical protection layer of the MP-Series servo connection. It supports the connector interface while the servo drive, motor, feedback system, and controller perform the actual motion-control functions.

Industrial Applications

Installation and Maintenance

1. Confirm that the MPL-M40-ORING is compatible with the specific M23/M40 connector assembly before installation.
2. Isolate the applicable servo equipment according to the machine’s electrical safety procedure.
3. Disconnect the connector using the approved equipment maintenance procedure.
4. Inspect the existing O-ring for cuts, deformation, hardening, wear, or contamination.
5. Examine the connector mating surfaces for dirt, damage, corrosion, or other conditions that could affect sealing.
6. Remove the existing sealing element carefully without damaging the connector or sealing surface.
7. Inspect the replacement O-ring for visible defects before installation.
8. Position the O-ring correctly in its intended sealing location.
9. Reassemble the connector while preventing the O-ring from twisting, pinching, or becoming displaced.
10. Verify that the connector is fully seated and mechanically secured.
11. Inspect the completed connection before energizing the servo equipment.
12. Record the replacement activity and include connector sealing condition in subsequent maintenance inspections.

Related Components

Recommended Related Models

Key Advantages

• Provides a replacement sealing component for compatible M23/M40 connector assemblies.
• Supports maintenance of MP-Series servo motor connections.
• Helps maintain the intended mechanical sealing arrangement at the connector interface.
• Useful for connector servicing and servo-system refurbishment.
• Functions as a dedicated passive maintenance component.
• Supports continued service of compatible MP-Series motion-control equipment.

Technical FAQs

What is the purpose of the MPL-M40-ORING?

The MPL-M40-ORING is an O-ring kit used with compatible M23/M40 DIN connector arrangements. It supports the mechanical sealing of the connector interface when correctly installed.

Does the MPL-M40-ORING affect servo motor operation directly?

No. The O-ring is a passive sealing component. It does not carry motor power, feedback signals, or control data and does not perform any servo-control function.

When should the connector O-ring be replaced?

The sealing element should be considered for replacement when it shows cuts, deformation, hardening, wear, contamination, or other visible damage. Replacement may also be appropriate during connector servicing when the existing sealing element cannot be reused in suitable condition.

What should be checked after installing the O-ring?

Verify that the O-ring is correctly positioned, free from damage, and not twisted or pinched. The connector should be fully seated and secured, and the mating surfaces should be clean and free from conditions that could compromise the intended sealing arrangement.
