Product Overview

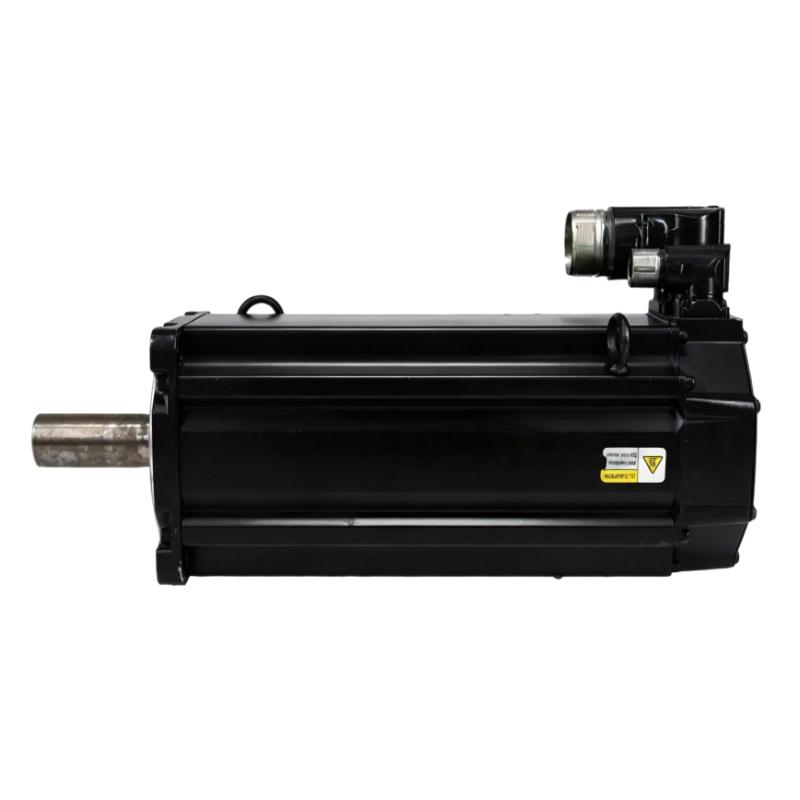

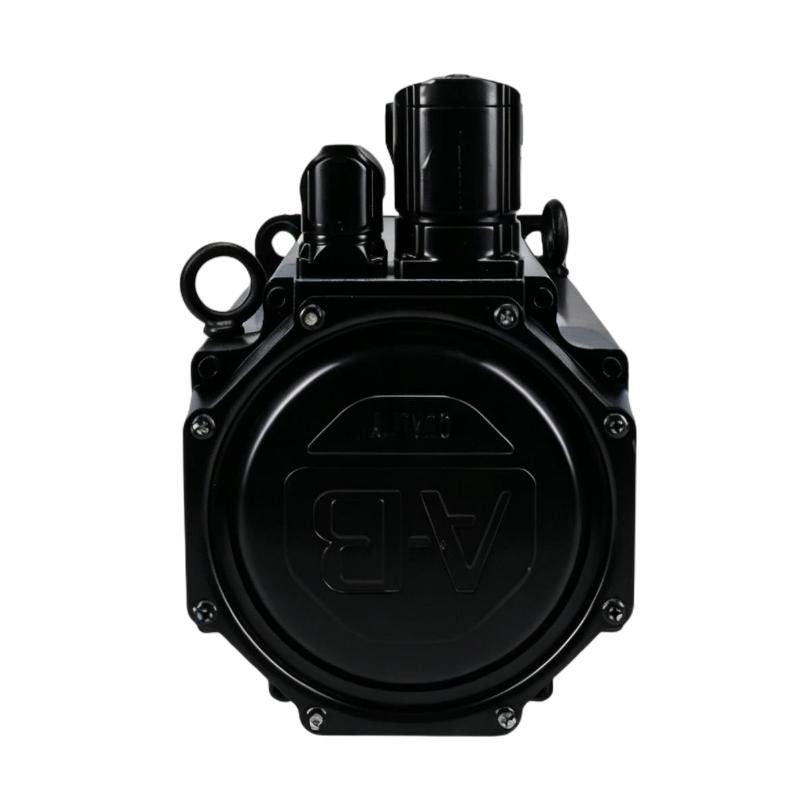

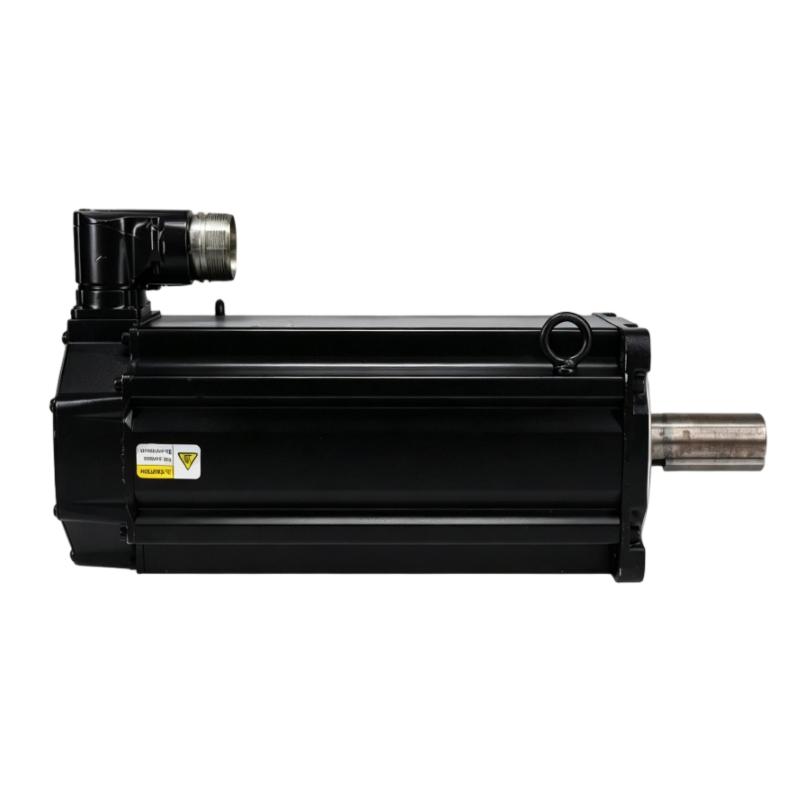

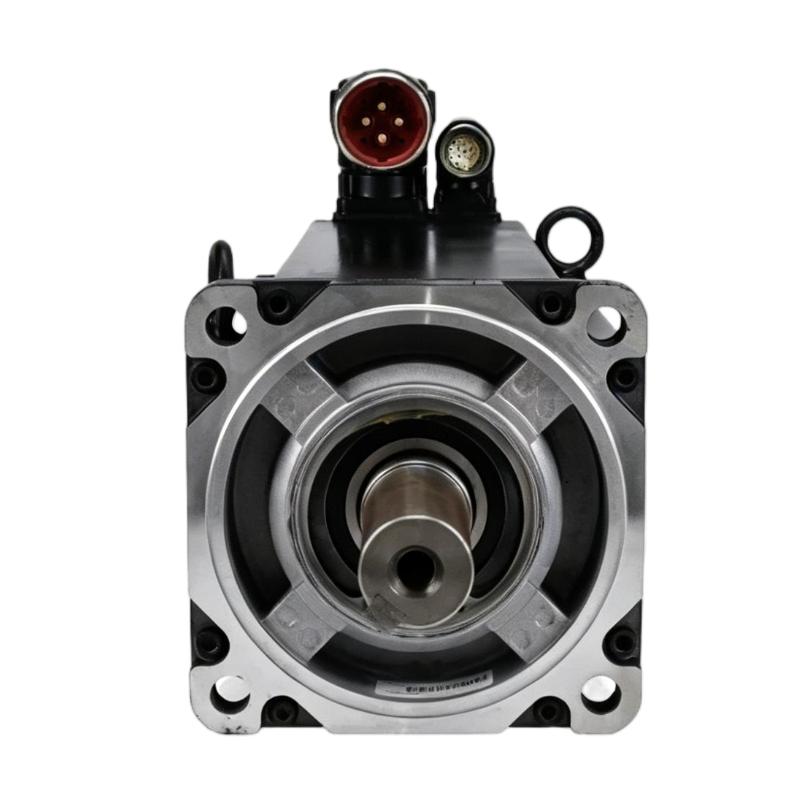

The Allen Bradley MPL-B580F-SJ72AA is an MP-Series rotary servo motor used as the motor element in closed-loop industrial motion systems. It works with a compatible servo drive, motion controller, and feedback arrangement to produce controlled rotary movement for automated machinery.
In an operating servo axis, the motion controller determines the required movement while the servo drive regulates the electrical power delivered to the motor. The MPL-B580F-SJ72AA converts that electrical input into mechanical rotation, and the resulting motor response is monitored through the feedback loop. This arrangement allows the motor to participate in programmed positioning and coordinated machine movement.
The motor can be applied to production machinery, automated handling equipment, assembly systems, machine tools, and other applications where the motor must respond to changing motion commands rather than operate at a fixed speed. It is also relevant to maintenance and replacement work on compatible Allen Bradley MP-Series installations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | MPL-B580F-SJ72AA |
| Product Type | Rotary Servo Motor |
| Product Family | MP-Series |
| Manufacturer | Allen Bradley |
| Motion Type | Rotary Motion |
| Motor Technology | Servo Motor |
| Control Method | Closed-Loop Motion Control |
| Application | Industrial Machine Motion |
| System Integration | Allen Bradley Servo Drive and Motion Controller |
| Feedback Function | Motor Feedback for Closed-Loop Control |
| Mechanical Function | Converts electrical servo power into controlled rotary motion |
| Typical Axis Function | Position, Speed, and Torque-Controlled Motion |
| Installation | Machine-Mounted Servo Axis |
| Frame Size | 165 mm |
| Weight | 25.4 kg |
Product Features
- MP-Series rotary servo motor for industrial motion-control applications.
- Operates as part of a closed-loop servo axis.
- Works with compatible Allen Bradley servo drives and motion controllers.
- Produces controlled rotary motion for automated machine mechanisms.
- Motor feedback supports monitoring of actual axis response.
- Suitable for programmed positioning and coordinated machine movement.
- Can be integrated with mechanical transmission systems used in automated equipment.
- Applicable to machine construction, retrofit, replacement, and maintenance projects.
- Fits applications where repeatable rotary motion is required within a servo architecture.
Working Principle
The MPL-B580F-SJ72AA functions as part of a coordinated servo loop. The motor itself provides the mechanical output, while the servo drive and controller manage the electrical and motion-control functions.
1. Motion command
The motion controller establishes the desired movement according to the machine program. The command may define a target position, movement profile, speed, or coordinated action with other axes.
2. Servo drive control
The servo drive receives the command and regulates the electrical power supplied to the motor. Drive operation changes according to the required axis response rather than simply applying constant motor power.
3. Mechanical output
The MPL-B580F-SJ72AA converts the electrical power into controlled shaft rotation. The motor output can be transferred to the machine through a coupling, gearbox, belt, screw mechanism, rotary table, or another suitable transmission arrangement.
4. Feedback monitoring
Motor feedback is returned to the control system, allowing the actual response of the axis to be monitored. The servo system can compare the commanded and actual conditions and make corrections as necessary.
5. Coordinated machine operation
The motor can operate as one axis within a larger automation system. When multiple servo axes are involved, the motion controller coordinates their commands so that individual motors contribute to the required machine sequence.
Motion controller → Servo drive → MPL-B580F-SJ72AA → Mechanical load → Feedback → Control system
Role in an MP-Series Motion Control Architecture
The MPL-B580F-SJ72AA forms the motor stage of the MP-Series motion architecture. It does not independently generate motion commands; instead, it receives controlled electrical power from the servo drive and converts that power into mechanical movement while feedback information is returned to the control system.
| System Layer | Typical Component | Function |
|---|---|---|
| Motion Control | Allen Bradley Motion Controller | Generates motion commands and coordinates machine axes |
| Servo Drive | Compatible Allen Bradley Servo Drive | Controls electrical power supplied to the servo motor |
| Motor | MPL-B580F-SJ72AA | Produces controlled rotary mechanical movement |
| Feedback | Motor Feedback System | Provides motor response information for closed-loop control |
| Mechanical Transmission | Coupling / Gearbox / Belt / Screw | Transfers motor rotation to the machine mechanism |
| Machine Axis | Automated Machine Mechanism | Performs the required production movement |
| Operator Interface | HMI / Machine Interface | Provides operating commands, status, and diagnostics |
Industrial Applications
| Application | Motor Role |
|---|---|
| Automated Production Machinery | Drives programmed rotary movement within production processes |
| Packaging Equipment | Supports coordinated movement of packaging mechanisms |
| Material Handling | Provides controlled motion for transfer and positioning equipment |
| Machine Tools | Drives machine axes requiring repeatable and coordinated movement |
| Assembly Machinery | Supports positioning and synchronized movement of automated tooling |
| Robotics and Automation | Functions as a rotary motion element within coordinated automation systems |
| Converting Machinery | Drives controlled movement of rollers and other rotary mechanisms |
| Industrial Retrofit | Supports replacement of compatible MP-Series servo motors in existing motion systems |
Installation and Maintenance
- Confirm compatibility between the MPL-B580F-SJ72AA, servo drive, motion controller, feedback arrangement, and intended machine axis before installation.
- Isolate electrical power and follow the applicable lockout/tagout procedure before working on the motor or connected wiring.
- Verify the motor mounting arrangement and mechanical interface against the machine documentation.
- Inspect the motor, shaft area, connectors, and accessible cable interfaces for physical damage before installation.
- Identify and verify the motor power and feedback connections before connecting the servo system.
- Route power and feedback cables according to the established machine wiring arrangement and protect them from excessive mechanical stress.
- Secure the motor firmly and check alignment with the connected mechanical transmission.
- Inspect the coupling, gearbox, belt, screw, or other driven mechanism for binding, obstruction, or abnormal resistance.
- Verify servo-drive parameters and motion-controller axis configuration before enabling the motor.
- Perform an initial controlled movement and confirm that the motor rotates in the expected direction and that feedback is being received correctly.
- Monitor the axis during operation for abnormal vibration, noise, temperature rise, positioning deviation, or following-error conditions.
- Record the motor model, installed axis, maintenance date, and commissioning observations for future service and troubleshooting.
Related Components
| Component | Function in the System |
|---|---|
| Allen Bradley Servo Drive | Regulates motor power and controls servo operation |
| Allen Bradley Motion Controller | Generates and coordinates programmed motion |
| Motor Feedback Interface | Provides feedback information for closed-loop axis control |
| Motor Power Cable | Connects the servo drive to the motor power circuit |
| Feedback Cable | Carries feedback information between the motor and control system |
| Mechanical Coupling | Transfers motor shaft rotation to the driven machine |
| Gearbox | Adapts motor output to the mechanical requirements of the machine |
| HMI | Provides operator commands, status information, and diagnostics |
| Machine Axis Assembly | Converts servo motor rotation into the required machine movement |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Allen Bradley MPL-B580F-MJ72AH | MP-Series Rotary Servo Motor | Related motor configuration within the same MP-Series family |
| Allen Bradley MPL-B580F-MJ74AA | MP-Series Rotary Servo Motor | Related motor configuration within the same frame family |
| Allen Bradley MPL-B4540F-SJ72AH | MP-Series Rotary Servo Motor | Related MP-Series rotary servo motor for industrial motion |
| Allen Bradley MPL-B330P-SJ72AH | MP-Series Rotary Servo Motor | Related MP-Series motor configuration for automated machinery |
| Allen Bradley MPL-B330P-MJ72AH | MP-Series Rotary Servo Motor | Related MP-Series rotary servo motor for machine-axis applications |
Key Advantages
- Provides controlled rotary motion within an Allen Bradley MP-Series servo architecture.
- Supports closed-loop operation using motor feedback.
- Suitable for programmed and coordinated machine movement.
- Works as part of a compatible Allen Bradley servo drive and controller system.
- Applicable to automated production, handling, assembly, and machine-tool applications.
- Useful for maintenance and replacement of compatible MP-Series motion systems.
Technical FAQs
What type of motion does the MPL-B580F-SJ72AA provide?
The MPL-B580F-SJ72AA is a rotary servo motor. Its shaft rotation is controlled as part of a servo axis, allowing the motor to participate in programmed machine movement and coordinated motion sequences.
What role does the servo drive have in this motor system?
The servo drive controls the electrical power delivered to the motor and works with the motion-control system to achieve the requested axis response. The motor and drive therefore need to be considered together when configuring a servo axis.
What can cause positioning problems even when the motor is electrically connected correctly?
Mechanical misalignment, coupling problems, excessive load, binding, incorrect axis configuration, or feedback-related issues can all affect positioning. Troubleshooting should therefore cover both the electrical control loop and the mechanical transmission.
What should be verified during initial commissioning?
The motor connections, feedback response, drive configuration, axis direction, mechanical movement, and controller enable conditions should be checked before normal operation. A controlled low-risk test movement is appropriate before placing the machine into its full production sequence.
