Product Overview

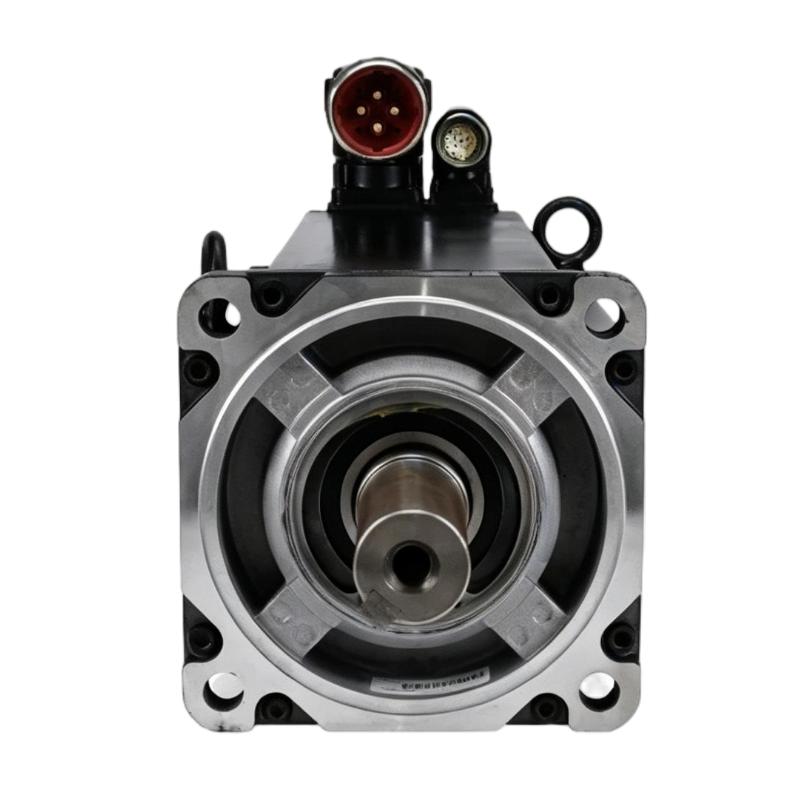

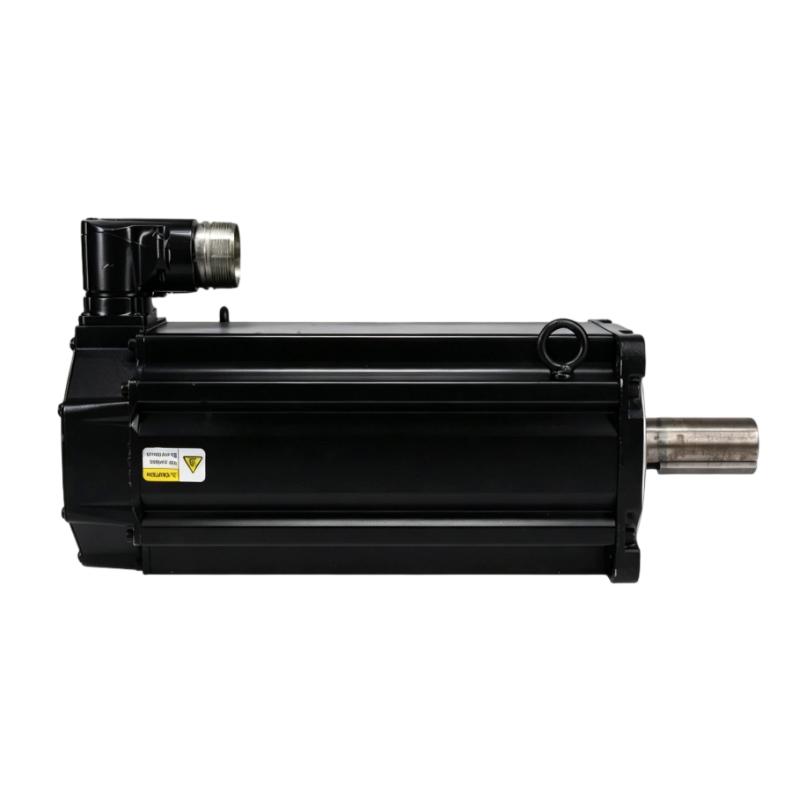

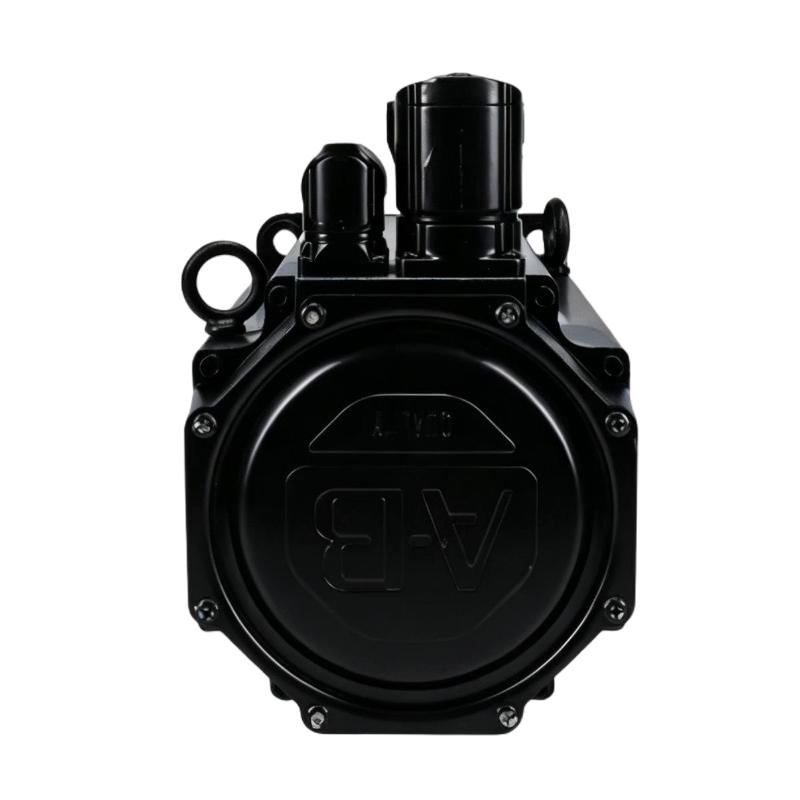

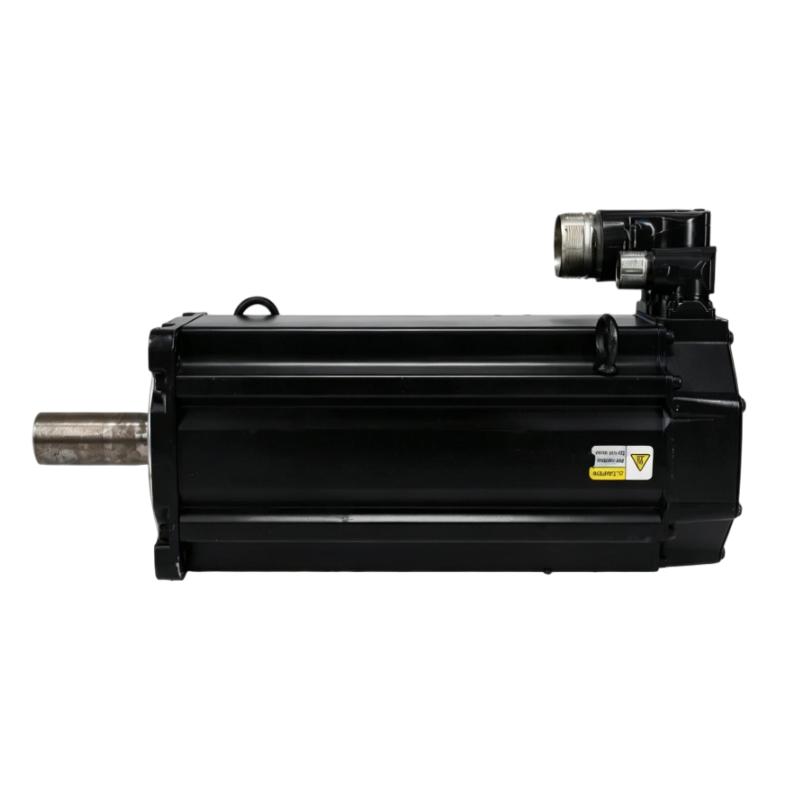

The Allen Bradley MPL-B580F-MJ74AA is an MP-Series rotary servo motor used in industrial motion systems where the motor must respond to controlled commands from a servo drive and motion controller. It forms the motor element of a closed-loop axis, working with the associated feedback system to support controlled rotary movement.
In a typical Allen Bradley motion installation, the controller establishes the required movement profile, while the servo drive regulates the electrical power delivered to the motor. The MPL-B580F-MJ74AA converts that electrical input into mechanical rotation, which can then be transferred to a machine mechanism through a coupling, gearbox, belt, screw, or other mechanical transmission.
This type of motor is applicable to automated machinery requiring repeatable positioning, coordinated movement, controlled speed changes, or other programmed rotary motion. It can also be relevant when maintaining an existing MP-Series motion platform and replacing a motor while retaining the established control architecture.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | MPL-B580F-MJ74AA |
| Product Type | Rotary Servo Motor |
| Product Family | MP-Series |
| Manufacturer | Allen Bradley |
| Motion Type | Rotary Motion |
| Motor Technology | Servo Motor |
| Control Method | Closed-Loop Motion Control |
| Application | Industrial Machine Motion |
| System Integration | Allen Bradley Servo Drive and Motion Controller |
| Feedback Function | Motor Feedback for Closed-Loop Control |
| Mechanical Function | Converts electrical servo power into controlled rotary motion |
| Typical Axis Function | Position, Speed, and Torque-Controlled Motion |
| Installation | Machine-Mounted Servo Axis |
| Frame Size | 165 mm |
| Weight | 25.4 kg |
Product Features
- MP-Series rotary servo motor for industrial motion-control systems.
- Operates as part of a closed-loop servo axis.
- Works with compatible Allen Bradley servo drives and motion controllers.
- Provides controlled rotary motion for automated machine mechanisms.
- Uses motor feedback as part of the axis control loop.
- Suitable for coordinated multi-axis machine movement.
- Can support programmed positioning and controlled changes in motor operation.
- Applicable to machine construction, replacement, and maintenance projects.
- Can be connected to mechanical transmission components used to transfer motor rotation to the machine load.
Working Principle
The MPL-B580F-MJ74AA operates together with a servo drive and motion controller rather than functioning as a standalone motor.
1. Motion command
The motion controller establishes the required axis movement based on the machine program. Depending on the application, this can involve programmed positioning, speed changes, acceleration, deceleration, or coordination with other axes.
2. Drive regulation
The servo drive receives the motion command and regulates the electrical power supplied to the motor. The drive continuously manages the motor according to the commanded axis behavior and available feedback information.
3. Motor rotation
The MPL-B580F-MJ74AA converts the electrical energy from the servo drive into mechanical rotary motion. The motor shaft then drives the connected machine mechanism through the applicable mechanical transmission.
4. Feedback loop
Motor feedback is returned to the control system so that actual motor behavior can be monitored against the commanded motion. Corrections can then be made through the servo drive to maintain the required axis response.
5. Machine movement
The resulting rotary motion is transferred to the machine’s working mechanism. In a multi-axis system, the motor can operate together with other servo axes under coordinated motion commands.
Motion controller → Servo drive → MPL-B580F-MJ74AA → Mechanical transmission → Machine axis → Feedback → Control system
Role in an MP-Series Motion Control Architecture
The MPL-B580F-MJ74AA occupies the motor stage of an Allen Bradley motion-control system. The controller determines the required movement, the servo drive regulates motor operation, and the motor produces the mechanical rotation. Feedback closes the control loop and allows the system to monitor actual axis response.
| System Layer | Typical Component | Function |
|---|---|---|
| Motion Control | Allen Bradley Motion Controller | Generates programmed motion commands and coordinates machine axes |
| Servo Drive | Compatible Allen Bradley Servo Drive | Regulates electrical power supplied to the motor |
| Motor | MPL-B580F-MJ74AA | Produces controlled rotary mechanical motion |
| Feedback | Motor Feedback System | Returns motor/axis response information to the control system |
| Mechanical Transmission | Coupling / Gearbox / Belt / Screw | Transfers motor rotation to the machine mechanism |
| Machine Axis | Automated Machine Mechanism | Performs the required production movement |
| Operator Interface | HMI / Machine Interface | Provides machine commands, status, and diagnostic information |
Industrial Applications
| Application | Motor Role |
|---|---|
| Automated Production Machinery | Drives programmed rotary movement within production sequences |
| Packaging Equipment | Supports coordinated movement of packaging mechanisms |
| Material Handling | Provides controlled rotary motion for positioning and transfer equipment |
| Machine Tools | Drives motion axes requiring controlled and repeatable movement |
| Assembly Systems | Supports positioning and synchronized operation of automated tooling |
| Robotics and Automation | Functions as a rotary motion element within coordinated machine systems |
| Converting Machinery | Drives controlled movement of rollers and other rotary mechanisms |
| Industrial Retrofit Projects | Supports replacement of compatible servo motors in established MP-Series systems |
Installation and Maintenance
- Confirm compatibility between the MPL-B580F-MJ74AA, the servo drive, motion controller, feedback arrangement, and machine application before installation.
- Disconnect and isolate electrical power according to the machine’s lockout/tagout procedure before handling the motor or connected cables.
- Verify the motor mounting arrangement and mechanical interface against the applicable machine documentation.
- Inspect the motor housing, shaft area, connectors, and accessible cable interfaces for visible damage before installation.
- Confirm the motor power and feedback connections before connecting the servo system.
- Route motor and feedback cables according to the established machine wiring arrangement and protect them from mechanical stress.
- Securely mount the motor and verify alignment with the connected mechanical transmission.
- Inspect couplings, gearboxes, belts, screws, and other driven components for binding or abnormal mechanical resistance.
- Check the servo drive and motion-controller axis configuration before enabling the motor.
- Perform the initial movement under controlled conditions and verify the commanded direction and feedback response.
- During operation, monitor for abnormal vibration, noise, temperature rise, positioning deviation, or following-error conditions.
- Record the motor model, axis position, installation date, and maintenance observations for future service work.
Related Components
| Component | Function in the System |
|---|---|
| Allen Bradley Servo Drive | Regulates electrical power and motor operation |
| Allen Bradley Motion Controller | Generates and coordinates motion commands |
| Motor Feedback Interface | Supplies feedback information for closed-loop control |
| Motor Power Cable | Connects the servo drive to the motor power circuit |
| Feedback Cable | Carries motor feedback information to the control system |
| Mechanical Coupling | Transfers motor shaft rotation to the machine mechanism |
| Gearbox | Changes the mechanical transmission characteristics when required by the machine |
| HMI | Provides operator commands, status information, and diagnostics |
| Machine Axis Assembly | Uses motor rotation to perform the required automated movement |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Allen Bradley MPL-B580F-MJ72AH | MP-Series Rotary Servo Motor | Related MP-Series motor configuration within the same frame family |
| Allen Bradley MPL-B4540F-MJ72AH | MP-Series Rotary Servo Motor | Related MP-Series rotary servo motor for industrial motion systems |
| Allen Bradley MPL-B4540F-SJ72AH | MP-Series Rotary Servo Motor | Related MP-Series rotary servo motor configuration |
| Allen Bradley MPL-B330P-MJ72AH | MP-Series Rotary Servo Motor | Related MP-Series rotary servo motor for automated machinery |
| Allen Bradley MPL-B330P-SJ72AH | MP-Series Rotary Servo Motor | Related MP-Series rotary servo motor configuration |
Key Advantages
- Provides controlled rotary motion within an Allen Bradley MP-Series servo architecture.
- Supports closed-loop operation with motor feedback.
- Suitable for programmed and coordinated machine movement.
- Integrates into compatible servo drive and motion-controller systems.
- Applicable to automated production and machine-axis applications.
- Useful for maintenance and replacement of compatible MP-Series motion systems.
Technical FAQs
What is the function of the MPL-B580F-MJ74AA in a servo axis?
The motor converts electrical power regulated by the servo drive into mechanical rotary motion. It works together with the motion controller, servo drive, and feedback system as one closed-loop motion axis.
Why is motor feedback important during operation?
Feedback allows the control system to monitor actual motor behavior rather than relying only on the commanded value. The servo drive can use this information to control the axis and respond to deviations from the commanded movement.
What mechanical conditions should be checked during servo motor replacement?
The motor mounting, shaft connection, coupling alignment, driven mechanism, and mechanical load should all be checked. Binding or misalignment can cause abnormal motor behavior and positioning problems even when the electrical connections are correct.
Can this motor be installed by simply matching the mounting interface?
No. Mechanical fit alone is not sufficient for servo motor selection. The servo drive, feedback arrangement, control configuration, mechanical requirements, and overall axis compatibility should all be verified before installation.
