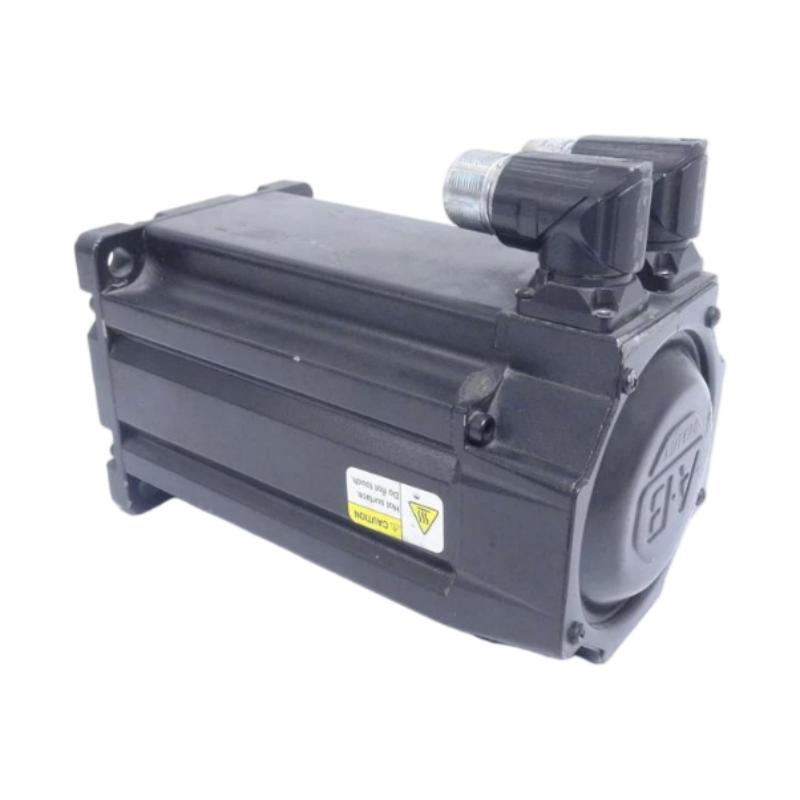

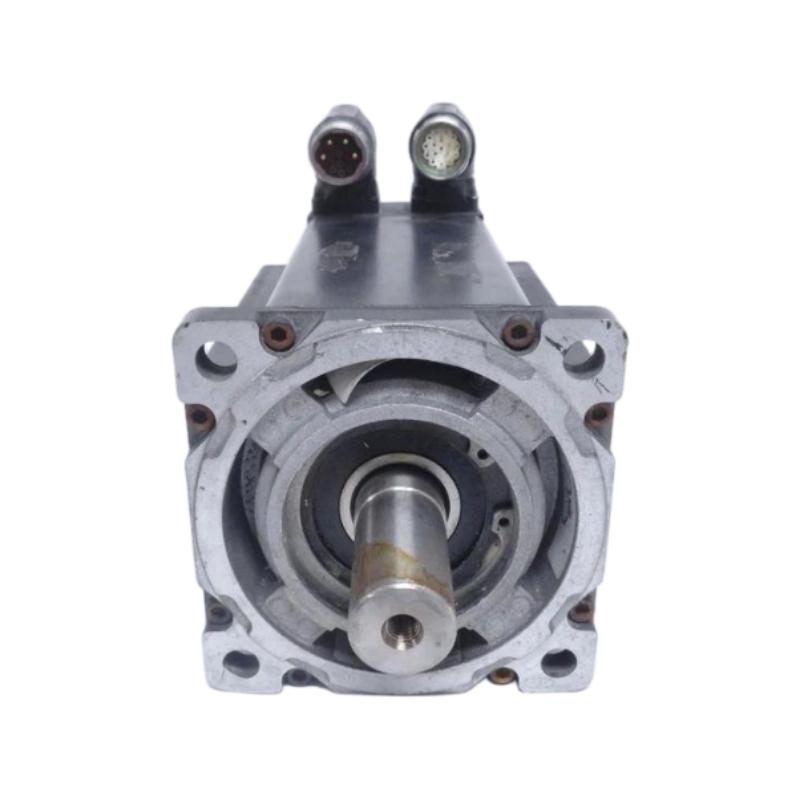

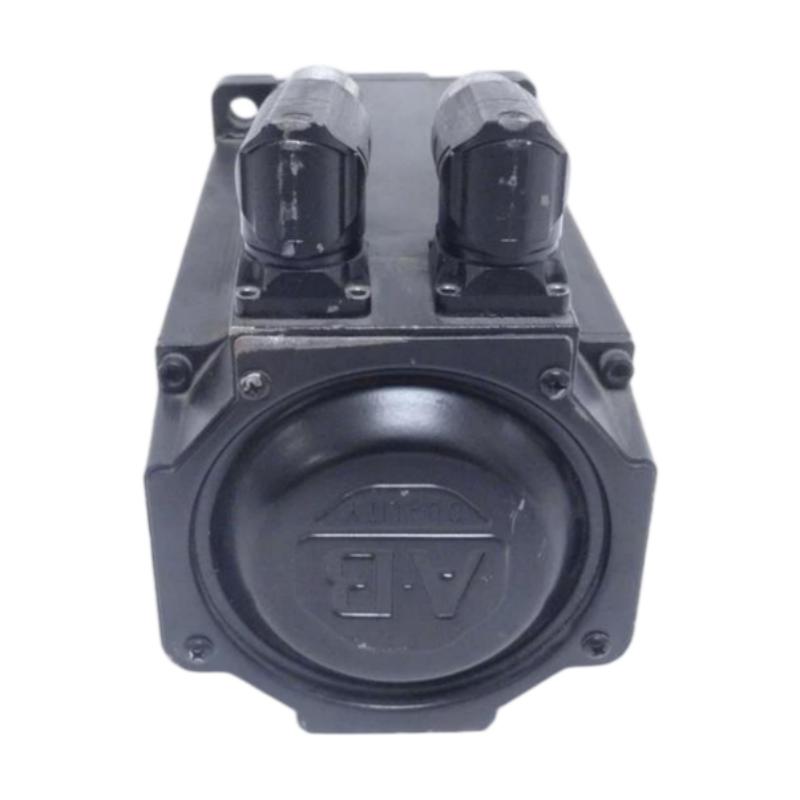

Allen-Bradley MPL-B4540F-MK72AA Low-Inertia Servo Motor
1. Product Overview
The Allen-Bradley MPL-B4540F-MK72AA is a high-performance MP-Series MPL low-inertia brushless AC servo motor designed for demanding industrial motion-control applications.
It is a 460 V-class servo motor with a 130 mm frame size, 101.6 mm magnet stack length, 3000 RPM rated speed, multi-turn high-resolution absolute encoder feedback, keyless shaft construction, SpeedTEC DIN connectivity, and no integral brake.
The motor is particularly well suited to applications where fast acceleration, accurate positioning, high dynamic response, repeatable motion, and compact machine construction are important.
The MPL-B4540F-MK72AA belongs to the MPL Low-Inertia Servo Motor Series within the MP-Series product family. Its low rotor inertia allows the motor to respond quickly to changes in command speed and position, making it suitable for high-cycle machinery and applications requiring frequent acceleration and deceleration.
The model uses a multi-turn high-resolution absolute encoder, which provides position feedback without requiring the same type of repeated mechanical homing process normally associated with a basic incremental-feedback arrangement.
The model also uses a keyless shaft extension. This makes it different from keyed-shaft versions in the same MPL family and is useful where the machine’s mechanical coupling arrangement is designed around a keyless shaft interface.
2. Brand and Series Information
| Item | Details |
|---|---|
| Brand | Allen-Bradley |
| Product Family | MP-Series |
| Product Series | MPL Low-Inertia Servo Motors |
| Product Type | Brushless AC Rotary Servo Motor |
| Motor Construction | Permanent-magnet brushless servo motor |
| Voltage Class | 460 V AC |
| Rated Speed | 3000 RPM |
| Feedback | Multi-turn high-resolution absolute encoder |
| Shaft Type | Keyless shaft extension |
| Brake | No integral brake |
| Connector | SpeedTEC DIN connector |
| Mounting | IEC metric |
| Frame Size | 130 mm |
| Magnet Stack | 101.6 mm |
| Intended Use | Industrial motion control |
The MPL series is designed around the requirements of modern servo-controlled machinery, combining relatively compact mechanical dimensions with fast dynamic response and high torque capability.
The MPL-B4540F-MK72AA represents a mid-size motor configuration within the MPL family. Its 130 mm frame and 101.6 mm stack provide a useful balance between torque capability, motor size, and dynamic performance.
3. Model Number Interpretation
The catalog number can be understood by examining the main configuration elements represented by the model code.
| Model Code Section | Meaning |
|---|---|
| MPL | MPL low-inertia servo motor series |
| B | 460 V voltage class |
| 45 | Frame size 45 / 130 mm |
| 40 | Magnet stack length 40 / 101.6 mm |
| F | 3000 RPM speed configuration |
| M | Multi-turn high-resolution absolute encoder |
| K | Keyless shaft extension |
| 7 | SpeedTEC DIN connector, right-angle and rotatable |
| 2 | No brake |
| AA | Standard configuration/version designation |
This configuration makes the MPL-B4540F-MK72AA especially attractive when an application requires absolute multi-turn feedback and a keyless shaft but does not require a holding brake.
4. Detailed Technical Specifications
| Parameter | MPL-B4540F-MK72AA Specification |
|---|---|
| Model | MPL-B4540F-MK72AA |
| Brand | Allen-Bradley |
| Series | MPL Low-Inertia |
| Product Family | MP-Series |
| Motor Type | Brushless AC rotary servo motor |
| Voltage Class | 460 V AC |
| Operating Voltage Class | 480 V AC system class |
| Rated Speed | 3000 RPM |
| Maximum Speed | 3000 RPM |
| Continuous Stall Torque | 10.2 N·m |
| Peak Torque | 27.1 N·m |
| Continuous Rated Power | Approx. 2.6 kW |
| Rotor Inertia | Approx. 0.00052 kg·m² |
| Frame Size | 130 mm |
| Magnet Stack Length | 101.6 mm |
| Feedback Type | Multi-turn high-resolution absolute encoder |
| Feedback Resolution | 1024 Sin/Cos cycles/rev configuration |
| Feedback Protocol | Hiperface-type absolute feedback |
| Shaft | Keyless shaft extension |
| Shaft Seal | Not fitted as standard |
| Brake | No integral brake |
| Connector | SpeedTEC DIN |
| Connector Orientation | Right-angle |
| Connector Adjustment | 180° rotatable |
| Mounting | IEC metric flange mounting |
| Mounting Holes | Free mounting holes, Type FF |
| Enclosure | Standard motor enclosure configuration |
| Food-Grade Configuration | No |
| Operating Temperature | Up to approximately 40 °C |
| Approx. Motor Weight | 6.8 kg |
| Dimensions | Approx. 130 mm frame × 101.6 mm magnet stack; overall length depends on mechanical projection and connector arrangement |
The 10.2 N·m continuous torque rating gives the motor a substantial continuous torque capability for its frame class, while the 27.1 N·m peak torque capability allows the motor to handle short-duration acceleration and dynamic load requirements.
The approximate 0.00052 kg·m² rotor inertia is an important characteristic of this motor. Low rotor inertia reduces the amount of energy required to accelerate the motor rotor and allows the servo system to change speed rapidly.
5. Dimensions and Weight
The physical dimensions of a servo motor should always be considered together with the required mounting space, cable bend radius, shaft coupling, machine guarding, and connector clearance.
| Mechanical Parameter | Specification |
|---|---|
| Model | MPL-B4540F-MK72AA |
| Frame Diameter / Frame Size | 130 mm |
| Magnet Stack Length | 101.6 mm |
| Nominal Frame Class | 45 |
| Mounting Standard | IEC metric |
| Shaft Configuration | Keyless |
| Connector | SpeedTEC DIN, right-angle |
| Connector Rotation | 180° |
| Brake Housing | Not applicable |
| Approx. Motor Weight | 6.8 kg |
| Overall Motor Envelope | Approx. 130 mm frame class with 101.6 mm active magnet stack |
| Mounting Style | Flange mount |
| Mounting Holes | Free mounting holes / Type FF |
The 6.8 kg figure should be treated as an approximate motor weight for the standard configuration. Actual packaged weight can be higher, particularly when shipping materials, cables, connectors, mounting hardware, or accessories are included.
The 130 mm frame size is one of the key mechanical characteristics of this model. The 101.6 mm stack length places it in the 40-stack configuration of the MPL family.
For machine design, the motor envelope should not be determined from frame and stack dimensions alone. The shaft projection, connector position, cable bend radius, mounting flange, and surrounding clearance must also be considered.
6. Electrical and Performance Characteristics
The MPL-B4540F-MK72AA is designed for 460 V-class servo applications and has a rated speed of 3000 RPM.
Its continuous stall torque is approximately 10.2 N·m, while its peak torque capability reaches approximately 27.1 N·m.
This combination gives the motor the ability to provide a relatively high continuous torque level while also handling short-duration acceleration and transient load conditions.
| Performance Parameter | Value |
|---|---|
| Rated Speed | 3000 RPM |
| Maximum Speed | 3000 RPM |
| Continuous Torque | 10.2 N·m |
| Peak Torque | 27.1 N·m |
| Continuous Power | Approx. 2.6 kW |
| Rotor Inertia | Approx. 0.00052 kg·m² |
| Voltage Class | 460 V AC |
| Motor Type | Brushless permanent-magnet servo |
The motor’s performance is particularly useful in machines where the servo axis repeatedly starts, stops, accelerates, decelerates, and changes direction.
The combination of high peak torque and low rotor inertia is one of the most important reasons this type of motor is used in high-speed automation.
7. Multi-Turn Absolute Encoder
One of the most important features of the MPL-B4540F-MK72AA is its multi-turn high-resolution absolute encoder.
The encoder provides the servo drive with detailed information about motor shaft position and rotation. Because it is a multi-turn absolute feedback system, the feedback architecture can retain information about the motor’s position over multiple revolutions.
This is particularly valuable in applications where position accuracy is important and where machine operation depends heavily on accurate axis position.
Typical applications include indexing systems, electronic assembly equipment, packaging machines, printing equipment, converting machinery, and automated handling systems.
The high-resolution feedback also supports precise velocity regulation and closed-loop positioning.
For applications involving high acceleration and deceleration, accurate feedback is essential because the controller must continuously determine the actual motor position and compare it with the commanded position.
8. Keyless Shaft Design
The MPL-B4540F-MK72AA uses a keyless shaft extension.
This is an important difference between this model and keyed versions such as the corresponding MJ-series configuration.
A keyless shaft can be advantageous when the mechanical transmission system uses a suitable clamping hub, shrink disc, friction coupling, or another shaft-locking arrangement.
The absence of a conventional shaft key can also simplify certain coupling arrangements and eliminate some mechanical clearance requirements around a keyway.
However, the mechanical coupling must be selected correctly. The coupling must be capable of transmitting the motor’s continuous torque and peak torque without slipping.
For high-dynamic servo applications, the coupling should also have suitable torsional stiffness and low backlash.
9. No Integral Brake
The MPL-B4540F-MK72AA is a no-brake configuration.
This makes the motor lighter and mechanically simpler than an otherwise similar model equipped with an integral 24 V DC holding brake.
The no-brake configuration is normally appropriate when the motor does not need to mechanically hold the load after servo power is removed.
Typical examples include horizontal conveyor axes, rotary indexing systems, transfer mechanisms, and other axes where the machine’s mechanical design prevents the load from falling or back-driving the motor.
For vertical axes or applications where a load could move under gravity after motor power is removed, a brake-equipped servo motor or an independent safety/holding mechanism may be more appropriate.
The absence of a brake can also be beneficial when reducing motor mass is important.
10. SpeedTEC DIN Connector
The motor uses a SpeedTEC DIN connector with a right-angle configuration.
The connector can be rotated through approximately 180 degrees, giving the machine designer more flexibility when routing motor cables.
This feature is especially useful in compact machine designs where the servo motor is installed close to guards, frames, covers, linear mechanisms, or other equipment.
Flexible connector orientation can help prevent excessive cable bending and make the overall machine wiring arrangement cleaner.
It can also make service work easier because the cable connection can be positioned according to the available installation space.
11. Low-Inertia Motor Construction
Low rotor inertia is a defining characteristic of the MPL series.
In a servo motor, rotor inertia affects how quickly the motor can accelerate and decelerate.
The lower the rotor inertia, the less energy is required to change the motor’s rotational speed.
The MPL-B4540F-MK72AA has an approximate rotor inertia of 0.00052 kg·m², making it suitable for dynamic motion applications.
This characteristic is especially valuable in machines with frequent motion cycles.
For example, a packaging machine may need to accelerate an axis, move to a position, stop quickly, reverse direction, and repeat the process thousands of times.
A low-inertia motor can respond efficiently to these repeated speed changes.
12. Main Product Advantages
12.1 High Dynamic Response
The low-inertia design allows the motor to accelerate and decelerate rapidly.
This is useful for high-cycle machinery where short motion times directly affect machine productivity.
12.2 Strong Continuous Torque
With approximately 10.2 N·m continuous torque, the motor provides substantial continuous output for its frame size.
This makes it suitable for many medium-duty servo axes.
12.3 High Peak Torque
The approximately 27.1 N·m peak torque capability gives the motor additional acceleration capacity.
Peak torque is particularly useful during rapid acceleration, deceleration, short-duration overload conditions, and high-dynamic positioning.
12.4 Multi-Turn Absolute Feedback
The multi-turn absolute encoder provides high-resolution position information.
This makes the motor well suited to precision positioning applications where feedback quality is critical.
12.5 Compact 130 mm Frame
The 130 mm frame size offers a useful compromise between torque capability and machine footprint.
It can be integrated into a wide range of industrial machines without requiring the larger mechanical envelope associated with higher-power servo motors.
12.6 Keyless Shaft
The keyless shaft provides compatibility with clamping-style mechanical couplings and other keyless transmission systems.
This can simplify certain mechanical designs and is particularly useful where high torsional stiffness and precise coupling are required.
12.7 Flexible Connector Orientation
The 180-degree rotatable SpeedTEC DIN connector provides greater freedom for cable routing.
This is valuable in machines with restricted installation space.
12.8 No-Brake Lightweight Configuration
Because the motor does not include an integral brake, it can provide a simpler and lighter configuration when a holding brake is not required.
12.9 Industrial Servo Compatibility
The motor is designed for integration into industrial servo motion systems and can be used with compatible motion-control drive platforms.
The correct motor-drive combination should always be verified according to the drive’s motor database, voltage class, feedback requirements, and application specifications.
13. Typical Applications
The MPL-B4540F-MK72AA can be used in many industrial automation applications where precise closed-loop motion is required.
| Application | Typical Use |
|---|---|
| Packaging Machinery | Film feeding, indexing, cutting and positioning |
| Material Handling | Conveyors, transfer mechanisms and positioning axes |
| Electronic Assembly | High-speed component positioning |
| Pick-and-Place | Rapid movement and accurate positioning |
| Printing Machinery | Roll positioning and registration |
| Converting Equipment | Web control and synchronized motion |
| Labeling Machinery | Label positioning and feed control |
| Inspection Equipment | Camera and inspection-axis positioning |
| Automated Assembly | Precision mechanical movement |
| Indexing Systems | Repeated rotary positioning |
| Machine Tools | Auxiliary servo axes and positioning |
| Textile Machinery | High-speed synchronized movement |
| General Factory Automation | Servo-controlled motion axes |
14. Packaging Machinery
Packaging machinery is one of the most suitable application areas for a low-inertia servo motor.
Packaging equipment often requires fast acceleration, precise synchronization, repeated indexing, and rapid stopping.
The MPL-B4540F-MK72AA can be used for mechanisms such as film feeding, product positioning, rotary indexing, cutting mechanisms, sealing mechanisms, and synchronized conveyors.
The multi-turn feedback is also useful where the machine controller needs reliable position information throughout repeated motion cycles.
15. Material Handling
The motor can also be applied to automated material-handling systems.
Examples include positioning conveyors, transfer mechanisms, indexing tables, automated feeders, and synchronized transport systems.
The 3000 RPM operating speed provides sufficient speed for many high-cycle motion axes while the 10.2 N·m continuous torque rating provides useful load-handling capability.
For vertical material-handling axes, however, the absence of an integral brake must be carefully considered.
16. Electronic Assembly
Electronic assembly equipment often requires accurate and repeatable movement.
Components may need to be transferred between stations with very small positional errors.
The MPL-B4540F-MK72AA’s high-resolution absolute feedback and low rotor inertia make it appropriate for servo axes requiring rapid positioning and repeatable movement.
Typical examples include component handling, assembly indexing, feeder mechanisms, and precision transfer equipment.
17. Pick-and-Place Systems
Pick-and-place machines require high acceleration and deceleration because productivity depends on completing each motion cycle quickly.
Low inertia is particularly useful in this type of application.
The motor can rapidly change speed while maintaining closed-loop control over position.
The keyless shaft also allows the motor to be integrated with suitable high-performance couplings used in robotic and automation mechanisms.
18. Printing and Converting Equipment
Printing and converting machinery often requires precise synchronization between several rotating or linear axes.
Servo motors are commonly used for web handling, tension-related motion, roller synchronization, indexing, cutting, and positioning.
The multi-turn feedback and high dynamic response of the MPL-B4540F-MK72AA can be useful in these applications.
19. Recommended Same-Series or Closely Related Models
The following models are useful alternatives or comparison points when selecting an MPL-series servo motor.
| Model | Speed | Continuous Torque | Peak Torque | Power | Frame / Stack | Feedback | Shaft | Brake | Approx. Weight |
|---|---|---|---|---|---|---|---|---|---|
| MPL-B4540F-MJ72AA | 3000 RPM | 10.2 N·m | 27.1 N·m | 2.6 kW | 130 × 101.6 mm | Multi-turn absolute | Keyed | No | Approx. 8.6 kg |
| MPL-B4540F-MJ74AA | 3000 RPM | 10.2 N·m | 27.1 N·m | 2.6 kW | 130 × 101.6 mm | Multi-turn absolute | Keyed | 24 V DC | Approx. 10.6 kg |
| MPL-B4530F-MK72AA | 3000 RPM | Approx. 8.25 N·m | Approx. 20.3 N·m | Approx. 2.1 kW | 130 × 76.2 mm | Multi-turn absolute | Keyless | No | Approx. 6.3 kg |
| MPL-B4540F-HK74AA | 3000 RPM | 10.2 N·m | 27.1 N·m | 2.6 kW | 130 × 101.6 mm | High-resolution feedback | Keyless | 24 V DC | Approx. 10.6 kg |
| MPL-B4560F-MJ74AA | 3000 RPM | 14.1 N·m | 34.4 N·m | 3.2 kW | 130 × 152.4 mm | Multi-turn absolute | Keyed | 24 V DC | Approx. 11.8 kg |
The MPL-B4540F-MJ72AA is one of the closest mechanical alternatives to the subject model. The major difference is the shaft configuration: MJ uses a keyed shaft while MK uses a keyless shaft.
The MPL-B4540F-MJ74AA adds a 24 V DC brake while retaining the same general motor size and performance class.
The MPL-B4530F-MK72AA has a shorter magnet stack and lower torque capability, making it a good option when a smaller torque requirement allows a more compact motor.
The MPL-B4540F-HK74AA is useful when a similar motor configuration is required with a different feedback arrangement and an integral brake.
The MPL-B4560F-MJ74AA moves to a longer magnet stack and provides higher torque, making it more suitable for heavier-duty servo axes.
20. Comparison with the Closest Model: MPL-B4540F-MJ72AA
The MPL-B4540F-MJ72AA is probably the most direct mechanical comparison to the MPL-B4540F-MK72AA.
Both models use the same general 130 mm frame and 101.6 mm magnet stack configuration.
Both provide approximately 10.2 N·m continuous torque and approximately 27.1 N·m peak torque.
The key difference is the shaft.
| Feature | MPL-B4540F-MK72AA | MPL-B4540F-MJ72AA |
|---|---|---|
| Frame | 130 mm | 130 mm |
| Stack | 101.6 mm | 101.6 mm |
| Speed | 3000 RPM | 3000 RPM |
| Continuous Torque | 10.2 N·m | 10.2 N·m |
| Peak Torque | 27.1 N·m | 27.1 N·m |
| Feedback | Multi-turn absolute | Multi-turn absolute |
| Shaft | Keyless | Keyed |
| Brake | No | No |
| Connector | SpeedTEC DIN | SpeedTEC DIN |
| Approx. Weight | 6.8 kg | 8.6 kg |
If the machine uses a clamping hub or keyless coupling, the MK72AA is the natural choice.
If the machine already uses a conventional keyed coupling, the MJ72AA may be more convenient.
21. Comparison with a Brake-Equipped Version
The MPL-B4540F-MJ74AA is a useful comparison when a holding brake is required.
| Feature | MPL-B4540F-MK72AA | MPL-B4540F-MJ74AA |
|---|---|---|
| Frame | 130 mm | 130 mm |
| Stack | 101.6 mm | 101.6 mm |
| Speed | 3000 RPM | 3000 RPM |
| Continuous Torque | 10.2 N·m | 10.2 N·m |
| Peak Torque | 27.1 N·m | 27.1 N·m |
| Feedback | Multi-turn absolute | Multi-turn absolute |
| Shaft | Keyless | Keyed |
| Brake | No | 24 V DC |
| Connector | SpeedTEC DIN | SpeedTEC DIN |
| Approx. Weight | 6.8 kg | Approx. 10.6 kg |
The MK72AA is preferable when no mechanical holding brake is necessary.
The MJ74AA is more appropriate when the machine requires an integral motor brake, especially for applications involving vertical axes or load-holding requirements.
22. Five Popular Allen-Bradley Models for Comparison
The following five models are representative popular choices within the same general servo-motor family and are useful when comparing different torque, speed, shaft, brake, and frame configurations.
| Model | Series | Speed | Continuous Torque | Peak Torque | Power | Frame / Stack | Feedback | Brake | Approx. Weight |
|---|---|---|---|---|---|---|---|---|---|
| MPL-B4540F-MJ74AA | MPL | 3000 RPM | 10.2 N·m | 27.1 N·m | 2.6 kW | 130 × 101.6 mm | Multi-turn absolute | 24 V DC | Approx. 10.6 kg |
| MPL-B4540F-MJ72AA | MPL | 3000 RPM | 10.2 N·m | 27.1 N·m | 2.6 kW | 130 × 101.6 mm | Multi-turn absolute | No | Approx. 8.6 kg |
| MPL-B4530F-MJ74AA | MPL | 3000 RPM | Approx. 8.25 N·m | Approx. 20.3 N·m | Approx. 2.1 kW | 130 × 76.2 mm | Multi-turn absolute | 24 V DC | Approx. 7.3 kg |
| MPL-B4560F-MJ74AA | MPL | 3000 RPM | 14.1 N·m | 34.4 N·m | 3.2 kW | 130 × 152.4 mm | Multi-turn absolute | 24 V DC | Approx. 11.8 kg |
| MPL-B540K-MJ74AA | MPL | 4000 RPM | 19.4 N·m | 48.6 N·m | 5.4 kW | Approx. 165 × 101.6 mm | Multi-turn absolute | 24 V DC | Approx. 15 kg |
These models cover a useful range of industrial servo requirements.
The shorter-stack models are appropriate where machine space is limited and the required torque is lower.
The longer-stack models provide higher torque without necessarily requiring a substantially larger frame diameter.
The larger-frame MPL-B540K-MJ74AA is more suitable for applications requiring significantly higher continuous and peak torque.
23. How to Select Between These Models
The most important factors when selecting an MPL servo motor are:
- Required continuous torque.
- Required peak acceleration torque.
- Required operating speed.
- Load inertia.
- Motor-to-load inertia ratio.
- Required feedback type.
- Keyed or keyless shaft requirement.
- Need for an integral holding brake.
- Available installation space.
- Servo drive compatibility.
- Cable and connector requirements.
- Environmental conditions.
For a machine requiring approximately 10 N·m continuous torque, 3000 RPM operation, multi-turn absolute feedback, and a keyless shaft, the MPL-B4540F-MK72AA is a strong match.
If the same application requires a keyed shaft, the MPL-B4540F-MJ72AA is the more natural alternative.
If a brake is required, a brake-equipped configuration such as the MPL-B4540F-MJ74AA should be considered.
If more torque is required, the longer-stack MPL-B4560F configuration is a logical step upward.
24. Advantages of the MPL-B4540F-MK72AA for Machine Builders
From a machine-builder perspective, this motor offers a combination of features that are useful for standardized automation platforms.
The 130 mm frame provides a reasonably compact mechanical package while maintaining a useful torque rating.
The 3000 RPM speed class is suitable for many industrial rotary and linear servo axes.
The multi-turn absolute feedback reduces the need for complicated external position-feedback arrangements.
The keyless shaft is convenient for modern coupling systems.
The rotatable SpeedTEC connector provides additional freedom in machine layout.
The absence of an integral brake keeps the configuration relatively simple when a brake is not required.
The low rotor inertia also supports fast machine cycles and responsive servo control.
25. Servo Drive Compatibility
The MPL-B4540F-MK72AA is intended for use as part of an integrated servo motion-control system.
Depending on the specific system architecture and feedback configuration, compatible drive families can include Kinetix-class servo drives and other supported MP-Series drive platforms.
The exact drive selection should be checked against:
- Motor voltage class.
- Continuous current requirement.
- Peak current requirement.
- Motor feedback protocol.
- Encoder interface.
- Drive motor database.
- Required safety functions.
- Application speed range.
- Required acceleration and deceleration.
The motor and drive should be treated as one coordinated motion-control system rather than as completely independent components.
26. Mechanical Installation Considerations
The mounting surface should be rigid and accurately aligned.
Servo motors are sensitive to excessive mechanical misalignment because misalignment can introduce additional radial or axial loads on the bearings.
The motor should be mounted using the appropriate IEC metric mounting arrangement.
The coupling should be properly aligned with the driven shaft.
Because the MPL-B4540F-MK72AA uses a keyless shaft, the selected coupling must be compatible with the shaft diameter and clamping method.
The coupling should also be capable of handling the maximum torque produced by the motor.
Cable routing should avoid excessive bending near the motor connector.
The rotatable SpeedTEC DIN connector makes cable routing easier, but the cable manufacturer’s minimum bend radius should still be respected.
27. Brake Considerations
Because this model does not have an integral brake, the machine designer must consider what happens when servo power is removed.
For a horizontal axis, the absence of a brake may not be an issue.
For a vertical axis, the load may move due to gravity when motor torque is removed.
In that type of application, an independent mechanical holding system or a brake-equipped servo motor configuration should normally be evaluated.
A servo motor brake should not automatically be treated as the primary safety device unless the complete machine safety design specifically supports that function.
28. Maintenance Considerations
Servo motors generally require less routine maintenance than many conventional mechanical drive systems, but proper installation remains important.
The motor should be protected from excessive contamination, impact, abnormal vibration, and unsuitable environmental conditions.
The connector should be inspected if the machine operates under significant vibration or repeated cable movement.
Mechanical coupling alignment should be checked if unusual vibration, noise, or bearing temperature is observed.
If the motor shows abnormal temperature rise, unstable positioning, excessive following error, or unexpected vibration, the servo drive parameters and mechanical system should be checked together.
Common problems in servo applications are not always caused by the motor itself. Incorrect tuning, mechanical resonance, excessive load inertia, poor coupling alignment, loose mounting, or incorrect feedback wiring can also produce servo-system faults.
29. Typical Application Matching
| Application Requirement | Suitability of MPL-B4540F-MK72AA |
|---|---|
| High-speed indexing | Excellent |
| Packaging machinery | Excellent |
| Electronic assembly | Excellent |
| Pick-and-place | Excellent |
| Material handling | Very good |
| Printing | Very good |
| Converting | Very good |
| Rotary positioning | Excellent |
| Precision positioning | Excellent |
| High-cycle automation | Excellent |
| Horizontal conveyor axis | Very good |
| Vertical gravity-loaded axis | Requires additional holding solution |
| Applications requiring keyed shaft | Select keyed alternative |
| Applications requiring integral brake | Select brake-equipped alternative |
| Very high torque applications | Consider larger MPL configuration |
30. Key Technical Advantages at a Glance
| Advantage | Explanation |
|---|---|
| Low Inertia | Enables fast acceleration and deceleration |
| 10.2 N·m Continuous Torque | Provides strong continuous output |
| 27.1 N·m Peak Torque | Supports demanding short-duration acceleration |
| 3000 RPM | Suitable for many high-cycle servo applications |
| Multi-Turn Absolute Feedback | Provides detailed position feedback |
| Keyless Shaft | Suitable for clamping and friction-based couplings |
| No Brake | Simplifies applications that do not require holding torque |
| 130 mm Frame | Compact industrial mechanical package |
| 101.6 mm Stack | Balanced torque and motor length |
| Rotatable DIN Connector | Flexible machine cable routing |
| IEC Metric Mounting | Convenient for metric machine construction |
| Brushless Design | Suitable for industrial closed-loop servo control |
31. Quick Reference Specification Table
| Item | Specification |
|---|---|
| Model | MPL-B4540F-MK72AA |
| Brand | Allen-Bradley |
| Series | MPL Low-Inertia Servo Motor |
| Family | MP-Series |
| Motor Type | Brushless AC rotary servo motor |
| Voltage | 460 V AC class |
| Speed | 3000 RPM |
| Continuous Torque | 10.2 N·m |
| Peak Torque | 27.1 N·m |
| Rated Power | Approx. 2.6 kW |
| Rotor Inertia | Approx. 0.00052 kg·m² |
| Frame Size | 130 mm |
| Magnet Stack | 101.6 mm |
| Feedback | Multi-turn high-resolution absolute encoder |
| Shaft | Keyless |
| Brake | No |
| Connector | SpeedTEC DIN |
| Connector Type | Right-angle, 180° rotatable |
| Mounting | IEC metric |
| Mounting Holes | Free mounting holes, Type FF |
| Shaft Seal | No standard shaft seal |
| Approx. Weight | 6.8 kg |
| Typical Temperature Limit | Approx. 40 °C |
| Primary Application | Industrial servo motion control |
32. Final Product Assessment
The Allen-Bradley MPL-B4540F-MK72AA is a well-balanced low-inertia servo motor for industrial machines that require fast, accurate, repeatable motion.
Its combination of 3000 RPM speed, 10.2 N·m continuous torque, 27.1 N·m peak torque, 2.6 kW-class continuous power, low rotor inertia, multi-turn absolute feedback, keyless shaft, and flexible SpeedTEC DIN connection makes it particularly suitable for demanding automation applications.
The keyless shaft configuration is one of the most important characteristics distinguishing this model from similar keyed MPL motors.
For applications that do not require a holding brake, the no-brake configuration can provide a simpler and lighter solution.
For machines that require high-speed indexing, packaging motion, electronic assembly, material handling, pick-and-place movement, printing, converting, and general factory automation, this motor offers a strong combination of dynamic response and positioning capability.
When selecting a replacement or alternative model, the closest comparison is generally the MPL-B4540F-MJ72AA for a keyed-shaft/no-brake configuration, while the MPL-B4540F-MJ74AA is a suitable comparison when an integral 24 V DC brake is required.
If more torque is needed while maintaining the same general 130 mm frame class, the MPL-B4560F family provides a higher-output option through its longer magnet stack.
Overall, the MPL-B4540F-MK72AA is best characterized as a 3000 RPM, 130 mm-frame, low-inertia, multi-turn absolute-feedback servo motor with a keyless shaft and no integral brake, designed for high-performance industrial motion control.
