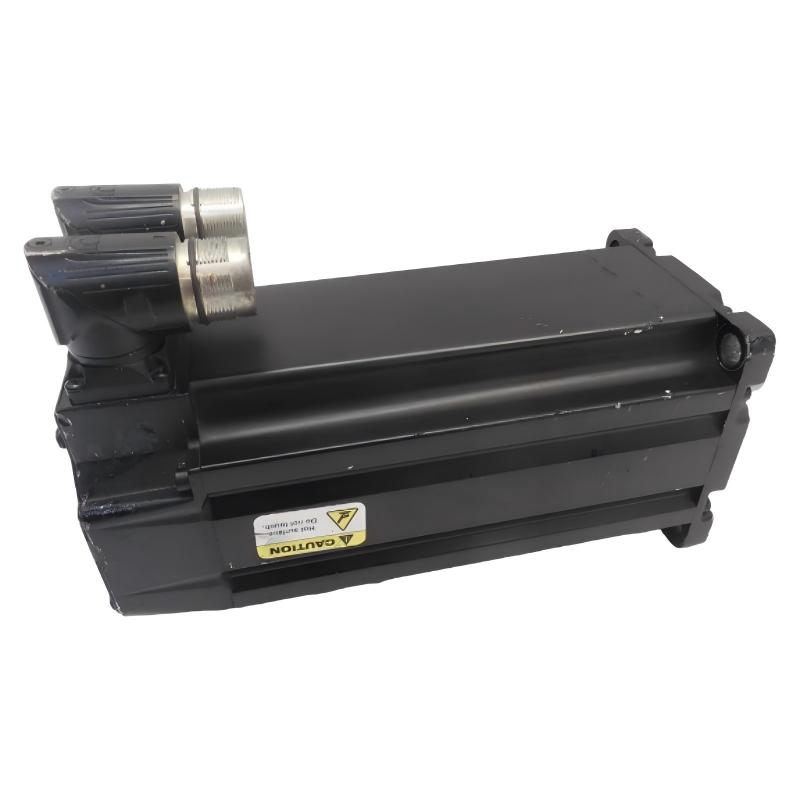

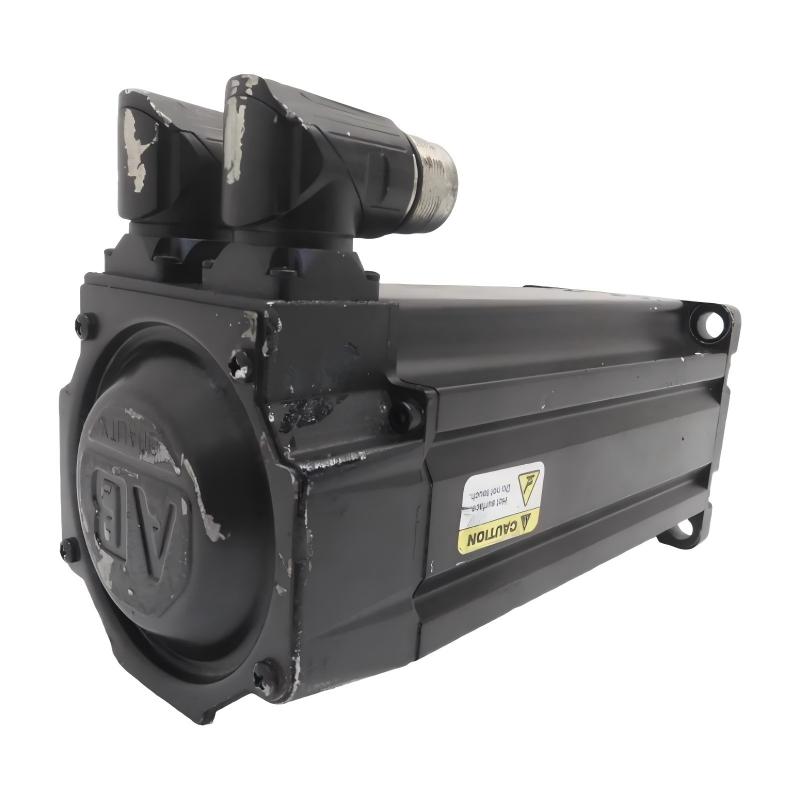

MPL-B430P-MK74AA Low-Inertia Servo Motor

1. Product Overview

The MPL-B430P-MK74AA is a high-performance low-inertia brushless AC servo motor designed for industrial motion-control systems that require high speed, accurate positioning, rapid acceleration, and stable dynamic performance.

This model belongs to the MP-Series MPL Low-Inertia Servo Motor family and is configured for a 460 V AC class, 5000 rpm operation, and a 115 mm frame size. It uses a 76.2 mm magnetic stack, providing a useful combination of compact mechanical dimensions and substantial continuous torque capability.

The motor provides approximately 6.55 N·m of continuous stall torque and approximately 19.8 N·m of peak torque, with a continuous rated output of approximately 2.2 kW.

One of the most important characteristics of the MPL-B430P-MK74AA is its absolute multi-turn high-resolution encoder. The feedback system provides accurate motor-position information and is well suited to demanding servo applications where precise positioning, coordinated motion, electronic gearing, registration, and rapid axis response are required.

The model also features a keyless shaft extension, a 24 V DC holding brake, and a right-angle SpeedTEC DIN connector that can be rotated approximately 180 degrees. These mechanical and electrical features give machine builders additional flexibility when designing compact automated equipment.

---

2. Brand and Product Series

Item	Specification
Brand	Allen-Bradley
Product Family	MP-Series
Servo Motor Series	MPL Low-Inertia Servo Motors
Product Type	Brushless AC Synchronous Servo Motor
Model	MPL-B430P-MK74AA
Motor Category	Rotary Servo Motor
Voltage Class	400 V AC class
Armature Voltage	460 V AC
Rated Speed	5000 rpm
Frame Size	115 mm
Magnetic Stack Length	76.2 mm
Feedback	Absolute Multi-Turn High-Resolution Encoder
Shaft Configuration	Keyless Shaft Extension
Brake	24 V DC Holding Brake
Connector	SpeedTEC DIN, Right Angle
Connector Orientation	Approximately 180° Rotatable
Mounting	IEC Metric
Mounting Holes	Free Mounting Holes, Type FF

The MPL series is designed for applications where a conventional general-purpose motor is not sufficient and where the machine requires precise servo-controlled motion.

---

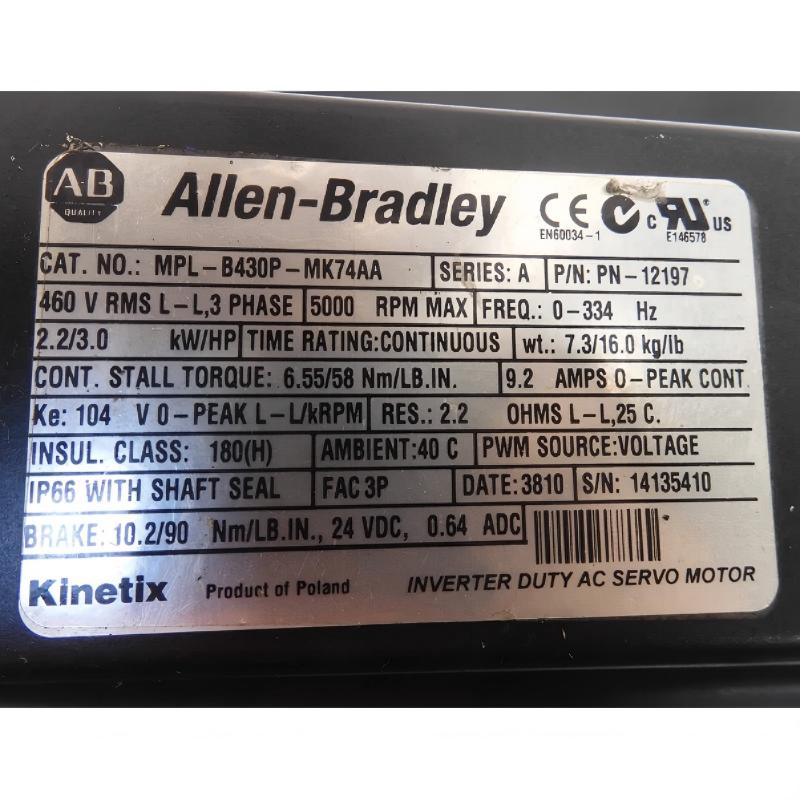

3. Main Technical Specifications

Parameter	Specification
Model	MPL-B430P-MK74AA
Motor Type	Brushless AC Synchronous Servo Motor
Product Series	MPL Low-Inertia Servo Motor
Product Family	MP-Series
Voltage Class	400 V AC
Armature Voltage	460 V AC
Rated Power	Approx. 2.2 kW
Rated Speed	5000 rpm
Maximum Speed	5000 rpm
Continuous Stall Torque	Approx. 6.55 N·m
Peak Torque	Approx. 19.8 N·m
Frame Size	115 mm
Magnetic Stack Length	76.2 mm
Magnetic Stack	3.0 in
Feedback Type	Absolute Multi-Turn High-Resolution Encoder
Feedback Resolution	Sin/Cos, 1024 cycles/revolution
Feedback Protocol	Hiperface-type
Shaft Type	Keyless Shaft Extension
Shaft Key	No
Shaft Seal	No
Brake	24 V DC Holding Brake
Connector	SpeedTEC DIN
Connector Style	Right Angle
Connector Rotation	Approximately 180°
Mounting Standard	IEC Metric
Mounting Hole Type	Free Mounting Holes, Type FF
Rotor Inertia	Approx. 0.00038 kg·m²
Maximum Ambient Operating Temperature	Approx. 40 °C
Approximate Motor Weight	8.1 kg
Protection Configuration	Standard industrial servo motor construction
Typical Duty	High-performance servo motion

---

4. Dimensions and Weight

The MPL-B430P-MK74AA uses a 115 mm frame and a 76.2 mm magnetic stack. These dimensions place the motor in a relatively compact industrial servo class while still providing approximately 2.2 kW of continuous rated output.

Mechanical Parameter	Specification
Model	MPL-B430P-MK74AA
Frame Size	115 mm
Frame Dimension	4.53 in class
Magnetic Stack Length	76.2 mm
Magnetic Stack Length	3.0 in
Mounting Standard	IEC Metric
Mounting Configuration	Free Mounting Holes, Type FF
Shaft Configuration	Keyless Shaft Extension
Shaft Key	None
Shaft Seal	None
Brake	Integral 24 V DC Holding Brake
Connector	Right-Angle SpeedTEC DIN
Connector Rotation	Approximately 180°
Approximate Net Motor Weight	8.1 kg
Approximate Weight in Pounds	Approx. 17.9 lb

The approximately 8.1 kg figure is suitable for general equipment planning and product comparison. Actual packed shipping weight can be higher because of packaging materials, cables, protective components, and accessories.

For detailed machine design, the manufacturer’s dimensional drawing should be used to verify the complete motor length, shaft geometry, mounting-hole dimensions, flange dimensions, connector clearance, and cable-bending space.

---

5. Model Number Breakdown

The complete catalog number is:

MPL-B430P-MK74AA

The model designation can be understood as a combination of motor family, voltage class, frame/output configuration, speed, feedback, shaft, connector, brake, and revision configuration.

Model Code	General Meaning
MPL	MPL Low-Inertia Servo Motor family
B	460 V AC class configuration
430	Frame/output configuration
P	5000 rpm speed configuration
M	Multi-turn high-resolution absolute encoder
K	Keyless shaft extension
7	SpeedTEC DIN right-angle connector configuration
4	24 V DC brake configuration
AA	Standard configuration / catalog revision designation

The MK74AA configuration is particularly notable because it combines multi-turn absolute feedback, a keyless shaft, and an integral 24 V DC holding brake.

---

6. Product Introduction

The MPL-B430P-MK74AA is designed for industrial automation systems in which the motor must respond quickly to changing motion commands.

A servo motor is not selected simply according to horsepower or kilowatt rating. The relationship between motor inertia, load inertia, acceleration requirements, operating speed, peak torque, continuous torque, and duty cycle is equally important.

The low-inertia design of the MPL family makes this motor especially useful for machinery that repeatedly accelerates, decelerates, stops, reverses, and repositions.

The motor’s 5000 rpm rated speed makes it suitable for high-cycle applications where machine productivity depends on fast axis movement.

At the same time, the approximately 6.55 N·m continuous torque provides substantial continuous mechanical output for its frame class.

During short-duration acceleration or transient load conditions, the approximately 19.8 N·m peak torque capability gives the servo system additional dynamic capacity.

This makes the MPL-B430P-MK74AA a practical choice for machines where both speed and controlled torque are important.

---

7. High-Speed 5000 rpm Performance

One of the major benefits of this motor is its 5000 rpm speed rating.

High rotational speed can be particularly useful in automated machinery where cycle time is a major factor.

Typical examples include:

• High-speed indexing
• Servo-driven conveyors
• Packaging mechanisms
• Material feeding
• Printing and converting equipment
• Rotary positioning
• Cutting mechanisms
• Automated assembly
• High-speed inspection systems
• Electronic synchronization systems

A higher motor speed can also allow a machine designer to use an appropriate mechanical transmission ratio to achieve the required load speed and torque.

The actual operating speed should always be selected according to the complete servo system, mechanical transmission, load characteristics, and drive configuration.

---

8. Torque Performance

The MPL-B430P-MK74AA provides approximately 6.55 N·m of continuous stall torque and approximately 19.8 N·m of peak torque.

Torque Parameter	Specification
Model	MPL-B430P-MK74AA
Continuous Stall Torque	Approx. 6.55 N·m
Peak Torque	Approx. 19.8 N·m
Continuous Power	Approx. 2.2 kW
Rated Speed	5000 rpm
Peak / Continuous Torque Ratio	Approx. 3:1

The difference between continuous and peak torque is important for servo applications.

Continuous torque relates to the motor’s ability to produce torque during sustained operation, while peak torque provides additional short-term capability for acceleration, deceleration, rapid positioning, and transient mechanical loads.

---

9. Absolute Multi-Turn Encoder

The MPL-B430P-MK74AA uses an absolute multi-turn high-resolution encoder.

Feedback Parameter	Specification
Model	MPL-B430P-MK74AA
Feedback Type	Absolute Multi-Turn
Resolution	Sin/Cos, 1024 cycles/revolution
Encoder Category	High Resolution
Feedback Protocol	Hiperface-type
Position Information	Absolute multi-turn position
Primary Function	Position, speed, and motion feedback

The absolute multi-turn configuration is valuable in applications where the control system needs reliable position information over multiple motor revolutions.

This can be especially useful for:

• Precision indexing
• Rotary positioning
• Electronic gearing
• Electronic camming
• Coordinated multi-axis motion
• Registration control
• Servo-driven feeding
• Automated assembly
• High-speed positioning systems

The feedback system also helps the servo controller maintain accurate control of speed and position during acceleration, deceleration, and load changes.

---

10. Keyless Shaft Configuration

The MPL-B430P-MK74AA uses a keyless shaft extension.

A keyless shaft can be advantageous when the mechanical system uses a compatible clamp-style coupling.

Compared with a keyed shaft arrangement, a keyless configuration can provide a clean mechanical interface and can be convenient for precision coupling and alignment.

When replacing an existing servo motor, however, the shaft configuration must be checked carefully. A motor with the same frame size and torque rating is not necessarily a direct mechanical replacement if the shaft, flange, shaft length, coupling, or mounting dimensions differ.

---

11. Integral 24 V DC Holding Brake

One of the most important differences between the MPL-B430P-MK74AA and several similar MPL configurations is the presence of an integral 24 V DC holding brake.

Brake Parameter	Specification
Model	MPL-B430P-MK74AA
Brake	Yes
Brake Type	24 V DC Holding Brake
Brake Voltage	24 V DC
Primary Purpose	Holding the motor/load when required
Typical Application	Vertical axes and holding applications
Control Requirement	Application-specific brake control

The integrated brake can be useful for applications where the motor needs to hold a position when servo torque is removed.

Typical applications include:

• Vertical lifting axes
• Z-axis positioning systems
• Elevating mechanisms
• Vertical assembly equipment
• Load-holding mechanisms
• Machine axes where controlled holding is required

The brake should be regarded primarily as a holding device, not as the normal operating method for repeatedly stopping a moving load.

The actual safety function, brake timing, load requirements, and vertical-axis protection strategy should be evaluated according to the complete machine design.

---

12. Connector Configuration

The motor uses a right-angle SpeedTEC DIN connector with approximately 180-degree rotational flexibility.

Connector Parameter	Specification
Model	MPL-B430P-MK74AA
Connector Type	SpeedTEC DIN
Connector Style	Right Angle
Connector Orientation	Rotatable
Rotation Range	Approximately 180°
Connection Advantage	Flexible cable routing
Installation Advantage	Reduced cable interference

This configuration is particularly useful in compact automation equipment.

When servo motors are installed close to machine frames, guards, gearboxes, conveyors, or other motors, cable routing can become a significant design problem.

The rotatable connector provides more freedom when determining the direction of the motor cable.

---

13. Mounting Configuration

The MPL-B430P-MK74AA uses IEC metric mounting and free mounting holes.

This makes the motor suitable for a wide range of industrial machine structures.

Mounting Parameter	Specification
Model	MPL-B430P-MK74AA
Mounting Type	Flange Mount
Mounting Standard	IEC Metric
Mounting Hole Configuration	Free Mounting Holes
Mounting Type Designation	Type FF
Frame Size	115 mm
Mechanical Class	Industrial Servo Motor

When installing the motor, sufficient clearance should be provided around the motor body and connector area.

Cable bending radius, connector access, brake wiring, motor temperature, and service access should all be considered during machine design.

---

14. Typical Applications

14.1 Packaging Machinery

The MPL-B430P-MK74AA is well suited to packaging machinery that requires fast and repeatable motion.

Typical applications include:

• Cartoning machines
• Bagging machines
• Wrapping equipment
• Filling systems
• Labeling equipment
• Sealing mechanisms
• Product indexing
• Film feeding
• Packaging conveyors
• Pick-and-place mechanisms

The combination of low inertia and high speed can help packaging equipment achieve rapid cycle times.

---

14.2 Material Handling

Material-handling systems frequently require precise movement and fast acceleration.

Possible applications include:

• Servo conveyors
• Transfer mechanisms
• Sorting systems
• Positioning systems
• Automated storage mechanisms
• Roller-driven equipment
• Indexing conveyors
• Automated transfer systems

The absolute encoder provides useful feedback for applications where the machine must repeatedly move to precise positions.

---

14.3 Assembly Automation

Assembly machines often use several servo axes operating together.

The MPL-B430P-MK74AA can be considered for:

• Component positioning
• Part insertion
• Assembly indexing
• Automated feeding
• Pick-and-place mechanisms
• Press positioning
• Screw-driving mechanisms
• Automated inspection positioning

The low-inertia motor design can be particularly useful when an assembly axis must repeatedly move between closely controlled positions.

---

14.4 Printing and Converting

Printing and converting equipment often depends on synchronization between several axes.

Potential applications include:

• Web feeding
• Roll positioning
• Registration control
• Slitting
• Rewinding
• Unwinding
• Material feeding
• Rotary positioning
• Tension-related motion systems

The high-resolution multi-turn feedback can be useful for coordinated motion and registration applications.

---

14.5 Machine Tools

The motor can also be considered for selected machine-tool applications.

Possible uses include:

• Auxiliary axes
• Indexing mechanisms
• Feed mechanisms
• Rotary positioning
• Automated tool positioning
• Auxiliary machine mechanisms

Final motor selection should be based on the actual torque, speed, acceleration, inertia, and duty-cycle requirements of the machine.

---

14.6 Vertical Motion Systems

The integral 24 V DC brake makes this configuration particularly interesting for applications involving vertical movement.

Examples include:

• Vertical lifting systems
• Z-axis mechanisms
• Elevating platforms
• Vertical assembly stations
• Automated lifting mechanisms
• Load-positioning systems

The brake configuration can help provide a holding function when the servo system is not actively producing torque.

For safety-critical vertical applications, the motor brake should not automatically be considered the only protective measure. The complete machine safety architecture should determine the appropriate load-holding and emergency-stop strategy.

---

15. Main Product Advantages

15.1 Low-Inertia Construction

The low-inertia rotor design helps the motor respond quickly to command changes.

This can be particularly beneficial in applications with frequent acceleration and deceleration.

---

15.2 5000 rpm High-Speed Capability

The 5000 rpm rating makes the motor suitable for high-speed automation.

High-speed operation can contribute to shorter machine cycle times and faster indexing.

---

15.3 2.2 kW Continuous Output

The approximately 2.2 kW continuous power rating provides useful output for industrial motion systems while maintaining a relatively compact motor size.

---

15.4 6.55 N·m Continuous Torque

The approximately 6.55 N·m continuous torque rating provides a substantial amount of continuous mechanical torque for a 115 mm frame servo motor.

---

15.5 19.8 N·m Peak Torque

The approximately 19.8 N·m peak torque rating provides additional short-duration torque for acceleration and transient load conditions.

---

15.6 Absolute Multi-Turn Feedback

The absolute multi-turn encoder provides accurate position feedback across multiple revolutions.

This makes the motor suitable for sophisticated positioning and synchronization applications.

---

15.7 Integrated 24 V DC Brake

The integral 24 V DC brake is a major practical advantage when the application requires motor holding.

This can reduce the need for a separate external motor-braking mechanism in suitable machine configurations.

---

15.8 Keyless Shaft

The keyless shaft provides a clean coupling interface for compatible mechanical transmission systems.

---

15.9 Flexible Connector Position

The right-angle connector can be rotated approximately 180 degrees, helping simplify cable routing in compact machines.

---

15.10 Compact 115 mm Frame

The 115 mm frame offers a practical balance between mechanical size, torque, speed, and output power.

---

16. Recommended Same-Series or Closely Related Models

The following five models are useful for comparison when selecting a motor from the same MPL family or a closely related configuration.

Model	Series	Voltage Class	Rated Speed	Frame	Stack Length	Torque / Output Class	Feedback	Brake	Shaft
MPL-B430P-MK72AA	MPL Low-Inertia	460 V AC	5000 rpm	115 mm	76.2 mm	Approx. 6.55 N·m / 2.2 kW class	Multi-turn absolute	No brake	Keyless
MPL-B430P-MJ74AA	MPL Low-Inertia	460 V AC	5000 rpm	115 mm	76.2 mm	Approx. 6.55 N·m / 2.2 kW class	Multi-turn absolute	24 V DC brake	Keyed configuration
MPL-B430P-MK74AA	MPL Low-Inertia	460 V AC	5000 rpm	115 mm	76.2 mm	Approx. 6.55 N·m / 2.2 kW	Multi-turn absolute	24 V DC brake	Keyless
MPL-B420P-SK72AA	MPL Low-Inertia	460 V AC	5000 rpm	115 mm	50.8 mm	Lower output / torque class	Single-turn high-resolution	No brake	Keyless
MPL-B4530K-MJ74AA	MPL Low-Inertia	460 V AC	4000 rpm	130 mm	76.2 mm	Higher frame / output class	Multi-turn absolute	24 V DC brake	Keyed

Comparison Notes

The MPL-B430P-MK72AA is a particularly useful comparison model because it shares the same general 430P motor platform but does not use the same brake configuration.

The MPL-B430P-MK74AA is the more complete configuration when an application needs both a keyless shaft and an integral 24 V DC holding brake.

The MPL-B430P-MJ74AA is another closely related configuration where the shaft arrangement differs.

The MPL-B420P-SK72AA provides a shorter magnetic stack and different feedback configuration, making it more suitable for applications with different torque and positioning requirements.

The MPL-B4530K-MJ74AA moves into a larger frame class and is more appropriate when a higher-capacity servo axis is required.

---

17. Five Popular Models from the Same Brand

The following models can be used as broader comparison choices when evaluating servo motors from the same brand.

Model	Product Family	Voltage Class	Rated Speed	Frame / Stack	Feedback	Brake	Shaft	Typical Use
MPL-B430P-MK74AA	MP-Series MPL	460 V AC	5000 rpm	115 mm / 76.2 mm	Multi-turn absolute	24 V DC	Keyless	High-performance general automation
MPL-B430P-MK72AA	MP-Series MPL	460 V AC	5000 rpm	115 mm / 76.2 mm	Multi-turn absolute	No brake	Keyless	High-speed positioning
MPL-B420P-SK72AA	MP-Series MPL	460 V AC	5000 rpm	115 mm / 50.8 mm	Single-turn high-resolution	No brake	Keyless	Compact high-speed motion
MPL-B4530K-MJ74AA	MP-Series MPL	460 V AC	4000 rpm	130 mm / 76.2 mm	Multi-turn absolute	24 V DC	Keyed	Higher-output motion
MPL-A430P-MK74AA	MP-Series MPL	230 V AC class	5000 rpm	115 mm / 76.2 mm	Multi-turn absolute	24 V DC	Keyless	Lower-voltage servo systems

These models cover several useful servo configurations, including different voltage classes, feedback types, frame sizes, shaft arrangements, brake options, and magnetic stack lengths.

---

18. Direct Comparison with Related 430P Models

Feature	MPL-B430P-MK74AA	MPL-B430P-MK72AA	MPL-B430P-MJ74AA
Product Family	MPL	MPL	MPL
Voltage	460 V AC	460 V AC	460 V AC
Frame	115 mm	115 mm	115 mm
Stack	76.2 mm	76.2 mm	76.2 mm
Rated Speed	5000 rpm	5000 rpm	5000 rpm
Continuous Power	Approx. 2.2 kW	Approx. 2.2 kW	Approx. 2.2 kW
Continuous Torque	Approx. 6.55 N·m	Approx. 6.55 N·m	Approx. 6.55 N·m
Peak Torque	Approx. 19.8 N·m	Approx. 19.8 N·m	Approx. 19.8 N·m class
Feedback	Multi-turn absolute	Multi-turn absolute	Multi-turn absolute
Encoder Resolution	1024 Sin/Cos cycles/rev	1024 Sin/Cos cycles/rev	1024 Sin/Cos cycles/rev
Shaft	Keyless	Keyless	Keyed configuration
Brake	24 V DC	No brake	24 V DC
Connector	Right-angle DIN	Right-angle DIN	Right-angle DIN
Connector Rotation	Approx. 180°	Approx. 180°	Approx. 180°
Approx. Weight	8.1 kg	Approx. 5.4 kg class	Approx. 8 kg class
Main Advantage	Keyless + brake	Keyless + no brake	Keyed + brake

The most important selection difference is the brake configuration.

If the application requires a motor holding brake, the MPL-B430P-MK74AA is the more appropriate configuration compared with the brake-free MK72AA.

If the machine requires a keyed shaft rather than a keyless shaft, a related MJ configuration may be more suitable.

---

19. Typical Application Matching

Application	Suitability	Main Reason
Packaging Machines	Excellent	High speed and rapid positioning
Automatic Indexing	Excellent	Low inertia and high-resolution feedback
Conveyor Synchronization	Excellent	Servo speed and position control
Material Handling	Excellent	Fast acceleration and accurate positioning
Assembly Equipment	Excellent	Precise multi-axis motion
Pick-and-Place Systems	Excellent	Dynamic response
Printing Machinery	Very Good	High-speed synchronized motion
Converting Machinery	Very Good	Accurate feedback and speed control
Vertical Axis	Very Good	Integrated 24 V DC holding brake
Machine Tools	Very Good	High-speed controlled motion
Inspection Equipment	Very Good	Precise positioning
Automated Feeding	Excellent	Rapid repetitive motion
Rotary Indexing	Excellent	Absolute multi-turn feedback
Electronic Gearing	Excellent	High-resolution feedback
Electronic Camming	Excellent	Coordinated servo control

---

20. Important Engineering Considerations

Selecting a servo motor should always involve more than comparing the rated power.

The following parameters should be reviewed before final selection:

Load Torque

Determine the continuous torque required by the mechanical load.

The motor should have sufficient continuous torque for the actual duty cycle.

Acceleration Torque

Calculate the additional torque required to accelerate the motor and load.

High acceleration requirements can make the motor’s peak torque capability particularly important.

Load Inertia

The load inertia should be compared with the rotor inertia of the motor.

A suitable inertia relationship helps the servo system achieve stable and responsive control.

Maximum Speed

The application should be checked against the 5000 rpm motor speed rating.

The mechanical transmission ratio must also be considered.

Duty Cycle

Continuous, intermittent, repetitive, and peak-load operating conditions should be evaluated.

A motor that has enough peak torque may still be unsuitable if the load continuously demands more torque than the motor can dissipate thermally.

Vertical Loads

For vertical axes, the integral brake is an important advantage.

However, the complete mechanical and safety design should determine whether an additional load-holding or safety mechanism is necessary.

Coupling

Because the motor uses a keyless shaft, the selected coupling must be mechanically compatible with the shaft design.

Cable Routing

The right-angle, rotatable connector should be considered during machine layout.

Adequate space should be provided for the connector and cable bending radius.

---

21. Product Advantages at a Glance

Advantage	Description
High Speed	5000 rpm rating supports high-cycle machinery
Low Inertia	Fast acceleration and deceleration response
Strong Continuous Torque	Approx. 6.55 N·m continuous torque
High Peak Torque	Approx. 19.8 N·m peak torque
High-Resolution Feedback	1024 Sin/Cos cycles per revolution
Absolute Multi-Turn	Accurate multi-revolution position information
Integral Brake	24 V DC holding brake
Keyless Shaft	Suitable for compatible clamp-style couplings
Flexible Connector	Right-angle connector with approximately 180° rotation
Compact Frame	115 mm frame size
Industrial Mounting	IEC metric mounting
Versatile Applications	Packaging, assembly, material handling, printing, indexing and more

---

22. Final Technical Summary

Item	Specification
Model	MPL-B430P-MK74AA
Brand	Allen-Bradley
Product Family	MP-Series
Servo Series	MPL Low-Inertia
Motor Type	Brushless AC Synchronous Servo Motor
Voltage Class	400 V AC
Armature Voltage	460 V AC
Rated Power	Approx. 2.2 kW
Rated Speed	5000 rpm
Maximum Speed	5000 rpm
Continuous Stall Torque	Approx. 6.55 N·m
Peak Torque	Approx. 19.8 N·m
Frame Size	115 mm
Magnetic Stack	76.2 mm / 3.0 in
Feedback	Absolute Multi-Turn High-Resolution Encoder
Encoder Resolution	1024 Sin/Cos cycles/revolution
Feedback Protocol	Hiperface-type
Shaft	Keyless Shaft Extension
Shaft Key	No
Shaft Seal	No
Brake	24 V DC Holding Brake
Connector	SpeedTEC DIN
Connector Style	Right Angle
Connector Rotation	Approximately 180°
Mounting	IEC Metric
Mounting Holes	Free Mounting Holes, Type FF
Rotor Inertia	Approx. 0.00038 kg·m²
Maximum Ambient Temperature	Approx. 40 °C
Approximate Weight	8.1 kg
Main Application	Industrial Motion Control
Typical Equipment	Packaging, Assembly, Material Handling, Printing, Converting, Indexing, Machine Tools
Main Characteristic	High-speed, low-inertia servo motor with absolute multi-turn feedback and 24 V DC holding brake

---

23. Conclusion

The MPL-B430P-MK74AA is a high-speed, low-inertia servo motor designed for demanding industrial automation and motion-control applications.

Its combination of a 5000 rpm speed rating, approximately 2.2 kW continuous output, approximately 6.55 N·m continuous torque, approximately 19.8 N·m peak torque, 115 mm frame, and 76.2 mm magnetic stack provides a strong balance between mechanical size and servo performance.

The absolute multi-turn high-resolution encoder makes the motor particularly suitable for precision positioning, synchronized motion, indexing, registration, electronic gearing, and other applications where accurate feedback is essential.

The integral 24 V DC holding brake is another important advantage. It makes the motor attractive for vertical axes and other applications where the load needs to remain mechanically held when the servo is not actively producing torque.

The keyless shaft provides a clean mechanical interface for compatible couplings, while the right-angle SpeedTEC DIN connector with approximately 180-degree rotational flexibility helps simplify installation and cable routing.

Overall, the MPL-B430P-MK74AA is a versatile choice for high-performance automation equipment where speed, precision, dynamic response, and reliable position feedback are important. It is particularly well suited to packaging machinery, material handling, automated assembly, indexing equipment, printing and converting machinery, precision positioning systems, and selected vertical-axis applications.

For replacement projects, the complete model number should be matched carefully. Even closely related MPL models can differ in shaft configuration, brake option, feedback type, stack length, voltage class, and mechanical arrangement. The MPL-B430P-MK74AA is specifically distinguished by its 460 V class, 5000 rpm rating, 115 mm frame, 76.2 mm stack, absolute multi-turn feedback, keyless shaft, 24 V DC holding brake, and rotatable right-angle connector configuration.
