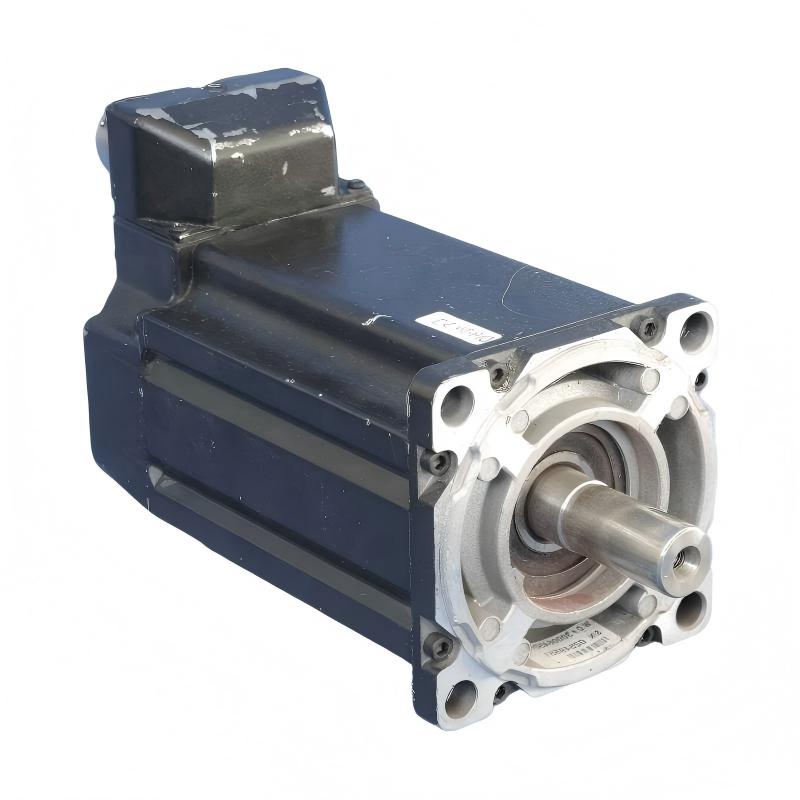

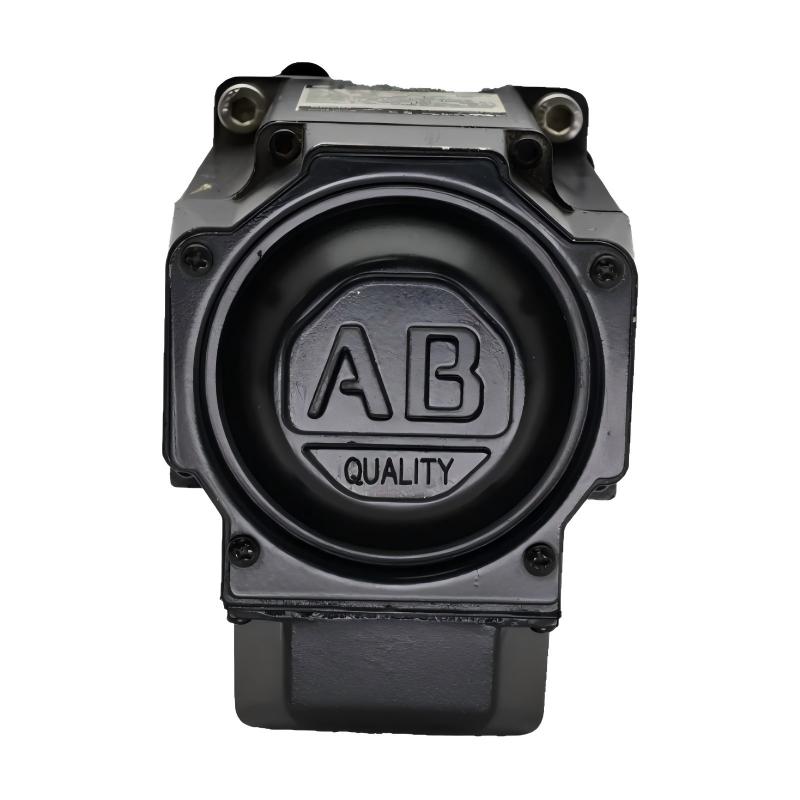

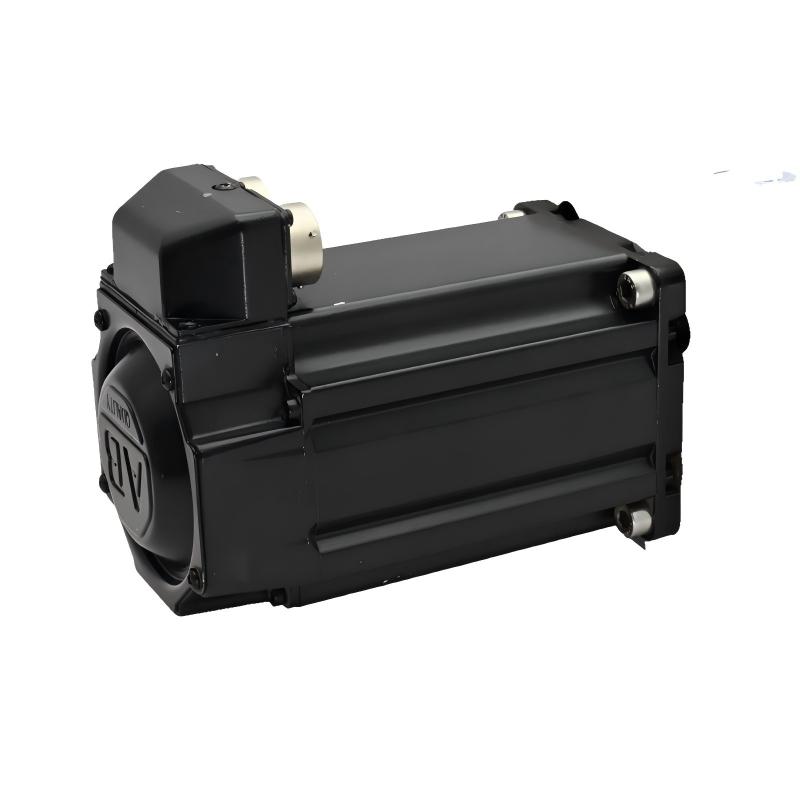

MPL-B430P-MK22AA Low-Inertia Servo Motor — Detailed Product Information, Specifications, Applications, Advantages and Related Models

1. Product Overview

The MPL-B430P-MK22AA is a high-performance low-inertia permanent-magnet rotary servo motor designed for industrial motion-control systems.

It belongs to the MP-Series MPL low-inertia servo motor family and is intended for machinery that requires fast acceleration, rapid deceleration, accurate positioning, repeatable movement and stable closed-loop operation.

The motor uses a 400 V AC voltage class, a 115 mm frame, a 3-inch magnetic stack, and a rated speed of approximately 5000 rpm. It is equipped with a multi-turn high-resolution encoder, providing detailed position feedback to the associated servo drive.

A particularly important characteristic of the MPL-B430P-MK22AA is its mechanical configuration. The motor uses a keyless shaft, does not include a shaft seal, uses a circular bayonet connector, and is supplied without an integrated brake.

This configuration makes it a good fit for machinery where high-speed motion and accurate feedback are more important than having an integrated holding brake.

The motor is especially appropriate for high-cycle industrial equipment where the shaft may need to accelerate, decelerate and reposition repeatedly during each production cycle.

---

2. Brand and Product Series

Item	Product Information
Model	MPL-B430P-MK22AA
Brand	Allen-Bradley
Product Family	MP-Series
Product Series	MPL Servo Motors
Series Type	Low-Inertia Permanent-Magnet Rotary Servo Motor
Product Category	Industrial AC Servo Motor
Motor Construction	Permanent-Magnet Brushless Servo Motor
Application Class	Industrial Motion Control
Performance Class	High-Speed Low-Inertia Servo

The MPL series is designed for applications where servo response and dynamic movement are important.

Compared with a conventional motor intended primarily for continuous rotation, a servo motor is designed to work as part of a complete feedback-controlled system. The motor, encoder, servo drive and controller operate together to control the required motion.

---

3. Main Technical Specifications

Parameter	Specification
Model	MPL-B430P-MK22AA
Brand	Allen-Bradley
Product Family	MP-Series
Product Series	MPL
Motor Type	Low-Inertia Brushless AC Servo Motor
Motor Construction	Permanent-Magnet Rotary Motor
Voltage Class	400 V AC
Typical System Voltage	460/480 V AC class
Phase	3 Phase
Rated Speed	5000 rpm
Maximum Speed	5000 rpm
Continuous Output	Approximately 2.2 kW class
Continuous Stall Torque	Approximately 6.55 N·m
Peak Torque	Approximately 19.8 N·m
Feedback	Multi-Turn High-Resolution Encoder
Encoder Type	Absolute Multi-Turn High-Resolution
Encoder Resolution	Approximately 1024 Sin/Cos cycles per revolution, depending on configuration
Encoder Interface	Hiperface-type feedback configuration
Brake	No Integrated Brake
Shaft	Keyless Shaft
Shaft Seal	No Shaft Seal
Connector	Circular Bayonet Connector
Connector Position	Facing Shaft / Right-Angle Arrangement
Connector Rotation	Approximately 180°
Mounting	IEC Metric
Frame Size	115 mm
Frame Size in Inches	4.53 in
Magnetic Stack	3 inches
Magnetic Stack in Millimeters	76.2 mm
Rotor Inertia	Approximately 0.00042 kg·m² class
Approx. Weight	Approximately 5.44 kg
Weight in Pounds	Approximately 12.0 lb
Overall Size	115 mm frame class
Overall Length	Configuration dependent
Overall Width	Configuration dependent
Overall Height	Configuration dependent
Shaft Configuration	Keyless
Cooling	Natural motor housing heat dissipation
Intended Use	Closed-loop industrial motion control

The 6.55 N·m continuous torque, approximately 19.8 N·m peak torque, and 5000 rpm speed place this motor in a useful performance range for demanding automated machinery.

The exact continuous output and thermal performance should be considered together with the selected servo drive, load inertia, acceleration profile and duty cycle.

---

4. Dimensions and Weight

The mechanical dimensions of this model are centered around a 115 mm frame and 3-inch, or 76.2 mm, magnetic stack.

For mechanical design, the mounting pattern, shaft geometry and connector clearance are just as important as the motor body dimensions.

Mechanical Parameter	Specification
Model	MPL-B430P-MK22AA
Frame Size	115 mm
Frame Size in Inches	4.53 in
Magnetic Stack Length	76.2 mm
Magnetic Stack Length	3.0 in
Mounting Standard	IEC Metric
Shaft Type	Keyless
Shaft Seal	None
Connector	Circular Bayonet
Connector Orientation	Right Angle / Facing Shaft Configuration
Connector Rotation	Approximately 180°
Approx. Motor Weight	5.44 kg
Approx. Weight in Pounds	12.0 lb
Overall Length	Exact dimension depends on mechanical configuration
Overall Diameter / Frame	115 mm frame class
Installation Clearance	Must allow room for connector and cable routing
Mechanical Design Reference	115 mm frame × 76.2 mm magnetic stack

The approximately 5.44 kg weight is a useful reference for machine design and handling.

For structural calculations, shipping arrangements or replacement work, the physical motor and exact revision should always be checked because packaging weight and motor net weight are not necessarily the same.

---

5. Product Introduction

The MPL-B430P-MK22AA is designed for industrial machines that require more than simple motor rotation.

A conventional motor may be used to run a conveyor continuously, but a servo motor is generally selected when the machine needs to determine exactly how far the motor moves, how quickly it accelerates, how quickly it stops and how accurately it returns to a target position.

The MPL-B430P-MK22AA provides this capability through its servo construction and multi-turn high-resolution feedback system.

The low-inertia rotor is particularly useful in high-speed applications.

When a motor accelerates, torque is required not only to move the external machine load but also to accelerate the rotor itself. Lower rotor inertia reduces the amount of torque needed to accelerate the motor’s rotating mass.

This can help the machine achieve faster motion changes when the motor and mechanical load are correctly matched.

The 5000 rpm speed rating also makes the motor suitable for equipment where relatively high rotational speed is required.

---

6. Low-Inertia Design

The low-inertia construction is one of the most important characteristics of the MPL series.

In a high-cycle machine, the motor may repeatedly perform movements such as:

Start → Accelerate → Run → Decelerate → Stop → Reverse → Accelerate Again

If the rotor has excessive inertia, a larger amount of torque is required to change its speed.

A low-inertia motor can respond more readily to these commands.

This makes the MPL-B430P-MK22AA suitable for:

• High-speed indexing
• Repetitive positioning
• Rapid acceleration
• Rapid deceleration
• Direction changes
• Short machine cycles
• Multi-axis synchronization
• Electronic gearing
• Electronic camming

The actual performance still depends on the ratio between motor inertia and load inertia.

A low-inertia motor does not automatically guarantee fast machine movement if the external load is very large or the mechanical transmission is poorly matched.

---

7. Multi-Turn High-Resolution Encoder

The multi-turn high-resolution encoder is a major feature of the MPL-B430P-MK22AA.

The feedback system allows the servo controller to determine the motor’s position and movement with much greater detail than a simple open-loop motor system.

The multi-turn function is particularly useful because the feedback system can distinguish between different rotational positions across multiple revolutions.

This is useful in applications where the machine’s mechanical position is important rather than simply knowing the instantaneous motor speed.

Typical applications include:

• Precision indexing
• Rotary positioning
• Automated assembly
• Material positioning
• Machine-tool mechanisms
• Packaging equipment
• Printing equipment
• Multi-axis motion
• Electronic gearing
• Coordinated rotary movement

The encoder information is processed by the compatible servo system so that commanded and actual movement can be compared continuously.

---

8. No Integrated Brake

An important characteristic of this particular model is that the MPL-B430P-MK22AA does not have an integrated holding brake.

This makes the model different from several closely related MPL configurations that are available with brake options.

The absence of a brake can be advantageous in applications where:

• A holding brake is not required
• The machine uses an external mechanical brake
• The load is horizontally mounted
• The axis does not need mechanical holding when power is removed
• Lower motor weight is preferred
• A separate safety or holding mechanism is already installed

For vertical axes, however, the absence of an integrated brake should be carefully considered.

If the load can fall or move when servo torque is removed, a suitable external holding or safety mechanism may be necessary.

---

9. Keyless Shaft

The motor uses a keyless shaft.

A keyless shaft can provide a compact mechanical interface when used with a suitable clamping coupling or other compatible transmission component.

This arrangement can be useful where:

• Precision alignment is required
• A clamp-style coupling is being used
• Compact mechanical packaging is important
• Shaft balance is important
• The machine uses a dedicated servo coupling

When replacing an existing motor, the shaft configuration must be checked carefully.

A keyed motor and keyless motor may have similar electrical ratings but are not necessarily mechanically interchangeable.

---

10. Circular Bayonet Connector

The MPL-B430P-MK22AA uses a circular bayonet-style connector.

The connector is positioned in a right-angle arrangement and provides flexibility for cable routing.

This is particularly useful in compact machinery where a straight connector could interfere with:

• Machine covers
• Structural frames
• Adjacent motors
• Gearboxes
• Cable channels
• Protective guards

The connector arrangement should be checked before ordering replacement cables because the connector type is an important part of the motor configuration.

---

11. Product Applications

11.1 Packaging Machinery

Packaging machines are one of the most natural application areas for low-inertia servo motors.

A packaging machine may require a motor to:

• Feed packaging material
• Position products
• Control indexing
• Operate cutting mechanisms
• Synchronize conveyors
• Drive sealing mechanisms
• Perform repeated positioning

The high-speed capability of the MPL-B430P-MK22AA is useful when the machine must complete many production cycles per minute.

The multi-turn feedback system is also useful where precise position control is required.

---

11.2 Printing Equipment

Printing equipment often requires accurate synchronization between multiple rotating components.

The motor can be considered for:

• Roller control
• Feeding mechanisms
• Registration systems
• Cutting mechanisms
• Label handling
• Web movement
• Rotary positioning

The servo feedback system helps maintain controlled motion between different machine axes.

---

11.3 Automated Assembly Machines

Automated assembly equipment often requires repeated, precise movement.

Potential applications include:

• Rotary indexing tables
• Component insertion
• Automated feeders
• Pick-and-place mechanisms
• Screw-driving systems
• Inspection stations
• Product transfer systems
• Automated positioning units

The low-inertia construction can be particularly useful where the mechanism moves short distances repeatedly.

---

11.4 Material Handling

The MPL-B430P-MK22AA can also be considered for material-handling equipment that requires controlled movement rather than simple continuous conveyor rotation.

Typical applications include:

• Servo conveyors
• Indexing conveyors
• Rotary transfer units
• Roller systems
• Positioning mechanisms
• Automated transfer systems
• Product feeding

---

11.5 Machine Tools

Servo motors are frequently used where a machine needs controlled positioning.

Potential uses include:

• Rotary positioning
• Auxiliary axes
• Automated tool mechanisms
• Material positioning
• Indexing systems

The actual motor selection depends on the machine’s load, speed and acceleration requirements.

---

11.6 Electronics Manufacturing

Automated electronics production equipment often requires rapid and repeatable positioning.

The motor may be suitable for:

• Component handling
• Feeding mechanisms
• Automated inspection
• Rotary positioning
• Assembly systems
• Product transfer
• Automated testing mechanisms

---

12. Product Advantages

12.1 High-Speed 5000 rpm Operation

The motor’s 5000 rpm rated speed makes it suitable for high-speed rotary motion.

This can be beneficial when machine throughput depends on rapid motor movement.

---

12.2 Low-Inertia Response

The low-inertia construction allows the motor to respond efficiently to changes in commanded speed.

This is particularly important in applications with frequent acceleration and deceleration.

---

12.3 High Torque Capability

The motor provides approximately 6.55 N·m continuous stall torque and approximately 19.8 N·m peak torque.

This gives the motor useful acceleration capability for its physical size.

---

12.4 Multi-Turn High-Resolution Feedback

The multi-turn high-resolution encoder provides detailed position feedback.

This makes the motor particularly useful for precision motion systems.

---

12.5 No Brake for Simpler Horizontal Applications

Although the absence of a brake can be a limitation in some machines, it can be an advantage in horizontal applications where a brake is unnecessary.

The motor avoids the additional brake hardware and associated brake wiring.

---

12.6 Compact 115 mm Frame

The 115 mm frame provides a relatively compact package for the motor’s performance class.

This can help when machine space is limited.

---

12.7 Keyless Shaft

The keyless shaft is well suited to compatible clamp-style couplings and precision mechanical transmission systems.

---

12.8 Flexible Connector Orientation

The rotatable right-angle connector can make cable installation easier in compact machine layouts.

---

13. Recommended Five Models from the Same Series or Closely Related MPL Family

The following models are useful for comparison with the MPL-B430P-MK22AA.

Model	Series	Rated Speed	Continuous Torque	Peak Torque	Power Class	Feedback	Brake	Shaft	Approx. Weight	Dimensions
MPL-B310P	MPL	5000 rpm	Approx. 1.58 N·m	Approx. 3.61 N·m	Approx. 0.77 kW	Encoder feedback	Configuration dependent	Configuration dependent	Approx. 2.7 kg	Smaller frame
MPL-B320P	MPL	5000 rpm	Approx. 3.05 N·m	Approx. 7.91 N·m	Approx. 1.5 kW	Encoder feedback	Configuration dependent	Configuration dependent	Approx. 3.7 kg	Smaller frame
MPL-B330P-HK74AA	MPL	5000 rpm	Approx. 4.18 N·m	Approx. 11.1 N·m	Approx. 1.8 kW	Incremental encoder	24 V DC	Keyless	Approx. 4.6 kg	Approx. 100 mm class
MPL-B420P-HK74AA	MPL	5000 rpm	Approx. 4.74 N·m	Approx. 13.5 N·m	Approx. 1.9 kW	Incremental encoder	24 V DC	Keyless	Approx. 4.3 kg	Approx. 100/115 mm class
MPL-B430P-HK74AA	MPL	5000 rpm	Approx. 6.55 N·m	Approx. 19.8 N·m	Approx. 2.2 kW	Incremental encoder	24 V DC	Keyless	Approx. 5.5 kg class	115 mm / 76.2 mm stack

Among these alternatives, the MPL-B430P-HK74AA is the closest comparison in terms of general motor performance.

However, it is important to note that the feedback, brake and other mechanical/electrical configuration details differ.

---

14. Five Same-Brand Popular/Related Models

For a broader comparison, the following models represent useful options within the same general industrial servo-motor range.

Model	Product Type	Rated Speed	Continuous Torque	Peak Torque	Power	Feedback	Brake	Approx. Weight	Size / Dimensions
MPL-B310P	Low-Inertia Servo Motor	5000 rpm	1.58 N·m	3.61 N·m	0.77 kW	Incremental	Configuration dependent	≈2.7 kg	Smaller frame
MPL-B320P	Low-Inertia Servo Motor	5000 rpm	3.05 N·m	7.91 N·m	1.5 kW	Incremental	Configuration dependent	≈3.7 kg	Smaller frame
MPL-B330P-HK74AA	Low-Inertia Servo Motor	5000 rpm	4.18 N·m	11.1 N·m	1.8 kW	Incremental	24 V DC	≈4.6 kg	Approx. 100 mm class
MPL-B420P-HK74AA	Low-Inertia Servo Motor	5000 rpm	4.74 N·m	13.5 N·m	1.9 kW	Incremental	24 V DC	≈4.3 kg	Approx. 100/115 mm class
MPL-B430P-MJ74AA	Low-Inertia Servo Motor	5000 rpm	6.55 N·m	19.8 N·m	2.2 kW	Absolute multi-turn	24 V DC	Approx. 6–6.5 kg	115 mm / 76.2 mm stack

The MPL-B430P-MJ74AA is particularly relevant when the application requires a B430P-class motor with a different feedback and brake configuration.

The MPL-B430P-MK22AA, by comparison, is characterized by its multi-turn high-resolution feedback, keyless shaft, bayonet connector and no integrated brake.

---

15. Direct Comparison of Related B430P Models

Parameter	MPL-B430P-MK22AA	MPL-B430P-MJ74AA	MPL-B430P-HK74AA
Series	MPL	MPL	MPL
Frame	115 mm	115 mm	115 mm
Magnetic Stack	76.2 mm	76.2 mm	76.2 mm
Rated Speed	5000 rpm	5000 rpm	5000 rpm
Power Class	Approx. 2.2 kW	Approx. 2.2 kW	Approx. 2.2 kW
Continuous Torque	Approx. 6.55 N·m	Approx. 6.55 N·m	Approx. 6.55 N·m
Peak Torque	Approx. 19.8 N·m	Approx. 19.8 N·m	Approx. 19.8 N·m
Feedback	Multi-turn high-resolution	Multi-turn high-resolution	Incremental
Brake	No Brake	24 V DC Brake	24 V DC Brake
Shaft	Keyless	Keyed	Keyless
Shaft Seal	None	None	None
Connector	Circular Bayonet	SpeedTec DIN	SpeedTec DIN
Connector Type	Right Angle	Right Angle	Right Angle
Connector Rotation	180°	180°	180°
Mounting	IEC Metric	IEC Metric	IEC Metric
Approx. Weight	5.44 kg	Approx. 6–6.5 kg	Configuration dependent
Main Characteristic	Multi-turn feedback, no brake	Multi-turn feedback with brake	Incremental feedback with brake

This comparison is useful when selecting between closely related B430P motors.

The motor performance may look similar on paper, but the feedback, brake, shaft and connector configuration can make a major difference when installing the motor in an existing machine.

---

16. Application Selection Guide

Application	Suitable Model Direction	Main Reason
Small positioning system	MPL-B310P	Lower torque and compact size
Medium-duty automation	MPL-B320P	Balanced torque and motor size
General indexing	MPL-B330P-HK74AA	Intermediate performance
Higher-load indexing	MPL-B420P-HK74AA	Higher torque capability
High-speed positioning	MPL-B430P-MK22AA	5000 rpm and low inertia
Absolute multi-turn feedback	MPL-B430P-MK22AA	High-resolution multi-turn feedback
Application without brake requirement	MPL-B430P-MK22AA	No integrated brake
High-performance B430P application	MPL-B430P-MK22AA	6.55 N·m continuous torque class
Brake-required application	MPL-B430P-MJ74AA / HK74AA	Integrated brake
Keyed-shaft requirement	MPL-B430P-MJ74AA	Keyed shaft configuration

---

17. Typical Industrial Motion-Control System

A typical servo system using the MPL-B430P-MK22AA can be organized as follows:

Motion Controller

↓

Servo Drive

↓

MPL-B430P-MK22AA

↓

Coupling / Gearbox / Mechanical Transmission

↓

Machine Load

The controller generates the motion command.

The servo drive converts the command into the electrical current required by the motor.

The motor converts electrical energy into controlled rotary movement.

The encoder provides feedback to the control system.

The controller can then compare the requested movement with the actual motor position and make corrections.

This closed-loop process is fundamental to high-performance servo motion.

---

18. Typical Motion Cycle

A machine using the MPL-B430P-MK22AA may operate according to a sequence such as:

Position Command

↓

Rapid Acceleration

↓

High-Speed Rotation

↓

Controlled Deceleration

↓

Precise Stop

↓

Processing Operation

↓

Return / Reverse

↓

Repeat

The low-inertia motor design is particularly useful for this type of operation.

The machine can potentially reduce the time spent accelerating and decelerating when the motor is correctly matched to the load.

---

19. Industries Where the Motor Can Be Used

The MPL-B430P-MK22AA can be considered for a broad range of automated industrial equipment.

Typical industries include:

• Packaging
• Printing
• Material handling
• Electronics manufacturing
• Automated assembly
• Machine tools
• Converting
• Inspection equipment
• Industrial automation
• Automated production lines
• Precision positioning
• High-speed indexing
• Robotics-related machinery
• Automated feeding systems

---

20. Applications Where the Motor Has Particular Advantages

The motor is particularly attractive when the machine requires:

High rotational speed

The 5000 rpm rating provides substantial speed capability.

Rapid acceleration

The low-inertia rotor can help the motor respond quickly to speed commands.

Precise position control

The multi-turn high-resolution encoder provides detailed feedback.

Repeated motion

The motor is suitable for high-cycle machine operation.

Compact installation

The 115 mm frame provides a relatively compact package for its performance class.

No integrated brake requirement

The absence of a brake is suitable for horizontal or externally braked applications.

Keyless coupling

The keyless shaft works well with appropriate clamp-style precision couplings.

---

21. Important Limitations

The MPL-B430P-MK22AA is not necessarily the best choice for every application.

The absence of an integrated brake should be considered carefully when the motor is used on a vertical axis.

If the load can move downward under gravity when motor power is removed, an external holding or safety mechanism may be necessary.

The keyless shaft also means that the mechanical coupling must be compatible with the shaft arrangement.

The motor should not be selected solely based on its 5000 rpm rating.

The complete application should be evaluated based on:

• Load torque
• Load inertia
• Required acceleration
• Required deceleration
• Maximum speed
• Continuous duty
• Peak duty
• Gear ratio
• Coupling type
• Feedback compatibility
• Servo drive compatibility
• Environmental conditions
• Mounting arrangement

---

22. Key Technical Selection Table

Selection Factor	Importance for the MPL-B430P-MK22AA
Rated Speed	Determines maximum normal operating speed
Continuous Torque	Determines sustained load capability
Peak Torque	Determines short-term acceleration capability
Load Inertia	Strongly affects dynamic response
Rotor Inertia	Influences acceleration performance
Feedback Type	Must match the servo control system
Brake	This model has no integrated brake
Shaft Type	This model uses a keyless shaft
Connector	Circular bayonet configuration
Mounting	IEC metric
Frame	115 mm
Magnetic Stack	76.2 mm
Weight	Approx. 5.44 kg
Operating Temperature	Must be considered for thermal performance
Duty Cycle	Important for continuous operation
Mechanical Load	Must be correctly matched to motor torque

---

23. Product Advantages Compared with a Conventional Motor

Feature	Conventional Motor	MPL-B430P-MK22AA
Position Feedback	Usually not integrated	High-resolution feedback
Position Control	Limited	Designed for servo positioning
Speed Control	Basic to moderate	High-performance closed-loop
Acceleration Response	Depends on motor/load	Low-inertia servo response
Repetitive Indexing	Less suitable	Very suitable
Multi-Axis Coordination	More difficult	Designed for coordinated motion
Peak Torque Control	Limited	Strong servo capability
High-Speed Operation	Application dependent	5000 rpm servo operation
Multi-Turn Position	Not normally available	Available through encoder
Machine Cycle Optimization	Limited	Strong potential

---

24. Overall Product Evaluation

The MPL-B430P-MK22AA is a high-speed industrial servo motor designed for applications that require precise and repeatable motion.

Its key combination is:

5000 rpm

Approximately 6.55 N·m continuous torque

Approximately 19.8 N·m peak torque

Approximately 2.2 kW performance class

115 mm frame

76.2 mm magnetic stack

Multi-turn high-resolution encoder

Keyless shaft

No shaft seal

Circular bayonet connector

No integrated brake

IEC metric mounting

This configuration makes it particularly suitable for high-speed automated equipment where position feedback is important and a motor-mounted holding brake is not required.

---

25. Quick Reference Specification Table

Item	MPL-B430P-MK22AA
Model	MPL-B430P-MK22AA
Brand	Allen-Bradley
Product Family	MP-Series
Product Series	MPL
Motor Type	Low-Inertia Brushless AC Servo
Voltage Class	400 V AC
System Voltage Class	460/480 V AC
Rated Speed	5000 rpm
Continuous Power	Approx. 2.2 kW
Continuous Stall Torque	Approx. 6.55 N·m
Peak Torque	Approx. 19.8 N·m
Feedback	Multi-Turn High-Resolution Encoder
Encoder	Absolute Multi-Turn
Shaft	Keyless
Shaft Seal	None
Brake	None
Connector	Circular Bayonet
Connector Orientation	Right Angle
Connector Rotation	180°
Frame Size	115 mm
Magnetic Stack	76.2 mm
Magnetic Stack	3.0 in
Mounting	IEC Metric
Rotor Inertia	Approx. 0.00042 kg·m²
Approx. Weight	5.44 kg
Main Application	Industrial Motion Control
Main Advantage	High-speed, low-inertia precision motion

---

26. Final Recommendation

For applications requiring a high-speed, low-inertia servo motor with multi-turn high-resolution feedback, the MPL-B430P-MK22AA is a strong choice within the MPL family.

Its 5000 rpm operating capability makes it suitable for fast rotary machinery, while the low-inertia construction helps support rapid acceleration and deceleration.

The multi-turn high-resolution encoder makes the model especially attractive for precision positioning and coordinated motion.

The absence of an integrated brake is the main configuration point that should be considered carefully. For horizontal applications, this may not be a concern. For vertical axes or loads that must remain stationary after power loss, an external holding or safety mechanism may be necessary.

The keyless shaft is another important characteristic. It is well suited to appropriate clamp-style couplings but should be checked carefully during retrofit work.

From the related MPL models, the MPL-B430P-HK74AA is the closest performance comparison, while the MPL-B430P-MJ74AA is another closely related B430P configuration with different shaft, brake and feedback characteristics.

For smaller loads, the MPL-B310P, MPL-B320P and MPL-B330P provide lower-capacity alternatives. For applications requiring higher torque within the same general family, the B430P class is the more appropriate direction.

When replacing an existing motor, the complete catalog number should always be matched. Similar motor frames can have substantially different feedback systems, shaft arrangements, connector types and brake configurations, and these differences can determine whether a motor is actually compatible with the existing servo system.
