Allen-Bradley MPL-B430P-HJ74AA Servo Motor – Detailed Specifications, Product Introduction, Applications, Advantages and Related Models
1. Product Overview

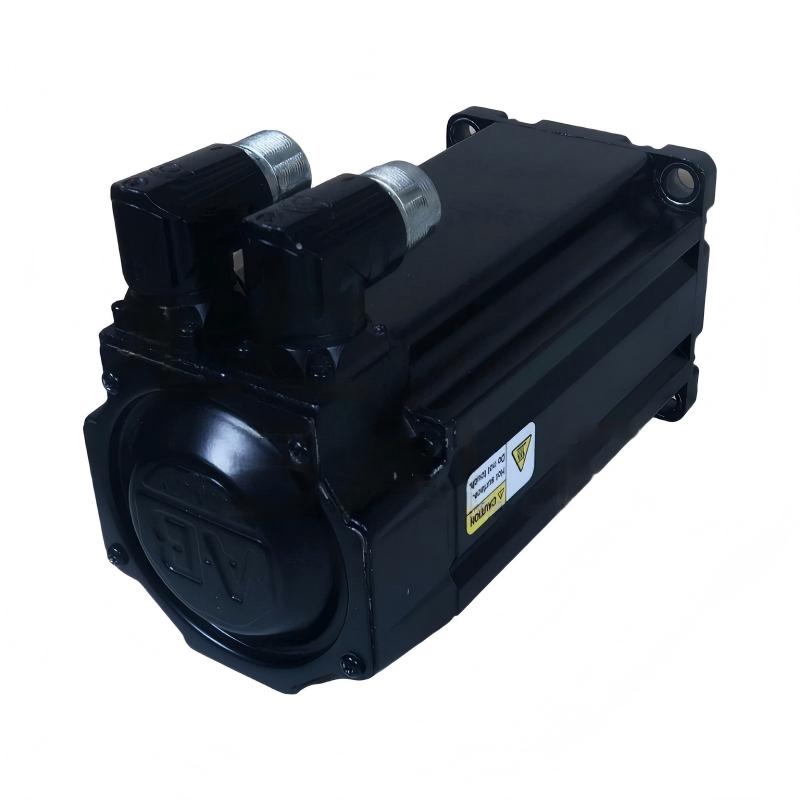

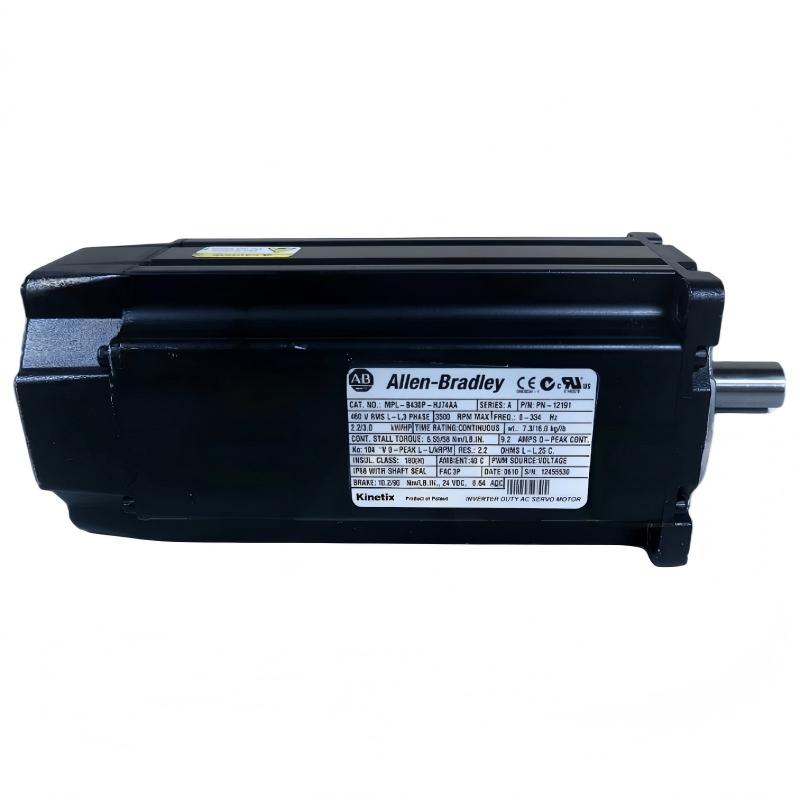

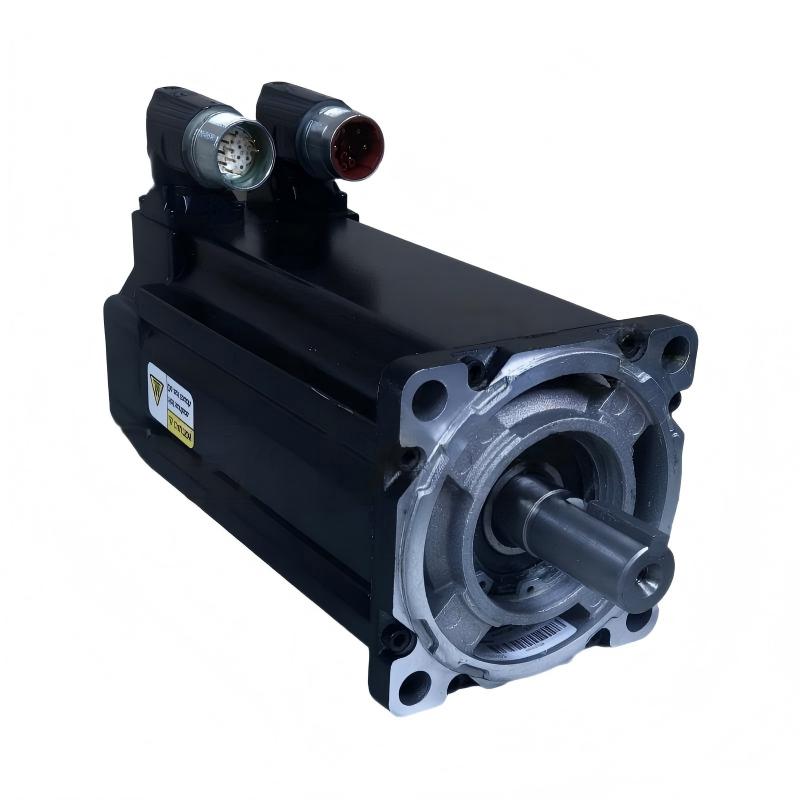

The Allen-Bradley MPL-B430P-HJ74AA is a low-inertia brushless AC servo motor from the MP-Series MPL family. It is designed for industrial motion-control equipment where accurate speed control, repeatable positioning, fast acceleration and deceleration, and dependable mechanical holding are important.
The motor belongs to the 400 V-class MPL range and uses a 115 mm frame with a 76.2 mm magnet stack. It has a 5000 rpm rated speed, a 2000-line incremental encoder, a keyed shaft, a right-angle SpeedTEC DIN connector, and an integral 24 V DC holding brake.
The B430P-HJ74AA is particularly suited to applications that require relatively high motor speed together with useful continuous torque and a mechanical holding function. The brake makes it more suitable than a no-brake version for applications where an axis must remain stationary when the servo is disabled.
The motor is a low-inertia design, so it is especially useful in machines that perform frequent acceleration, deceleration, positioning, reversing, or indexing movements. Rather than being intended simply as a constant-speed motor, it is designed to operate as part of a closed-loop servo motion system.
The model is also a useful example of how the MPL family can be configured around different feedback, shaft, speed, and brake requirements. A small change in the catalog number can result in a significant difference in the way the motor should be integrated into the machine.
2. Brand and Product Series
| Item | Specification |
|---|---|
| Model | MPL-B430P-HJ74AA |
| Brand | Allen-Bradley |
| Product Family | MP-Series MPL |
| Product Series | MPL Low-Inertia Servo Motors |
| Product Type | Brushless AC Rotary Servo Motor |
| Motor Construction | Permanent-Magnet Servo Motor |
| Motor Type | Low-Inertia Brushless AC Synchronous |
| Voltage Class | 400 V AC |
| Armature Voltage Class | 460 V |
| Speed Class | 5000 rpm |
| Frame Size | 115 mm |
| Magnet Stack | 76.2 mm |
| Feedback | Incremental Encoder |
| Encoder Resolution | 2000 lines/revolution |
| Shaft | Keyed |
| Brake | 24 V DC Holding Brake |
| Connector | SpeedTEC DIN |
| Connector Configuration | Right Angle |
| Connector Rotation | 180° Rotatable |
| Mounting | IEC Metric |
| Mounting Holes | Free Mounting Holes, Type FF |
| Shaft Seal | No Shaft Seal |
| Environmental Enclosure | IP66 configuration |
The MPL-B430P-HJ74AA is therefore best described as a 5000 rpm, 115 mm-frame, low-inertia servo motor with incremental feedback and an integral 24 V DC holding brake.
3. Main Technical Parameters
| Parameter | Specification |
|---|---|
| Model | MPL-B430P-HJ74AA |
| Brand | Allen-Bradley |
| Series | MP-Series MPL |
| Product Type | Low-Inertia Brushless Servo Motor |
| Voltage Class | 400 V AC |
| Armature Voltage | 460 V |
| Rated Speed | 5000 rpm |
| Continuous Torque | Approximately 6.55 N·m |
| Peak Torque | Approximately 19.8 N·m |
| Continuous Rated Power | Approximately 2.2 kW |
| Feedback | 2000-line Incremental Encoder |
| Encoder Resolution | 2000 lines/revolution |
| Frame Size | 115 mm |
| Frame Size in Inches | 4.53 in |
| Magnet Stack Length | 76.2 mm |
| Magnet Stack Length in Inches | 3.0 in |
| Shaft | Keyed Shaft Extension |
| Shaft Seal | None |
| Brake | 24 V DC Holding Brake |
| Connector | SpeedTEC DIN |
| Connector Style | Right Angle |
| Connector Rotation | 180° |
| Mounting Flange | IEC Metric |
| Mounting Holes | Type FF |
| Enclosure | IP66 |
| Rotor Inertia | Approximately 0.00038 kg·m² |
| Approximate Weight | 8.2 kg |
| Approximate Weight in lb | 18.0 lb |
| Operating Temperature | Approximately 0 to 40 °C |
| Motor Speed Class | High-Speed Servo |
| Motor Family | Low-Inertia MPL |
The main catalog information identifies the B430P-HJ74AA as a 5000 rpm, 2000-line incremental-feedback motor with a 115 mm frame, 76.2 mm stack, keyed shaft, 24 V DC brake, and right-angle rotatable SpeedTEC DIN connector. The published product listings also identify approximately 6.55 N·m continuous torque and approximately 2.2 kW output for the B430P motor family.
The 8.2 kg weight is the commonly listed configuration weight for the brake-equipped HJ74AA version.
4. Dimensions and Mechanical Specifications
The MPL-B430P-HJ74AA uses a 115 mm frame and a 76.2 mm magnet stack.
These are two of the most important dimensions when determining whether the motor can fit an existing machine.
The 115 mm frame corresponds to the Frame 4 size, while the 76.2 mm stack is the 3-inch magnet-stack configuration.
| Mechanical Parameter | Specification |
|---|---|
| Model | MPL-B430P-HJ74AA |
| Frame Size | 115 mm |
| Frame Size | 4.53 in |
| Magnet Stack Length | 76.2 mm |
| Magnet Stack Length | 3.00 in |
| Mounting Standard | IEC Metric |
| Mounting Hole Type | Type FF |
| Shaft Type | Keyed |
| Shaft Seal | No |
| Brake | 24 V DC |
| Connector | Right-Angle SpeedTEC DIN |
| Connector Rotation | 180° |
| Approximate Weight | 8.2 kg |
| Approximate Weight | 18.0 lb |
| Housing Protection | IP66 |
The 115 mm frame and 76.2 mm stack should not be regarded as the complete external dimensions of the motor. The total machine envelope also includes the mounting flange, shaft extension, connector area, brake assembly, and other mechanical features.
For a direct mechanical replacement, the complete dimensional drawing should always be checked, particularly the shaft diameter, shaft extension, mounting-hole pattern, flange dimensions, connector clearance, and overall motor length.
5. Electrical Specifications
The MPL-B430P-HJ74AA belongs to the 400 V AC class and is associated with a 460 V armature-voltage classification.
It is designed to operate as part of a servo system rather than as a conventional standalone motor.
The servo drive supplies the controlled electrical power, while the encoder provides feedback to the control system. This closed-loop arrangement allows the motor to follow commanded speed and position profiles.
| Electrical Parameter | Specification |
|---|---|
| Model | MPL-B430P-HJ74AA |
| Voltage Class | 400 V AC |
| Armature Voltage Class | 460 V |
| Motor Type | Brushless AC Servo |
| Phase | Three-phase |
| Rated Speed | 5000 rpm |
| Continuous Torque | Approx. 6.55 N·m |
| Peak Torque | Approx. 19.8 N·m |
| Continuous Power | Approx. 2.2 kW |
| Feedback | Incremental Encoder |
| Encoder Resolution | 2000 lines/revolution |
| Brake Voltage | 24 V DC |
| Brake Type | Holding Brake |
| Connector | SpeedTEC DIN |
| Mounting | IEC Metric |
The high-speed B430P configuration provides a useful combination of speed and torque for machinery where rapid motion is required without moving to a significantly larger motor frame.
6. Feedback System
The MPL-B430P-HJ74AA uses a 2000-line incremental encoder.
This feedback system is an important part of the motor’s servo-control function. The encoder allows the control system to monitor motor movement and use that information to regulate the motor’s speed and position.
The incremental configuration should be distinguished from absolute single-turn and multi-turn encoder configurations used on other MPL motors.
This distinction is particularly important when replacing an existing motor. Two motors may have identical frame dimensions and similar torque ratings but still require different drive configurations because their feedback systems are different.
| Feedback Parameter | Specification |
|---|---|
| Model | MPL-B430P-HJ74AA |
| Feedback Type | Incremental Encoder |
| Resolution | 2000 lines/revolution |
| Feedback Category | Incremental |
| Absolute Single-Turn | No |
| Absolute Multi-Turn | No |
| Primary Function | Speed and position feedback |
| Control System Role | Closed-loop motion feedback |
For machines already designed around incremental feedback, this configuration can be a practical choice.
For a new machine, however, the feedback architecture should be selected based on the requirements of the complete control system.
7. 5000 RPM Speed Rating
The 5000 rpm rating is one of the defining characteristics of the MPL-B430P-HJ74AA.
This speed class makes the motor suitable for machinery that needs fast rotary movement or short machine cycles.
A 5000 rpm servo motor can be especially useful in applications involving rapid indexing, high-speed feeding, rotary positioning, material handling, packaging, and other repetitive operations.
The higher speed also means that the mechanical system needs to be designed appropriately.
Couplings, belts, pulleys, gearboxes, bearings, shafts, and driven loads all need to be suitable for the intended operating speed.
A servo motor should not be selected based on rated rpm alone. The actual machine speed profile, acceleration requirements, load inertia, and mechanical transmission ratio should also be considered.
8. Low-Inertia Construction
The MPL-B430P-HJ74AA belongs to the low-inertia MPL family.
Low motor inertia is valuable when the motor must change speed quickly.
A machine performing a repetitive positioning cycle may accelerate the motor, reach a target speed, decelerate, stop at a specific position, and then immediately begin another movement.
In such a system, the motor’s rotational inertia becomes an important part of the dynamic response.
The published B430P data places rotor inertia at approximately 0.00038 kg·m², which is consistent with the low-inertia design.
The practical benefit is not simply “more speed.” It is the ability to change speed efficiently and respond quickly to changing motion commands.
9. Continuous and Peak Torque
The B430P-HJ74AA is commonly specified at approximately 6.55 N·m continuous torque, with approximately 19.8 N·m peak torque in the B430P configuration.
Continuous torque is important for the load that the motor must support over an extended period.
Peak torque is more relevant during acceleration, deceleration, rapid positioning, and short-duration high-load conditions.
This distinction is important when sizing a servo motor.
A machine may have a relatively low average torque requirement but still need substantial peak torque during acceleration.
Conversely, a machine that operates continuously at a high load may be limited by continuous torque and thermal conditions even if its peak torque requirement is modest.
10. Integrated 24 V DC Holding Brake
The HJ74AA configuration includes an integral 24 V DC holding brake.
This is one of the most important differences between the HJ74AA and the corresponding HJ72AA no-brake configuration.
The brake is useful when the motor needs to hold a load mechanically while the servo is disabled.
This is particularly valuable for vertical axes, lifting mechanisms, positioning systems, and machinery where a load must remain stationary during a controlled stop or loss of servo torque.
| Brake Parameter | Specification |
|---|---|
| Model | MPL-B430P-HJ74AA |
| Brake Type | Integral Holding Brake |
| Brake Voltage | 24 V DC |
| Brake Configuration | Factory-integrated |
| Main Function | Mechanical holding |
| Typical Application | Vertical or load-holding axis |
| Alternative | No-brake HJ72AA configuration |
The brake should not automatically be regarded as the primary dynamic stopping system. The machine’s servo control, emergency-stop circuit, safety architecture, mechanical stopping requirements, and load-holding requirements should all be considered separately.
11. Keyed Shaft
The MPL-B430P-HJ74AA uses a keyed shaft extension.
A keyed shaft provides a conventional mechanical interface for couplings, gears, pulleys, sprockets, and other rotating machine components.
This can make the motor convenient for machines that already use traditional keyed mechanical connections.
When replacing a motor, however, it is important to check more than the presence of a key.
The shaft diameter, shaft extension, key dimensions, mounting flange, and coupling geometry should all be confirmed.
12. SpeedTEC DIN Connector
The motor uses a right-angle SpeedTEC DIN connector.
The connector is also designed to be 180° rotatable, which provides additional flexibility when routing cables around the motor.
This is useful in compact machinery where the available space behind or beside the motor is limited.
| Connector Feature | Specification |
|---|---|
| Model | MPL-B430P-HJ74AA |
| Connector Type | SpeedTEC DIN |
| Connector Configuration | Right Angle |
| Rotation | 180° |
| Connection Style | Quick Connect |
| Main Benefit | Flexible cable routing |
The connector arrangement is especially helpful when the motor is installed inside a machine frame, where a straight connector could interfere with guards, structural members, cable tracks, or other components.
13. Enclosure and Environmental Characteristics
The motor is commonly specified with an IP66 enclosure configuration.
This provides protection against dust and water exposure under the conditions associated with the enclosure rating.
However, IP66 should not be interpreted as meaning that the motor is suitable for every harsh environment.
The shaft area, cable connection, mounting interface, surrounding machine structure, cleaning method, temperature, humidity, and chemical exposure all need to be considered.
The HJ74AA also has no shaft seal, which is an important point when evaluating applications with significant exposure to moisture or contaminants.
14. Product Introduction
The MPL-B430P-HJ74AA is designed for industrial machinery where conventional motor operation is not sufficient and controlled motion is required.
In a typical servo application, the motor receives controlled power from a servo drive while the encoder provides feedback about motor movement.
The controller can then adjust the motor according to the required speed, position, acceleration, and deceleration profile.
This allows the motor to perform much more precise movements than a conventional fixed-speed motor.
The B430P-HJ74AA is especially suitable when the machine requires a combination of relatively high speed, useful continuous torque, low rotor inertia, and mechanical holding.
The integrated brake adds another useful function. It allows the motor to be used on axes where the load needs to remain stationary when the servo is not actively producing torque.
15. Main Advantages
15.1 High 5000 RPM Speed
The 5000 rpm rating allows the motor to support relatively fast machine cycles.
This is useful for applications where cycle time is important and the motor must complete repeated movements quickly.
15.2 Useful Continuous Torque
The approximately 6.55 N·m continuous torque rating provides substantial output capability for a 115 mm-frame servo motor.
This makes the B430P configuration suitable for applications requiring more torque than smaller MPL motors can provide.
15.3 Low-Inertia Response
The low-inertia rotor allows the motor to respond quickly to changing commands.
This is especially useful for machines with frequent starts, stops, reversals, and positioning operations.
15.4 Integral Holding Brake
The 24 V DC brake is one of the strongest practical advantages of the HJ74AA configuration.
It provides a mechanical holding function without requiring a separate external motor brake for the same basic purpose.
15.5 Incremental Encoder
The 2000-line incremental encoder provides feedback for closed-loop control.
This supports accurate speed regulation and repeatable machine movement.
15.6 Keyed Shaft
The keyed shaft provides a familiar mechanical connection for industrial transmission components.
This is particularly convenient for applications that already use keyed couplings, pulleys, or gear arrangements.
15.7 Compact 115 mm Frame
The 115 mm frame offers a useful balance between motor capability and installation space.
For many industrial machines, this allows meaningful servo performance without using a much larger motor.
15.8 Flexible Connector Orientation
The 180° rotatable right-angle connector makes cable routing easier in compact machinery.
This can be useful when the motor is installed close to a frame or enclosure wall.
16. Typical Applications
Packaging Machinery
Packaging equipment is one of the most natural applications for this type of servo motor.
Packaging machines frequently perform repeated indexing, feeding, cutting, sealing, positioning, and synchronization movements.
The 5000 rpm speed rating can help reduce cycle time, while the low-inertia design supports rapid acceleration and deceleration.
The holding brake is useful where a machine axis needs to remain stationary during certain operating conditions.
Automated Assembly
Automated assembly equipment often requires controlled positioning of tooling, fixtures, components, and workpieces.
The encoder provides feedback to the servo control system, while the low-inertia rotor helps the motor respond quickly to position commands.
Typical uses include indexing mechanisms, rotary stations, feed systems, positioning units, and assembly actuators.
Material Handling
Material-handling equipment can use servo motors when speed and position need to be controlled accurately.
The motor can be used for rollers, transfer mechanisms, positioning systems, feeders, and other motion axes.
The exact motor suitability depends on the load inertia, required speed, acceleration profile, and mechanical transmission.
Pick-and-Place Equipment
Pick-and-place machinery often requires fast repetitive movement.
The motor may need to accelerate rapidly, move to a position, decelerate, stop, and then reverse direction.
The low-inertia characteristics of the MPL family make this type of application a good match.
Rotary Indexing
Rotary indexing equipment requires repeatable angular positioning.
The servo motor can accelerate a rotary mechanism, move it to a defined position, decelerate, and hold the position.
The integral brake can provide an additional holding function where required.
Converting Machinery
Converting equipment may use servo motors for rollers, feeders, positioning systems, and synchronized rotary axes.
The 5000 rpm speed rating provides useful flexibility for high-speed machine sections.
The actual motor size should still be selected according to the required continuous torque, peak torque, inertia ratio, and duty cycle.
Machine Automation
The MPL-B430P-HJ74AA can also be used for general-purpose programmable motion axes.
Examples include:
- Rotary positioning
- Indexing mechanisms
- Servo-driven feeders
- Automated slides
- Material transfer systems
- Machine-tool auxiliary axes
- Packaging mechanisms
- Automated assembly stations
17. Application Suitability Table
| Application | Suitability | Main Reason |
|---|---|---|
| Packaging Machinery | Excellent | High speed and repeated motion |
| Automated Assembly | Excellent | Feedback-controlled positioning |
| Rotary Indexing | Excellent | Fast acceleration and accurate movement |
| Pick-and-Place | Excellent | Low-inertia dynamic response |
| Material Handling | Very Good | Controlled speed and positioning |
| High-Speed Feeding | Excellent | 5000 rpm speed class |
| Conveyor Positioning | Very Good | Closed-loop motion |
| Vertical Axis | Very Good | Integral holding brake |
| Horizontal Rotary Axis | Excellent | High speed and useful torque |
| General Machine Automation | Excellent | Flexible servo operation |
| Heavy Low-Speed Load | Moderate | May require a different motor size |
| Extreme High-Speed Application | Good | 5000 rpm is the rated speed class |
18. Five Related Models from the Same Series
The following models are useful comparisons within the same MPL/B430P family.
| Model | Speed | Continuous Torque | Feedback | Shaft | Brake | Frame | Stack | Approx. Weight |
|---|---|---|---|---|---|---|---|---|
| MPL-B430P-HJ72AA | 5000 rpm | Approx. 6.55 N·m | 2000-line incremental | Keyed | No | 115 mm | 76.2 mm | Approx. 6.4 kg |
| MPL-B430P-HJ74AA | 5000 rpm | Approx. 6.55 N·m | 2000-line incremental | Keyed | 24 V DC | 115 mm | 76.2 mm | Approx. 8.2 kg |
| MPL-B430P-SJ72AA | 5000 rpm | Approx. 6.55 N·m | Single-turn high-resolution | Keyed | No | 115 mm | 76.2 mm | Approx. 6.4 kg |
| MPL-B430P-SJ74AA | 5000 rpm | Approx. 6.55 N·m | Single-turn high-resolution | Keyed | 24 V DC | 115 mm | 76.2 mm | Approx. 8.2 kg |
| MPL-B430P-MJ74AA | 5000 rpm | Approx. 6.55 N·m | Multi-turn high-resolution | Keyed | 24 V DC | 115 mm | 76.2 mm | Approx. 8.2 kg |
The most important difference among these models is the feedback configuration and brake option. The B430P family includes incremental, single-turn high-resolution, and multi-turn high-resolution feedback configurations.
19. Five Popular Models for Broader Brand Comparison
The following models are useful for comparing different motor sizes and configurations within the same brand’s servo-motor portfolio.
| Model | Speed | Continuous Torque | Peak Torque | Power | Feedback | Brake | Frame | Stack | Approx. Weight |
|---|---|---|---|---|---|---|---|---|---|
| MPL-B310P-HJ74AA | 5000 rpm | Approx. 1.58 N·m | Approx. 3.61 N·m | Approx. 0.77 kW | Incremental | 24 V DC | Approx. 100 mm class | Configuration-dependent | Approx. 2.7 kg |
| MPL-B320P-HJ74AA | 5000 rpm | Approx. 3.05 N·m | Approx. 7.91 N·m | Approx. 1.5 kW | Incremental | 24 V DC | Approx. 100 mm class | Configuration-dependent | Approx. 3.7 kg |
| MPL-B330P-HJ74AA | 5000 rpm | Approx. 4.18 N·m | Approx. 11.1 N·m | Approx. 1.8 kW | Incremental | 24 V DC | Approx. 100 mm class | Configuration-dependent | Approx. 4.6 kg |
| MPL-B420P-SK74AA | 5000 rpm | Approx. 4.74 N·m | Approx. 13.5 N·m | Approx. 1.9 kW | Single-turn high-resolution | 24 V DC | 115 mm | 50.8 mm class | Approx. 5.4 kg |
| MPL-B430P-SJ74AA | 5000 rpm | Approx. 6.55 N·m | Approx. 19.8 N·m | Approx. 2.2 kW | Single-turn high-resolution | 24 V DC | 115 mm | 76.2 mm | Approx. 8.2 kg |
These models cover a useful range from smaller 5000 rpm servo motors to the larger B430P configuration. They can therefore be considered when the required torque, power, frame size, and feedback arrangement changes.
20. HJ72AA vs HJ74AA
The most direct comparison is between the MPL-B430P-HJ72AA and MPL-B430P-HJ74AA.
Both models belong to the same B430P motor family and share the basic 5000 rpm, 115 mm-frame, 76.2 mm-stack configuration.
The main difference is the integral brake.
| Feature | MPL-B430P-HJ72AA | MPL-B430P-HJ74AA |
|---|---|---|
| Speed | 5000 rpm | 5000 rpm |
| Frame | 115 mm | 115 mm |
| Stack | 76.2 mm | 76.2 mm |
| Feedback | 2000-line incremental | 2000-line incremental |
| Shaft | Keyed | Keyed |
| Brake | No | 24 V DC |
| Continuous Torque | Approx. 6.55 N·m | Approx. 6.55 N·m |
| Peak Torque | Approx. 19.8 N·m | Approx. 19.8 N·m |
| Power | Approx. 2.2 kW | Approx. 2.2 kW |
| Approx. Weight | Approx. 6.4 kg | Approx. 8.2 kg |
| Typical Application | Horizontal axis | Holding / vertical axis |
If the application does not require mechanical load holding, the HJ72AA can be a simpler configuration.
If the machine has a vertical axis or another load that needs to remain mechanically held, the HJ74AA provides the more suitable brake-equipped configuration.
21. HJ74AA vs SJ74AA
The MPL-B430P-SJ74AA is another close comparison.
Both motors have a 5000 rpm rating, keyed shaft, 24 V DC holding brake, 115 mm frame, and 76.2 mm stack.
The key difference is the feedback system.
| Feature | MPL-B430P-HJ74AA | MPL-B430P-SJ74AA |
|---|---|---|
| Speed | 5000 rpm | 5000 rpm |
| Frame | 115 mm | 115 mm |
| Stack | 76.2 mm | 76.2 mm |
| Feedback | 2000-line incremental | Single-turn high-resolution |
| Shaft | Keyed | Keyed |
| Brake | 24 V DC | 24 V DC |
| Main Difference | Incremental feedback | High-resolution single-turn feedback |
| Typical Selection | Existing incremental system | Absolute/single-turn feedback architecture |
This is an important distinction when selecting a replacement.
The SJ74AA should not automatically be treated as an electrically identical substitute for the HJ74AA simply because the two motors have similar mechanical dimensions.
22. HJ74AA vs MJ74AA
The MPL-B430P-MJ74AA uses multi-turn high-resolution feedback.
| Feature | MPL-B430P-HJ74AA | MPL-B430P-MJ74AA |
|---|---|---|
| Speed | 5000 rpm | 5000 rpm |
| Frame | 115 mm | 115 mm |
| Stack | 76.2 mm | 76.2 mm |
| Feedback | 2000-line incremental | Multi-turn high-resolution |
| Shaft | Keyed | Keyed |
| Brake | 24 V DC | 24 V DC |
| Continuous Torque | Approx. 6.55 N·m | Approx. 6.55 N·m |
| Power | Approx. 2.2 kW | Approx. 2.2 kW |
| Approx. Weight | Approx. 8.2 kg | Approx. 8.2 kg |
The MJ74AA can be attractive when the motion system requires multi-turn position information.
The HJ74AA is more appropriate when the existing control system is built around incremental encoder feedback.
23. Five-Motor Configuration Comparison
| Model | Speed | Feedback | Shaft | Brake | Frame | Stack | Approx. Weight |
|---|---|---|---|---|---|---|---|
| MPL-B430P-HJ72AA | 5000 rpm | Incremental | Keyed | No | 115 mm | 76.2 mm | Approx. 6.4 kg |
| MPL-B430P-HJ74AA | 5000 rpm | Incremental | Keyed | Yes | 115 mm | 76.2 mm | Approx. 8.2 kg |
| MPL-B430P-SJ72AA | 5000 rpm | Single-turn high-resolution | Keyed | No | 115 mm | 76.2 mm | Approx. 6.4 kg |
| MPL-B430P-SJ74AA | 5000 rpm | Single-turn high-resolution | Keyed | Yes | 115 mm | 76.2 mm | Approx. 8.2 kg |
| MPL-B430P-MJ74AA | 5000 rpm | Multi-turn high-resolution | Keyed | Yes | 115 mm | 76.2 mm | Approx. 8.2 kg |
This table illustrates the main configuration choices available around the B430P motor platform.
For many applications, the mechanical size stays almost unchanged while the feedback and brake configuration changes according to the machine-control requirements.
24. Model Number Interpretation
The catalog number MPL-B430P-HJ74AA can be understood as a combination of family, frame, speed, feedback, shaft, connector, brake, and configuration identifiers.
| Model Section | General Meaning |
|---|---|
| MPL | MP-Series low-inertia servo motor family |
| B430 | B430 motor/frame family |
| P | 5000 rpm speed class |
| H | Incremental encoder configuration |
| J | Keyed shaft configuration |
| 7 | SpeedTEC DIN connector configuration |
| 4 | Integral 24 V DC holding brake |
| AA | Configuration suffix |
The exact catalog-code interpretation should be used as a selection aid rather than as a substitute for the complete technical specification.
25. Why the Holding Brake Matters
The holding brake is not simply an accessory added for convenience.
In certain machine designs, a servo motor must maintain a load in position even when motor torque is no longer being commanded.
This is particularly important for vertical axes.
Imagine a vertical slide carrying a heavy assembly. If servo torque is removed, gravity may cause the load to move.
A holding brake provides a mechanical means of keeping the motor shaft stationary.
This makes the HJ74AA configuration particularly useful for:
- Vertical positioning axes
- Lifting mechanisms
- Vertical slides
- Tool positioning systems
- Load-holding mechanisms
- Certain indexing systems
- Machinery requiring stationary holding during shutdown
The brake should still be incorporated into the machine’s safety and control strategy correctly.
26. Why Low Inertia Matters
Low inertia becomes especially important when the machine’s motion profile contains many short movements.
For example, consider a machine that performs the following cycle:
- Accelerate.
- Move quickly.
- Decelerate.
- Stop at a precise location.
- Hold.
- Reverse.
- Repeat.
The motor must repeatedly change its rotational speed.
A lower-inertia rotor can respond more readily to these commands than a motor with substantially greater rotating mass.
This is one reason the MPL family is well suited to packaging, assembly, indexing, and pick-and-place equipment.
27. Machine Design Advantages
From a machine designer’s perspective, the MPL-B430P-HJ74AA provides several useful characteristics in one motor package.
The 5000 rpm speed gives the machine considerable motion flexibility.
The 115 mm frame keeps the physical size within a practical range for many automated machines.
The 76.2 mm stack provides useful motor capability without requiring a substantially larger frame.
The low-inertia rotor supports dynamic movement.
The incremental encoder provides feedback for closed-loop control.
The keyed shaft provides a familiar mechanical interface.
The integral 24 V DC brake adds mechanical holding capability.
The rotatable right-angle connector helps with cable routing.
Together, these features make the motor suitable for many industrial automation systems.
28. Installation Considerations
The motor should be installed on a sufficiently rigid machine structure.
The mounting surface needs to support the motor and the dynamic forces generated during acceleration and deceleration.
Shaft alignment is also important.
Incorrect alignment can create additional radial or axial loads on the motor bearings.
The coupling should be selected according to the motor shaft and driven equipment.
The cable should be routed so that it is not subjected to excessive bending, pulling, abrasion, or mechanical interference.
The connector should also have enough clearance to allow installation and future maintenance.
29. Mechanical Load Considerations
When selecting the MPL-B430P-HJ74AA, the motor’s continuous torque should not be considered in isolation.
The machine should be evaluated for:
- Load torque
- Acceleration torque
- Deceleration torque
- Peak torque
- Load inertia
- Motor inertia
- Gear ratio
- Transmission efficiency
- Operating speed
- Duty cycle
- Number of cycles per minute
- Reversal frequency
- Thermal conditions
- Radial shaft load
- Axial shaft load
A motor that appears adequate based on steady-state torque may still be undersized if the application has very high acceleration requirements.
Likewise, a motor with sufficient peak torque may not be suitable for continuous operation if the thermal load is too high.
30. Maintenance Considerations
Although servo motors are designed for reliable industrial operation, appropriate maintenance remains important.
The motor housing should be inspected periodically for contamination, mechanical damage, abnormal heating, or other visible problems.
The motor cable and connector should be checked for wear, looseness, abrasion, and mechanical stress.
The shaft coupling should also be inspected for signs of misalignment.
For machines with frequent acceleration and deceleration, the mechanical transmission should receive particular attention because dynamic loads can affect couplings, belts, gears, and bearings.
The holding brake should also be checked as part of the machine maintenance program if the application relies on the brake for load holding.
31. Replacement Selection Checklist
| Selection Item | MPL-B430P-HJ74AA |
|---|---|
| Model | MPL-B430P-HJ74AA |
| Brand | Allen-Bradley |
| Series | MP-Series MPL |
| Voltage Class | 400 V AC |
| Armature Voltage | 460 V |
| Rated Speed | 5000 rpm |
| Continuous Torque | Approx. 6.55 N·m |
| Peak Torque | Approx. 19.8 N·m |
| Rated Power | Approx. 2.2 kW |
| Feedback | 2000-line incremental |
| Frame Size | 115 mm |
| Magnet Stack | 76.2 mm |
| Shaft | Keyed |
| Brake | 24 V DC |
| Connector | SpeedTEC DIN |
| Connector Style | Right Angle |
| Connector Rotation | 180° |
| Mounting | IEC Metric |
| Mounting Holes | Type FF |
| Shaft Seal | None |
| Enclosure | IP66 |
| Rotor Inertia | Approx. 0.00038 kg·m² |
| Weight | Approx. 8.2 kg |
32. Important Lifecycle Consideration
The MPL-B430P-HJ74AA is a discontinued model. The listed engineering replacement is the MPL-B430P-SJ74AA.
This point is important when the motor is being considered for a new machine.
For an existing machine, the original HJ74AA may still be the relevant replacement if the machine was designed specifically around its incremental feedback configuration.
For a new system, the engineering replacement should be evaluated carefully.
The replacement model has a different feedback configuration, so it should not simply be assumed to be a plug-and-play electrical replacement.
The drive, feedback interface, cable configuration, controller parameters, and commissioning procedure should all be checked before changing from the HJ74AA to another model.
33. Recommended Model Selection
| Machine Requirement | Recommended Model |
|---|---|
| 5000 rpm, incremental feedback, no brake | MPL-B430P-HJ72AA |
| 5000 rpm, incremental feedback, 24 V brake | MPL-B430P-HJ74AA |
| 5000 rpm, single-turn high-resolution feedback, no brake | MPL-B430P-SJ72AA |
| 5000 rpm, single-turn high-resolution feedback, brake | MPL-B430P-SJ74AA |
| 5000 rpm, multi-turn high-resolution feedback, brake | MPL-B430P-MJ74AA |
| Smaller torque requirement | MPL-B420P series |
| Lower power requirement | MPL-B310P / B320P / B330P series |
| Vertical load requiring mechanical holding | Brake-equipped configuration |
| Horizontal high-speed axis without brake requirement | MPL-B430P-HJ72AA |
| Existing incremental-feedback system | MPL-B430P-HJ74AA |
34. Five Closely Related Models – Quick Selection Table
| Model | Speed | Torque | Feedback | Brake | Shaft | Frame | Stack | Weight |
|---|---|---|---|---|---|---|---|---|
| MPL-B430P-HJ72AA | 5000 rpm | 6.55 N·m | Incremental | No | Keyed | 115 mm | 76.2 mm | 6.4 kg |
| MPL-B430P-HJ74AA | 5000 rpm | 6.55 N·m | Incremental | Yes | Keyed | 115 mm | 76.2 mm | 8.2 kg |
| MPL-B430P-SJ72AA | 5000 rpm | 6.55 N·m | Single-turn high-resolution | No | Keyed | 115 mm | 76.2 mm | 6.4 kg |
| MPL-B430P-SJ74AA | 5000 rpm | 6.55 N·m | Single-turn high-resolution | Yes | Keyed | 115 mm | 76.2 mm | 8.2 kg |
| MPL-B430P-MJ74AA | 5000 rpm | 6.55 N·m | Multi-turn high-resolution | Yes | Keyed | 115 mm | 76.2 mm | 8.2 kg |
35. Overall Product Advantages
The MPL-B430P-HJ74AA combines several characteristics that are useful in demanding motion-control equipment.
Its 5000 rpm speed makes it suitable for fast machine cycles.
Its approximately 6.55 N·m continuous torque provides useful output capability in the 115 mm frame class.
Its approximately 19.8 N·m peak torque provides additional short-duration capability for acceleration and dynamic motion.
Its low-inertia rotor supports fast speed changes.
Its 2000-line incremental encoder provides feedback for closed-loop motion control.
Its keyed shaft provides a conventional mechanical connection.
Its 24 V DC holding brake makes it suitable for applications where mechanical holding is required.
Its right-angle rotatable connector provides useful installation flexibility.
Its 115 mm frame and 76.2 mm stack provide a relatively compact package for the motor’s performance class.
Its IP66 configuration provides useful environmental protection when the motor is installed within suitable operating conditions.
36. Final Product Assessment
The Allen-Bradley MPL-B430P-HJ74AA is best characterized as a 5000 rpm, 400 V-class, low-inertia brushless AC servo motor with a 115 mm frame, 76.2 mm magnet stack, 2000-line incremental encoder, keyed shaft, and integral 24 V DC holding brake.
Its main strength is the balance between dynamic performance and practical machine integration.
The 5000 rpm speed provides high-speed operating capability.
The low-inertia design supports fast acceleration and deceleration.
The approximately 6.55 N·m continuous torque provides useful output for a broad range of automated machinery.
The incremental encoder allows the motor to participate in a closed-loop servo system.
The keyed shaft makes mechanical integration straightforward for conventional industrial transmissions.
The integrated 24 V DC brake adds an important holding function, especially for vertical and load-supporting axes.
For packaging machines, automated assembly equipment, rotary indexing systems, material handling, pick-and-place machinery, converting equipment, high-speed feeders, and general machine automation, the motor is a practical fit when its torque, speed, feedback, and mechanical requirements match the application.
The most important selection point is that the HJ74AA is not defined only by its 5000 rpm rating. The feedback type and brake configuration are equally important.
If a machine already uses an incremental feedback architecture and requires a holding brake, the HJ74AA configuration is a logical match.
If the machine does not require a brake, the HJ72AA provides a related no-brake configuration.
If single-turn or multi-turn high-resolution feedback is required, the SJ or MJ configurations should be considered instead.
In practical terms, the MPL-B430P-HJ74AA is a strong choice for an industrial motion axis that needs high speed, low-inertia response, meaningful continuous torque, incremental encoder feedback, keyed mechanical connection, and integrated mechanical holding.
