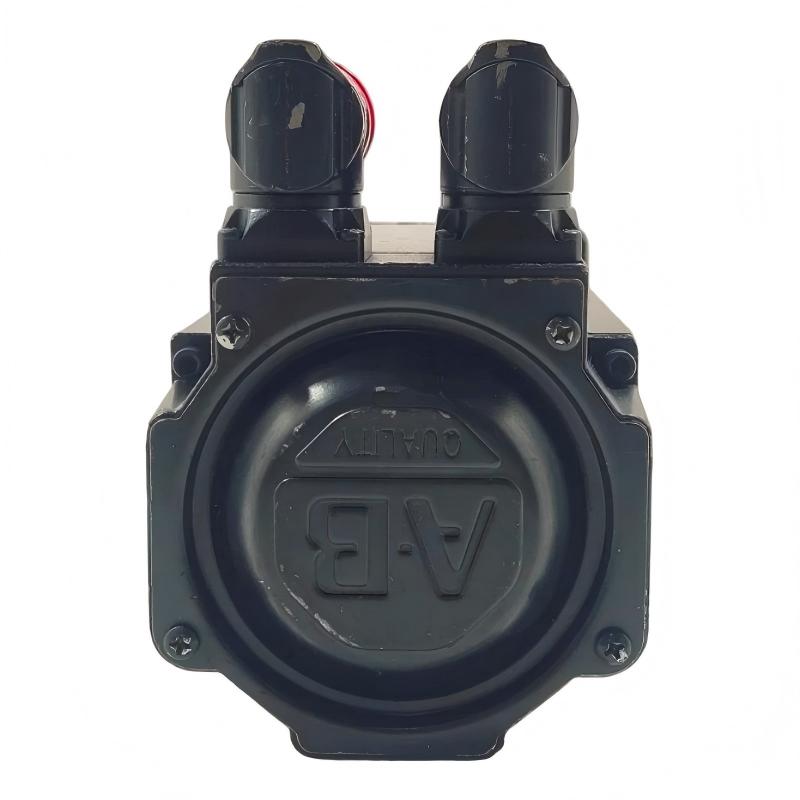

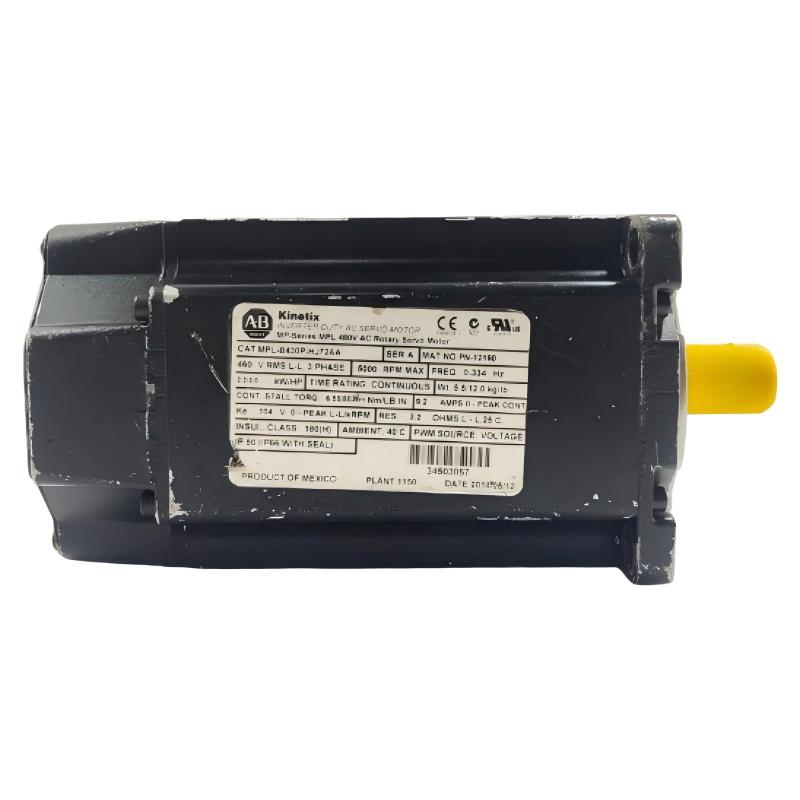

Allen-Bradley MPL-B430P-HJ72AA Servo Motor – Detailed Specifications, Applications, Advantages and Related Models

1. Product Overview

The Allen-Bradley MPL-B430P-HJ72AA is a low-inertia brushless AC servo motor from the MP-Series MPL servo motor family. It is a 400 V-class motor designed for industrial motion-control systems that require fast response, accurate positioning, controlled acceleration and deceleration, and reliable operation over repeated motion cycles.

The motor has a 115 mm frame, a 76.2 mm magnet stack, and a 5000 rpm rated speed. It uses a 2000-line incremental encoder, a keyed shaft, a right-angle SpeedTEC DIN connector, and does not include an integral holding brake. The published technical data identifies a 6.55 N·m continuous torque and approximately 2.2 kW continuous rated power for this configuration.

The HJ72AA configuration is particularly useful when a machine needs the higher-speed characteristics of the 5000 rpm B430P motor but does not require an integrated motor brake. This makes it a relatively straightforward choice for horizontal axes, rotary mechanisms, indexing equipment, packaging machinery, material-handling systems, and other automated machines where the load is mechanically supported without relying on a motor holding brake.

The motor uses a keyed shaft and an IEC metric mounting arrangement, which makes it suitable for conventional industrial mechanical coupling arrangements. Its right-angle connector can also be rotated, giving the machine designer additional freedom when routing motor cables inside a compact machine enclosure.

---

2. Brand and Product Series

Item	Specification
Model	MPL-B430P-HJ72AA
Brand	Allen-Bradley
Product Family	MP-Series MPL
Series	MPL Low-Inertia Servo Motors
Product Type	Brushless AC Rotary Servo Motor
Motor Design	Low-Inertia Permanent-Magnet Servo Motor
Voltage Class	400 V AC
Armature Voltage Class	460 V
Speed Class	5000 rpm
Frame Size	115 mm
Magnet Stack	76.2 mm
Feedback	Incremental Encoder
Brake	No Integral Brake
Shaft	Keyed
Mounting	IEC Metric

The MPL product family was developed around compact brushless servo motors intended to provide high output in a relatively compact package. The B430P configuration belongs to the higher-speed portion of the MPL family, with a 5000 rpm rated speed.

---

3. Main Technical Specifications

Parameter	Specification
Model	MPL-B430P-HJ72AA
Product Type	Low-Inertia Brushless Servo Motor
Motor Family	MP-Series MPL
Voltage Class	400 V AC
Armature Voltage	460 V
Rated Speed	5000 rpm
Maximum Speed	5000 rpm
Continuous Output Torque	6.55 N·m
Peak Output Torque	Approximately 19.8 N·m
Continuous Rated Power	Approximately 2.2 kW
Feedback Type	Incremental Encoder
Encoder Resolution	2000 lines/revolution
Feedback Category	Incremental
Frame Size	115 mm
Frame Size in Inches	4.53 in
Magnet Stack Length	76.2 mm
Magnet Stack Length in Inches	3.00 in
Shaft	Keyed Shaft
Shaft Seal	No Shaft Seal
Brake	No Integral Brake
Connector	SpeedTEC DIN
Connector Style	Right-Angle
Connector Rotation	180° Rotatable
Mounting Flange	IEC Metric
Mounting Holes	Type FF / Free Mounting Holes
Housing	IP66 configuration
Rotor Inertia	Approximately 0.00038 kg·m²
Operating Temperature	Approximately 0 to 40 °C
Approximate Weight	Approximately 6.1–6.4 kg
Product Status	Discontinued
Engineering Replacement	MPL-B430P-SJ72AA

The core published specifications identify the HJ72AA as a 5000 rpm, 6.55 N·m, 2.2 kW-class motor with a 2000-line incremental encoder, 115 mm frame, 76.2 mm stack, keyed shaft, no brake, and 400 V-class operation. Different catalog listings show slightly different shipping or configuration weights, so approximately 6.1–6.4 kg is a sensible practical range when a single revision-specific weight is not available.

---

4. Dimensions and Weight

The physical size of the MPL-B430P-HJ72AA is defined primarily by its 115 mm frame size and 76.2 mm magnet stack length.

The 115 mm frame corresponds to the Frame 4 mechanical size, while the 76.2 mm stack corresponds to the 3.0-inch magnet-stack configuration. These dimensions are particularly important when checking whether an existing machine can accept the motor without changing the mounting structure.

Mechanical Parameter	Value
Model	MPL-B430P-HJ72AA
Frame Size	115 mm
Frame Size	4.53 in
Magnet Stack Length	76.2 mm
Magnet Stack Length	3.00 in
Mounting Standard	IEC Metric
Mounting Holes	Type FF
Shaft	Keyed
Shaft Seal	None
Connector	Right-Angle SpeedTEC DIN
Connector Rotation	180°
Brake	None
Approximate Weight	6.1–6.4 kg
Approximate Weight in lb	13.5–14.1 lb

The 115 mm frame and 76.2 mm stack should not be confused with the complete external length of the motor. The actual machine envelope also includes the shaft extension, flange, connector area, and other mechanical features.

For an exact replacement or machine redesign, the detailed mechanical drawing should be used to verify shaft dimensions, flange dimensions, mounting-hole positions, connector clearance, and total installation depth.

---

5. Electrical Characteristics

The MPL-B430P-HJ72AA is designed for the 400 V AC class and is associated with a 460 V armature voltage classification.

Its electrical design is intended for use as part of a closed-loop servo system. The motor itself is only one part of the complete motion-control arrangement; the servo drive, feedback connection, motor cable, control system, and mechanical load all need to be properly matched.

Electrical Parameter	Specification
Model	MPL-B430P-HJ72AA
Voltage Class	400 V AC
Armature Voltage	460 V
Motor Type	Brushless AC Servo
Rated Speed	5000 rpm
Continuous Torque	6.55 N·m
Peak Torque	Approx. 19.8 N·m
Continuous Power	Approx. 2.2 kW
Feedback	Incremental Encoder
Encoder Resolution	2000 lines/rev
Brake	No
Motor Connector	SpeedTEC DIN
Mounting	IEC Metric

The combination of 5000 rpm speed and approximately 6.55 N·m continuous torque gives the motor a useful operating range for demanding industrial motion applications.

---

6. Feedback System

One of the important characteristics of the MPL-B430P-HJ72AA is its 2000-line incremental encoder.

The encoder provides feedback to the servo control system so that motor rotation can be monitored during operation. The controller can use this feedback to regulate speed, determine motor movement, and maintain the desired motion profile.

The incremental encoder configuration is different from the absolute single-turn and multi-turn feedback options found on other MPL models. This distinction matters when selecting a replacement motor because the feedback interface and drive configuration need to match.

Feedback Parameter	Specification
Model	MPL-B430P-HJ72AA
Feedback Type	Incremental Encoder
Resolution	2000 lines/revolution
Feedback Category	Incremental
Single-Turn Absolute	No
Multi-Turn Absolute	No
Typical Function	Position and speed feedback
Application Benefit	Closed-loop motion control

For a machine already designed around an incremental feedback configuration, the HJ72AA can be a particularly convenient choice.

---

7. 5000 RPM High-Speed Configuration

The 5000 rpm rating is one of the most noticeable characteristics of the B430P motor.

Compared with a 3500 rpm B430H configuration, the B430P is intended for applications where a higher motor speed can provide an advantage.

A higher motor speed can reduce the amount of mechanical gearing required in some applications and can also help achieve faster rotary movement.

This is particularly useful in applications involving repeated indexing, high-speed feeding, rapid rotary movement, and other machine cycles where the motor has to cover a large amount of mechanical travel in a short time.

However, higher speed also means that the mechanical transmission, coupling, bearings, driven equipment, and load inertia must be evaluated carefully.

---

8. Low-Inertia Motor Design

The low-inertia construction is one of the key characteristics of the MPL family.

A servo motor with relatively low rotor inertia can change speed quickly because the control system does not have to accelerate or decelerate as much rotating mass.

This characteristic becomes particularly valuable when the machine repeatedly performs short movements.

For example, a packaging machine may accelerate the motor, move a mechanism to a precise position, stop, reverse direction, and repeat the same cycle hundreds or thousands of times.

A low-inertia servo motor is well suited to this type of operating pattern.

The motor’s rotor inertia is listed at approximately 0.00038 kg·m², which is consistent with its low-inertia design.

---

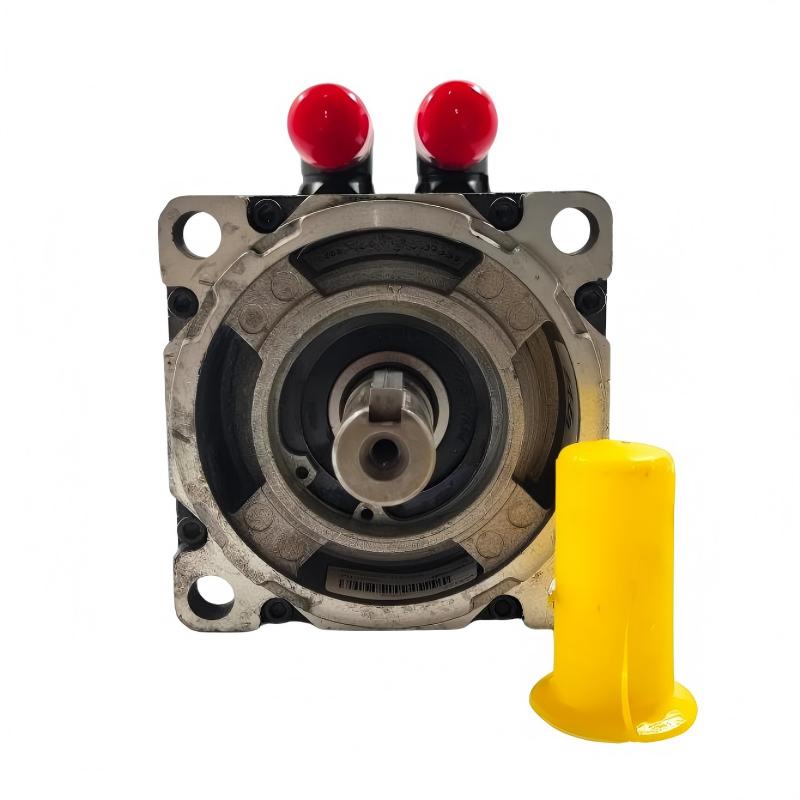

9. Keyed Shaft

The MPL-B430P-HJ72AA uses a keyed shaft.

This provides a conventional mechanical connection for couplings, pulleys, sprockets, gears, and other machine components.

A keyed shaft can be advantageous when replacing an older servo motor or integrating the motor into machinery that already uses keyed mechanical components.

When selecting a replacement, however, the shaft diameter, shaft extension, key dimensions, coupling type, and mounting geometry should all be checked rather than assuming that two motors with the same frame size are mechanically interchangeable.

---

10. No Integral Brake

The HJ72AA configuration is a non-brake version.

This is an important distinction within the B430P family because other versions are available with integral holding brakes.

A no-brake motor is often preferable for horizontal axes where the mechanical load does not need to be held by the motor when power is removed.

Removing the brake also keeps the motor configuration relatively simple and avoids the additional brake wiring and brake-related hardware.

For a vertical axis or an application where the load could move under gravity when the motor is disabled, a brake-equipped model should generally be considered instead.

---

11. SpeedTEC DIN Connector

The motor uses a right-angle SpeedTEC DIN connector.

The connector arrangement is designed to make cable routing easier, particularly where the motor is installed close to machine frames or other components.

The connector is also described as 180° rotatable, which gives the installer more freedom to select an appropriate cable direction.

This can be particularly useful in compact automation equipment where straight connectors would consume excessive space.

Connector Feature	Specification
Model	MPL-B430P-HJ72AA
Connector Type	SpeedTEC DIN
Connector Style	Right-Angle
Rotation	180°
Cable Routing	Flexible
Main Benefit	Reduced installation interference

---

12. Housing and Environmental Protection

The HJ72AA configuration is listed with an IP66 housing.

This provides a useful level of protection against dust and water exposure under the conditions for which the enclosure rating applies.

However, the absence of a shaft seal should still be considered during machine design.

The housing rating does not automatically mean that the motor can be installed in any wet or contaminated environment. The shaft area, cable connections, mounting interface, and actual installation orientation all need to be considered.

For applications involving frequent washdown, aggressive chemicals, high humidity, food-processing environments, or heavy contamination, the exact motor configuration should be evaluated carefully before selection.

---

13. Main Product Advantages

13.1 High-Speed Operation

The 5000 rpm rated speed gives the MPL-B430P-HJ72AA a significant advantage in applications where rapid rotary motion is required.

It can be used in machines where a 3500 rpm motor would limit the required cycle speed.

---

13.2 Strong Continuous Torque for Its Size

With approximately 6.55 N·m continuous torque in a 115 mm frame, the motor offers a useful balance between physical size and output capability.

This makes it suitable for machines that need meaningful continuous torque without moving to a substantially larger motor frame.

---

13.3 Low Rotor Inertia

Low rotor inertia is particularly valuable for rapid acceleration and deceleration.

It allows the motor to respond quickly to changing motion commands and is well suited to machines with frequent starts, stops, reversals, and positioning cycles.

---

13.4 Incremental High-Resolution Feedback

The 2000-line incremental encoder provides the feedback required for controlled servo operation.

This allows the motion-control system to monitor motor movement and regulate the motor more accurately than an open-loop motor system.

---

13.5 Compact 115 mm Frame

The 115 mm frame provides a useful combination of mechanical strength and relatively compact dimensions.

For many industrial machines, this frame size can fit into existing equipment without requiring the large mounting space associated with bigger servo motors.

---

13.6 Keyed Shaft

The keyed shaft is convenient for traditional industrial mechanical connections.

It works well with many conventional couplings and transmission components.

---

13.7 No-Brake Configuration

The lack of an integral brake can be an advantage when a brake is unnecessary.

It simplifies the motor configuration and can reduce overall motor weight compared with a comparable brake-equipped version.

---

13.8 Flexible Connector Orientation

The 180° rotatable right-angle connector gives additional freedom for cable routing.

This can be particularly useful in compact automated machinery.

---

14. Typical Applications

The MPL-B430P-HJ72AA can be used in many industrial motion-control applications.

Packaging Machinery

Packaging machinery often requires fast repetitive motion.

The motor can be considered for indexing mechanisms, product feeding systems, rotary packaging mechanisms, material positioning, and synchronized machine movements.

Its 5000 rpm speed and low-inertia characteristics make it suitable for repeated acceleration and deceleration cycles.

---

Material Handling

Material-handling systems often use servo motors when a conveyor, roller, transfer mechanism, or positioning system needs more than simple constant-speed operation.

The motor can provide controlled acceleration, speed adjustment, and repeatable movement.

---

Automated Assembly

Automated assembly machines require accurate movement of components, fixtures, tooling, and workpieces.

The encoder feedback allows the servo control system to monitor motor movement, while the low-inertia rotor supports rapid changes in speed.

---

Rotary Indexing

Rotary indexing equipment is another suitable application.

The motor can rapidly accelerate a rotary table or mechanism, move it to a target position, decelerate, and then repeat the cycle.

The 5000 rpm rating can be useful when short cycle times are important.

---

Pick-and-Place Machinery

Pick-and-place machines frequently require rapid movement and repeated directional changes.

The low-inertia design helps the motor respond quickly to these changing commands.

---

Converting Machinery

Converting equipment often requires synchronized rotary movement between multiple machine sections.

Servo motors can be used to control rollers, feeders, tension mechanisms, and positioning systems.

The exact motor selection depends on the required torque, speed, inertia ratio, and duty cycle.

---

General Machine Automation

The motor is also suitable for general-purpose programmable motion axes.

Examples include automated slides, rotary axes, indexing units, machine feeders, positioning mechanisms, and other electrically controlled mechanical systems.

---

15. Application Suitability

Application	Suitability	Main Reason
Packaging Equipment	Excellent	High speed and repeated motion
Rotary Indexing	Excellent	Rapid acceleration and positioning
Automated Assembly	Excellent	Feedback-controlled movement
Pick-and-Place	Excellent	Low-inertia response
Material Handling	Very Good	Controlled speed and positioning
Conveyor Positioning	Very Good	Servo-controlled motion
General Machine Automation	Excellent	Flexible motion control
Horizontal Rotary Axis	Excellent	No brake required
Vertical Axis	Limited	Brake may be required
High-Speed Feeding	Excellent	5000 rpm speed rating
High-Speed Indexing	Excellent	Low inertia and high speed
Heavy Low-Speed Load	Moderate	A different torque/speed configuration may be preferable

---

16. Five Related Models from the Same MPL Family

The following five models are useful when comparing the HJ72AA configuration with closely related MPL motors.

Model	Speed	Continuous Torque	Feedback	Shaft	Brake	Frame	Stack	Approx. Weight
MPL-B430P-HJ22AA	5000 rpm	Approx. 6.55 N·m	2000-line incremental	Keyed	No	115 mm	76.2 mm	Approx. 6.4 kg
MPL-B430P-HJ72AA	5000 rpm	6.55 N·m	2000-line incremental	Keyed	No	115 mm	76.2 mm	Approx. 6.1–6.4 kg
MPL-B430P-HJ74AA	5000 rpm	Approx. 6.55 N·m	2000-line incremental	Keyed	24 V DC	115 mm	76.2 mm	Approx. 8.2 kg
MPL-B430P-SJ72AA	5000 rpm	Approx. 6.55 N·m	Single-turn high-resolution	Keyed	No	115 mm	76.2 mm	Approx. 6.4 kg
MPL-B430P-SJ74AA	5000 rpm	Approx. 6.55 N·m	Single-turn high-resolution	Keyed	24 V DC	115 mm	76.2 mm	Approx. 8.2 kg

These models belong to the same general B430P/MPL family but differ in feedback and brake configuration. The HJ versions use incremental encoder feedback, while the SJ versions use a different high-resolution single-turn feedback configuration.

---

17. Five Popular Models for Brand Comparison

The following models are useful alternatives for broader comparison within the same brand’s servo-motor range.

Model	Speed	Approx. Torque	Feedback	Shaft	Brake	Frame	Stack	Approx. Weight
MPL-B420P-SK74AA	5000 rpm	4.74 N·m	Single-turn high-resolution	Keyless	24 V DC	115 mm	50.8 mm	Approx. 5.4 kg
MPL-B430P-SJ72AA	5000 rpm	Approx. 6.55 N·m	Single-turn high-resolution	Keyed	No	115 mm	76.2 mm	Approx. 6.4 kg
MPL-B430P-SJ74AA	5000 rpm	Approx. 6.55 N·m	Single-turn high-resolution	Keyed	24 V DC	115 mm	76.2 mm	Approx. 8.2 kg
MPL-B430P-MJ74AA	5000 rpm	Approx. 6.55 N·m	Multi-turn high-resolution	Keyed	24 V DC	115 mm	76.2 mm	Approx. 8.2 kg
MPL-B430P-RJ74AA	5000 rpm	Approx. 6.55 N·m	Resolver	Keyed	24 V DC	115 mm	76.2 mm	Approx. 8.2 kg

These alternatives show the main ways the MPL family can be configured: different frame sizes, shaft arrangements, feedback technologies, and brake options. This makes it possible to select a motor according to the actual requirements of the machine instead of choosing solely by nominal power.

---

18. HJ72AA vs HJ74AA

The most direct comparison is between the MPL-B430P-HJ72AA and MPL-B430P-HJ74AA.

Both are 5000 rpm B430P motors with the same basic frame and stack dimensions and the same general incremental feedback configuration.

The major difference is the holding brake.

Feature	MPL-B430P-HJ72AA	MPL-B430P-HJ74AA
Speed	5000 rpm	5000 rpm
Frame	115 mm	115 mm
Stack	76.2 mm	76.2 mm
Feedback	2000-line incremental	2000-line incremental
Shaft	Keyed	Keyed
Brake	No	24 V DC
Continuous Torque	Approx. 6.55 N·m	Approx. 6.55 N·m
Power	Approx. 2.2 kW	Approx. 2.2 kW
Approx. Weight	6.1–6.4 kg	Approx. 8.2 kg
Best Application	Horizontal axis	Holding / vertical applications

For a horizontal machine axis where gravity is not trying to move the load, the HJ72AA can be a very practical choice.

For a vertical axis or an application where the motor must mechanically hold a load, the HJ74AA is generally the more suitable configuration.

---

19. HJ72AA vs SJ72AA

The MPL-B430P-SJ72AA is another particularly important comparison.

Both models are 5000 rpm B430P motors with the same 115 mm frame and 76.2 mm stack.

The primary difference is the feedback technology.

Feature	MPL-B430P-HJ72AA	MPL-B430P-SJ72AA
Speed	5000 rpm	5000 rpm
Frame	115 mm	115 mm
Stack	76.2 mm	76.2 mm
Feedback	2000-line incremental	Single-turn high-resolution
Shaft	Keyed	Keyed
Brake	No	No
Connector	SpeedTEC DIN	SpeedTEC DIN
Main Advantage	Incremental feedback	High-resolution single-turn feedback
Best Choice	Existing incremental system	System designed for single-turn feedback

The correct choice should therefore be based on the feedback requirements of the servo system, not simply on motor size.

---

20. HJ72AA vs HJ74AA vs SJ72AA vs SJ74AA

A broader comparison makes the configuration differences easier to understand.

Model	Speed	Feedback	Shaft	Brake	Frame	Stack	Approx. Weight
MPL-B430P-HJ72AA	5000 rpm	2000-line incremental	Keyed	No	115 mm	76.2 mm	6.1–6.4 kg
MPL-B430P-HJ74AA	5000 rpm	2000-line incremental	Keyed	Yes	115 mm	76.2 mm	Approx. 8.2 kg
MPL-B430P-SJ72AA	5000 rpm	Single-turn high-resolution	Keyed	No	115 mm	76.2 mm	Approx. 6.4 kg
MPL-B430P-SJ74AA	5000 rpm	Single-turn high-resolution	Keyed	Yes	115 mm	76.2 mm	Approx. 8.2 kg

This comparison shows why the complete catalog number matters.

The difference between a few characters in the model number can change the feedback system or brake configuration, even though the motors may look very similar mechanically.

---

21. Model Number Interpretation

The model number MPL-B430P-HJ72AA can be viewed as a configuration identifier for the motor’s family, size, speed class, feedback arrangement, shaft configuration, connector configuration, and option package.

Model Portion	General Interpretation
MPL	MP-Series low-inertia servo motor
B430	115 mm frame / B430 motor family
P	5000 rpm speed class
H	Incremental encoder configuration
J	Keyed shaft configuration
7	SpeedTEC DIN connector configuration
2	No integral brake
AA	Configuration suffix

The model code is especially useful when comparing closely related products. For example, changing the brake-related designation can turn a no-brake motor into a brake-equipped configuration, while changing the feedback designation can move from incremental feedback to single-turn or other feedback technologies.

---

22. Advantages for Machine Builders

From a machine-builder perspective, the MPL-B430P-HJ72AA has several practical advantages.

First, its 5000 rpm speed rating provides flexibility for fast machine cycles.

Second, its 115 mm frame provides a useful balance between physical size and motor capability.

Third, the 76.2 mm magnet stack provides a substantial active motor length while remaining within the B430 frame family.

Fourth, the low-inertia design is well matched to repeated acceleration and deceleration.

Fifth, the keyed shaft provides a familiar mechanical interface.

Sixth, the absence of a brake makes the motor simpler when load holding is not required.

Finally, the right-angle rotatable connector can make the motor easier to install in compact machinery.

---

23. Advantages for Maintenance and Replacement

The MPL-B430P-HJ72AA is also relatively straightforward to evaluate when replacing an existing servo motor.

The major items that need to match are:

• Motor frame size
• Magnet stack length
• Rated speed
• Continuous torque
• Feedback type
• Feedback resolution
• Shaft configuration
• Brake configuration
• Connector configuration
• Mounting arrangement
• Voltage class
• Drive compatibility
• Cable compatibility

A replacement motor should never be selected based only on the fact that the mounting flange appears to be the same.

The feedback type is particularly important. An incremental encoder motor cannot automatically be treated as a direct substitute for an absolute-feedback motor.

---

24. Installation Considerations

The motor should be mounted on a mechanically rigid surface capable of handling the torque and dynamic forces generated during operation.

The shaft should be aligned carefully with the driven equipment.

Misalignment can create excessive radial or axial loads on the motor bearings and can lead to premature mechanical problems.

The motor cable should also be routed in a way that prevents excessive bending, pulling, abrasion, or interference with moving machine components.

Because the connector is located at the motor end, sufficient clearance should be provided around the right-angle connector for installation and maintenance.

---

25. Cable and Connector Considerations

The SpeedTEC DIN connector provides a practical connection arrangement for industrial servo installations.

Before replacing a motor, the existing cable configuration should be checked.

A motor can have the correct frame, speed, and torque while still being unsuitable for a particular machine because of a connector or feedback mismatch.

The feedback cable is especially important because the 2000-line incremental encoder configuration requires the correct feedback interface and compatible control hardware.

---

26. Mechanical Load Considerations

Selecting a servo motor is not simply a matter of matching motor power.

The actual load should be evaluated in terms of:

• Continuous torque
• Peak torque
• Acceleration torque
• Deceleration torque
• Load inertia
• Reflected inertia
• Operating speed
• Duty cycle
• Number of starts and stops
• Direction changes
• Gear ratio
• Mechanical efficiency
• Thermal conditions

For applications with frequent acceleration and deceleration, the peak torque requirement may be more important than the average running torque.

For continuous operation, the continuous torque and thermal loading become more important.

---

27. Applications Where the HJ72AA Is Particularly Attractive

The MPL-B430P-HJ72AA is especially attractive when the following conditions apply:

The machine needs 5000 rpm.

This is one of the main reasons to choose the B430P configuration.

The machine needs approximately 6.55 N·m continuous torque.

This gives the motor useful capability without moving to a much larger frame.

The machine uses incremental feedback.

The integrated 2000-line encoder makes the motor suitable for control architectures designed around incremental feedback.

The machine does not need a holding brake.

This is the defining difference between the HJ72AA and brake-equipped variants.

The machine uses a keyed mechanical connection.

The keyed shaft works well with conventional couplings and mechanical transmissions.

The machine has limited installation space.

The 115 mm frame and compact overall design can be useful in machines where cabinet and mechanical space are limited.

---

28. Applications Where Another Model May Be Better

The HJ72AA is not automatically the best choice for every application.

For a vertical axis where the load can fall under gravity, a brake-equipped model such as the MPL-B430P-HJ74AA may be more appropriate.

For a system requiring single-turn high-resolution feedback, the MPL-B430P-SJ72AA may be preferable.

For a system requiring both single-turn feedback and a holding brake, the MPL-B430P-SJ74AA is a better match.

For a system requiring multi-turn feedback, a suitable MJ-series configuration should be evaluated.

This is one of the advantages of the MPL family: the motor platform provides several configuration choices without forcing the machine designer to move to a completely different motor family.

---

29. Product Selection Guide

Requirement	Recommended Configuration
5000 rpm + incremental encoder + no brake	MPL-B430P-HJ72AA
5000 rpm + incremental encoder + brake	MPL-B430P-HJ74AA
5000 rpm + single-turn feedback + no brake	MPL-B430P-SJ72AA
5000 rpm + single-turn feedback + brake	MPL-B430P-SJ74AA
5000 rpm + multi-turn feedback	MPL-B430P-MJ-series
Smaller motor requirement	MPL-B420P-series
Vertical holding application	Brake-equipped configuration
Horizontal high-speed axis	MPL-B430P-HJ72AA

---

30. Important Lifecycle Information

The MPL-B430P-HJ72AA has been discontinued, with the discontinuation date listed as July 23, 2024.

The listed engineering replacement is MPL-B430P-SJ72AA.

This is important if the motor is being purchased for a new machine rather than used strictly as a replacement.

For an existing machine, the original HJ72AA may still be relevant when maintaining the installed configuration.

For a new design, however, the replacement model should be evaluated carefully because the feedback configuration differs. The fact that a replacement is physically related does not automatically mean that it can be installed without checking the servo drive and control system.

---

31. Replacement Checklist

Item	MPL-B430P-HJ72AA Requirement
Model	MPL-B430P-HJ72AA
Voltage	400 V class
Armature Voltage	460 V
Rated Speed	5000 rpm
Continuous Torque	6.55 N·m
Continuous Power	Approx. 2.2 kW
Feedback	2000-line incremental
Frame	115 mm
Stack	76.2 mm
Shaft	Keyed
Brake	No
Connector	SpeedTEC DIN
Connector Direction	Right-angle
Connector Rotation	180°
Mounting	IEC Metric
Mounting Holes	Type FF
Housing	IP66
Approx. Weight	6.1–6.4 kg
Shaft Seal	No
Rotor Inertia	Approx. 0.00038 kg·m²

---

32. Overall Product Advantages

The MPL-B430P-HJ72AA has a clear set of characteristics that make it attractive for industrial automation.

Its 5000 rpm speed makes it suitable for fast machine cycles.

Its 6.55 N·m continuous torque gives it useful output capability within a 115 mm frame.

Its low rotor inertia helps the motor respond quickly to acceleration and deceleration commands.

Its 2000-line incremental encoder provides feedback for closed-loop motion control.

Its keyed shaft offers a familiar mechanical connection.

Its no-brake configuration is suitable for applications where a holding brake is unnecessary.

Its right-angle rotatable connector can simplify cable routing.

Its 115 mm frame and 76.2 mm stack provide a practical size for many industrial machine applications.

Together, these characteristics make the motor particularly well suited to high-speed automated equipment.

---

33. Final Summary

The Allen-Bradley MPL-B430P-HJ72AA is a 5000 rpm, 400 V-class, low-inertia brushless AC servo motor designed for industrial motion-control applications.

Its principal specifications include a 115 mm frame, 76.2 mm magnet stack, 6.55 N·m continuous torque, approximately 2.2 kW continuous power, 2000-line incremental encoder, keyed shaft, SpeedTEC DIN right-angle connector, and no integral brake.

The motor is particularly well suited to packaging machinery, automated assembly, rotary indexing, material handling, pick-and-place systems, high-speed feeding equipment, converting machinery, and general machine automation.

The lack of a brake makes the HJ72AA especially suitable for horizontal axes and other applications where the load does not need to be mechanically held by the motor.

For applications requiring a brake, the HJ74AA configuration is the more appropriate choice.

For applications requiring single-turn high-resolution feedback, the SJ72AA or SJ74AA configurations provide alternatives.

The most important point when selecting or replacing this motor is to evaluate the complete configuration rather than relying only on the frame size. Speed, torque, feedback, shaft type, brake, connector, voltage, mounting, and drive compatibility all need to match the actual machine.

From a practical engineering standpoint, the MPL-B430P-HJ72AA is best characterized as a compact, high-speed, low-inertia 5000 rpm servo motor with incremental feedback and no integral brake, intended for machines where fast and repeatable motion is more important than mechanical load holding.
