Product Overview

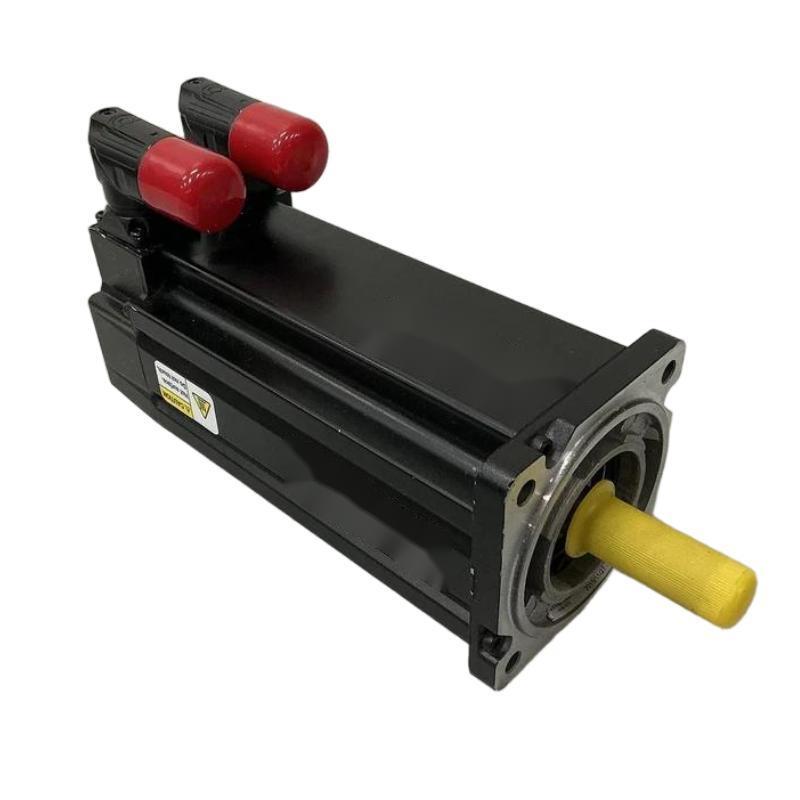

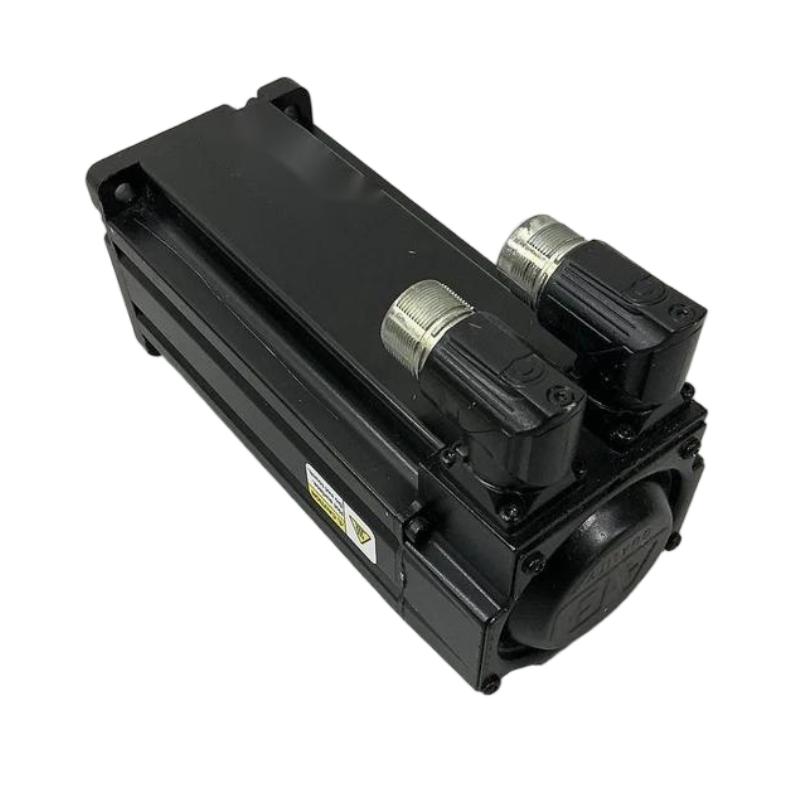

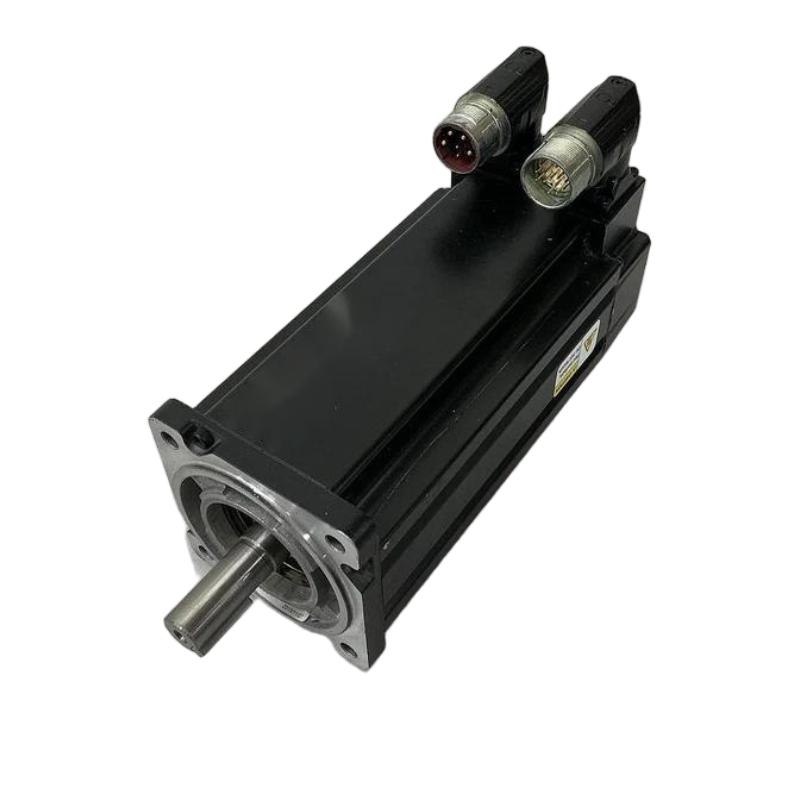

The Allen Bradley MPL-A330P-HJ74AA Servo Motor is a premium industrial AC brushless servo motor designed for high-precision motion control applications in advanced automation systems. As part of the Allen Bradley MP-Series (MPL) servo motor portfolio, this model combines high torque density, low rotor inertia, and advanced encoder technology to provide exceptional positioning accuracy, rapid dynamic response, and reliable continuous-duty operation.
Built with a 100 mm frame size and weighing 4.6 kg, the MPL-A330P-HJ74AA is engineered to integrate seamlessly with Allen Bradley Kinetix servo drives and Logix-based motion control platforms. The motor features a high-resolution absolute encoder, a keyed shaft configuration, and an integrated 24 V DC holding brake, making it particularly suitable for vertical-axis applications and machines that require secure load holding during emergency stops or power interruptions.
Its rugged industrial construction and excellent servo performance make it an ideal solution for robotics, CNC machine tools, packaging equipment, electronic assembly systems, pharmaceutical production, semiconductor manufacturing, printing machinery, and automated material handling systems.
Technical Specifications

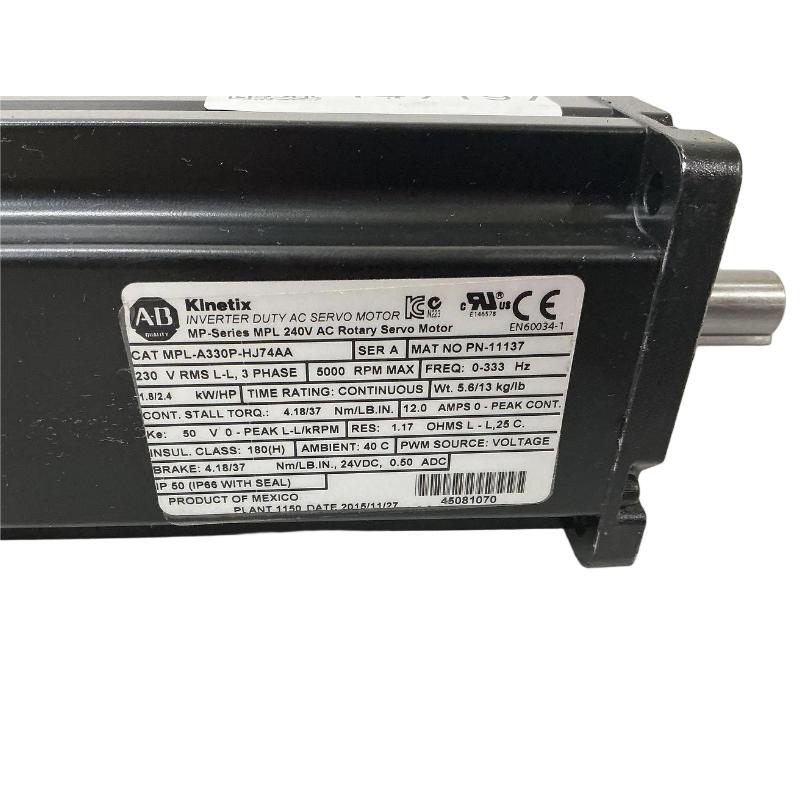

| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Model | MPL-A330P-HJ74AA |
| Product Series | MP-Series MPL |
| Product Type | AC Brushless Servo Motor |
| Frame Size | 100 mm |
| Voltage Class | 230 V AC |
| Motor Design | Low-Inertia Servo Motor |
| Rated Speed | 3000 RPM |
| Continuous Rated Power | 1.8 kW |
| Continuous Stall Torque | 5.73 Nm |
| Peak Torque | 15.8 Nm |
| Feedback Type | High-Resolution Absolute Encoder |
| Shaft Type | Keyed Shaft |
| Brake | Integrated 24 V DC Holding Brake |
| Mounting | IEC Metric Flange Mount |
| Connector Type | SpeedTEC Rotatable Connector |
| Cooling Method | Natural Air Cooling |
| Protection Class | IP50 (IP66 with optional shaft seal) |
| Weight | 4.6 kg |
| Application | Precision Industrial Motion Control |
Function and Working Principle
The Allen Bradley MPL-A330P-HJ74AA servo motor converts electrical power into highly accurate rotary motion through a closed-loop digital servo control system. During operation, a compatible Allen Bradley Kinetix servo drive continuously monitors encoder feedback and dynamically regulates motor current to achieve precise control of position, speed, and torque.
The integrated high-resolution absolute encoder continuously detects shaft position and rotational speed. This real-time information is transmitted to the servo controller, which compares the actual motor position with the programmed command position. Any deviation is corrected instantly, ensuring exceptional positioning accuracy, smooth motion, and rapid response under changing load conditions.
The integrated 24 V DC holding brake automatically locks the motor shaft whenever power is removed or the machine enters a safe stop condition. This feature enhances machine safety and prevents unwanted movement of vertically mounted loads.
Key operating advantages include:
- High-speed positioning
- Fast acceleration and deceleration
- Smooth torque output
- Stable speed regulation
- Excellent positioning repeatability
- High dynamic response
These characteristics enable reliable operation in high-performance industrial automation systems requiring precise motion control.
Role in Industrial Control Systems
Within industrial automation systems, the MPL-A330P-HJ74AA functions as the primary servo actuator responsible for executing motion commands generated by PLCs, motion controllers, and servo drives.
The motor supports numerous advanced motion control functions, including:
- Precision positioning
- Speed regulation
- Torque control
- Electronic gearing
- Electronic cam synchronization
- Multi-axis coordinated motion
Its advanced feedback system enables precise synchronization of multiple servo axes, improving production efficiency, reducing cycle times, and enhancing product quality.
Industrial Applications
The Allen Bradley MPL-A330P-HJ74AA is widely used in modern industrial environments, including:
- Packaging and Filling Equipment
- Robotics and Automated Assembly
- CNC Machine Tools
- Semiconductor Manufacturing
- Electronics Production
- Pharmaceutical Machinery
- Food and Beverage Processing
- Printing and Converting Equipment
- Material Handling Systems
- Conveyor Automation
- Pick-and-Place Machines
- Textile Machinery
- Automotive Assembly Lines
- Warehouse Automation
- Precision Manufacturing Systems
The integrated holding brake makes this model particularly suitable for lifting mechanisms, Z-axis positioning systems, and other vertical-motion applications requiring safe load retention.
Installation and System Integration
Proper installation ensures optimum motor performance and long-term reliability.
Recommended installation procedures include:
- Secure the motor using the IEC metric flange mounting system.
- Align the shaft accurately with the driven equipment.
- Use precision flexible couplings to reduce mechanical stress.
- Connect motor power and encoder cables through the SpeedTEC connector system.
- Configure servo parameters within the compatible Kinetix servo drive.
- Verify encoder communication before commissioning.
- Test holding brake functionality prior to machine startup.
- Maintain adequate cooling and ventilation around the motor.
- Separate signal and power cables to minimize electromagnetic interference.
Correct installation improves positioning accuracy, reduces vibration, and extends overall system service life.
Compatible System Components
The MPL-A330P-HJ74AA is commonly integrated with:
- Allen Bradley Kinetix 300 Servo Drives
- Allen Bradley Kinetix 350 Servo Drives
- Allen Bradley Kinetix 5500 Servo Drives
- Allen Bradley Kinetix 5700 Servo Drives
- Allen Bradley Kinetix 6000 Servo Drives
- Allen Bradley Kinetix 6500 Servo Drives
- Allen Bradley ControlLogix Controllers
- Allen Bradley CompactLogix Controllers
- Allen Bradley GuardLogix Controllers
- MP-Series Motor Power Cables
- MP-Series Encoder Feedback Cables
- Allen Bradley Motion Interface Modules
- Precision Planetary Gearboxes
- Industrial Servo Couplings
These components together create a complete, high-performance motion control solution capable of delivering precise positioning, synchronized movement, and reliable industrial automation.
Recommended Alternative Models
| Model | Type | Key Feature | Typical Application |
|---|---|---|---|
| MPL-A330P-HJ72AA | AC Servo Motor | No Holding Brake | High-Speed Automation |
| MPL-A330P-MJ74AA | AC Servo Motor | Multi-turn Encoder, Holding Brake | Precision Motion Systems |
| MPL-A330P-MK74AA | AC Servo Motor | Keyless Shaft with Brake | Packaging & Robotics |
| MPL-A320P-HJ74AA | AC Servo Motor | Lower Torque Output | General Industrial Equipment |
| MPL-B330P-HJ74AA | AC Servo Motor | 460 V AC Version | Heavy-Duty Industrial Machinery |
Key Advantages
- Compact 100 mm frame for space-saving machine design
- Low-inertia rotor for fast acceleration and deceleration
- High-resolution absolute encoder for precise closed-loop control
- Integrated 24 V DC holding brake for enhanced operational safety
- Keyed shaft for secure mechanical power transmission
- Continuous-duty industrial construction
- Excellent positioning accuracy and repeatability
- Smooth torque output with rapid dynamic response
- Fully compatible with Allen Bradley Kinetix motion systems
- Designed for demanding industrial automation applications
Technical FAQs
What is the primary function of the MPL-A330P-HJ74AA?
It converts electrical energy into highly accurate rotary motion, enabling precise positioning, speed control, and torque regulation in industrial automation equipment.
Does the MPL-A330P-HJ74AA include a holding brake?
Yes. This model is equipped with an integrated 24 V DC holding brake, allowing the motor to securely hold its position whenever the servo system is powered down or enters a safe stop condition.
Which Allen Bradley control systems are compatible?
The servo motor is designed for use with Allen Bradley Kinetix servo drive families and ControlLogix, CompactLogix, and GuardLogix motion control platforms.
Conclusion
The Allen Bradley MPL-A330P-HJ74AA Servo Motor is a high-performance motion control solution developed for industrial automation systems that require exceptional positioning accuracy, rapid response, and dependable long-term operation. Featuring a 100 mm frame size, 230 V AC voltage class, 3000 RPM rated speed, 1.8 kW continuous output, 5.73 Nm continuous stall torque, a high-resolution absolute encoder, a keyed shaft, and an integrated 24 V DC holding brake, this servo motor delivers outstanding performance across a wide range of industrial applications.
Whether installed in robotic workstations, CNC machining centers, packaging machinery, semiconductor production equipment, pharmaceutical processing systems, or automated manufacturing lines, the MPL-A330P-HJ74AA provides the precision, reliability, and efficiency required to maximize productivity while supporting advanced industrial motion control.
