Product Overview

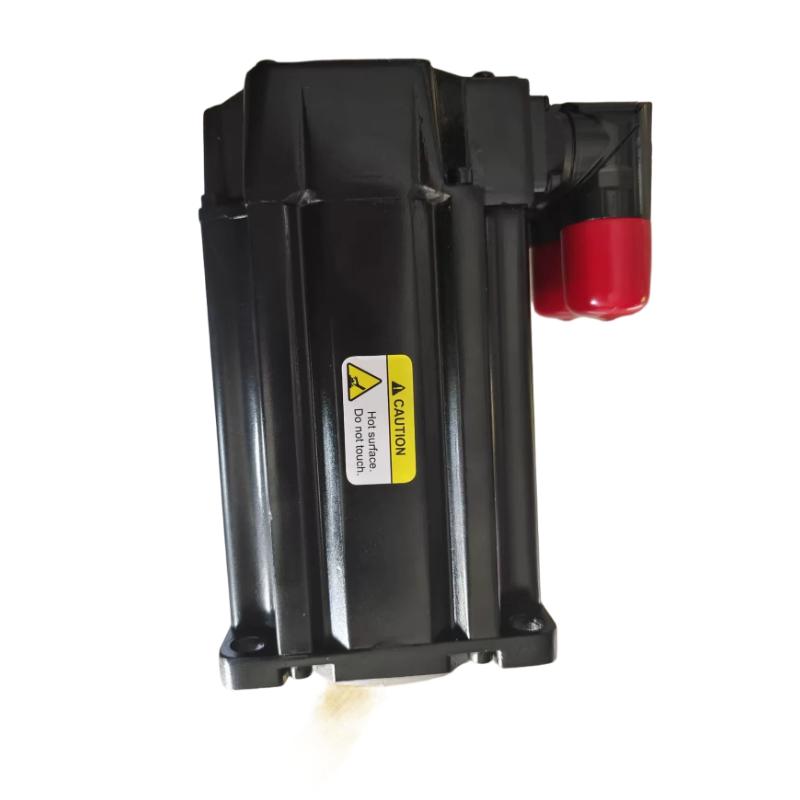

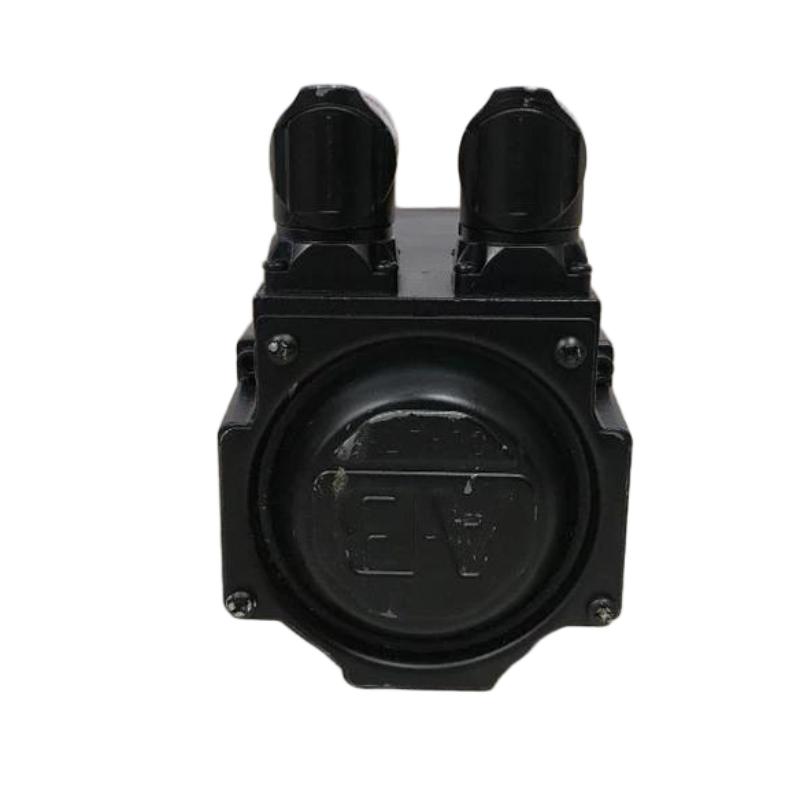

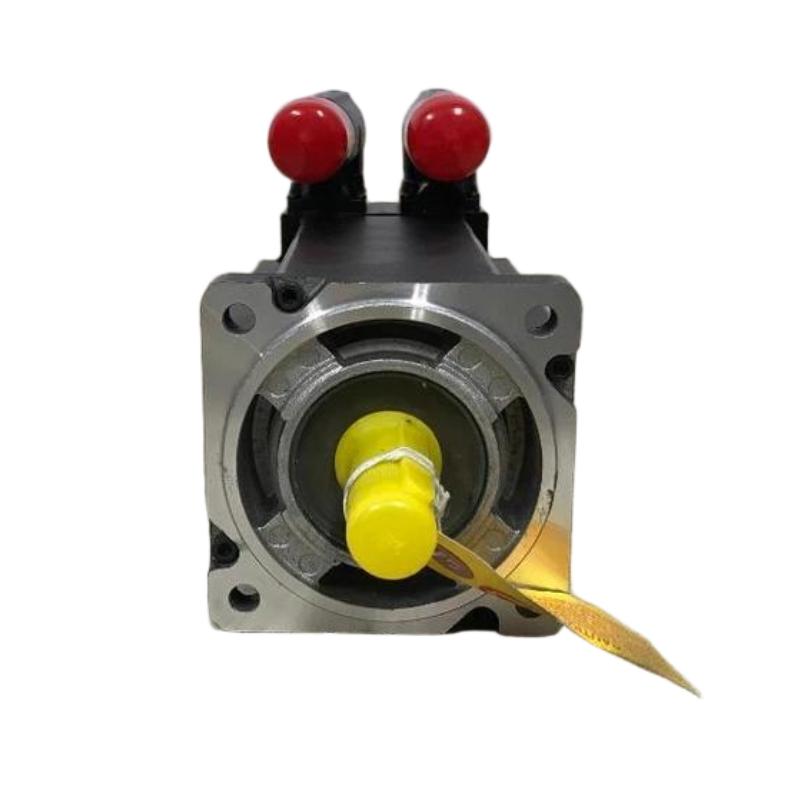

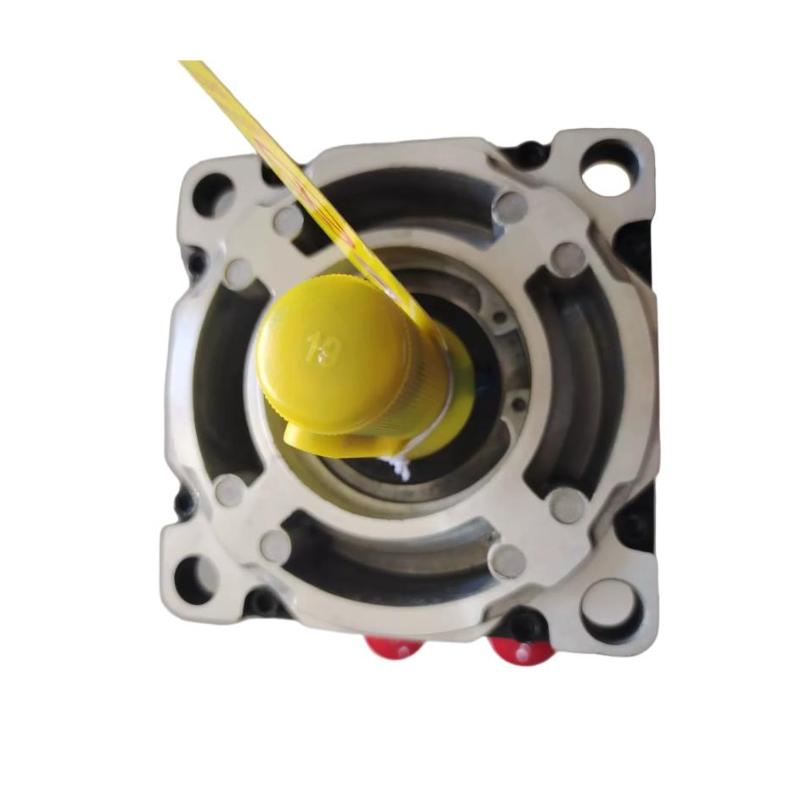

The Allen Bradley MPL-A330F-M-X212 Servo Motor is a high-performance AC brushless servo motor developed for precision industrial motion control applications. As a member of the Allen Bradley MP-Series (MPL) servo motor family, this model is designed to deliver exceptional positioning accuracy, rapid acceleration, and smooth torque output while ensuring long-term reliability in demanding industrial environments.
With its compact 63 mm frame size, rugged construction, and low-inertia rotor design, the MPL-A330F-M-X212 is ideal for automation equipment requiring fast response and highly repeatable motion. It integrates seamlessly with Allen Bradley Kinetix servo drive systems to provide closed-loop control for speed, position, and torque, making it suitable for advanced manufacturing systems where precision and productivity are critical.
The servo motor is widely used in robotics, CNC machinery, packaging systems, semiconductor production, pharmaceutical equipment, material handling systems, automated assembly lines, and precision manufacturing applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Model | MPL-A330F-M-X212 |
| Product Series | MP-Series MPL |
| Product Type | AC Brushless Servo Motor |
| Frame Size | 63 mm |
| Motor Design | Low-Inertia Servo Motor |
| Voltage Class | 230 V AC |
| Cooling Method | Natural Air Cooling |
| Shaft Type | Precision Servo Shaft |
| Mounting | IEC Metric Flange Mount |
| Feedback Type | High-Resolution Encoder |
| Protection Class | IP50 (IP66 with optional shaft seal) |
| Weight | 5.44 kg |
| Installation | Industrial Servo Motion Systems |
| Application | Precision Motion Control and Automation |
Function and Working Principle
The Allen Bradley MPL-A330F-M-X212 servo motor converts electrical energy into highly accurate rotary motion through a sophisticated closed-loop servo control system. During operation, a compatible Allen Bradley Kinetix servo drive continuously regulates motor current according to encoder feedback, ensuring precise control of speed, position, and torque.
The integrated feedback system continuously monitors the motor shaft position and sends real-time information to the servo controller. The controller compares the commanded position with the actual position and instantly adjusts motor output to eliminate positioning errors. This process provides smooth operation, excellent repeatability, and reliable motion even under rapidly changing load conditions.
The motor’s low-inertia rotor allows rapid acceleration and deceleration while minimizing overshoot and vibration. This design enables machines to achieve shorter production cycles, higher positioning precision, and improved overall efficiency.
Key operating characteristics include:
- High-speed positioning
- Accurate speed regulation
- Stable torque output
- Fast acceleration and deceleration
- Smooth rotary motion
- Excellent repeatability
Role in Industrial Control Systems
Within industrial automation systems, the MPL-A330F-M-X212 functions as the primary motion actuator responsible for executing motion commands generated by PLCs, motion controllers, and servo drives.
The motor supports a variety of advanced motion control functions, including:
- Precision positioning
- Continuous rotary motion
- Speed regulation
- Torque control
- Electronic gearing
- Multi-axis synchronization
Its high dynamic performance enables automated machinery to operate with greater precision, higher throughput, and improved product quality.
Industrial Applications
The Allen Bradley MPL-A330F-M-X212 is widely used across numerous industrial sectors, including:
- Robotics and Automation
- Packaging Machinery
- Semiconductor Manufacturing
- Electronics Assembly
- Pharmaceutical Equipment
- CNC Machine Tools
- Material Handling Systems
- Conveyor Automation
- Food and Beverage Processing
- Printing Machinery
- Textile Equipment
- Pick-and-Place Systems
- Automated Warehousing
- Precision Manufacturing
- Automotive Assembly Lines
Its compact dimensions and excellent dynamic performance make it particularly suitable for applications where installation space is limited but high precision is essential.
Installation and System Integration
Correct installation is essential for achieving optimum performance and long service life.
Recommended installation practices include:
- Secure the motor using the IEC metric flange.
- Align the motor shaft accurately with the driven equipment.
- Use precision couplings to reduce mechanical stress.
- Connect power and feedback cables according to Allen Bradley installation standards.
- Configure motor parameters within the compatible Kinetix servo drive.
- Verify encoder communication before machine commissioning.
- Ensure adequate ventilation around the motor.
- Keep power and signal cables separated to minimize electrical interference.
Following these installation procedures improves positioning accuracy, reduces vibration, and maximizes overall system reliability.
Compatible System Components
The MPL-A330F-M-X212 is commonly integrated with:
- Allen Bradley Kinetix 300 Servo Drives
- Allen Bradley Kinetix 350 Servo Drives
- Allen Bradley Kinetix 5500 Servo Drives
- Allen Bradley Kinetix 5700 Servo Drives
- Allen Bradley Kinetix 6000 Servo Drives
- Allen Bradley ControlLogix Controllers
- Allen Bradley CompactLogix Controllers
- Allen Bradley GuardLogix Controllers
- MP-Series Motor Power Cables
- MP-Series Feedback Cables
- Motion Interface Modules
- Industrial Servo Gearboxes
- Precision Couplings
- Motion Control Accessories
Together, these components create a complete motion control platform capable of delivering accurate positioning, synchronized movement, and reliable industrial automation performance.
Recommended Alternative Models
Depending on application requirements, the following Allen Bradley servo motors may also be considered:
| Model | Type | Key Feature | Application |
|---|---|---|---|
| MPL-A330F-M-X211 | AC Servo Motor | Similar Configuration | General Automation |
| MPL-A330P-MJ72AA | AC Servo Motor | 100 mm Frame Size | Precision Motion Control |
| MPL-A320P-MJ74AA | AC Servo Motor | Integrated Holding Brake | Packaging & Robotics |
| MPL-B330P-MJ74AA | AC Servo Motor | Higher Voltage Version | Heavy Industrial Equipment |
| MPF-A330F Series | Food Grade Servo Motor | Corrosion-Resistant Design | Food & Beverage Industry |
Key Advantages
- Compact 63 mm frame size
- High-performance low-inertia rotor
- High-resolution encoder feedback
- Excellent positioning accuracy
- Rapid acceleration and deceleration
- Smooth torque output
- Stable closed-loop motion control
- Compatible with Allen Bradley Kinetix motion systems
- Designed for continuous industrial operation
- Long service life with minimal maintenance requirements
Technical FAQs
What is the primary function of the MPL-A330F-M-X212?
It provides accurate rotary motion for industrial machinery operating within closed-loop servo control systems.
Which industries commonly use this servo motor?
It is widely used in robotics, packaging equipment, CNC machinery, semiconductor manufacturing, pharmaceutical production, and automated assembly systems requiring high-precision motion control.
Is the MPL-A330F-M-X212 suitable for continuous industrial operation?
Yes. It is designed for continuous-duty industrial applications, delivering reliable positioning accuracy, smooth motion, and dependable long-term performance.
Conclusion
The Allen Bradley MPL-A330F-M-X212 Servo Motor is a high-performance industrial motion control solution designed for precision, speed, and reliability. Featuring a compact 63 mm frame size, 230 V AC operation, a high-resolution encoder, and a rugged low-inertia design, it provides excellent positioning accuracy, smooth dynamic response, and stable operation in demanding industrial environments.
Whether installed in robotic systems, CNC machinery, packaging equipment, semiconductor production lines, pharmaceutical processing systems, or automated manufacturing facilities, the MPL-A330F-M-X212 delivers the performance, efficiency, and reliability required to maximize productivity while supporting advanced industrial automation.
